The next evolution of compact power and precision.
The ZXM500.4i is a compact Class-D mono amplifier that delivers 1000W Max, featuring new selectable load resistors, quick power connectors, and a 20V high-level input for seamless OEM integration. Choose auto or remote trigger start for maximum installation flexibility.
Features
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz - 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion (THD): < 1%

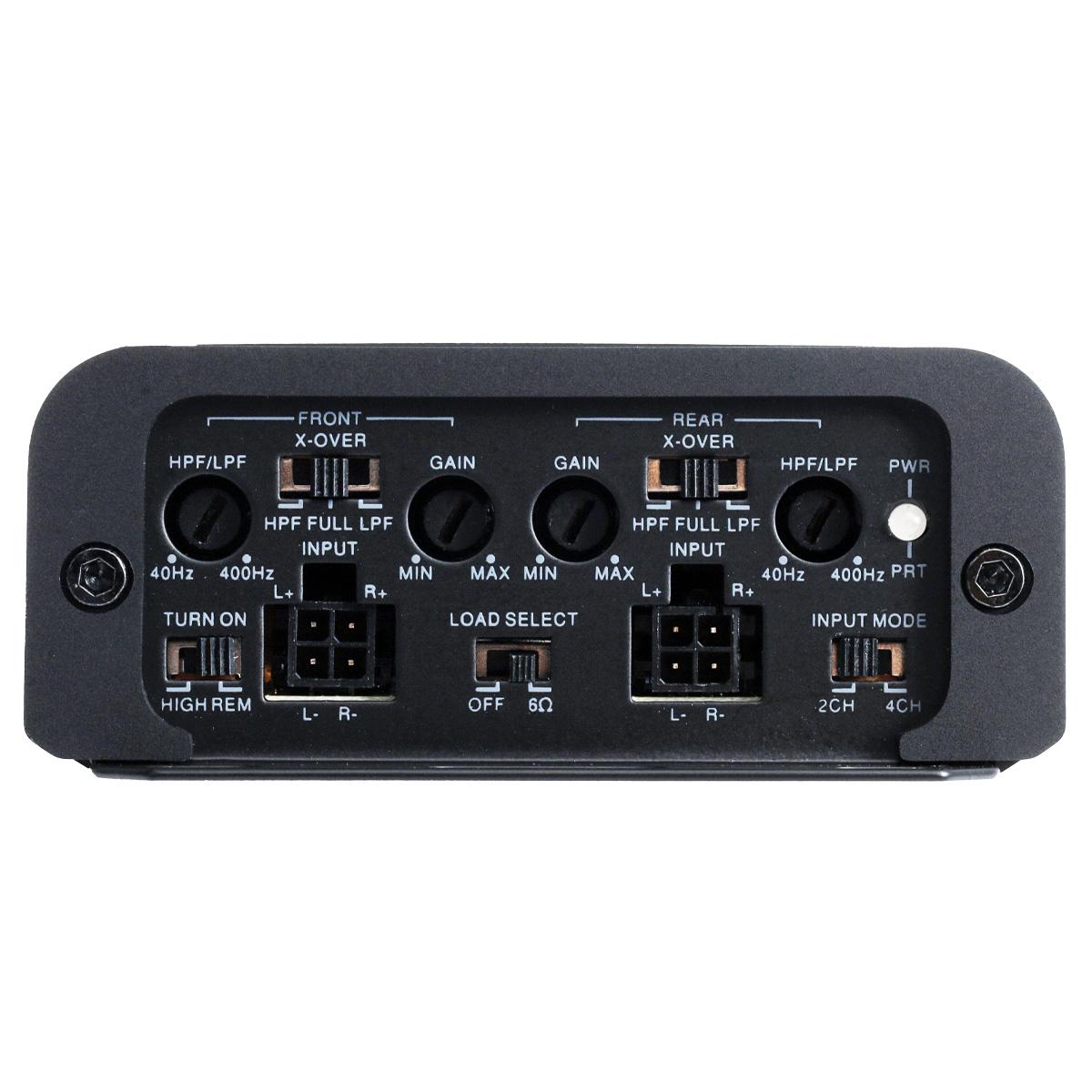

Low Pass Filter: 40Hz - 400Hz (12dB/Oct)
High Pass Filter: 40Hz - 400Hz (12dB/Oct)
Crosstalk:-45dB
Input Sensitivity:0.45V – 20V
High-Level Input Auto Turn-On
Input Mode: 2CH / 4CH
OIS - OEM Impedance Simulation:Yes
Operating Voltage:7V – 16.5V
Idle Current:0.70A
Current Draw (Max):48A
Total Efficiency (4Ω):90%

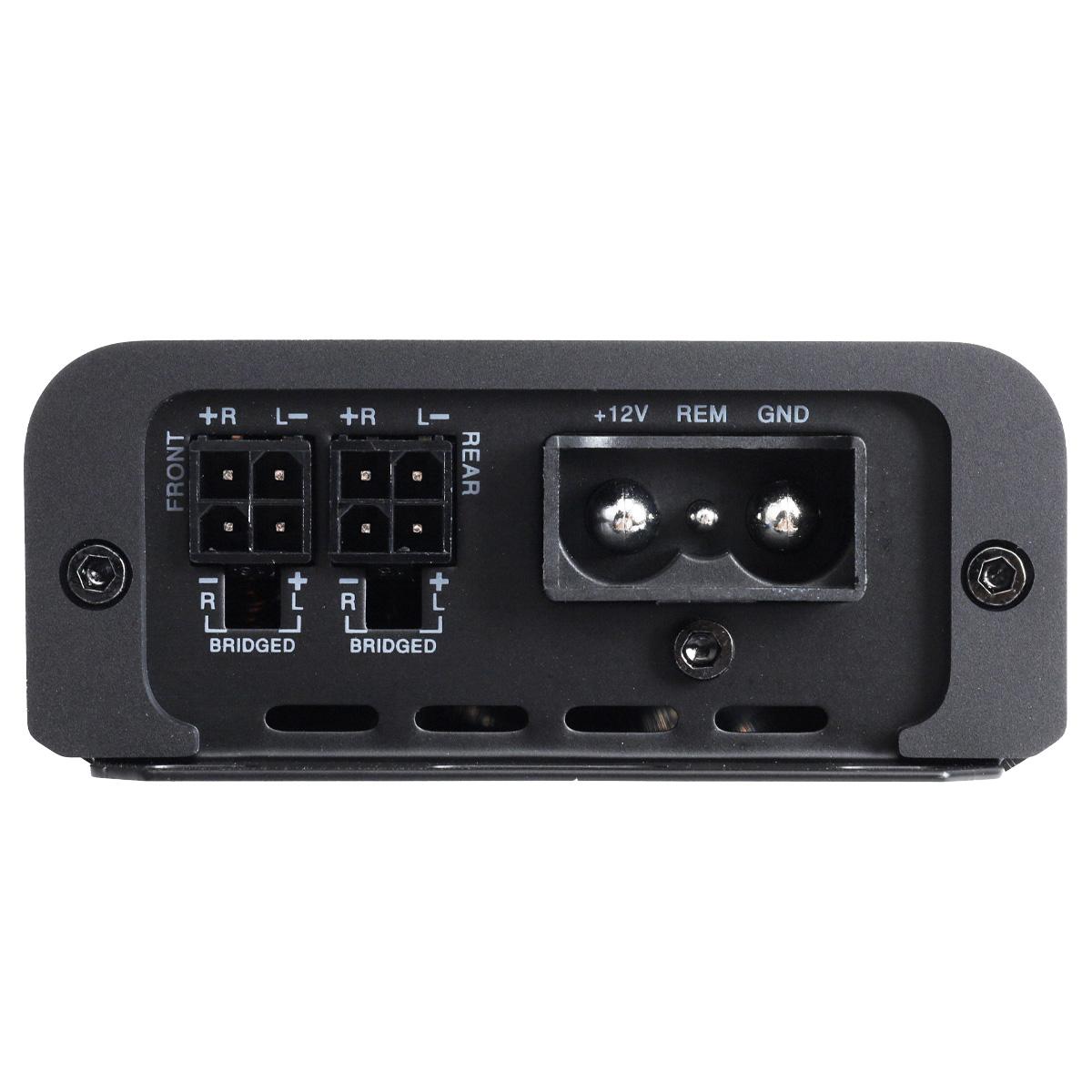

Power Terminal:10mm²
Speaker Terminal:1mm²
Dimensions (LxWxH) (Excluding Feet):149 x 83.1 x 34.8mm
Dimensions (LxWxH) (Including Feet):165 x 83.1 x 34.8mm
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
