Phoenix Gold

ZXM500.1I

Name: ZXM500.1I
Brand: Phoenix Gold
SKU: ZXM500.1i
Price: 169.99 GBP
Availability: InStock

£169.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

The next evolution of compact power and precision.

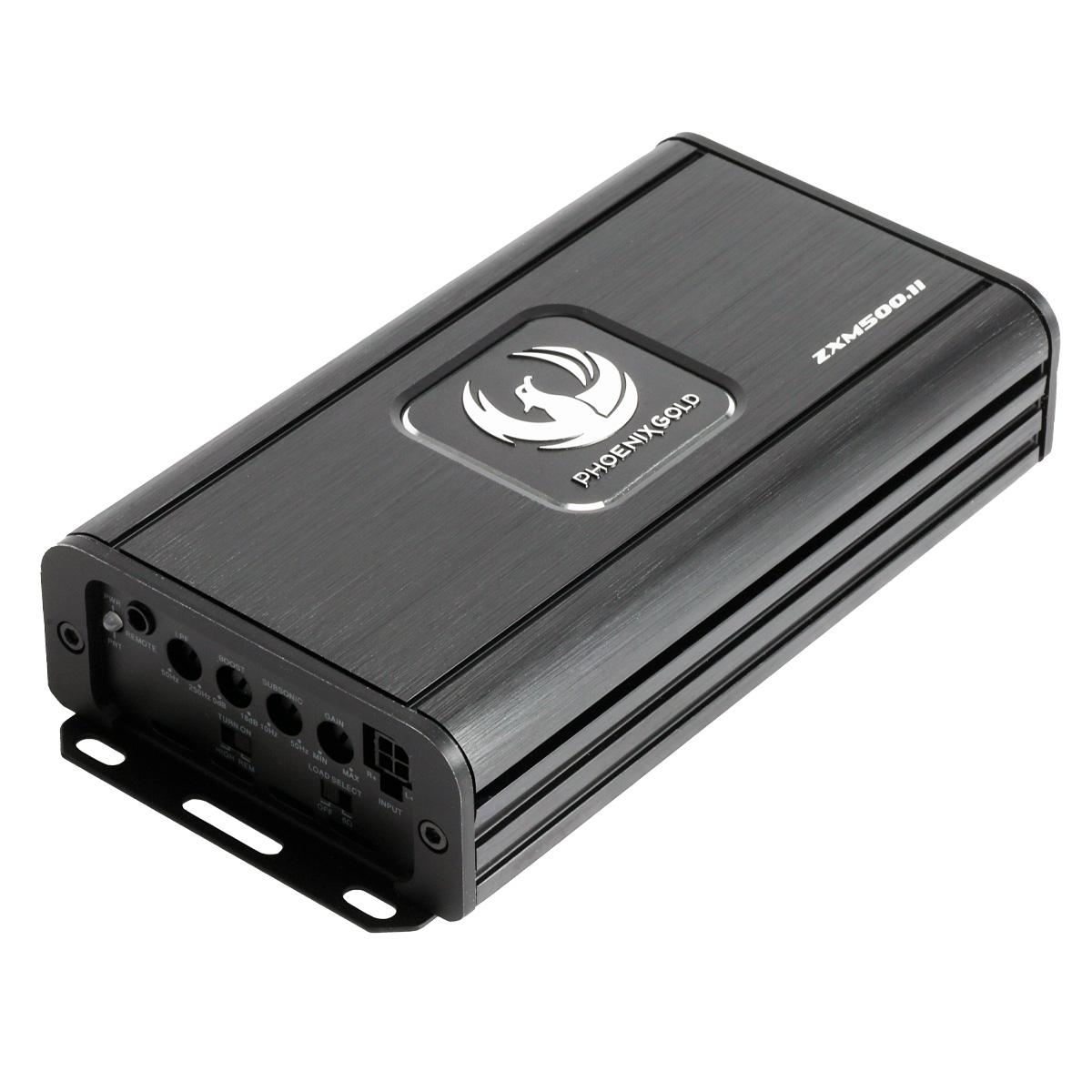

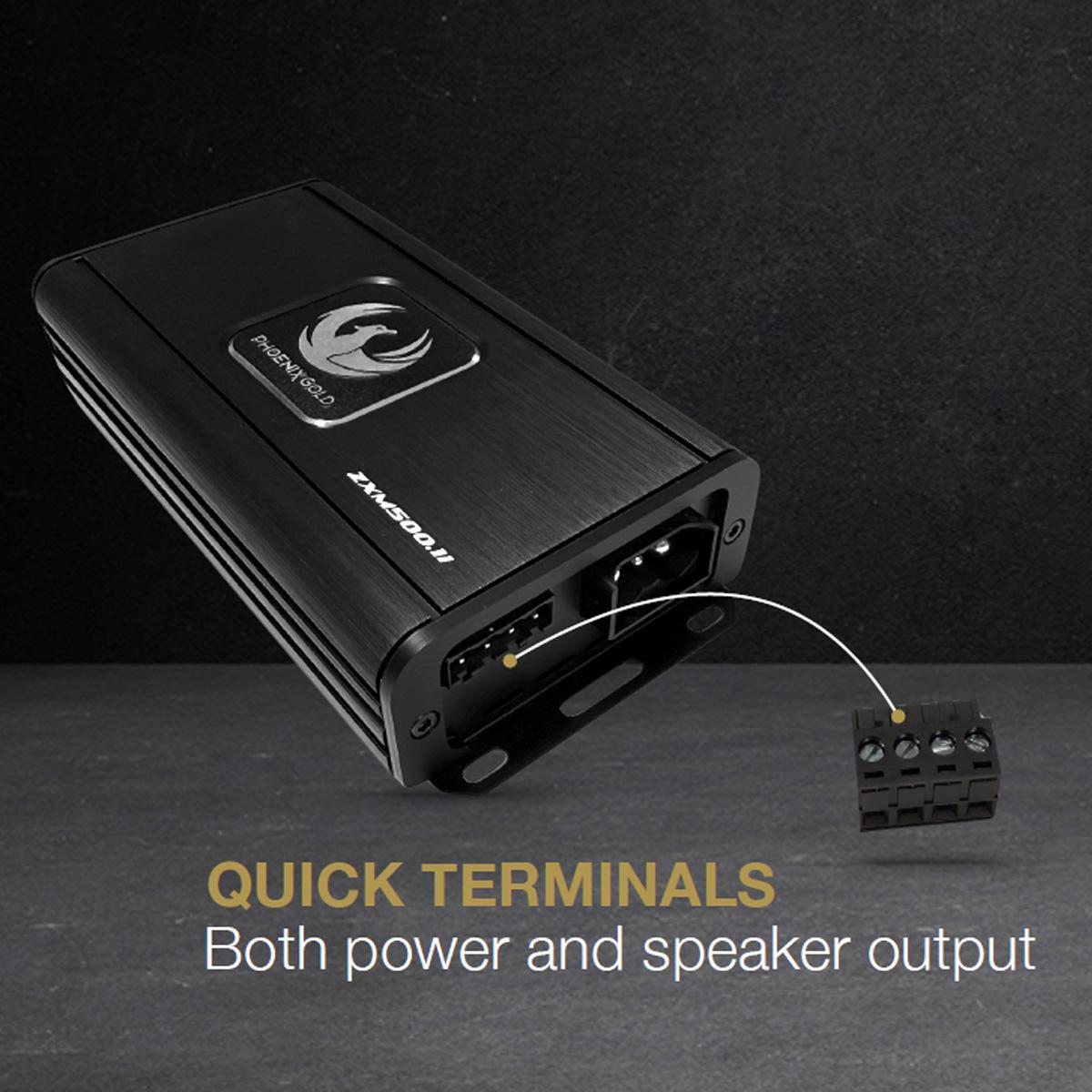

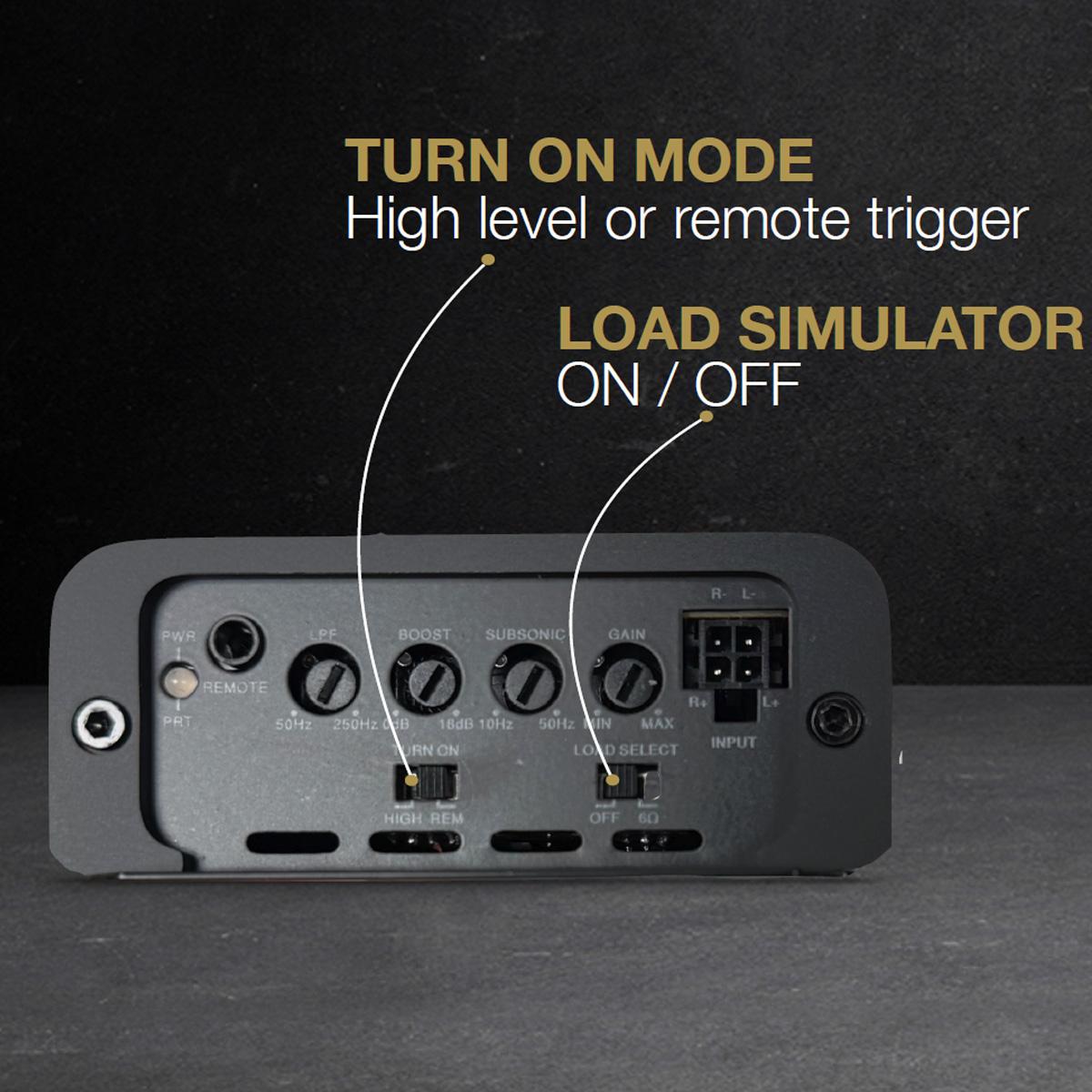

The ZXM500.1i is a compact Class-D mono amplifier that delivers 500W RMS at 1ω, featuring new selectable load resistors, quick power connectors, and a 20V high-level input for seamless OEM integration. Choose auto or remote trigger start for maximum installation flexibility.

Features

Class:	Class D
Channels:	1
Frequency Response:	10Hz – 280Hz
Max Power Rating:	1000W
RMS Power Rating (1Ω):	1 x 500W
RMS Power Rating (2Ω):	1 x 360W
RMS Power Rating (4Ω):	1 x 230W
Signal to Noise Ratio (SNR) (Full Power):	-82dB
Total Harmonic Distortion (THD):	<1%

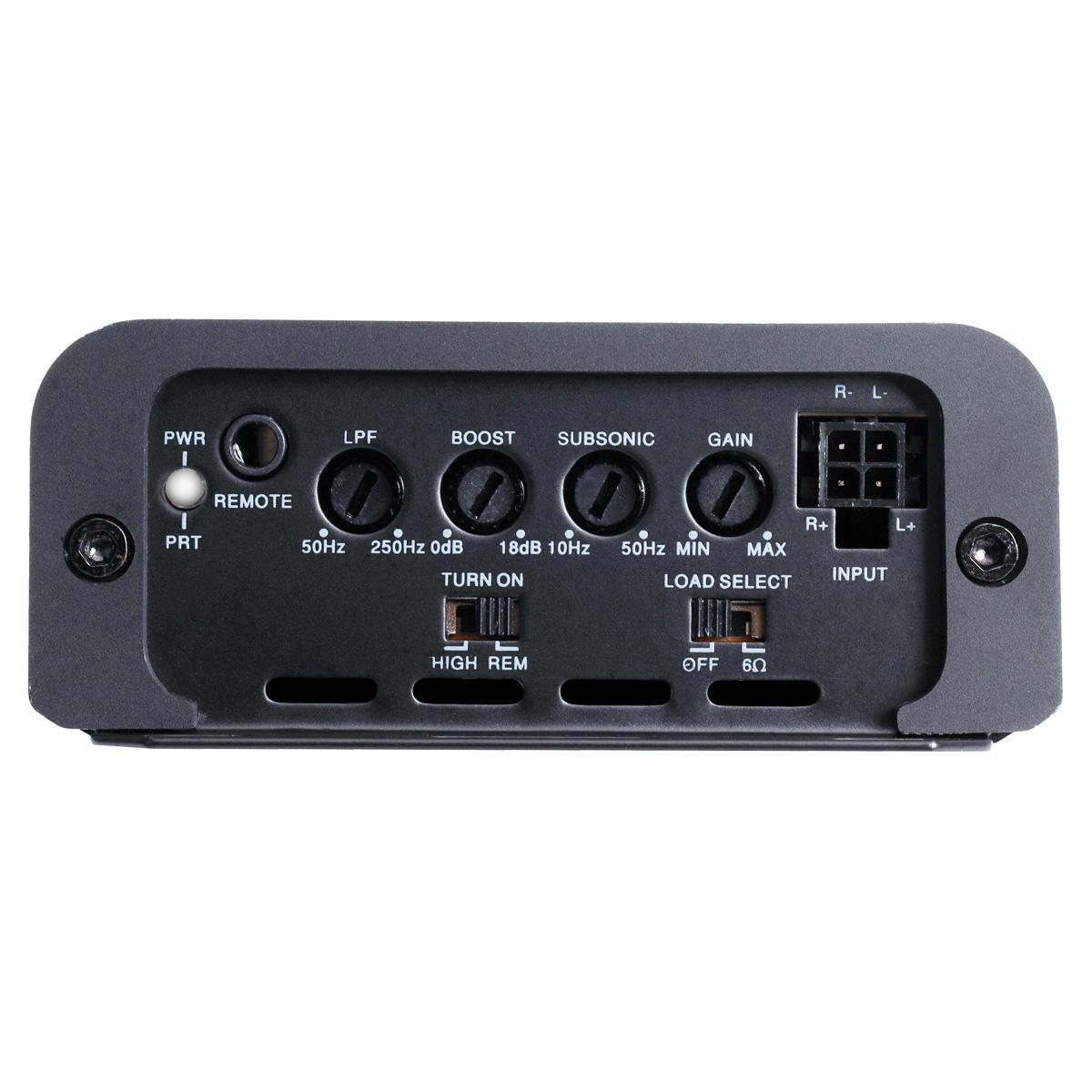

Low Pass Filter (LPF):	50Hz – 250Hz (12dB/Oct)
High Pass Filter (HPF):	N/A
Subsonic:	10Hz – 50Hz (12dB/Oct)
Bass Boost @ 45Hz:	0 – +18dB
Crosstalk:	N/A
Input Sensitivity:	0.45V – 20V
Remote:	Yes (Included)
High-level Input:	Yes
Auto Turn-on:	Yes
Input Mode:	N/A
OIS - OEM Impedance Simulation:	Yes
Operating Voltage:	7V – 16.5V
Idle Current:	0.51A
Current Draw (Max):	49A
Total Efficiency (4Ω):	92%

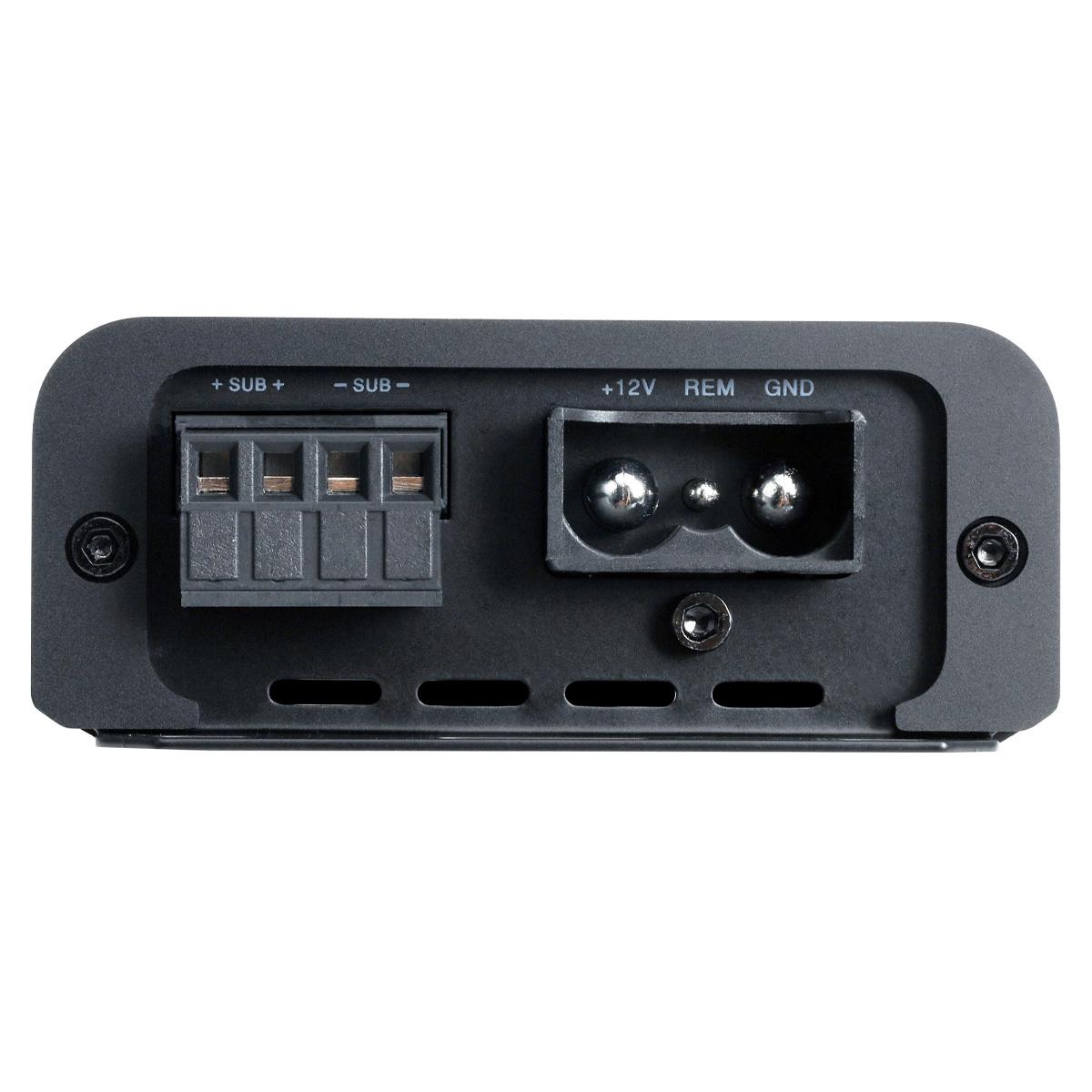

Power Terminal:	10mm²
Speaker Terminal:	10mm²

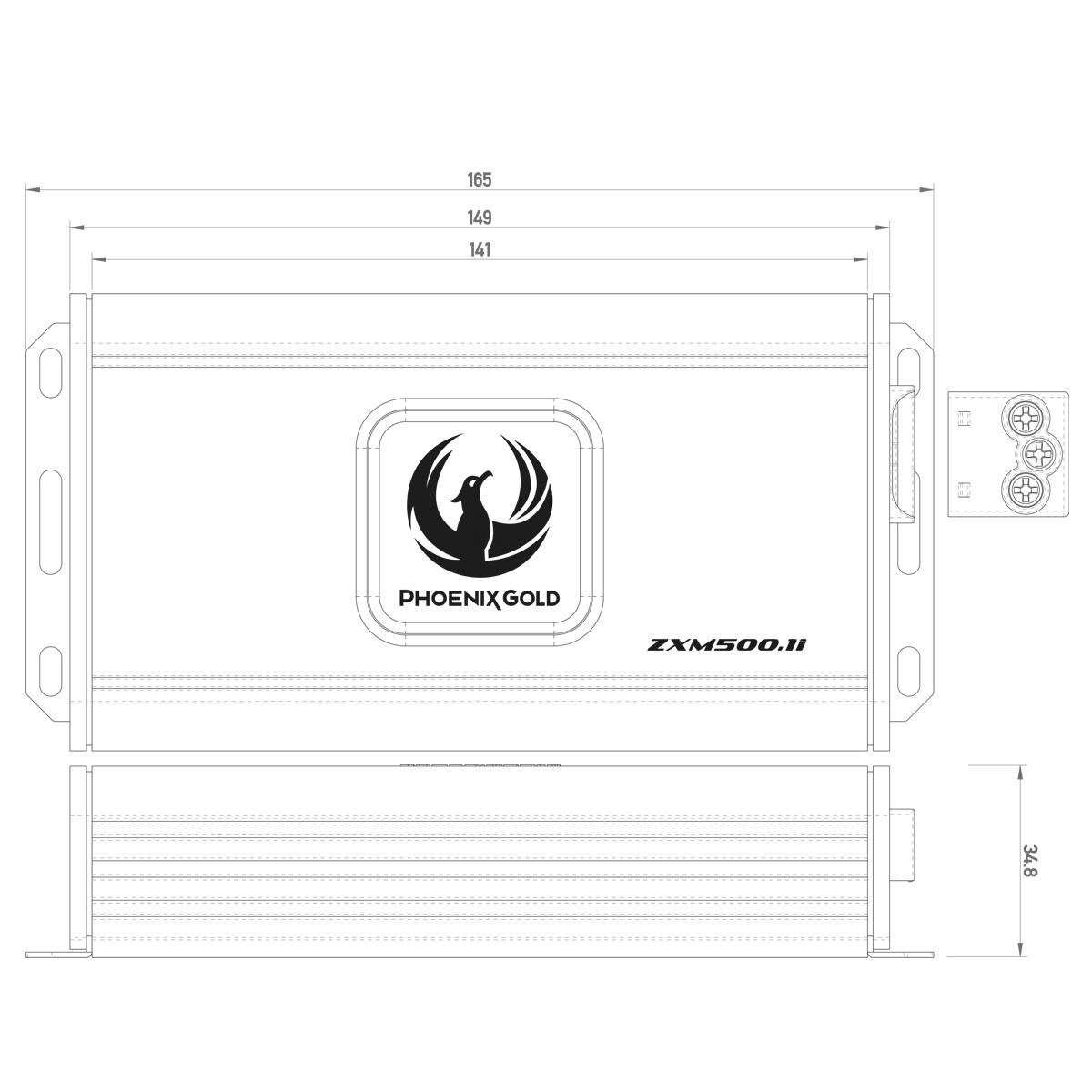

Dimensions (LxWxH) (Excluding Feet):	149 x 83.1 x 34.8mm
Dimensions (LxWxH) (Including Feet):	165 x 83.1 x 34.8mm
