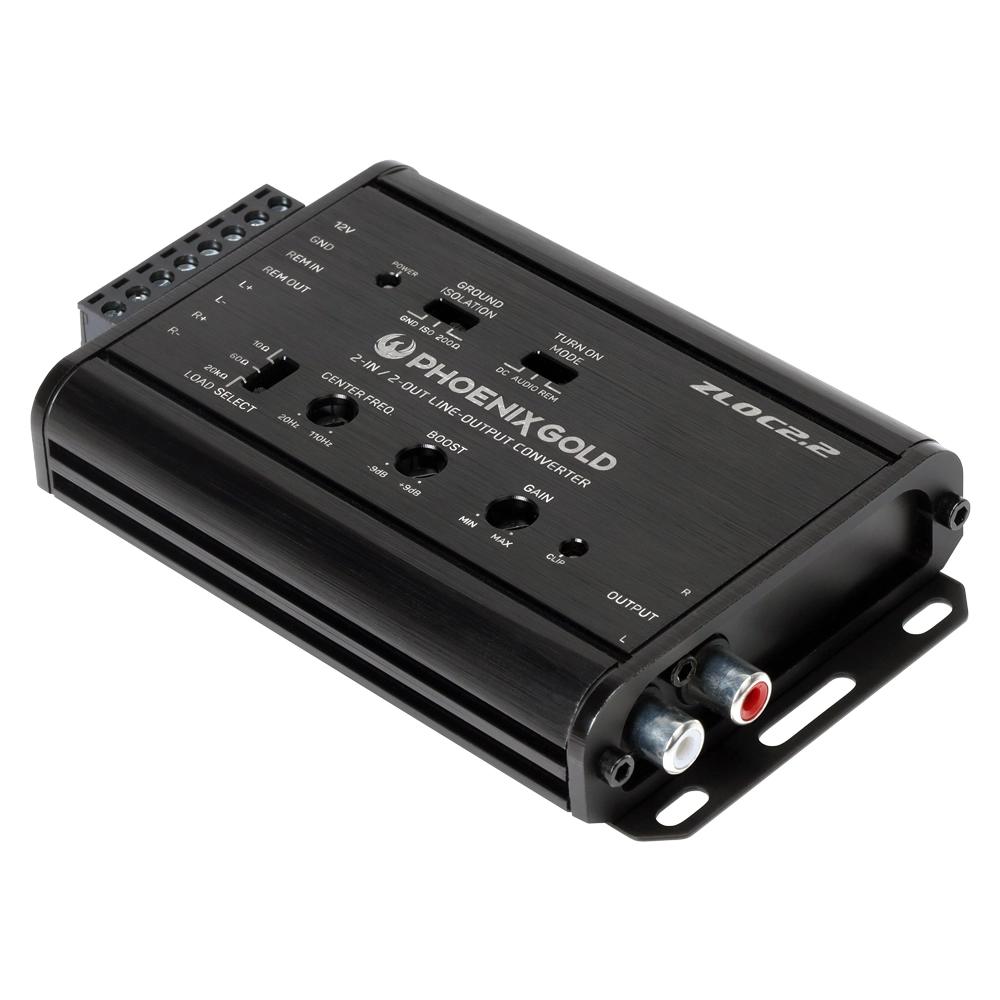

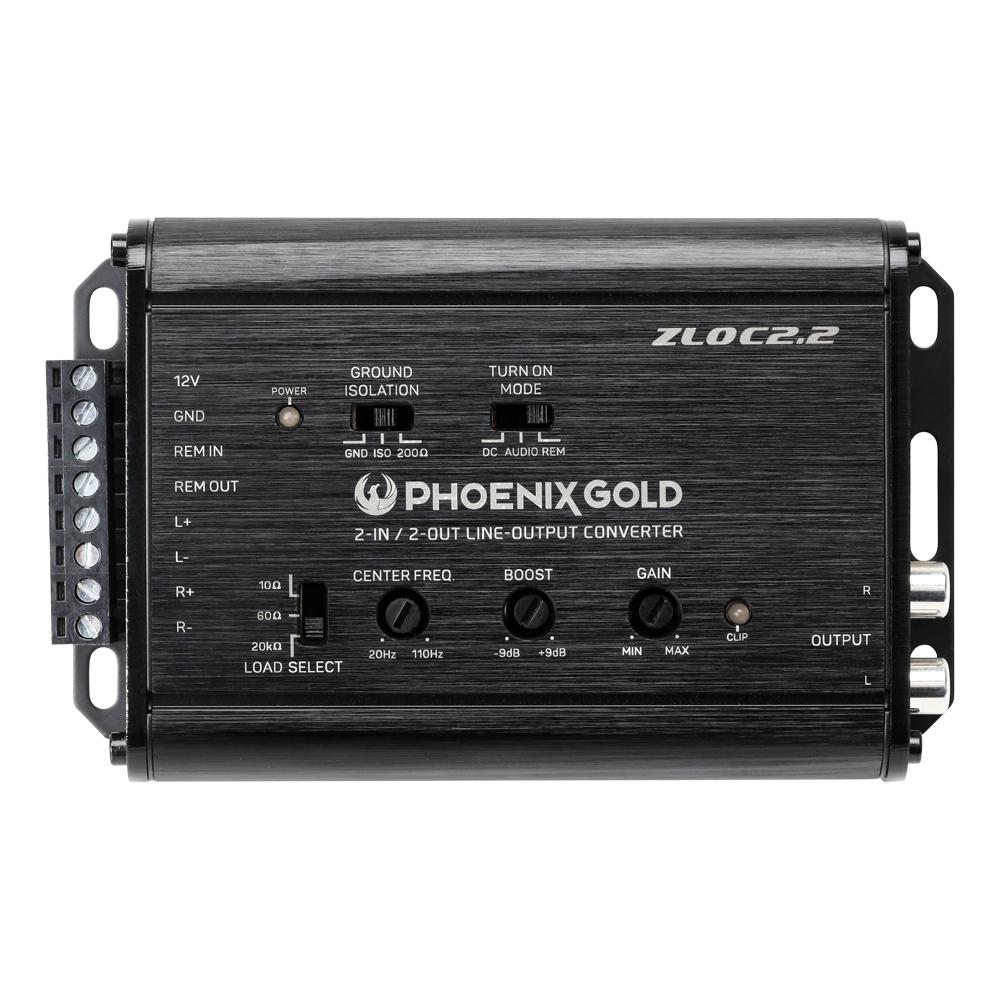

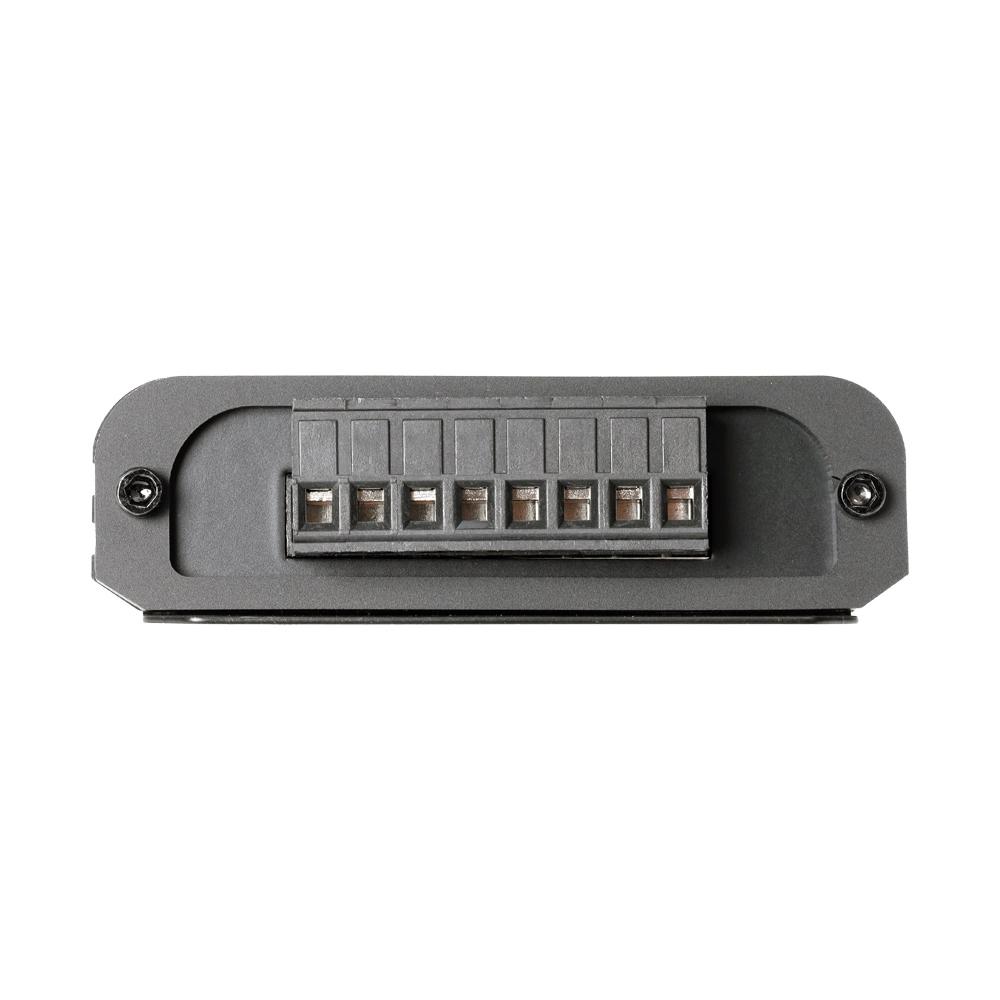

The ZLOC2.2 is the essential solution for enhancing your vehicle’s audio system. While many vehicles now come with integrated amplifiers, the original OEM system often falls short of performance.
Features
Specifications Speaker Input 2CH Outputs 4CH REM In Yes REM Out Yes Load Select 10-Ohm / 60-Ohm / 20K-Ohm Ground Isolation GND/ISO/200-Ohm Gain Yes,X1 Clipping Yes,X1 Center Frequency 20Hz-110Hz Bass Level -9 ~ +9dB Turn On Mode REM/DC/AUDIO Input Mode N/A Remote None Dimensions(LxWxH)mm 130.6x82x24.8mm Chassis Body Aluminum Operating Voltage 8 to 32V Input Sensitivity 0.5 to 32V Operating Voltage 8 to 32V Output Voltage Max. 7.5V @ 14.4V Max 40V as Input Must be 20K-ohm load Signal to Noise >100dB @6.4V output Input Impedance 10-Ohm / 60-Ohm / 20K-Ohm Frequency Response 10-30kHz THD+N <0.01% Output Impedance < 120-ohm Max Current Draw 120 - 150 mA Turn-On Trigger, DC 3 to 7V Gain -28 to 0dB Terminal Gauge Quick Connect /16# AWG
