Stetsom STX 2436 Bluetooth DSP Crossover & Equalizer 4 Output Channel Full Digital Signal Processor 2.4

Name: Stetsom STX 2436 Bluetooth DSP Crossover & Equalizer 4 Output Channel Full Digital Signal Processor 2.4
Brand: Stetsom
SKU: STX2436
Price: 126.17 GBP
Availability: OutOfStock

£126.17 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Items are special order and can take 2-4 weeks for arrival

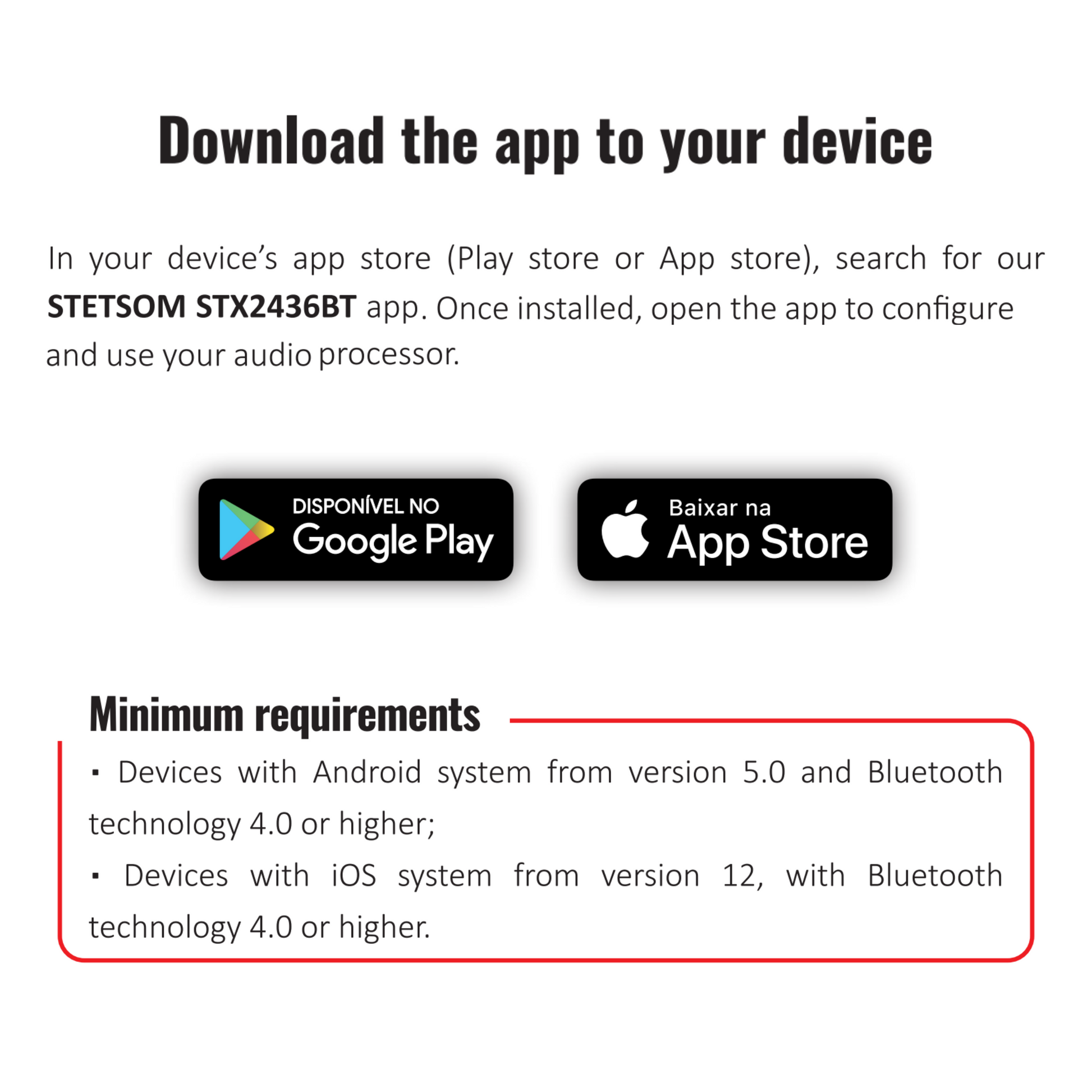

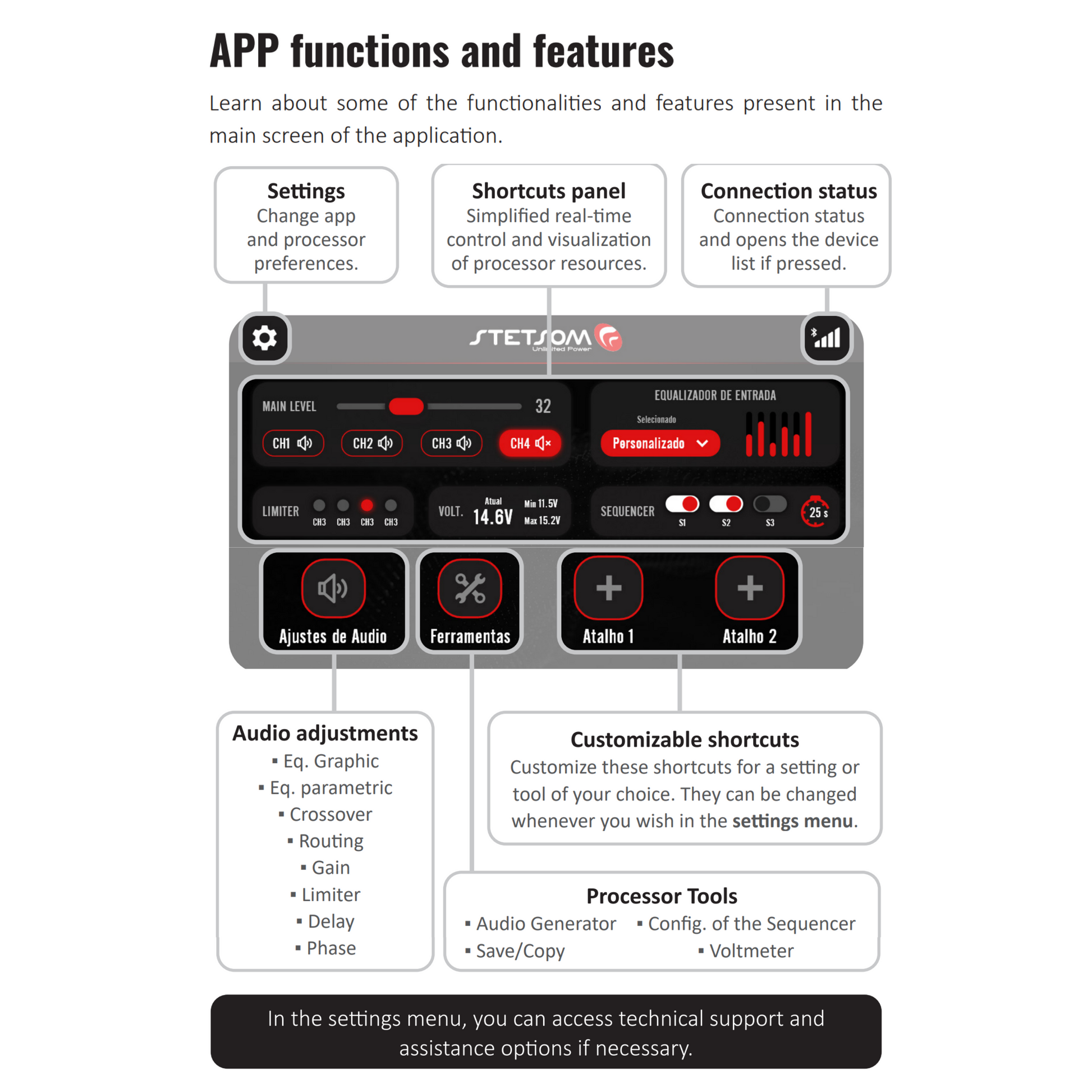

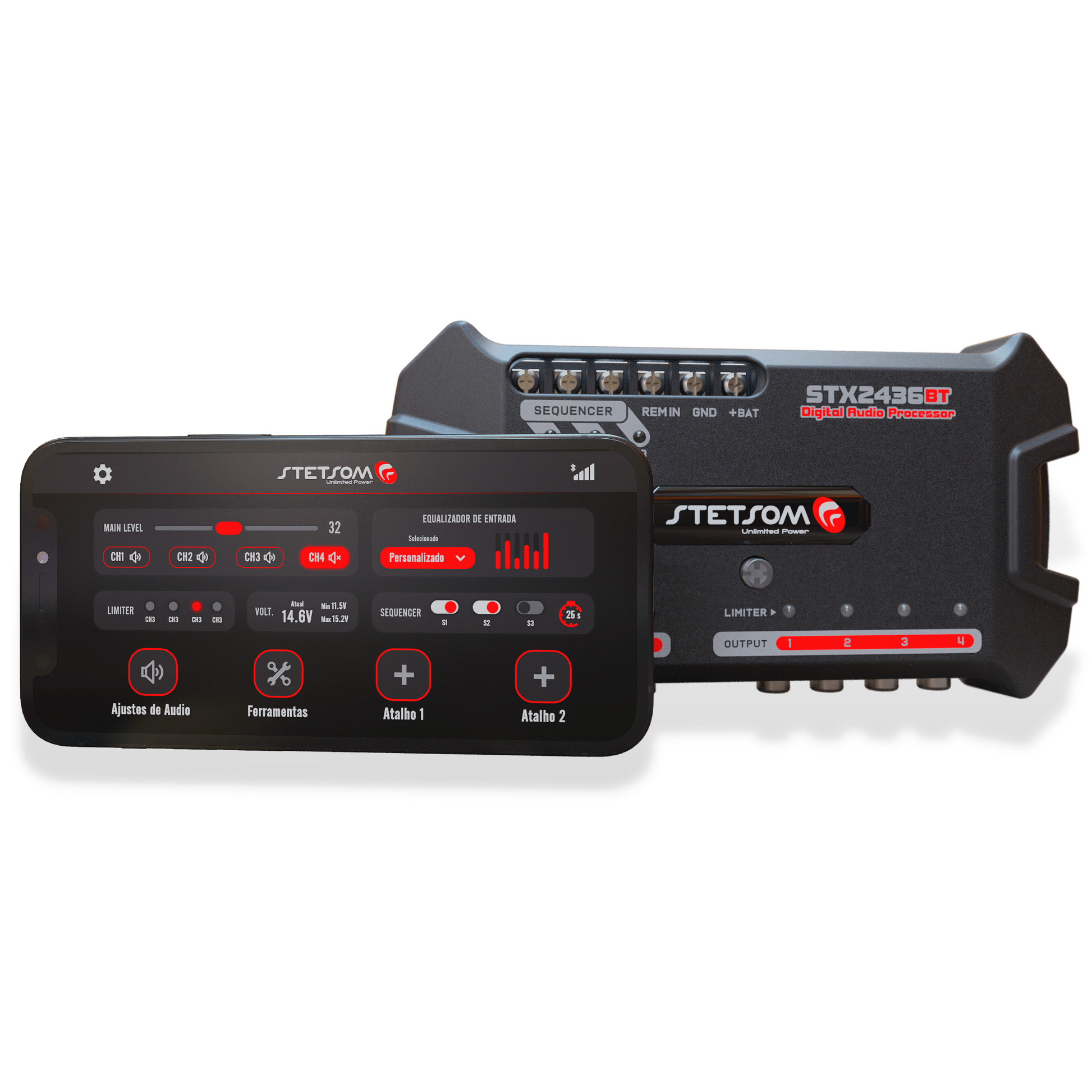

The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to enhance the performance of your audio system. Through Bluetooth communication, the processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modification of equalizations, crossover filters, alignment, gain control, phase inversion, limiter, digital input/output routing, and other treatments.

Its exclusive remote sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).

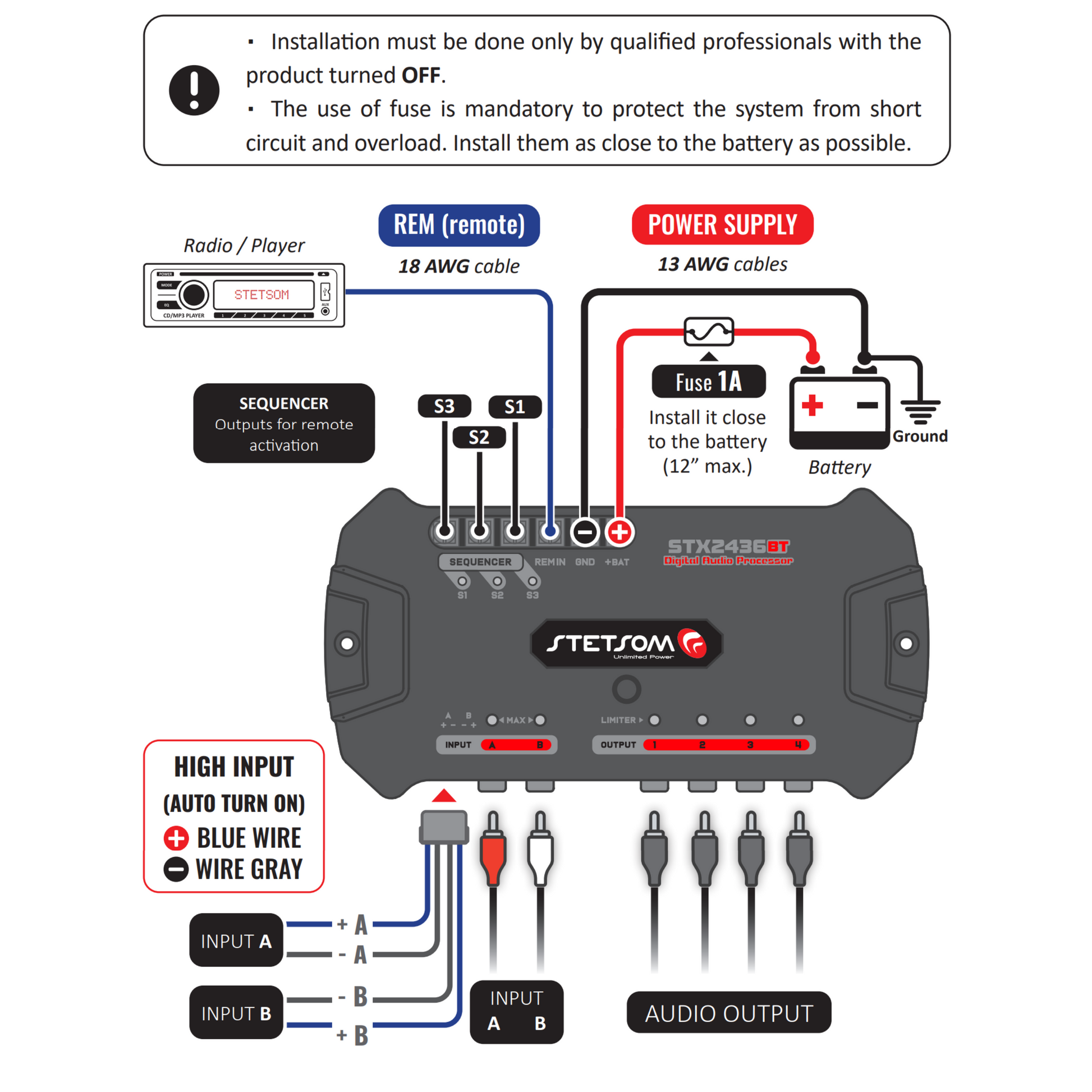

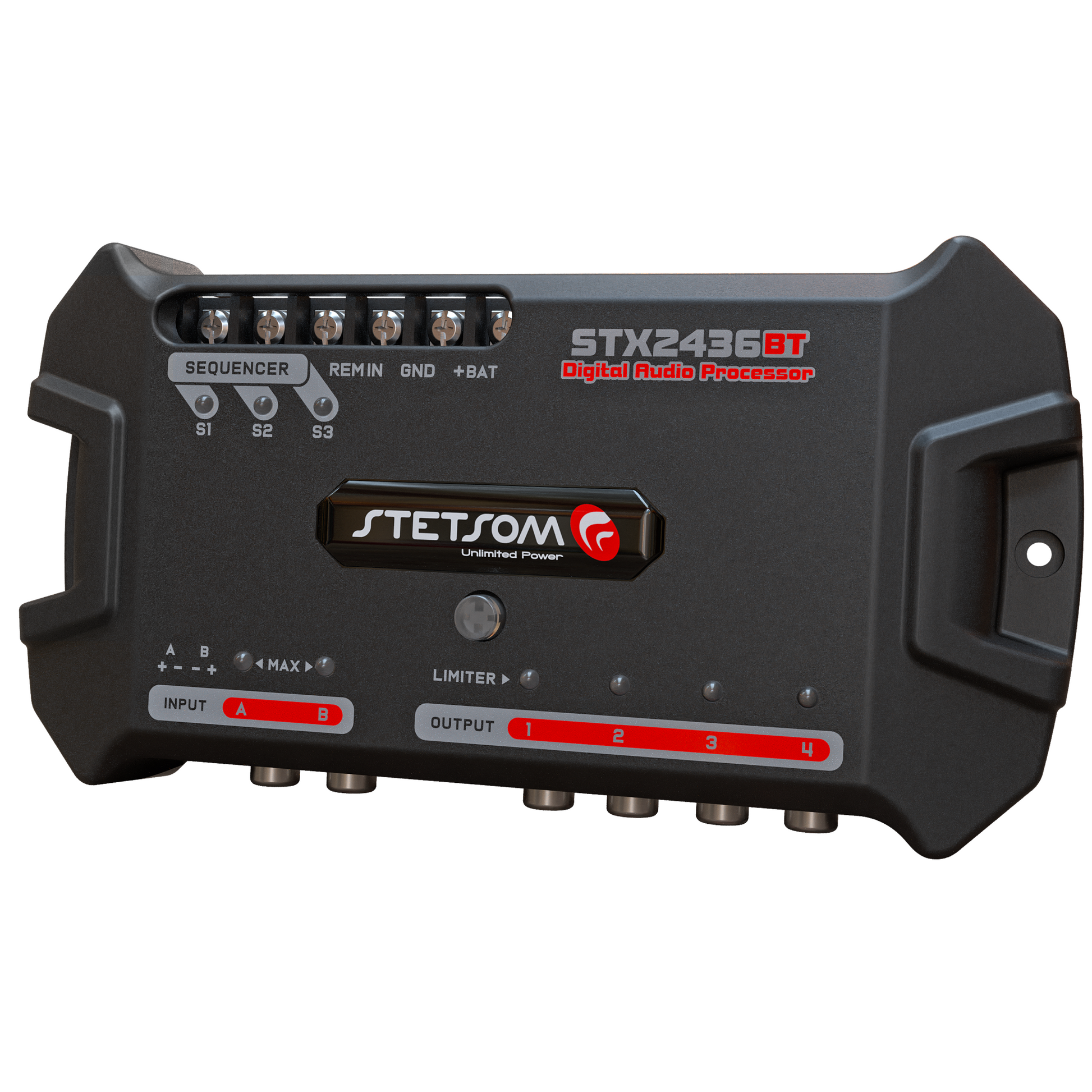

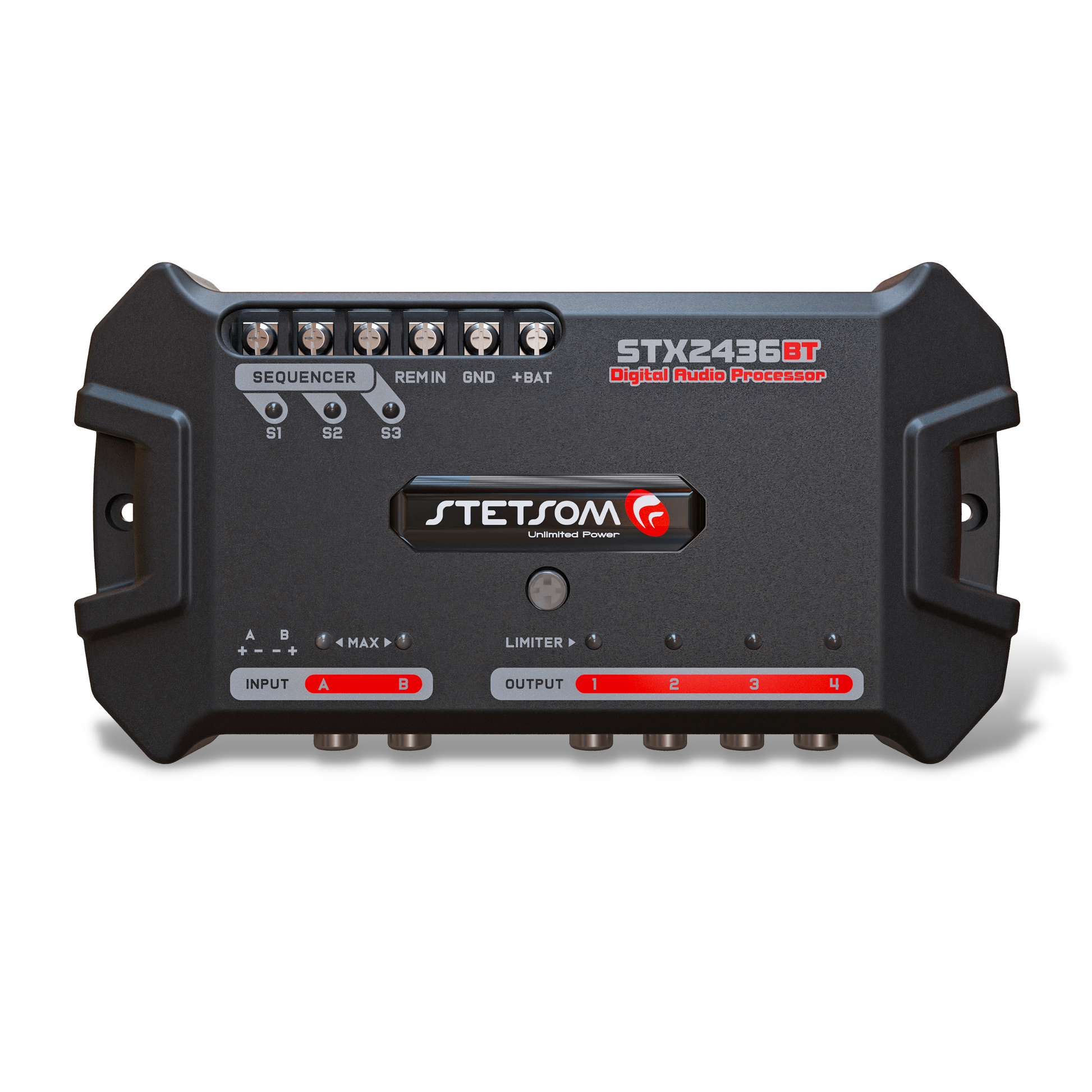

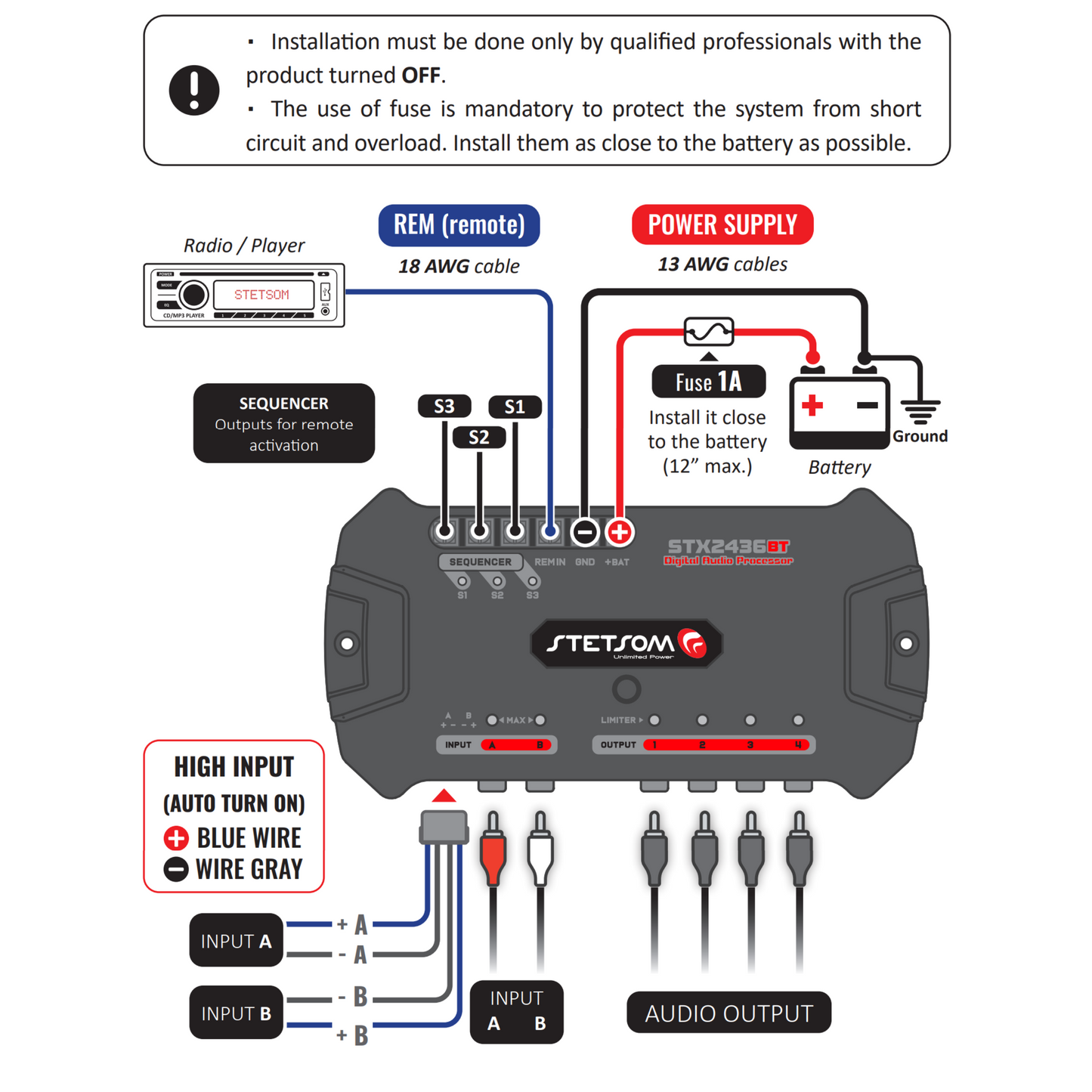

1. SEQUENCER 2. REM IN

3. NEGATIVE POWER CONNECTOR (GND)

4. POSITIVE CONNECTOR (+BAT)

5. SMC INPUT

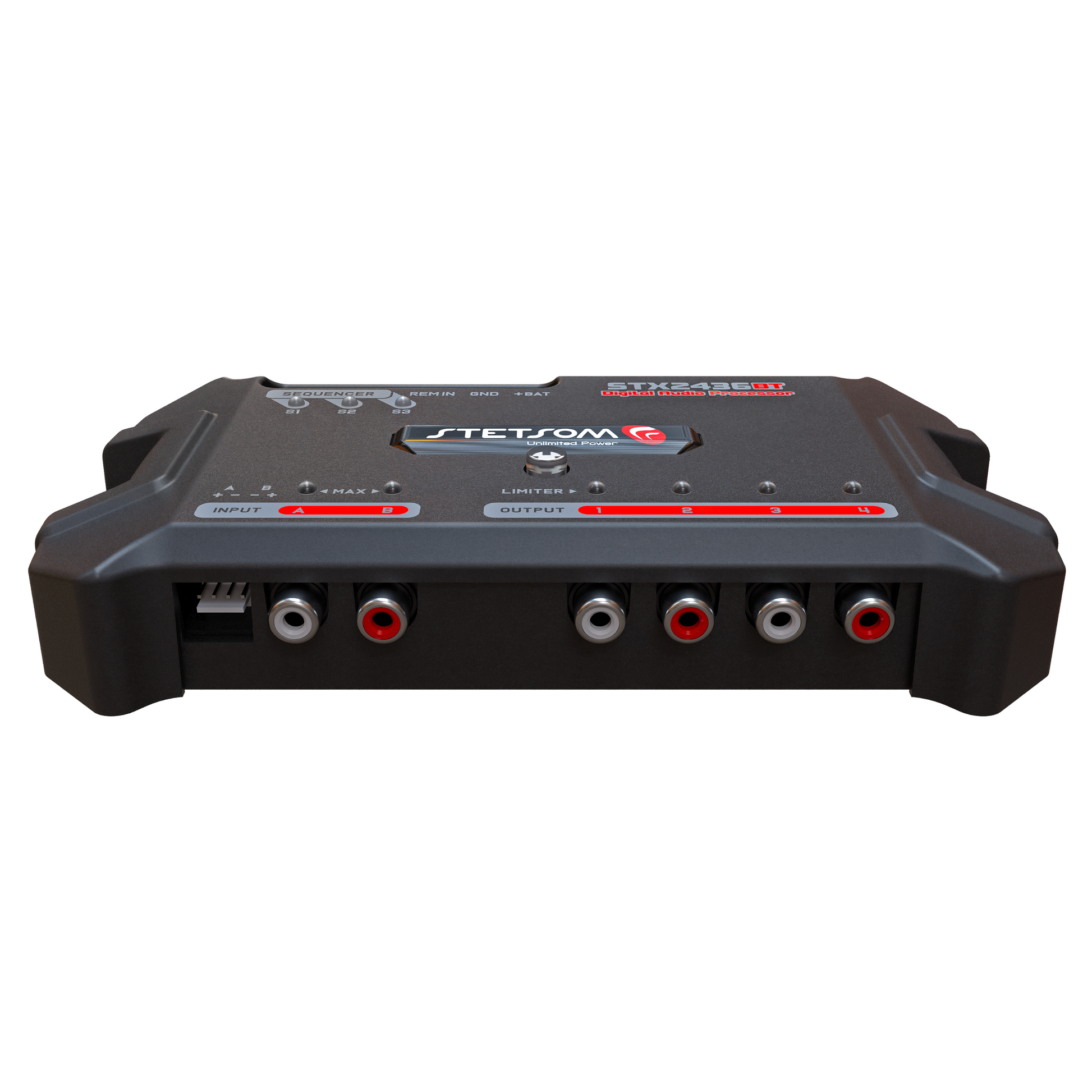

6. AUDIO INPUT WITH WIRE CONNECTION (HIGH INPUT)

7. AUDIO INPUT WITH RCA CONNECTION (INPUT)

8. MAX LEDs (INPUT CHANNELS)

9. COMMAND BUTTON

10. AUDIO OUTPUTS CHANNELS (OUTPUT)

11. LIMITER LEDs (OUTPUT CHANNELS)

Technical Specifications

Number of Channels	Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4)
Graphic Equalizer	15 Bands (gain ±12dB)
Graphic Equalizer Presets	12
Parametric Equalizer	5 Bands (1 Input + 4 Output) (gain ±12dB, Factor Q 0.4 a 10.0)
Crossover with Variable Freq.	Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª
Crossover Presets	11
Routing between input/output	A, B ou A+B
Alignment	0ms ~ 8ms (275cm)

Phase Inversion	0° ~ 180°
Limiter	Threshold: -24dB ~ 0dB Attack: 0.1ms ~ 100.0ms e Release: 1ms ~ 1600ms (manual or auto.)
Master Level	0 ~ 100%
Output Gain	-45dB ~ +15dB per output
Frequency Generator	10Hz ~ 22kHz and Level -60 ~ 0dB
Frequency Scan	Starting and ending frequency: 10Hz ~ 22kHz Level: -60dB ~ 0dB
Pink Noise Generator	Gain: -60dB ~ 0dB
Battery Voltage Monitor	Current, minimum and maximum voltage

Password	6-digit password
Input Impedance	RCA: 28 kΩ / FIO: 1 kΩ
Output Impedance	47 Ω
Signal to Noise Ratio	> 90dB
Total Harmonic Distortion	< 0,01% T.H.D.
Channel Separation	> 80dB
Frequency Response	10Hz ~ 22kHz @ 0dB
Max. Input Voltage	RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu)

Max. Output Voltage	5,6 Vpp (+8,2 dBu)
Power Supply	10V ~ 15V DC
Max. Output current SEQUENCER	180 mA per output
Rated Current Consumption	170mA @ 12.6V DC
Maximum Current Consumption	710mA @ 12.6V DC
Protection	Short Circuit (PTC fuse)
Bluetooth Version	Low Energy (LE)
Range	15 meters*

Compatibility	Android 5.0 or higher iOS 12 or higher
Dimensions (H x W x L)	1.3” x 3,8” x 7,4”

Weight	0.40 Lb
Compatible SMC Remote Control	Sold Separately

Download Manual
