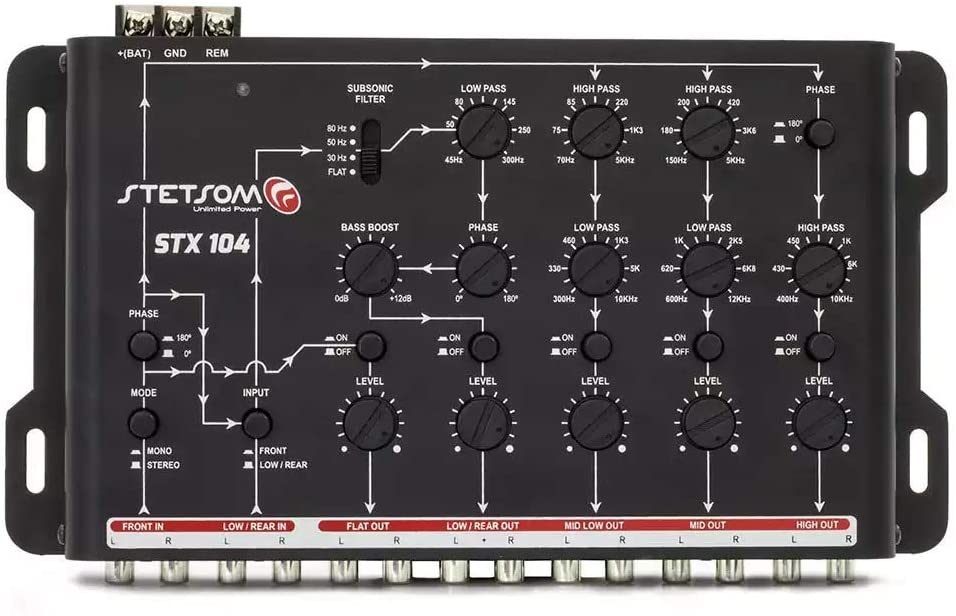

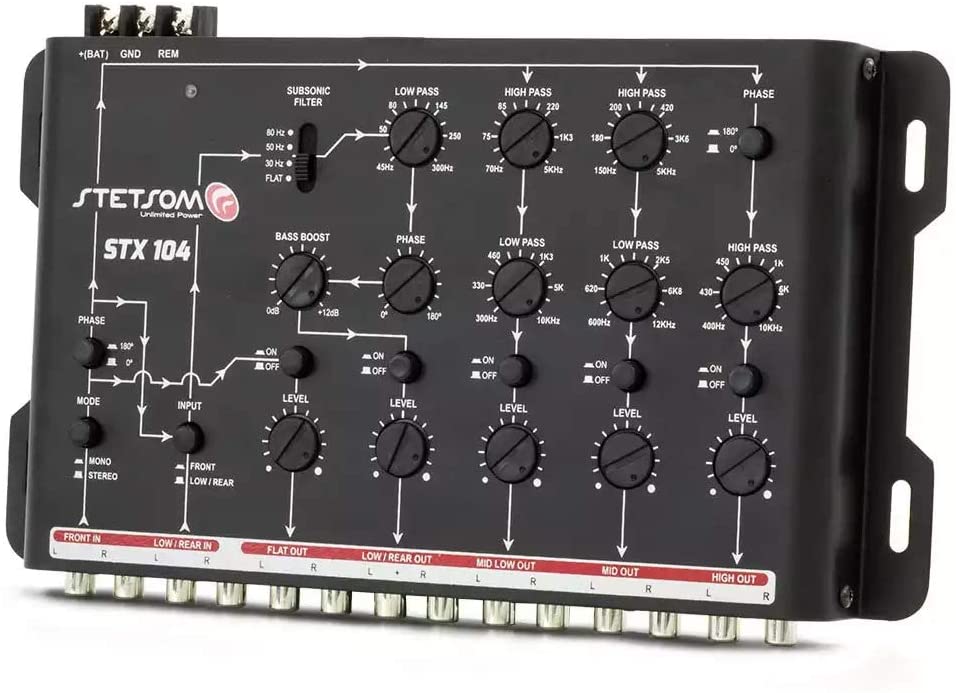

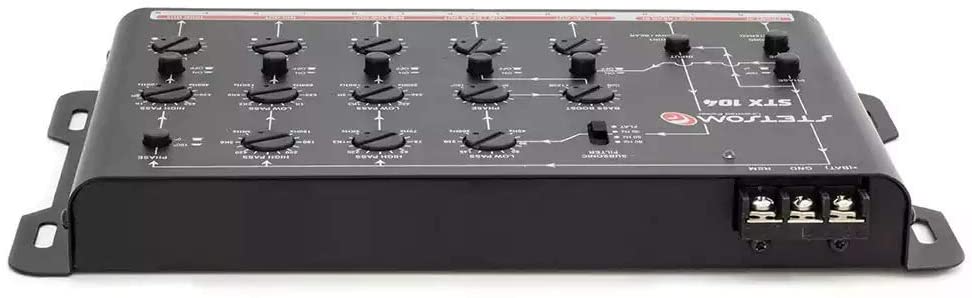

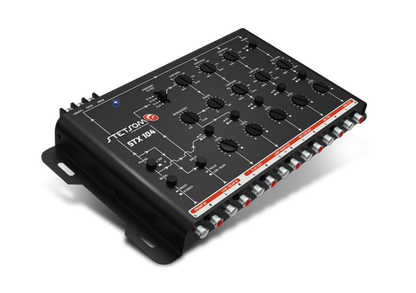

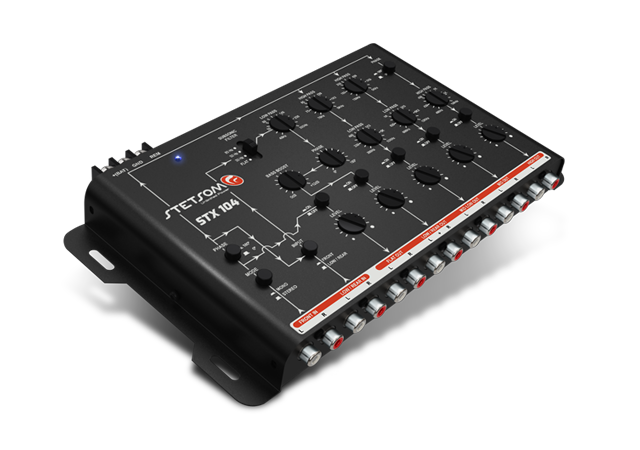

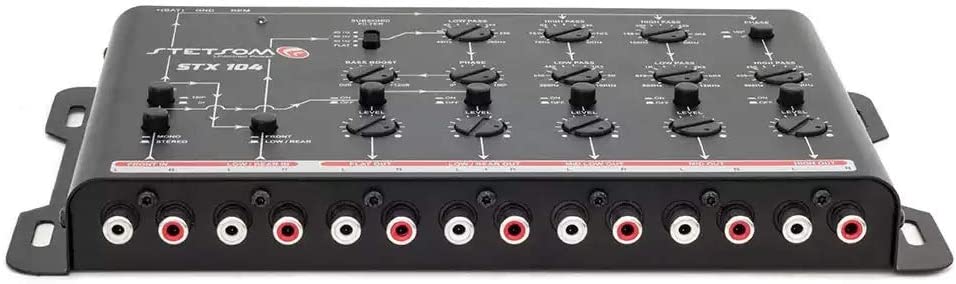

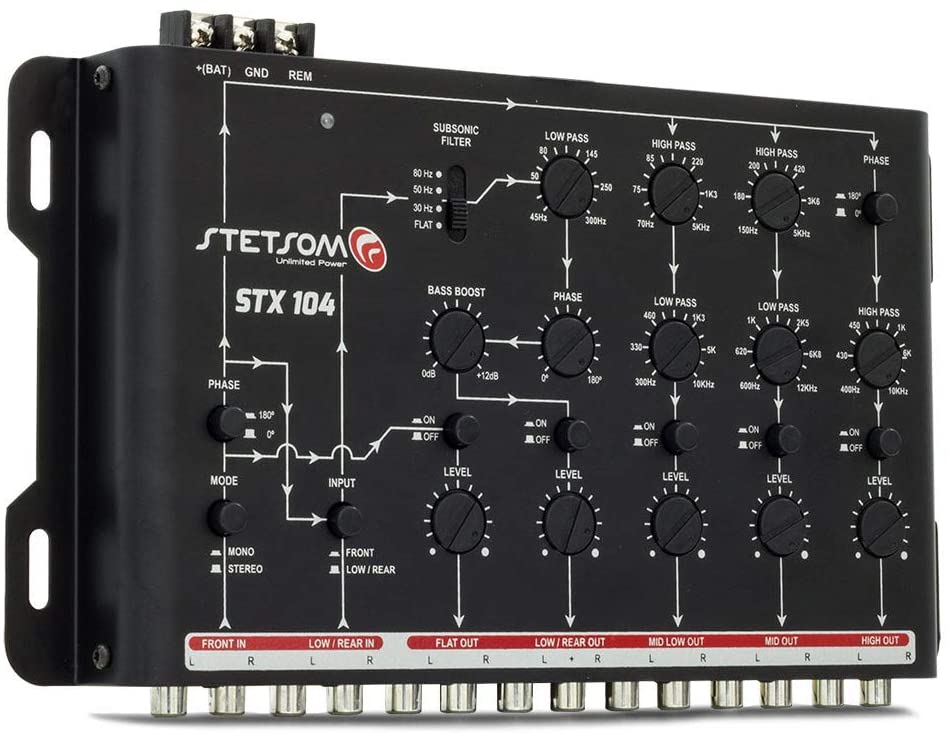

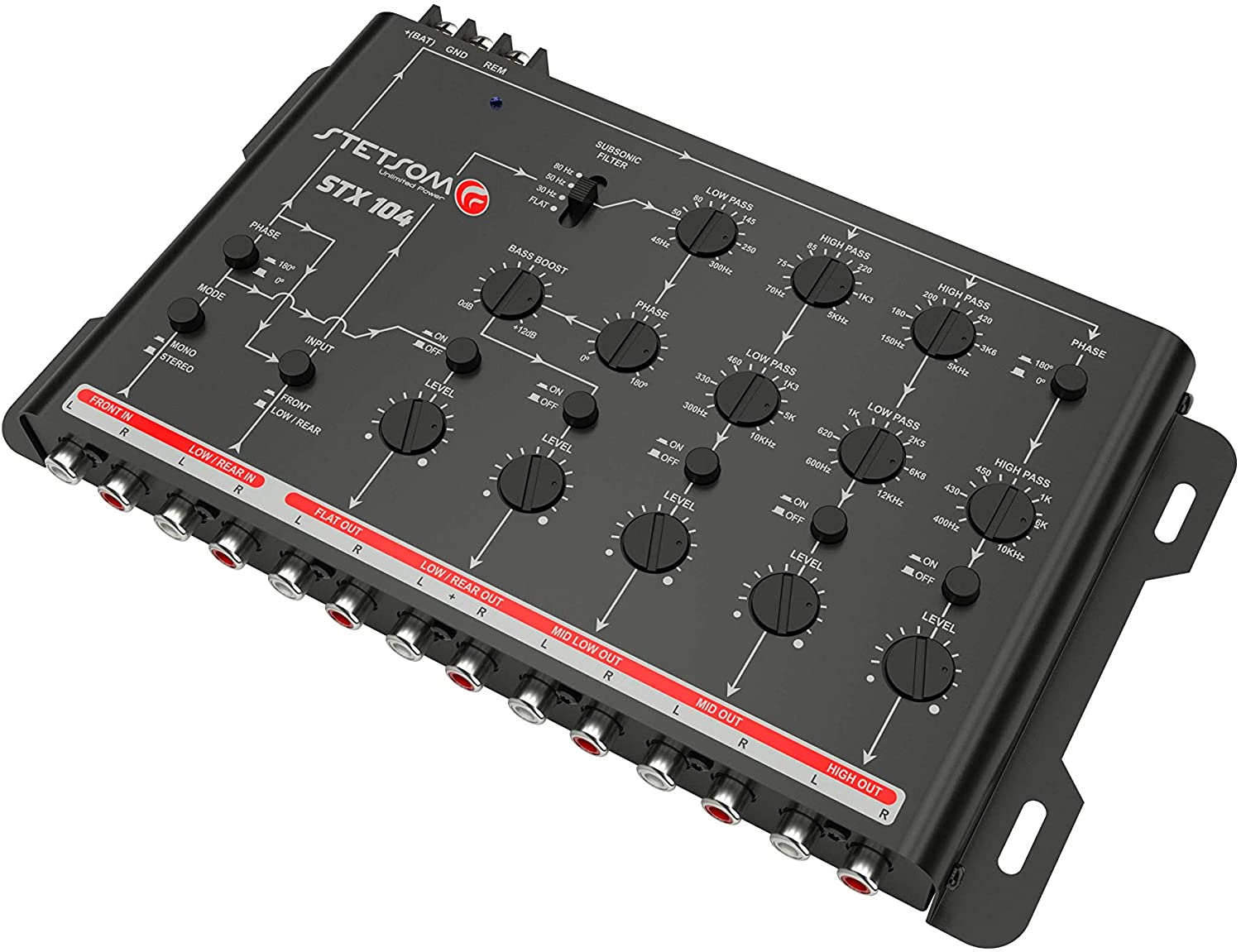

Stetsom STX 104 Digital Audio Crossover 5 Channels

Items are special order and can take 2-4 weeks for arrival

Stetsom's STX104 is a crossover designed to provide high performance combined with sound fidelity in 5 channels. It has high reliability with very low noise levels and harmonic distortion, ideal for professional sound.

TECHNICAL SPECS:

• Via High: 400Hz - 10KHz (12 dB/8ª)
• Via Mid: 150Hz - 12,5KHz (12 dB/8ª)
• Via Low: 70Hz - 10KHz (12 dB/8ª)
• Maximum Output Voltage: 9V RMS
• Maximum Input Voltage: 4V RMS
• Signal to Noise: >90dB
• Input Impedance: 10K OHMS
• Harmonic Distortion: < 0,02% THD
• Channel Separation: > 80dB
• Frequency Response: 20Hz - 200Khz
• Supply Voltage: 10V - 16V DC
• Current Consumption: 0,25A MAX
• Impedance Output: 50 OHMS
• Dimensions (H x W x D): 33 x 264 x 160 mm
• Weight: 780g

Download Manual
