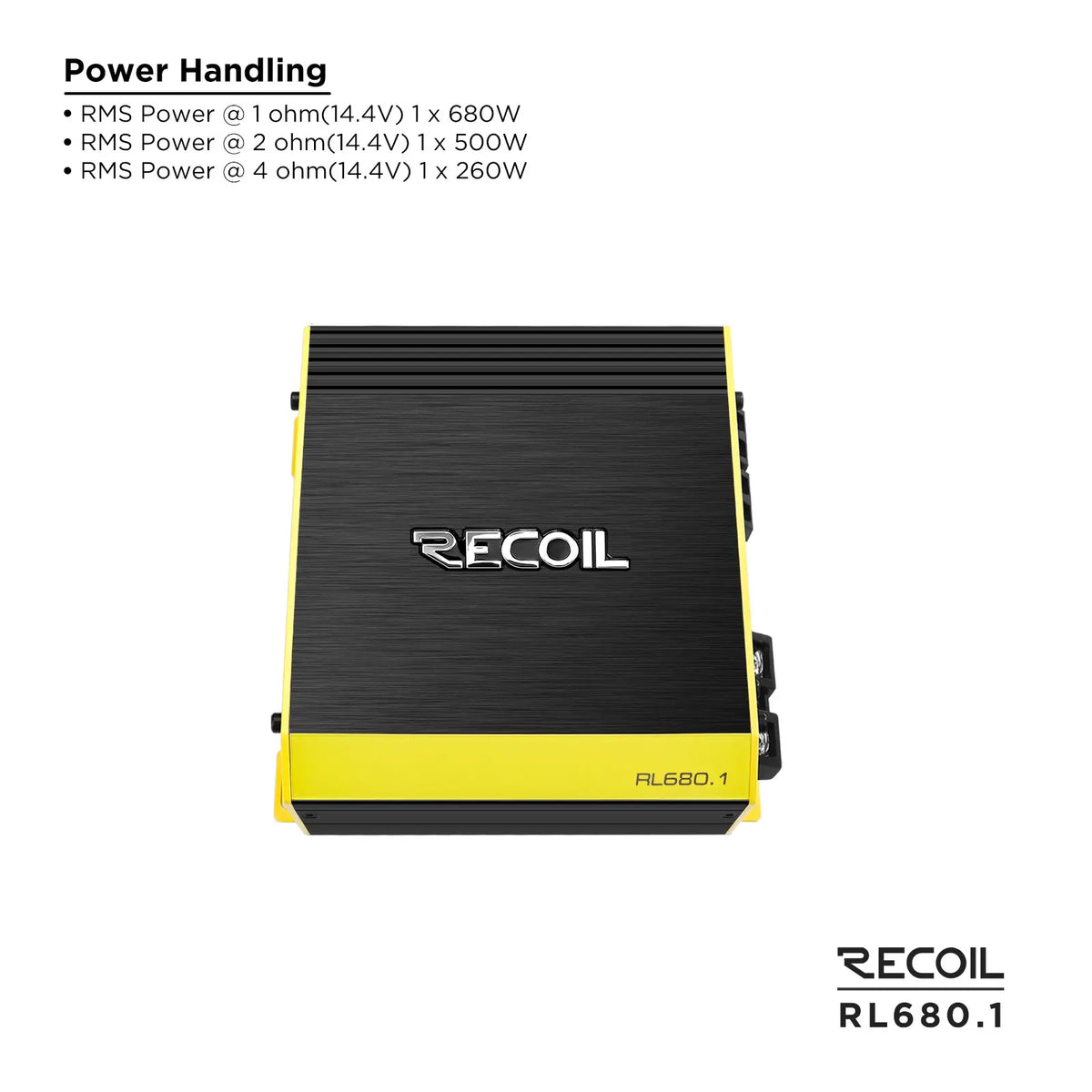

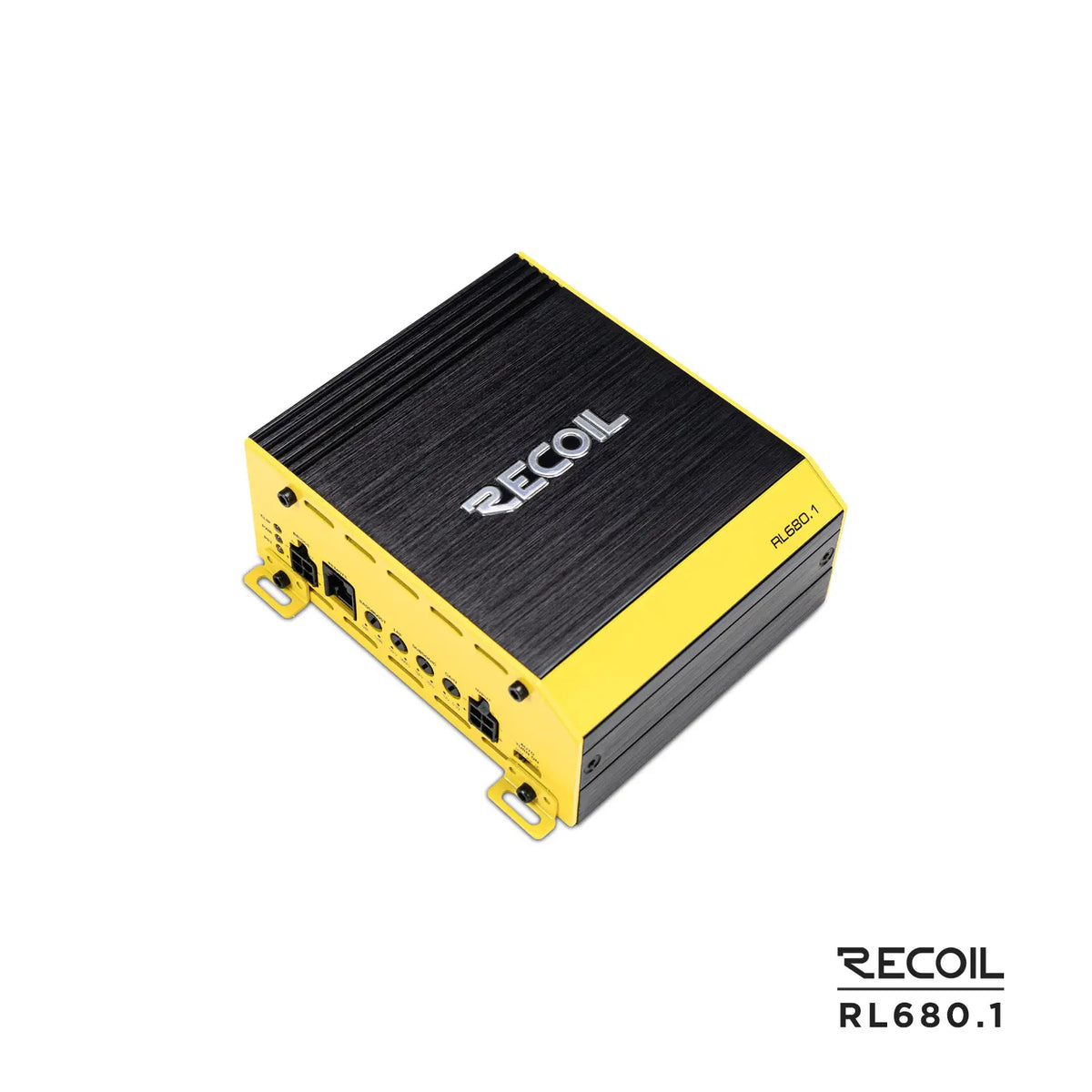

The Recoil RL680.1 is a 680 watts Class-D mono amplifier. It is rated at 680 W x 1 at 1 ohm, 500 W x 1 at 2 ohm and 260 W x 1 at 4 ohm (all at 14.4 V).

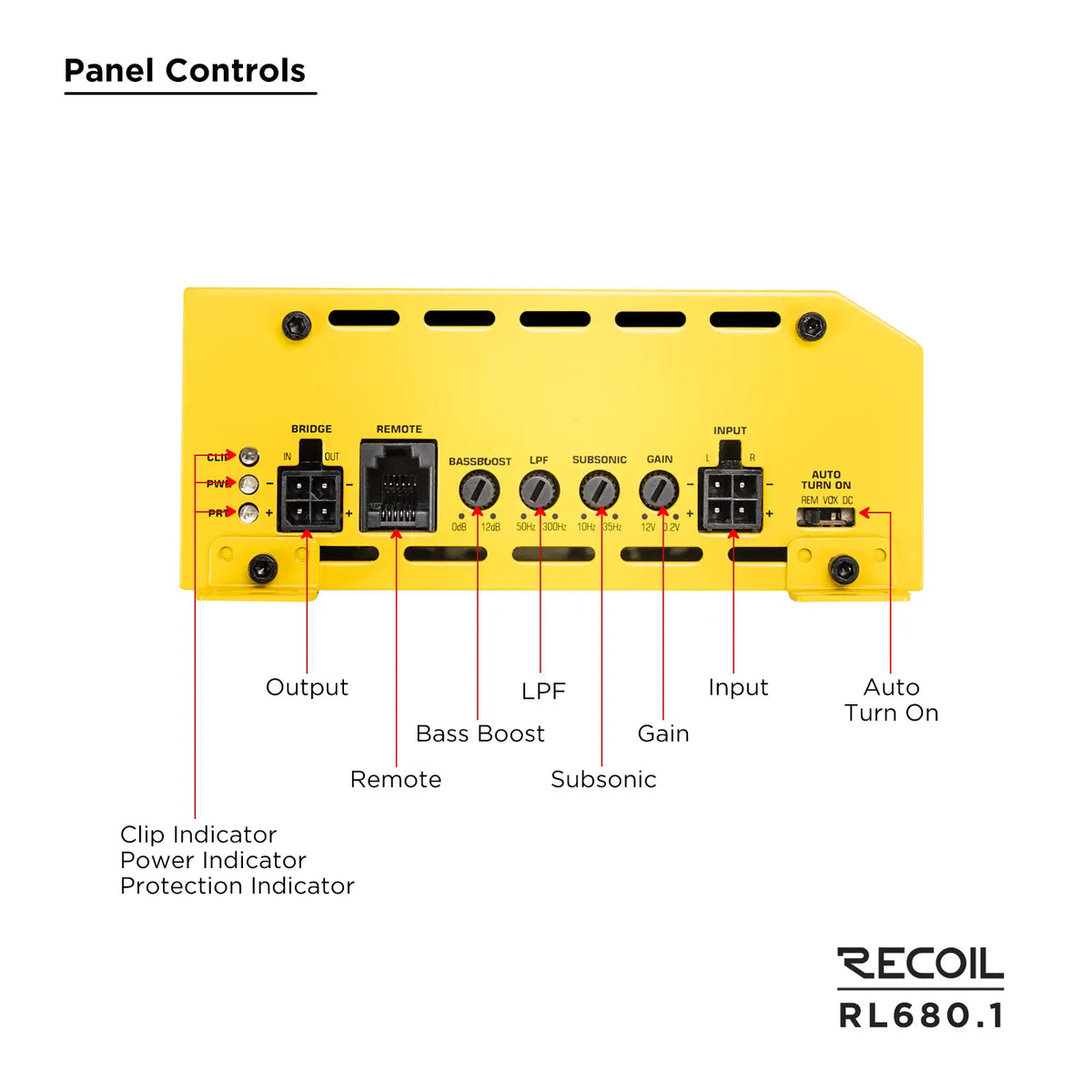

Key features
Class-D mono amplifier
4 way protection circuit: thermal, voltage, speaker and DC
Bass boost: 0 to 12 dB
Subsonic filter: 10 Hz to 35 Hz
Crossover LPF: 50 Hz to 300 Hz
Bass remote: yes
Specifications
Power at 1 ohm (14.4 V)
680 W x 1
Power at 2 ohm (14.4 V)
500 W x 1
Power at 4 ohm (14.4 V)
260 W x 1
Bridged power at 4 ohm (14.4 V)
N/A
Bridged power at 2 ohm (14.4 V)
N/A
Operating voltage
9 V to 16 V
Idling current (power on)
690 mA
Frequency response
10 Hz to 300 Hz
Signal to noise ratio (SNR)
94 dB
THD+N (at 1 W)
0.23%
Input sensitivity (low level)
220 mV to 12 V
Input sensitivity (high level)
N/A
Crossover HPF
N/A
Clip indication
1%
Fuse rating
40 A

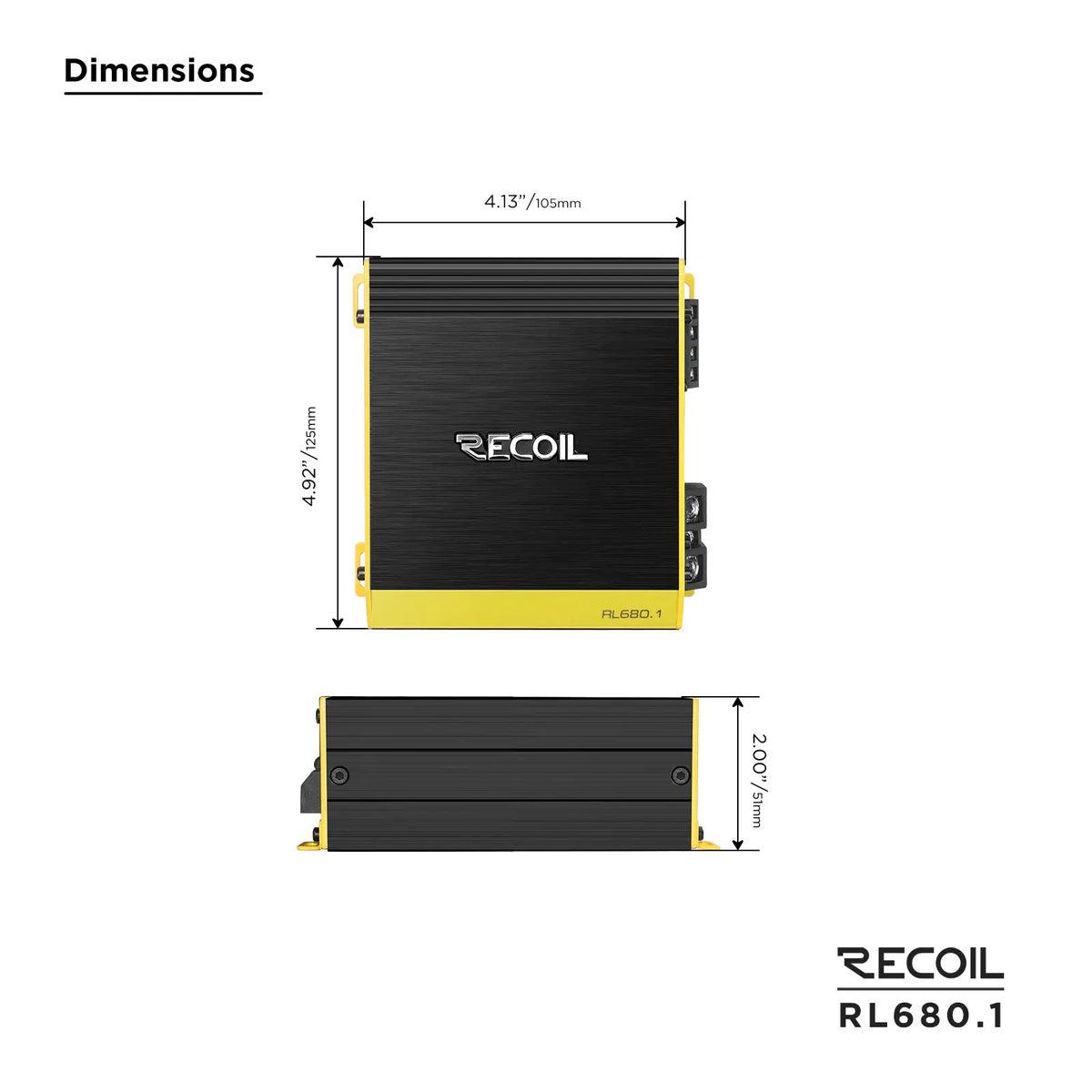

Dimensions
4.13 in x 4.92 in x 2 in (105 mm x 125 mm x 51 mm)
