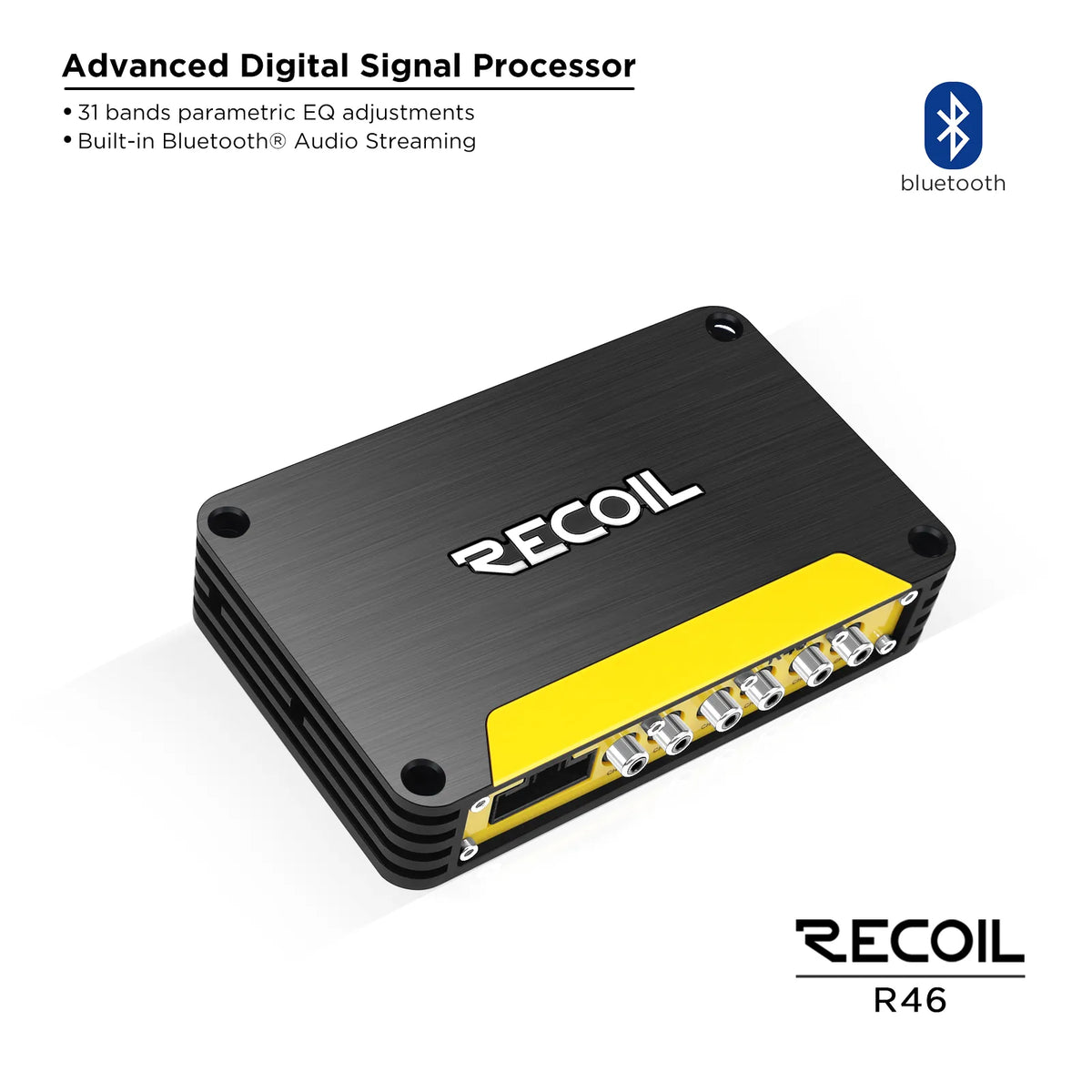

The Recoil R46 is a DSP (digital signal processor) with 4-channel inputs and 6-channel outputs. It has a 31-band parametric EQ, a built-in USB driver and Bluetooth® audio streaming.
Key features
31 bands of parametric EQ adjustment
Full gain, phase and time delay control of each channel
Multiple slope and class independent crossovers
Six preset favourite DSP tuning effects
AD and DA signal converters of the latest generation
Built-in USB driver and Bluetooth® audio streaming

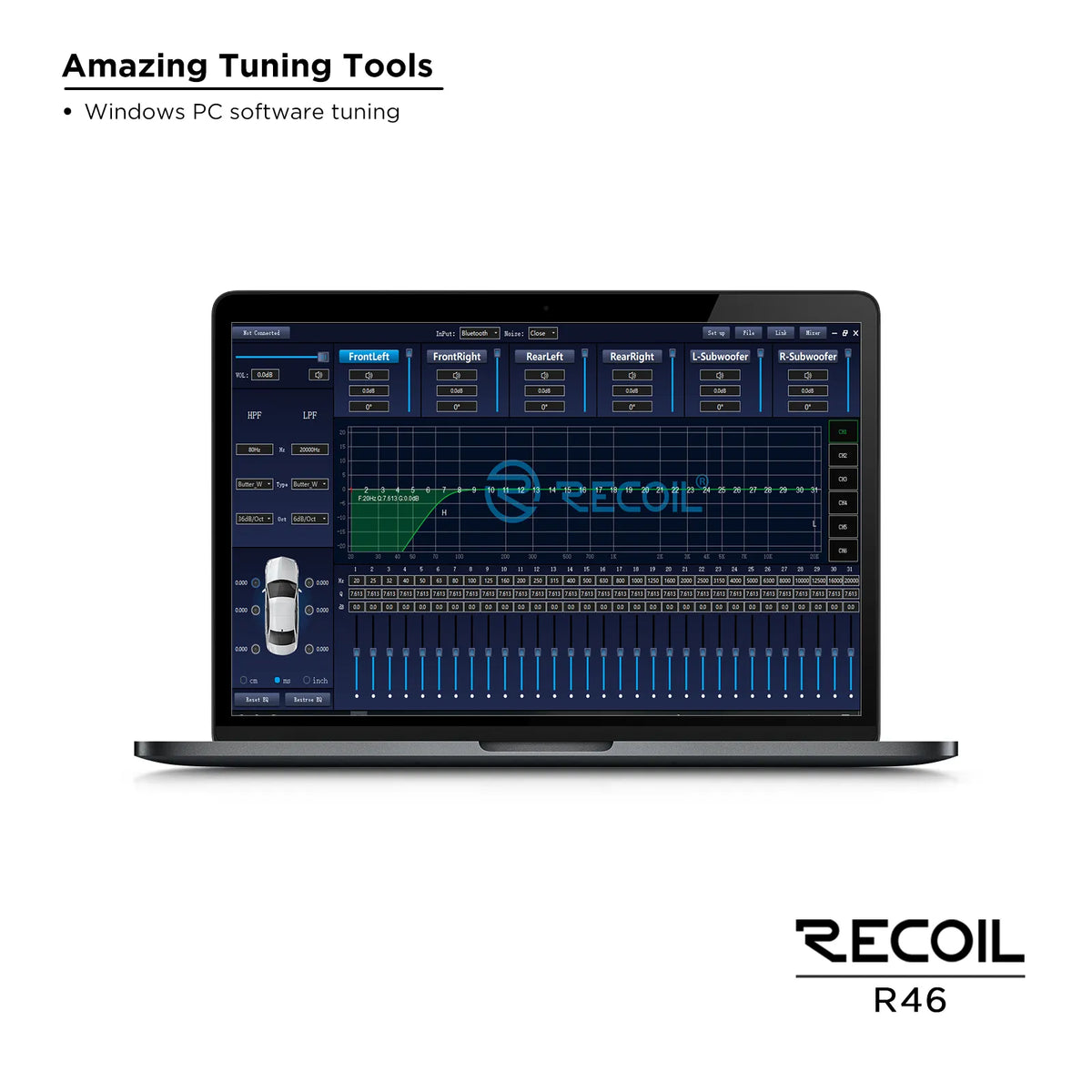

Windows PC software tuning
Specifications
Channels
4-channel inputs, 6-channel outputs

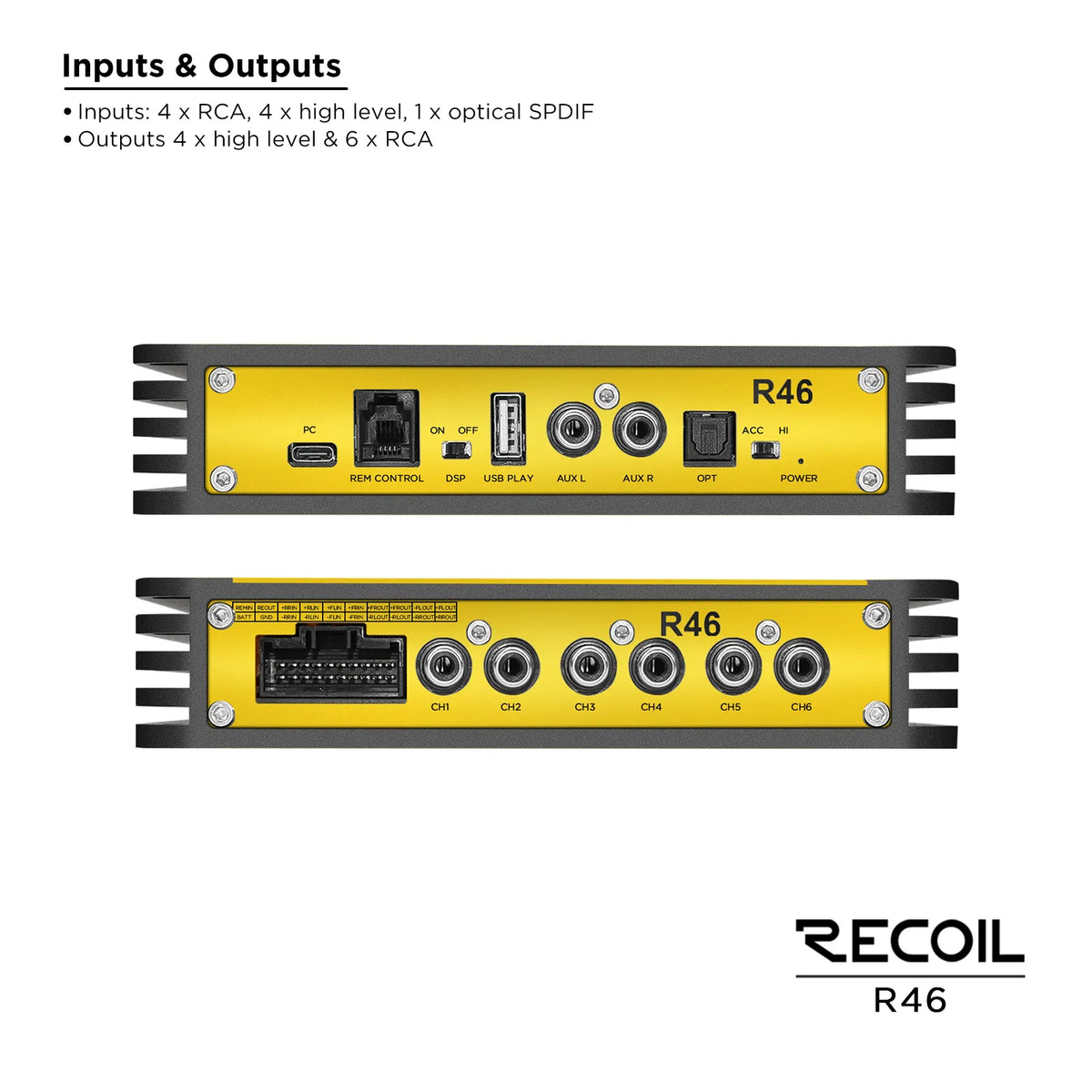

Inputs
4 x RCA, 4 x high level, 1 x optical SPDIF
Outputs
4 x high level and 6 x RCA

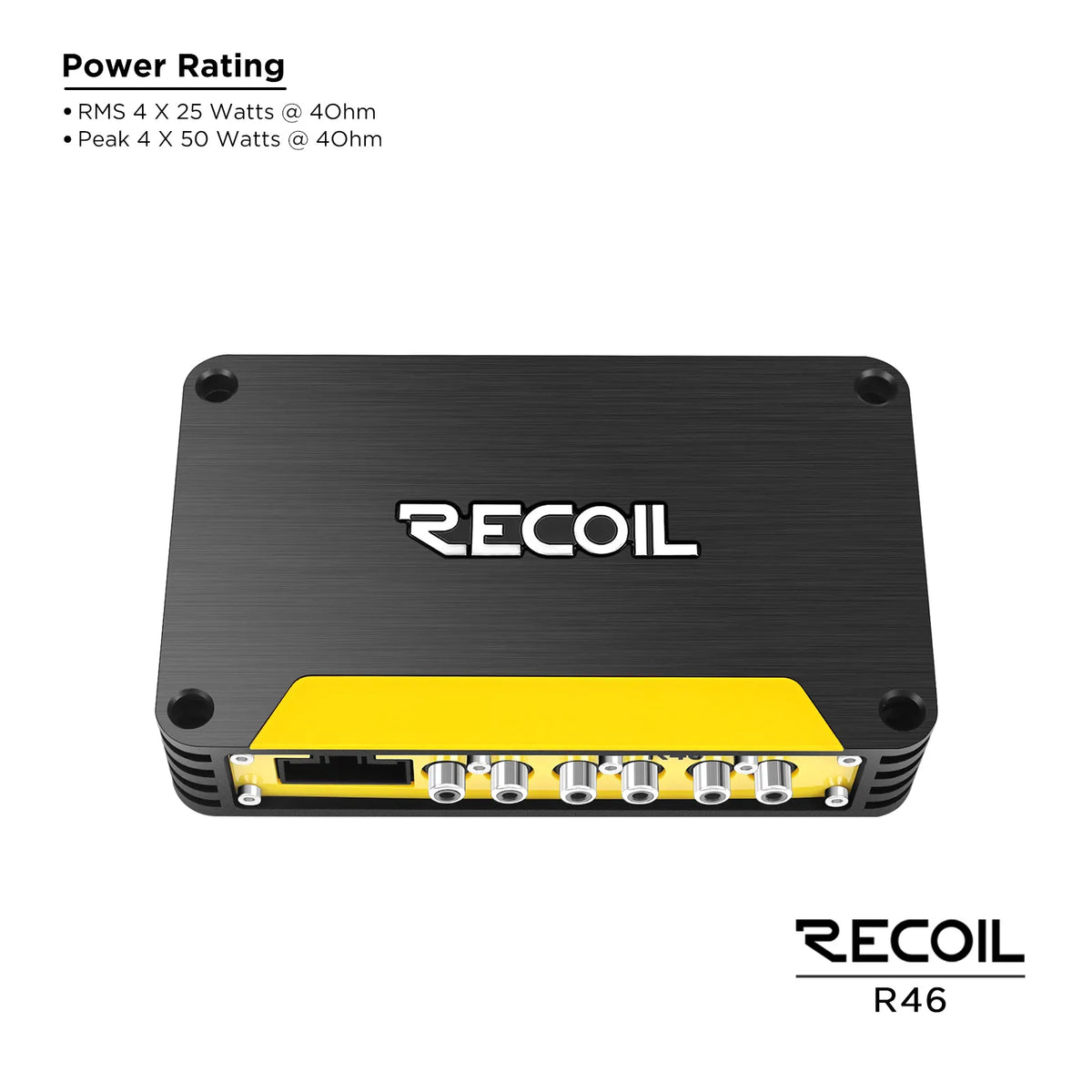

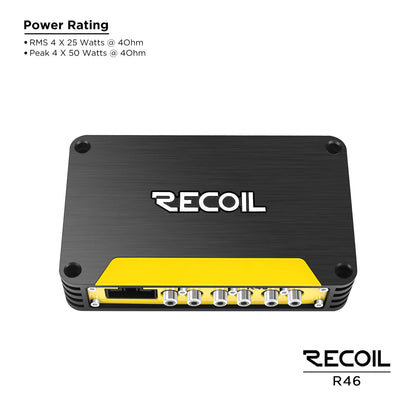

Power rating at 14.4 V, 4 ohm
RMS 4 x 25 W / Peak 4 x 50 W
Power rating at 14.4 V, 2 ohm
RMS 4 x 40 W / Peak 4 x 80 W

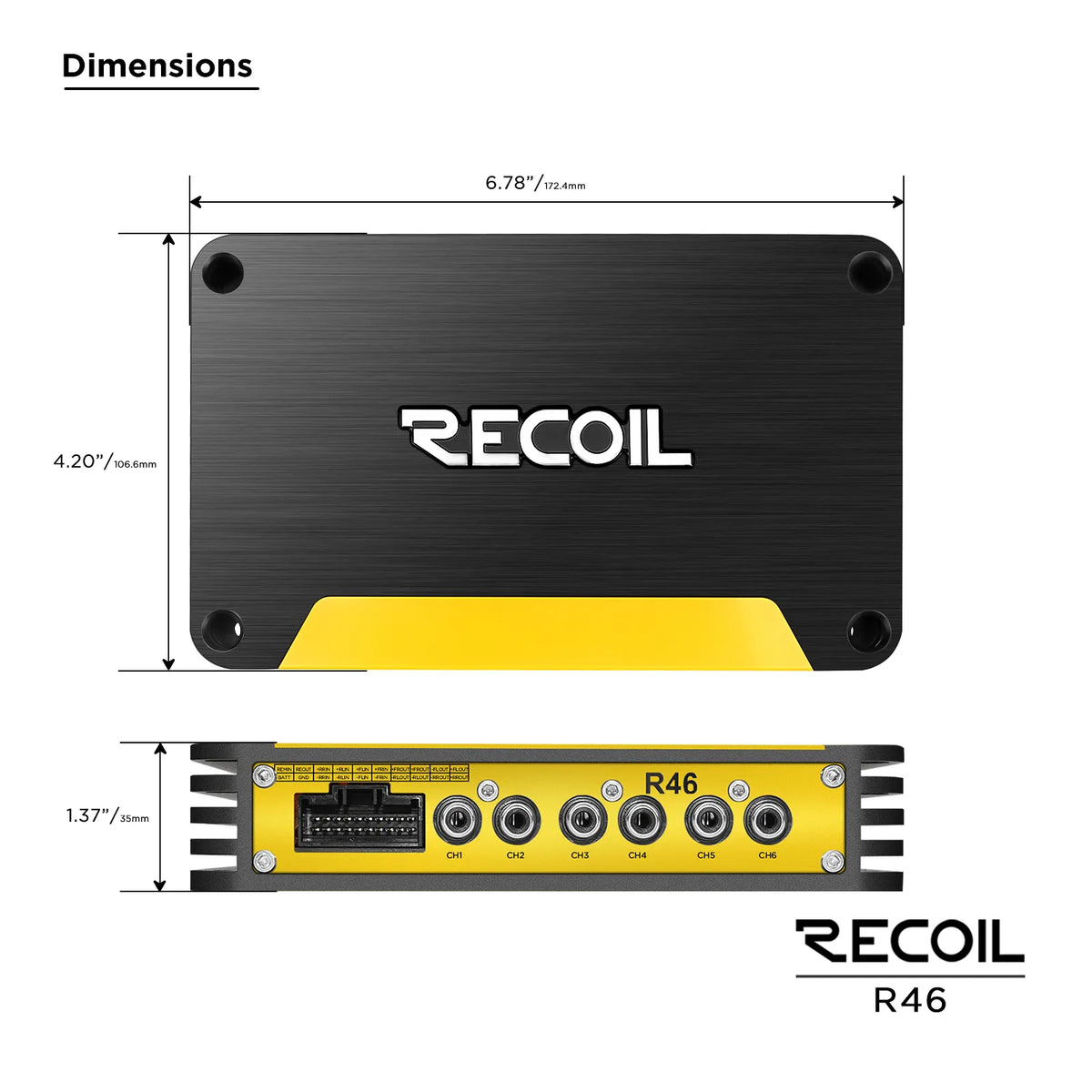

Dimensions
6.78" x 4.2" x 1.38" (172.4 mm x 106.6 mm x 35 mm)
