Recoil DII5000.1 5000 Watts Class-D Mono Amplifier

Recoil DII5000.1 5000 Watts Class-D Mono Amplifier

£324.95 GBP
£324.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Recoil DII5000.1 is a 5000 watts Class-D mono amplifier. It is a high-power amplifier designed specifically for demanding subwoofer applications, delivering up to 5200 W x 1 at 1 ohm (14.4V).

Key features

  • Mono Class-D amplifier
  • 4-way protection circuit: thermal, voltage, speaker and DC protection

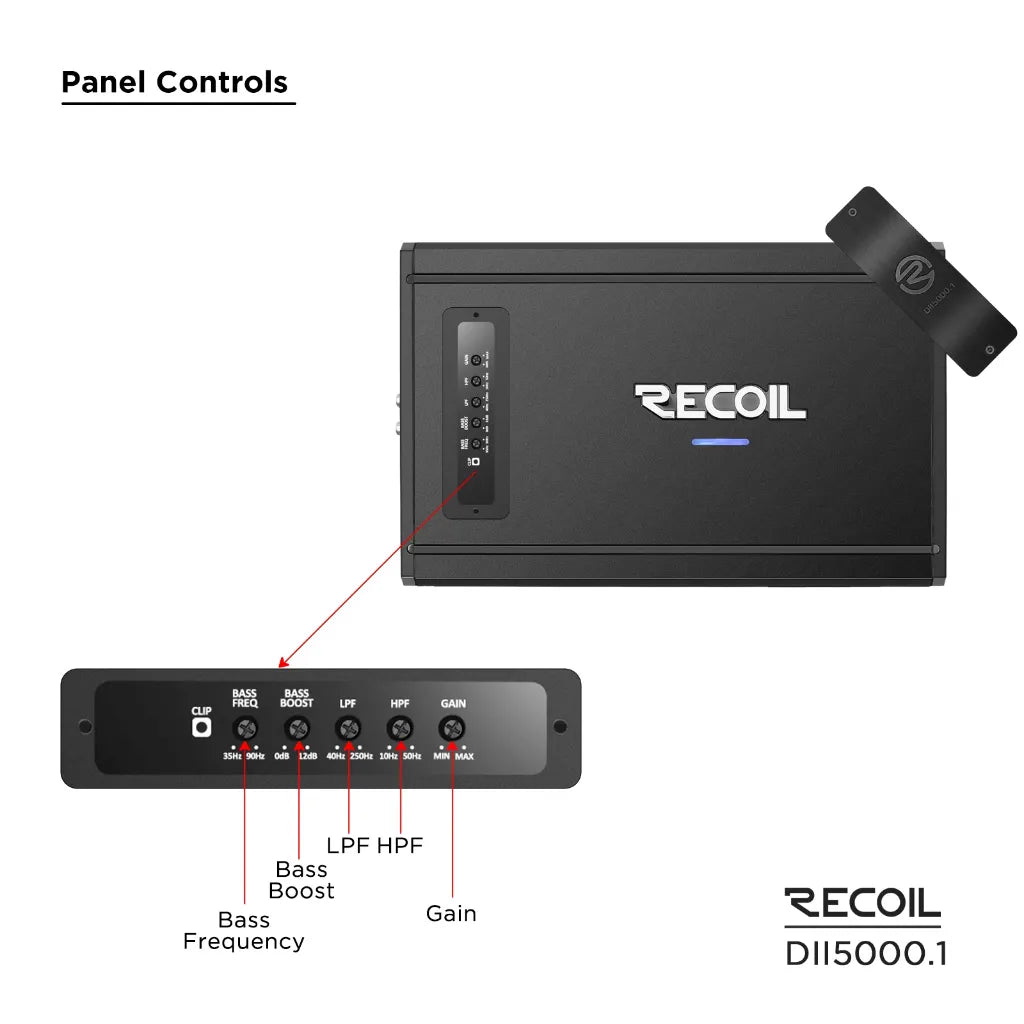

  • Adjustable bass boost

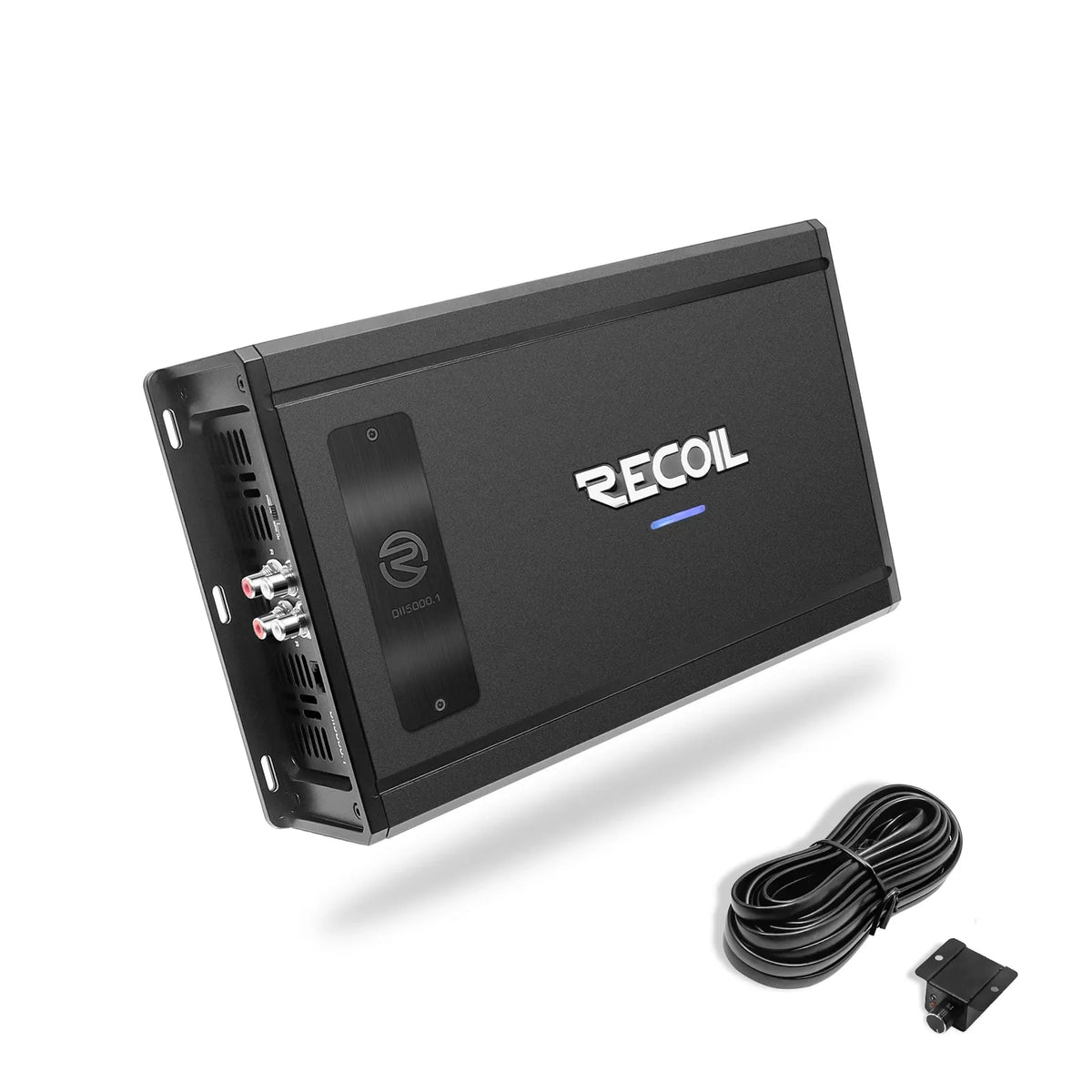

  • Bass remote included
  • Clip indication
  • Adjustable LPF and HPF crossover

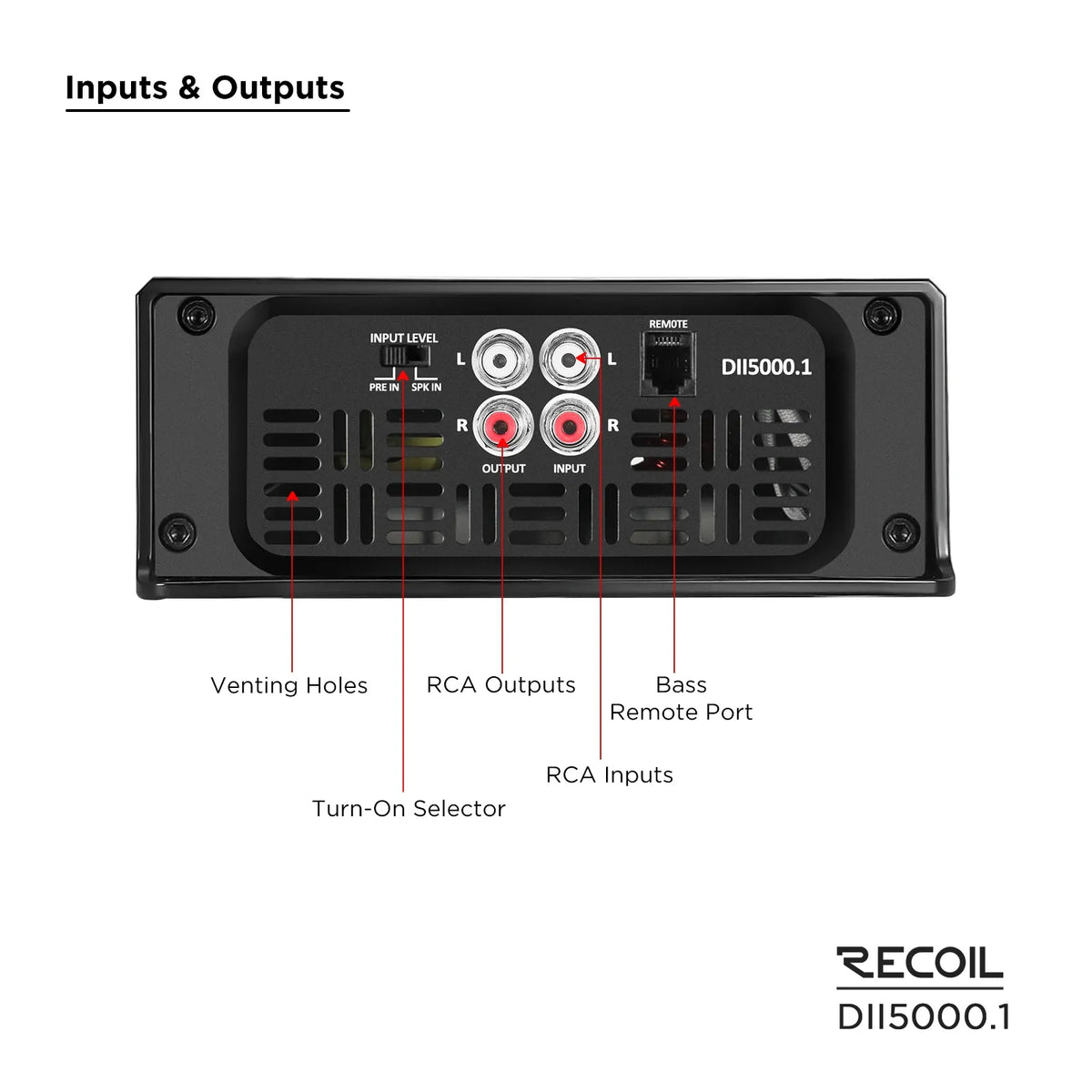

  • Low-level and high-level inputs
  • 9 V – 16 V operating voltage

Specifications

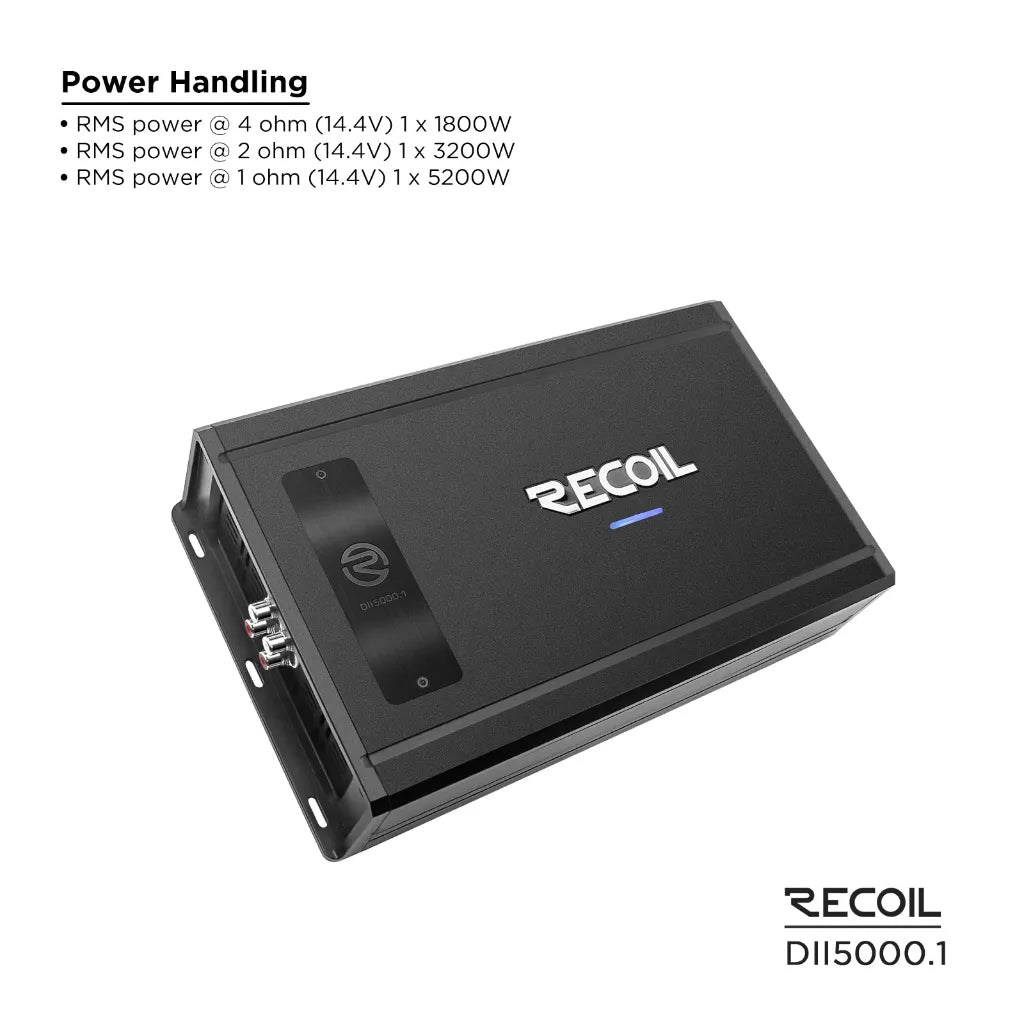

Power at 1 ohm (14.4V) 5200 W x 1
Power at 2 ohm (14.4V) 3180 W x 1
Power at 4 ohm (14.4V) 1800 W x 1
Power (bridged) at 4 ohm (14.4V) N/A
Power (bridged) at 2 ohm (14.4V) N/A
Operating voltage 9 V – 16 V
Idling current (power on) 2200 mA
Frequency response 10 Hz – 275 Hz
Signal-to-noise ratio (SNR) 99 dB
THD+N (@ 1 W) <0.1%
Input sensitivity (low level) 1.2 V – 13 V
Input sensitivity (high level) 0.2 V – 3.3 V
Bass boost 0 – 16 dB
Subsonic filter N/A
Crossover LPF 48 Hz – 275 Hz
Crossover HPF 10 Hz – 53 Hz
Bass remote Yes
Clip indication 1%
Fuse rating 350 A
Dimensions 301 mm x 180 mm x 70 mm
