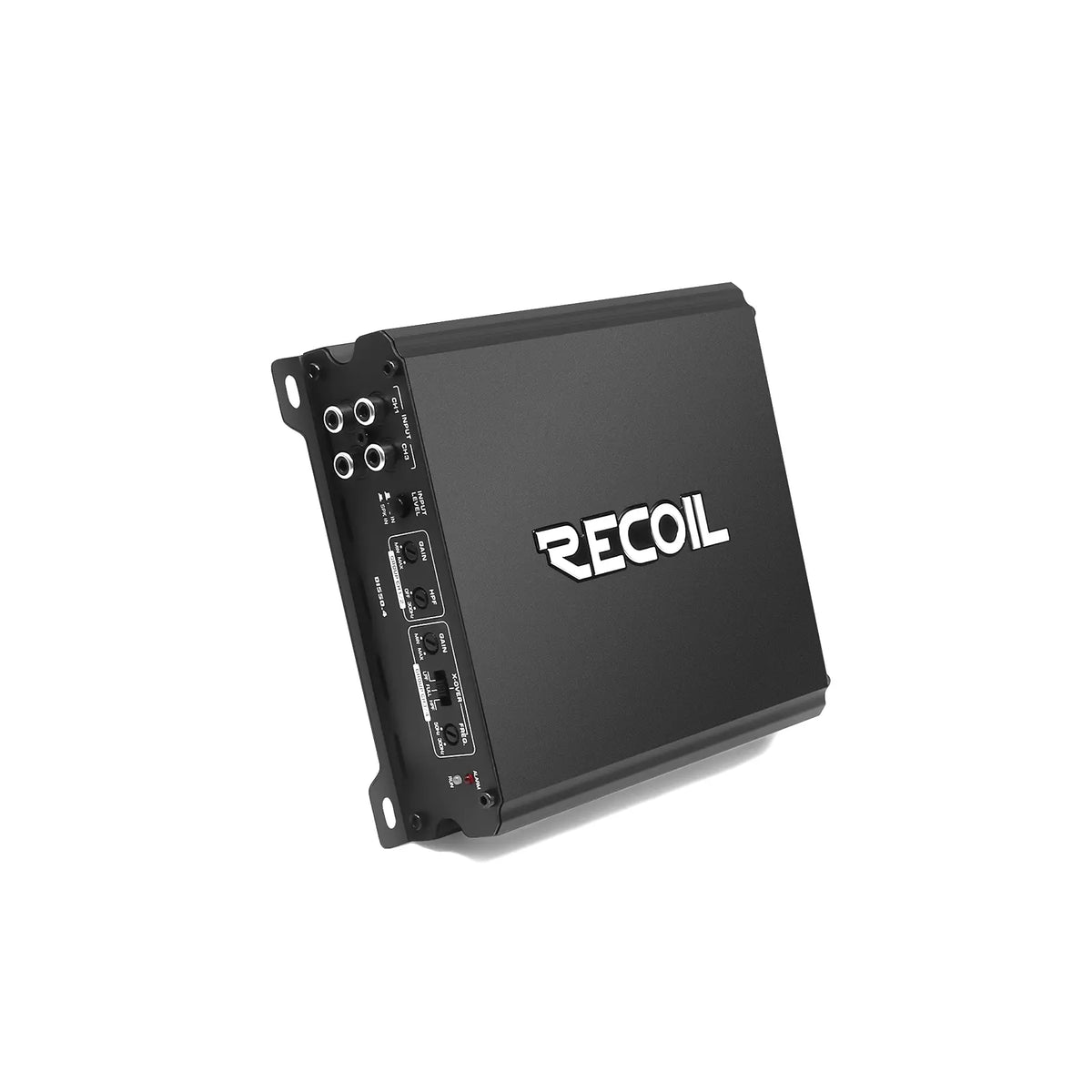

Recoil DI550.4 Class D 4 Channel Amplifier, 1040W Max

Recoil DI550.4 Class D 4 Channel Amplifier, 1040W Max

£144.95 GBP
£144.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Recoil DI550.4 is a Class D 4-channel amplifier with 1040 W maximum power. It is rated at 130 W RMS x 4 channels at 2 ohm and 80 W RMS x 4 channels at 4 ohm (14.4 V).

Key features

  • Class D 4-channel amplifier, tri-mode capable and bridgeable
  • High-speed MOSFET power supply and premium-grade internal components
  • 4-way protection circuitry: thermal, voltage, speaker and DC
  • Operates safely at the highest levels of performance for hours on end

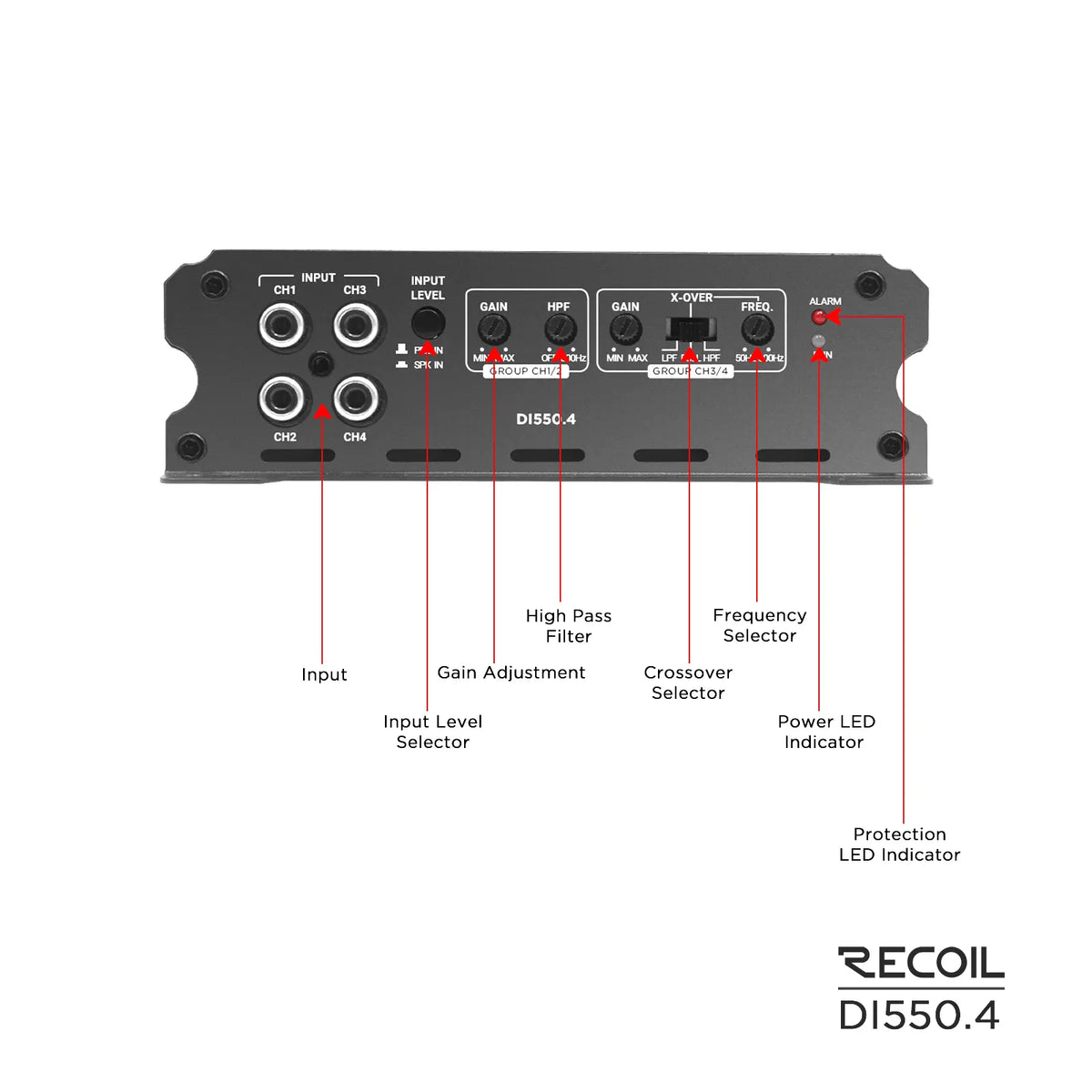

  • Adjustable user controls: gain, LPF, HPF, crossover and bass EQ
  • Versatile, and can be used in countless applications
  • Highly efficient heatsinks keep the amplifier cool, with a sophisticated new look

Specifications

Type Class D 4-channel amplifier
Maximum power 1040 W
RMS power at 2 ohm 130 W x 4 channels (14.4 V)
RMS power at 4 ohm 80 W x 4 channels (14.4 V)
RMS power at 4 ohm (bridged) 260 W x 2 channels (14.4 V)
Peak power 260 W x 4 at 2 ohm
Protection circuitry 4-way: thermal, voltage, speaker, DC
Power supply High-speed MOSFET
Input sensitivity PRE input 0.35-3.5 V, SPK input 0.7-7 V
Frequency response 10 Hz – 30 kHz
Signal to noise ratio 95 dB
Operating mode Tri-mode capable / bridgeable
Low pass filter (variable) 50 Hz – 750 Hz
High pass filter (variable) 10 Hz – 200 Hz
Fuse rating 60 A

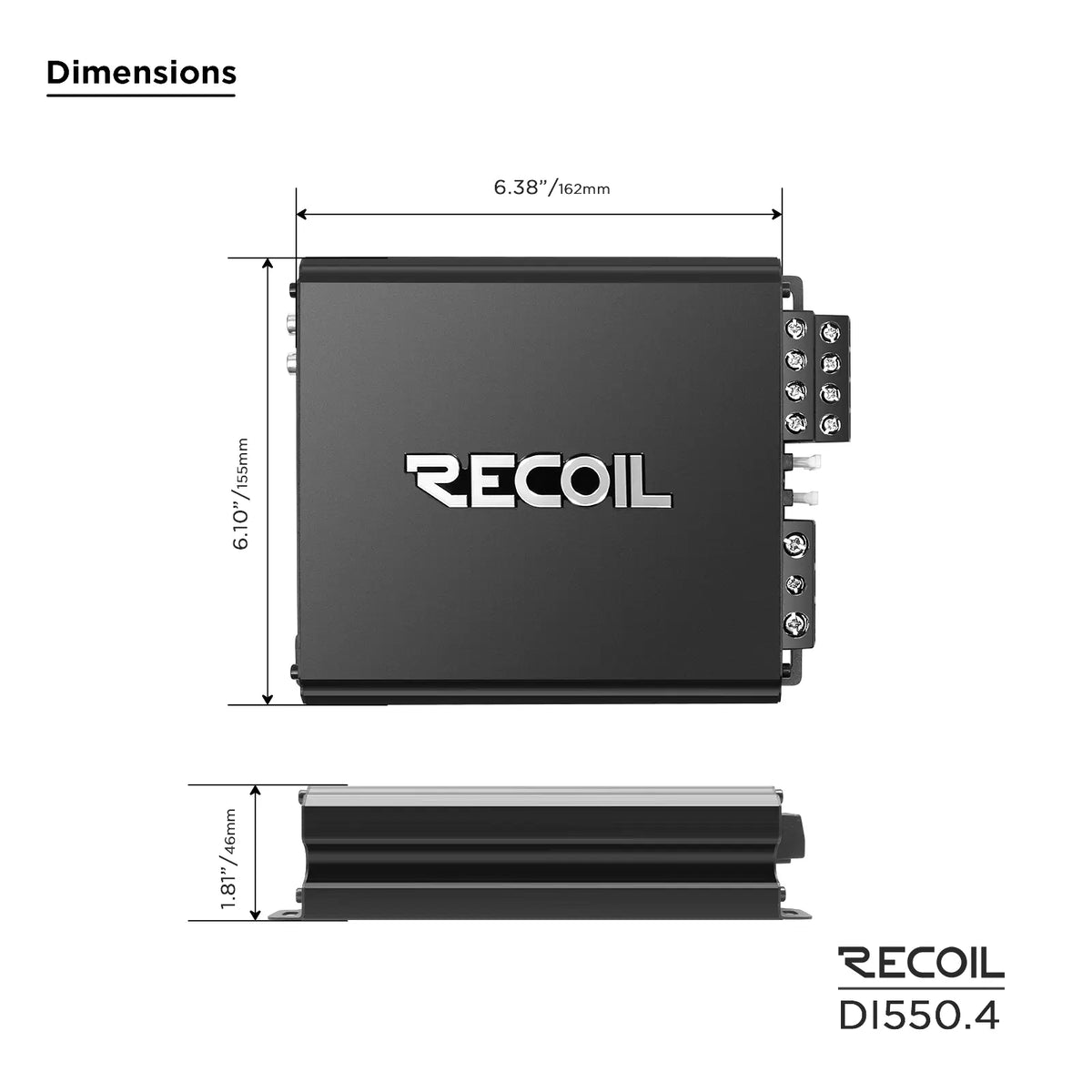

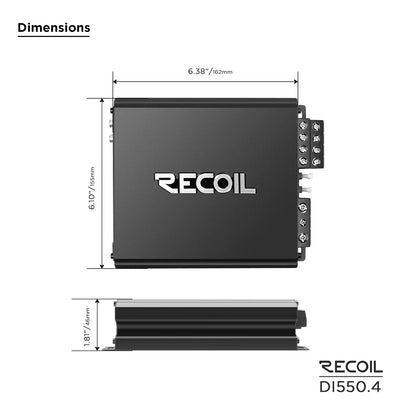

Dimensions 7.48 in x 5.90 in x 1.77 in
