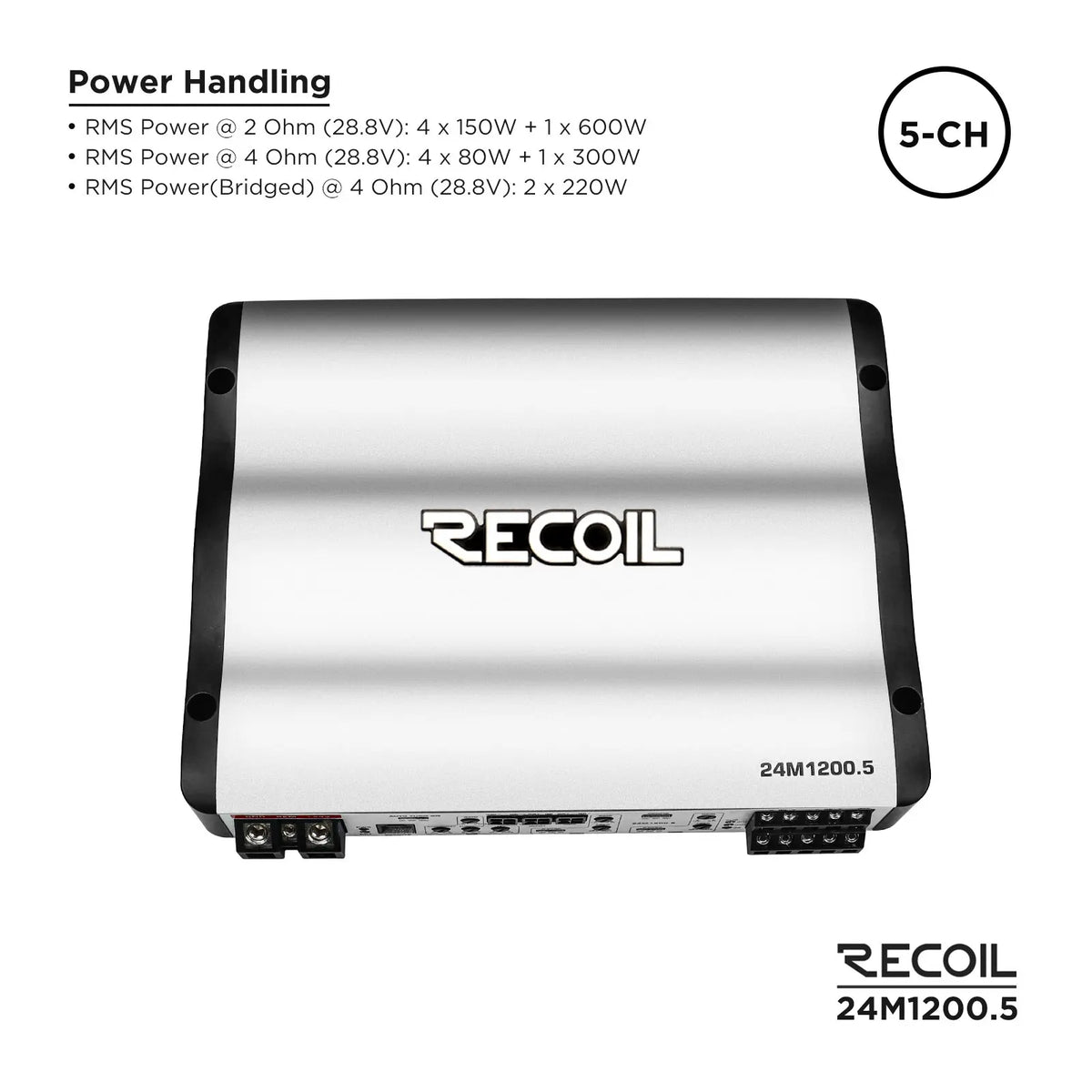

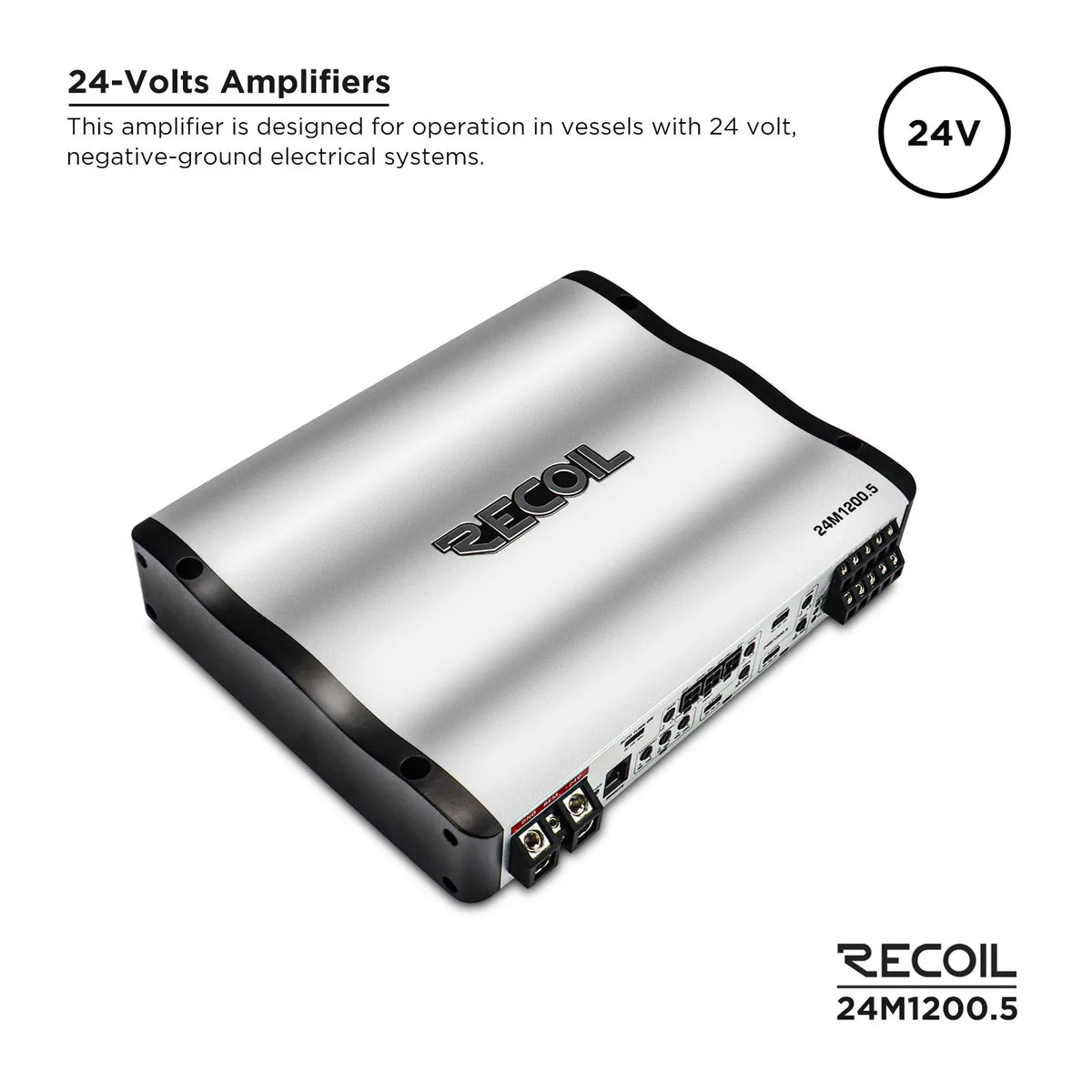

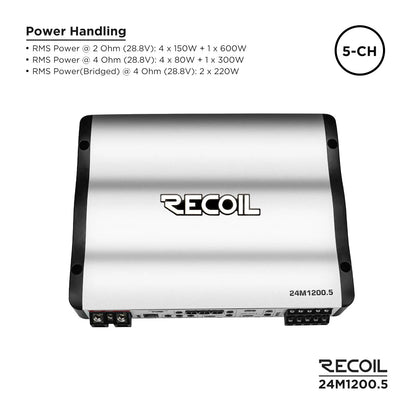

The Recoil 24M1200.5 is a 24V 1200 Watts Class-D 5-channel amplifier. At 2 ohm it is listed at 150 W x 4 (4-channel) and 600 W x 1 (mono), both @ 28.8 V.
Specifications
General
4-way protection circuit
Thermal, voltage, speaker, DC
Operating voltage
18 V to 30 V
Idling current (power on)
820 mA
Input sensitivity (high level)
230 mV to 12 V
Clip indication
1%
Fuse rating
70 A

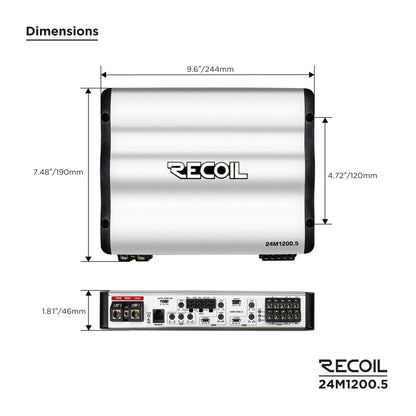

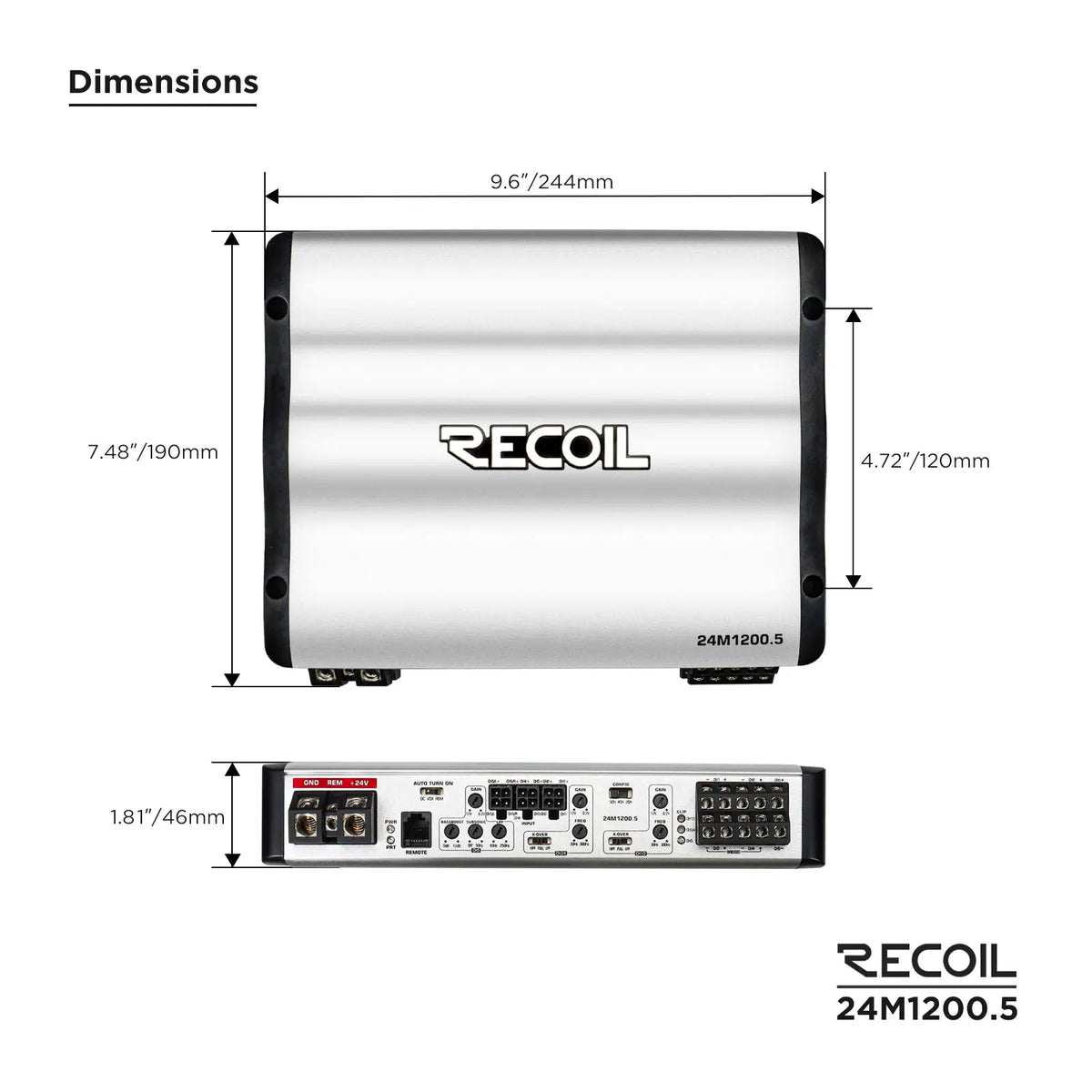

Dimensions
9.6 in x 7.48 in x 1.81 in (244 mm x 190 mm x 46 mm)
