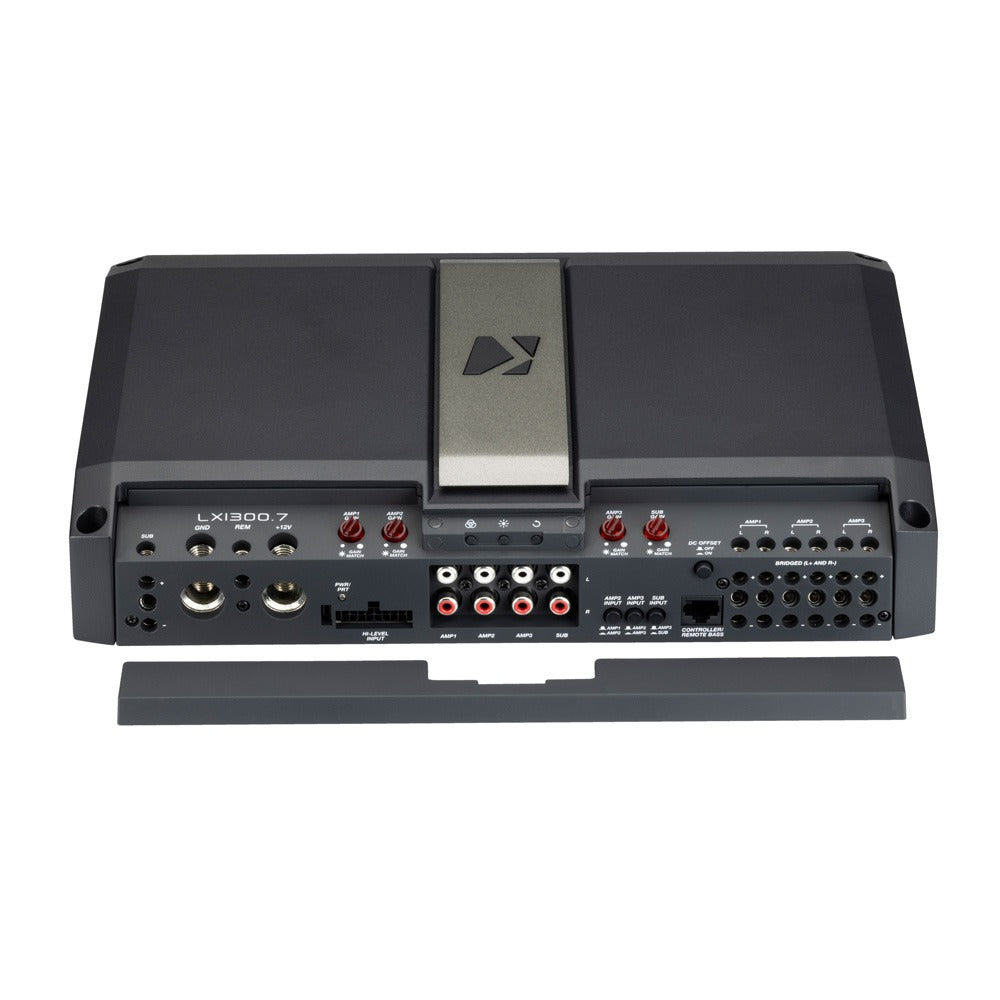

LX 1300W 7 Channel Class D System Amplifier w/ DSP Features

Overview

Experience unrivaled clarity and control with the KICKER LX-Series 1300W 7 Channel Amplifier. Engineered for power, precision, and premium performance, it offers a blend of high-powered sound quality design. Featuring efficient Class-D design, easy gain matching, and advanced protection. Customize your appearance with 11 RGB LED accent colors. Unleash the full potential of your audio system!

Description

The KICKER LX-Series is the ultimate blend of sound quality (SQL) design and high-powered performance. Engineered with feedback from audio enthusiasts, this premium amplifier line delivers the most-requested features while maintaining exceptional reliability and control. The LX 7-Channel is the ultimate all-in-one system amplifier. Channels 1-4 are full-power stereo channels, while Channels 5-6 are lower-powered, designed with a 3-way active front stage in mind - ideal for powering tweeters. Alternatively, in a 2-way active setup, the lower-powered channels can be used to amplify rear speakers.

Powerful Features for Ultimate Performance

• LXCC Control Center Included - Adjust gain trim, crossover type, slope & frequency
• LXRC Dash Remote Included – Adjust bass levels, monitor voltage, and control LED lighting from your fingertips.
• Efficient Class-D Design – Runs cooler, draws less power, and extends playtime without sacrificing performance.
• Easy Gain Matching – Built-in LED indicators ensure perfect gain settings for distortion-free sound.
• Customisable Appearance – Reversible center panel and 11 RGB LED accent colors for a personalized look.
• FIT+™ Technology – Accepts low- and high-level signals up to 40V, eliminating noise for crystal-clear audio.
• Advanced Protection – Multiple safety features prevent overheating, circuit issues, and voltage fluctuations.

LXRC Dash Remote – Total Control at Your Fingertips

• SHOCwave2.0™ – KICKER’s latest bass restoration algorithm recovers deep low-end frequencies for fuller sound.
• Battery Voltage Display – Fuel-gauge-style readout keeps you informed.
• RGB LED Control – Adjust brightness and customize your lighting.
• Clipping Indicator – Helps prevent distortion and protects your system.
• Long Cable for Easy Installation – 19.75 ft (6m) RJ45 cable included.

Power Ratings (Stereo channels - Amp 1 & 2):

• 125W x 4 @ 4Ω
• 175W  x 4 @ 2Ω
• 350W x 2 @ 4Ω (Bridged)

Power Ratings (Stereo channels - Amp 3):

• 65W x 2 @ 4Ω
• 65W x 2 @ 2Ω
• 130W x 1 @ 4Ω (Bridged)

Power Ratings (Subwoofer channel):

• 700W x 1 @ 1ohm
• 550W x 1 @ 2 ohm
• 300W x 1 @ 4 ohm

Compact Yet Powerful Dimensions:

• Height: 6 cm
• Width: 21.4 cm
• Length: 32 cm

The KICKER LX-Series 7 Channel is built for those who demand power, precision, and premium performance. Whether you're fine-tuning your speakers, or pushing your system to the limit, the LX-Series delivers unmatched clarity and control.

Specifications
