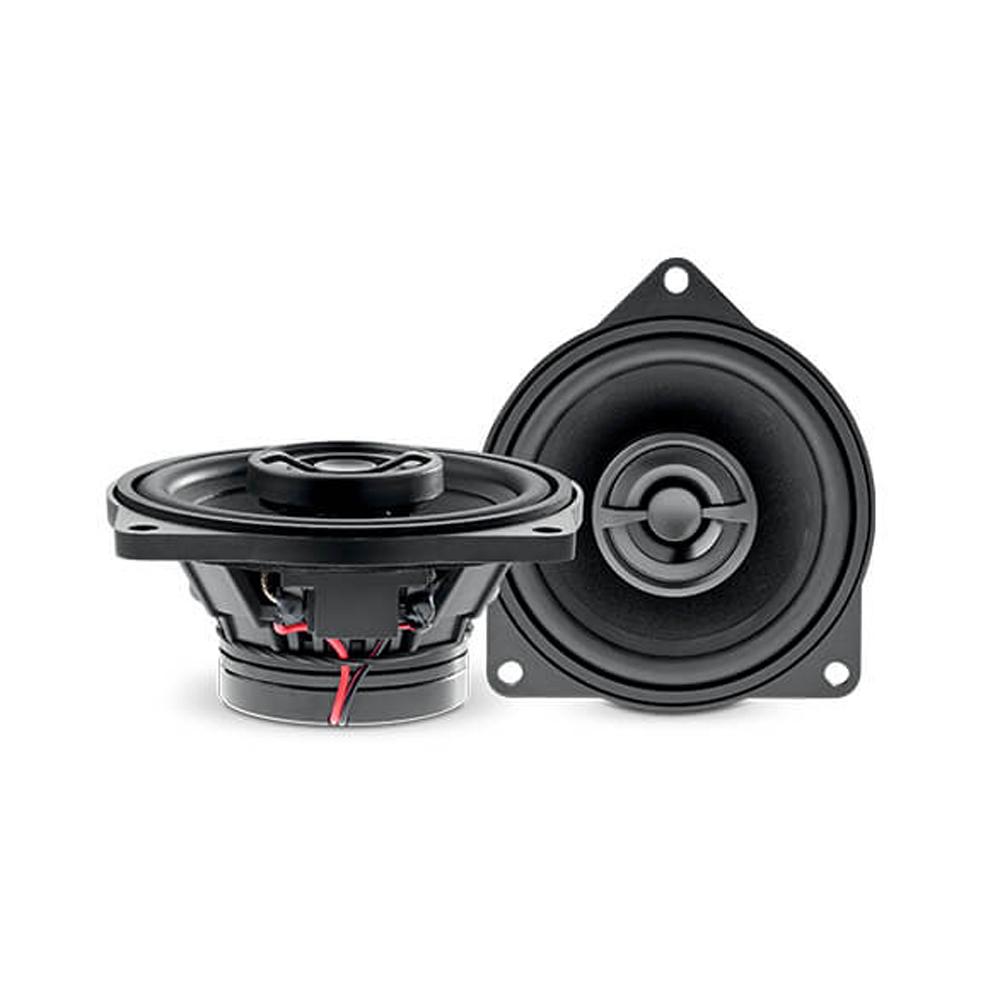

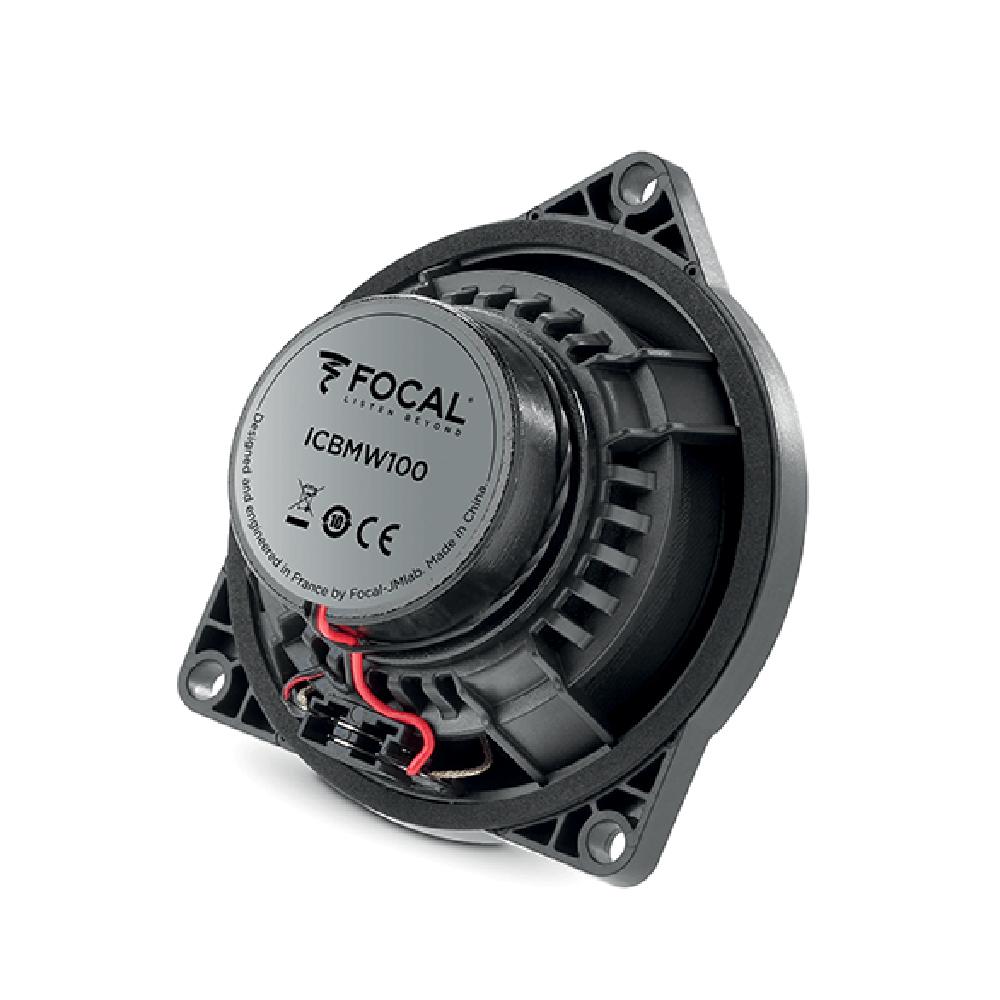

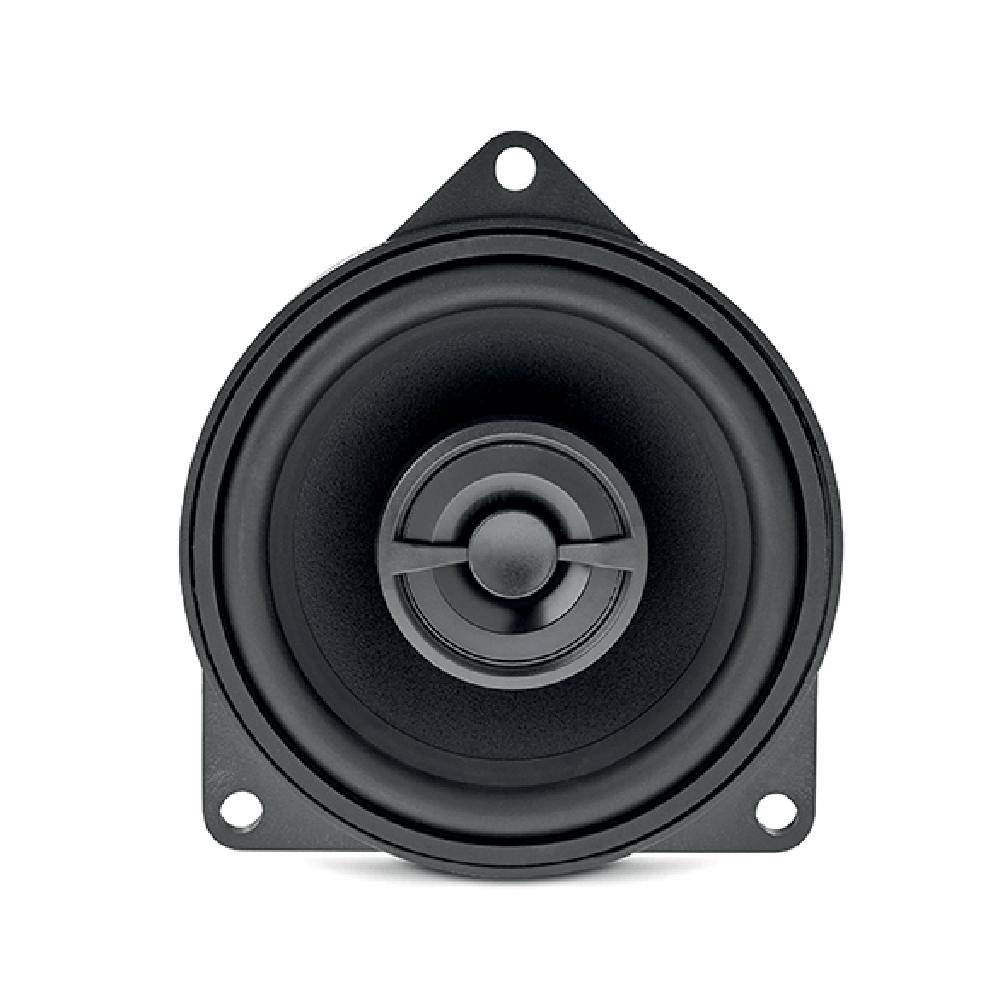

ICBMW-100

Specifications

• Nominal power 40 W
• Maximum power 80 W
• Sensitivity 89.5 dB
• Nom. impedance 4 Ω
• Cone Polyglass
• Surround Butyl
• DC resistance 3.5 Ω
• VC diameter 25 mm 13/16"
• Former Kapton
• Layers 2
• Wire Copper
• Net weight 400g 0.88lb
• Frequency response 80-23000 Hz
• Crossover 6 dB/Oct @4 kHz

Parameters

• Rdc 3.5 Ω
• Fs 115 Hz
• Mms 4.3 g
• Cms 0.4 mm/N
• Vas 1.3 l
• Qts 1.1
• Qes 1.2
• Qms 8
• Bxl 4 N/A
• Sd 50.7 cm^
• SPL 89.5 dB
• Xmax 2 mm
