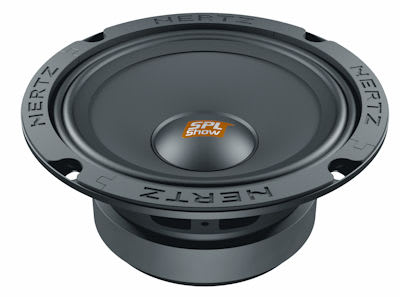

Hertz SPL Show SV 165.1

The SV 165.1 midrange can be employed to build systems with tremendous impact. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions.

Technical Specifications

Size mm (in.) 165 (6.5)
Power Handling - Peak 400 Watts
Impedance 4 Ohm
Frequency response Hz 100 ? 10k
Sensitivity dB SPL 97
Voice coil mm (in.) 38 (1.5)
Magnet High density flux ferrite
Cone/Dome Ultra light pressed paper
