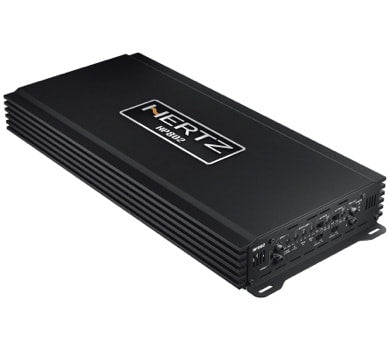

Hertz SPL Show HP 802

HP 802 is an AB Class stereo amplifier, able to deliver up to 1800W. The output stage features an oversized power supply with 4 toroidal transformers, providing the ability to deliver remarkable power and work stable into 1 Ohm load. Separate Hi-Pass and Lo-Pass filters, able to be configured into a 50 Hz ? 10 Hz adjustable Band-Pass filter. A parametric equalizer is also on board, to optimize the response on amplified channels, as well as a Pre Out, to re-launch the input signal to another HP 802 in a multi-amplified system without limits on the number of ways.

Technical Specifications

Channel mode 2-1 Output Power (RMS) @ 14.4 VDC
2 Ch: 330 W x 2 (4 Ohm)
2 Ch: 550 W x 2 (2 Ohm)
2 Ch: 800 W x 2 (1 Ohm)
1 Ch: 1100 W x 1 (4 Ohm)
1 Ch: 1600 W x 1 (2 Ohm)

Filters
Hi-Pass 50 - 1k Hz / 500 - 10k Hz
Lo-Pass 50 - 1k Hz / 500 - 10k Hz
Band-Pass 50 - 10k Hz (HI) 50 - 10k Hz (LO)

Distortion - THD (100Hz @ 4 Ohm) 0.05 %
S/N Ratio (A weighted @ 1V) 103 dB
Damping factor (100Hz @ 4 Ohm) 500
Size W x D x H
mm (in.) 544 x 240 x 65,5 (21.41 x 9.45 x 2.55)
