Hertz ML Power 5

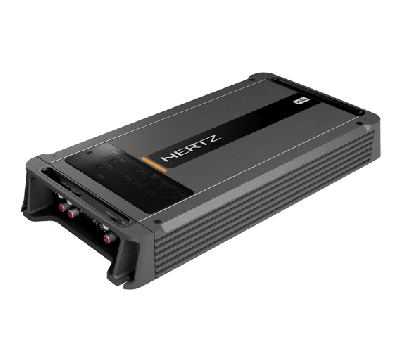

The ultra-versatile Hertz audio car amplifier ML Power 5 (4 X 100 Watts RMS + 550 Watts RMS into 2 ohm) provides plenty of clean power enabling system builders to run a complete front system actively including a subwoofer. The revolutionary chassis is designed to provide enough cooling to allow the amp to run at high level without risk of overheating. An optional bass level control (HRC BM) is available separately.

Technical Specifications

Channel mode 5 - 3
Output Power (RMS) @ 14.4 VDC
5 Ch 70 W x 4 + 380 W x 1 (4ohm)
5 Ch 100 W x 4 + 550 W x 1 (2ohm)
3 Ch 200 W x 2 (4ohm) + 380 W x 1 (4ohm)
3 Ch 200 W x 2 (4ohm) + 550 W x 1 (2ohm)

Filters

Hi-Pass
Lo-Pass
Band-Pass



A Ch: 40 - 150 Hz @ 12 dB/Oct.
B Ch: 80 - 3.3k Hz @ 12 dB/Oct.
C Ch: 40 - 150 Hz @ 24 dB/Oct.
A Ch: 40 - 150 Hz @ 12 dB/Oct. - 80 - 3.3 kHz (LO) @ 12 dB/Oct.

Distortion - THD (100Hz @ 4ohms): 0.08 %
S/N Ratio (A weighted @ 1V): 100 dB A & B Ch - 106 dB C Ch
Damping factor (100Hz @ 4ohms): 50 A & B Ch - 90 C Ch
Size W x D x H mm (in.): 170 x 349 x 46.70 - (6.69" x 13.74" x 1.84")
