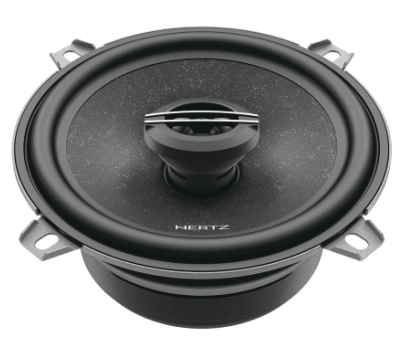

Coaxial speakers present designers with the toughest technical challenge due to often poor mounting positions in the vehicle. As the 24mm tweeter sits inside the cone area of the woofer, it is imperative that a wide dispersion characteristic is achieved. In this case, the contoured tweeter bezel can be rotated and angled towards the listeners ears.
Technical Specifications
Power Handling - Peak W: 150
Power Handling - Continuous W: 50
Impedance ohms: 4
Frequency response Hz: 65 - 22k
Sensitivity dB SPL: 92.5
Woofer size mm (in.): 130 (5)
Tweeter size mm (in.): 24 (0.9)
Woofer Voice Coil mm (in.): 25 (1)
Tweeter voice coil mm (in.): 13 (0.5)
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Semi Pressed Paper-Mica
Tweeter dome: Tetolon
