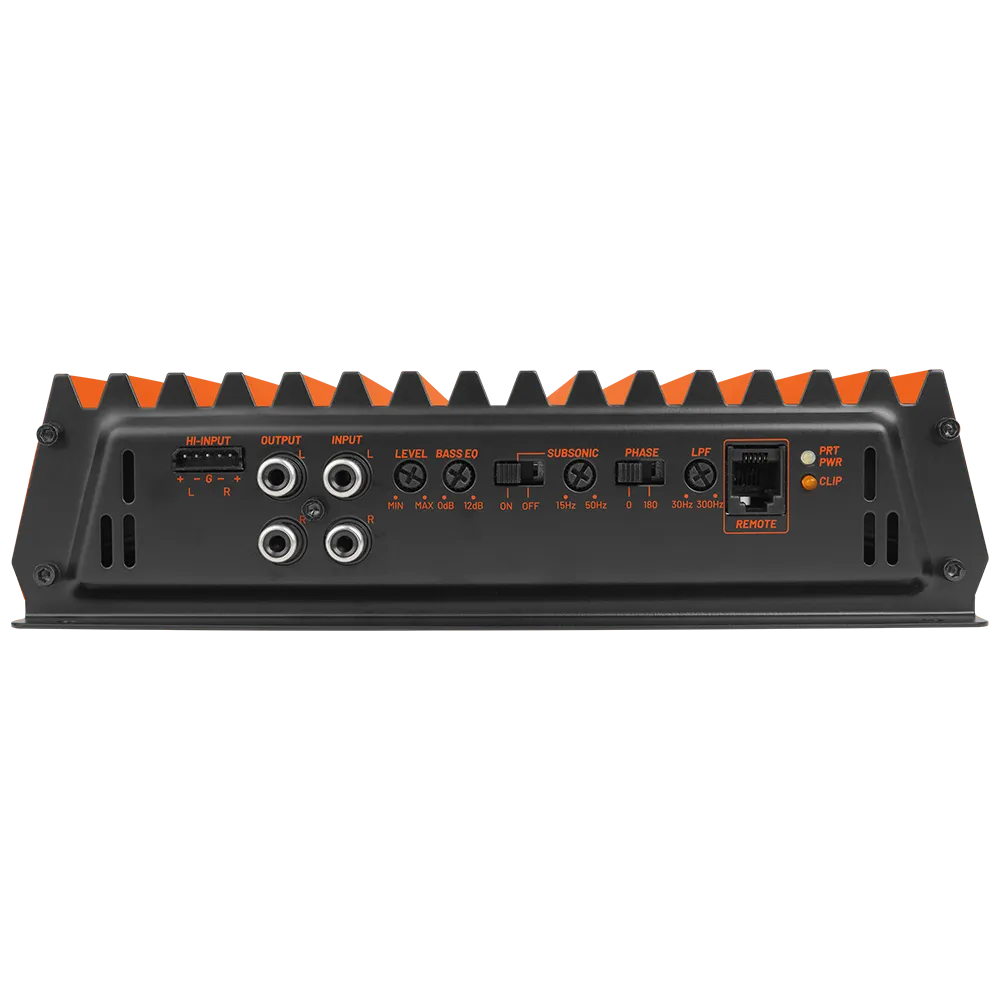

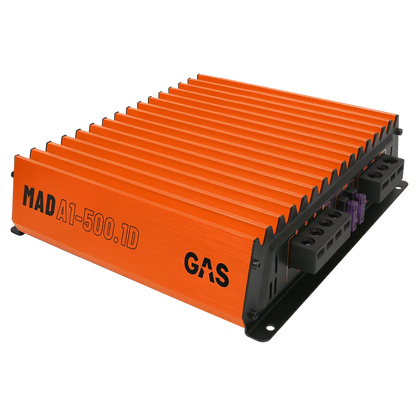

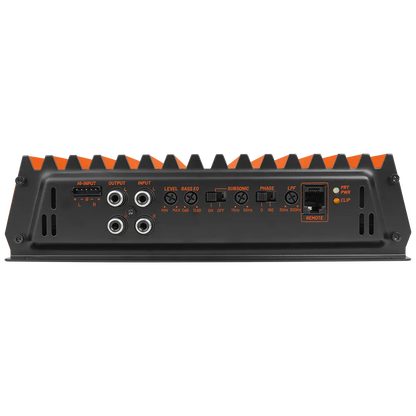

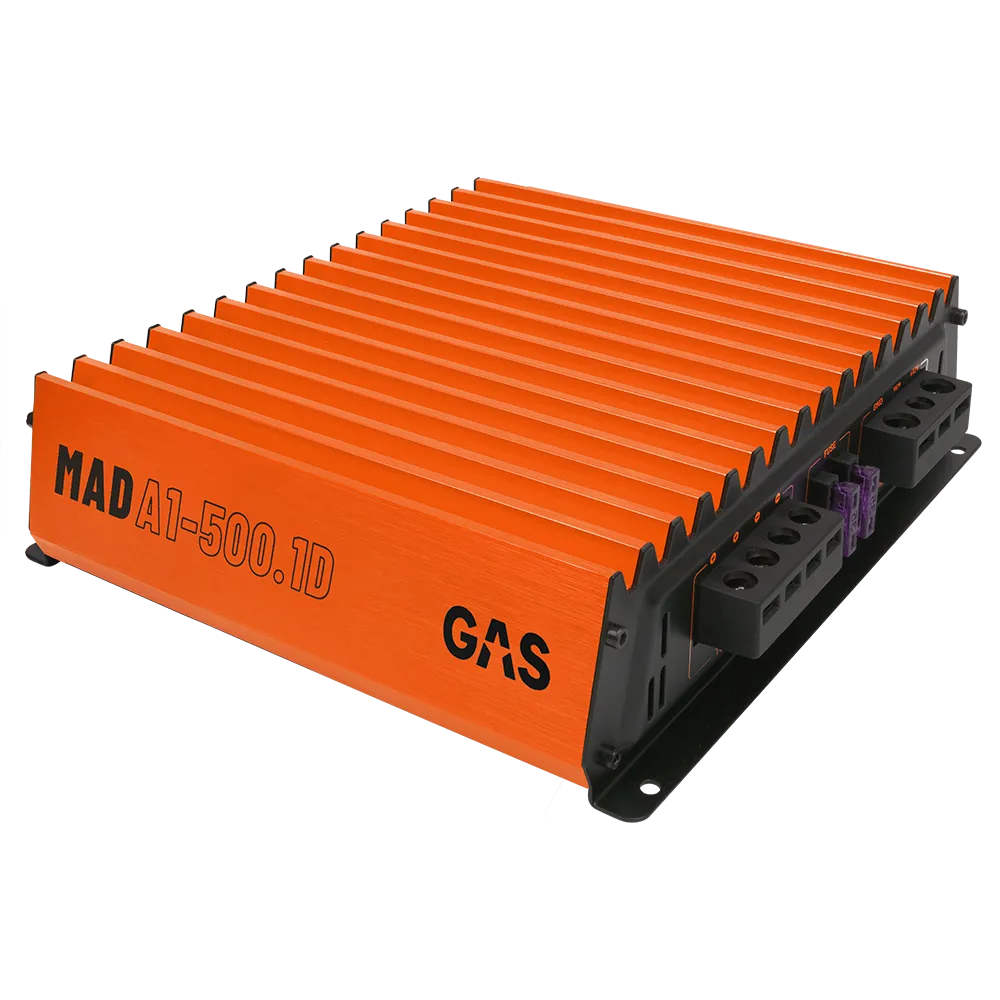

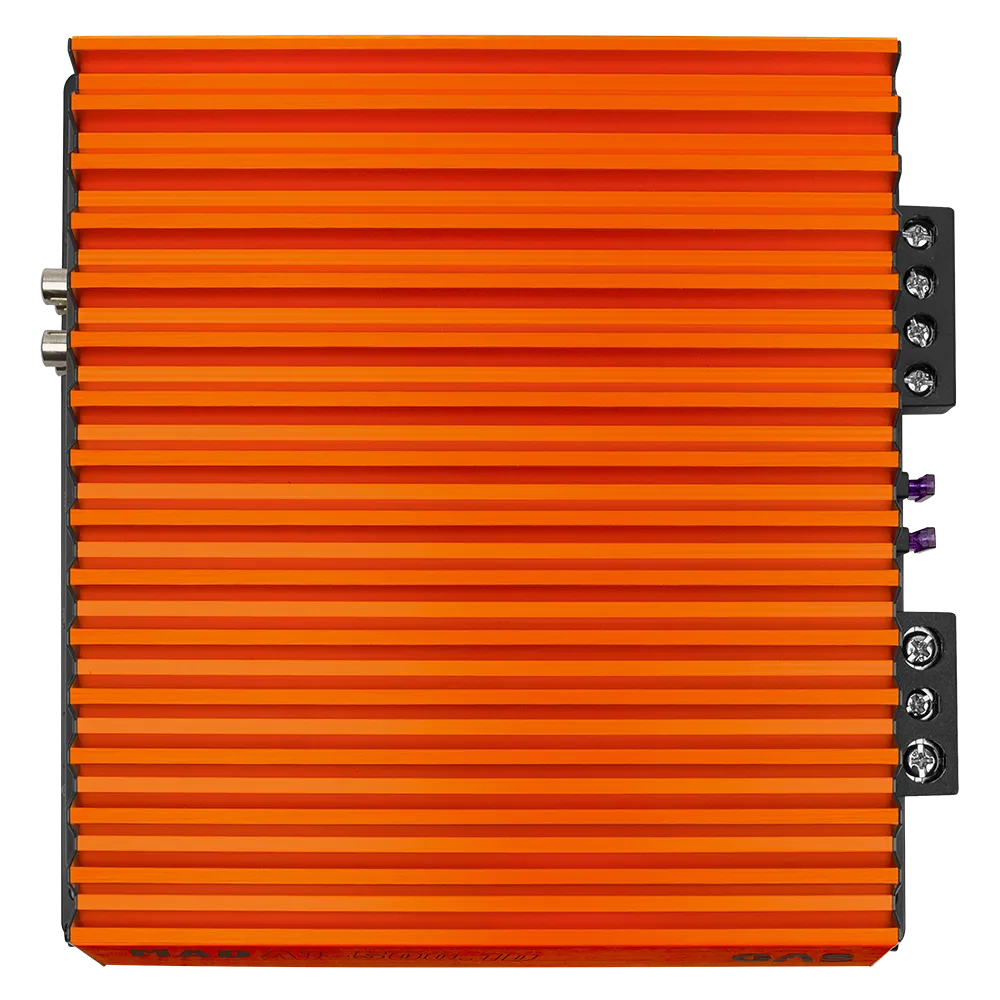

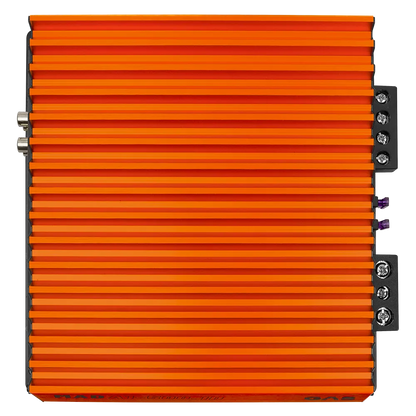

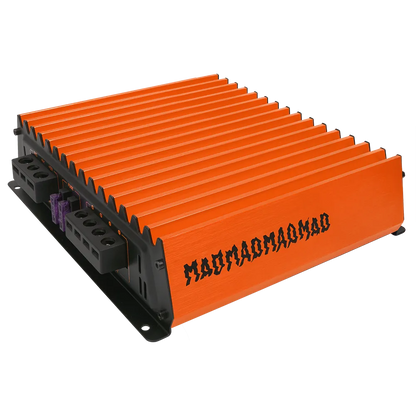

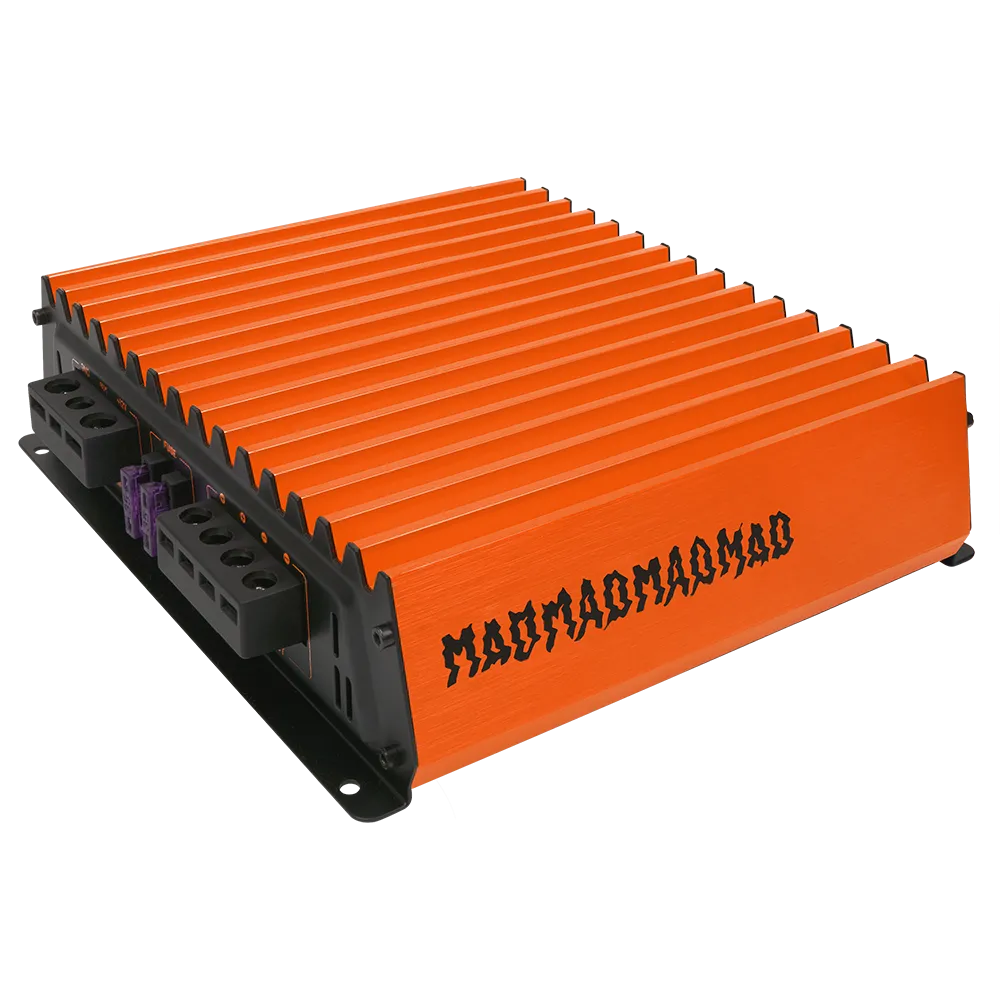

GAS MAD A1-500.1D Mono amplifier

GAS MAD A1-500.1D Mono amplifier

£99.95 GBP
£99.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The GAS MAD A1-500.1D is a mono car amplifier from the MAD A1 level of the MAD series. It delivers 1 x 500 W RMS at 1 ohm, 1 x 370 W RMS at 2 ohm and 1 x 230 W RMS at 4 ohm.

Key features

  • Custom lightweight A-Star heat sink chassis with an increased cooling area: less material, same efficiency
  • CLIP function for easy installation, showing when 1% distortion is reached
  • CLIP indicator on the bass level remote
  • Latest high level input technology with ATO (automatic turn on)
  • LPF and subsonic 12 dB crossover slopes
  • 0/180 phase shift
  • Protection circuits that minimise the risk of DC, thermal overloading and shorting issues

Specifications

Component Amplifier
Product level MAD A1
Series MAD
Channels One
Input mode Mono
Power RMS (1 ohm) 1 x 500 W
Power RMS (2 ohm) 1 x 370 W
Power RMS (4 ohm) 1 x 230 W
Frequency response 15-300 Hz
Low pass filter 30-300 Hz
S/N ratio (A-weighted) >92 dB
Bass EQ 0-12 dB @ 45 Hz
Crossover slope 12 dB
Power voltage 10-16 V
REM voltage 10-16 V
Input sensitivity 0.5-6 V
THD <0.05%
Power fuse 2 x 35 A
Damping factor >130
RCA line out Yes
