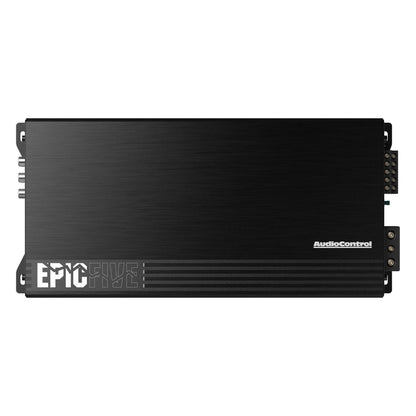

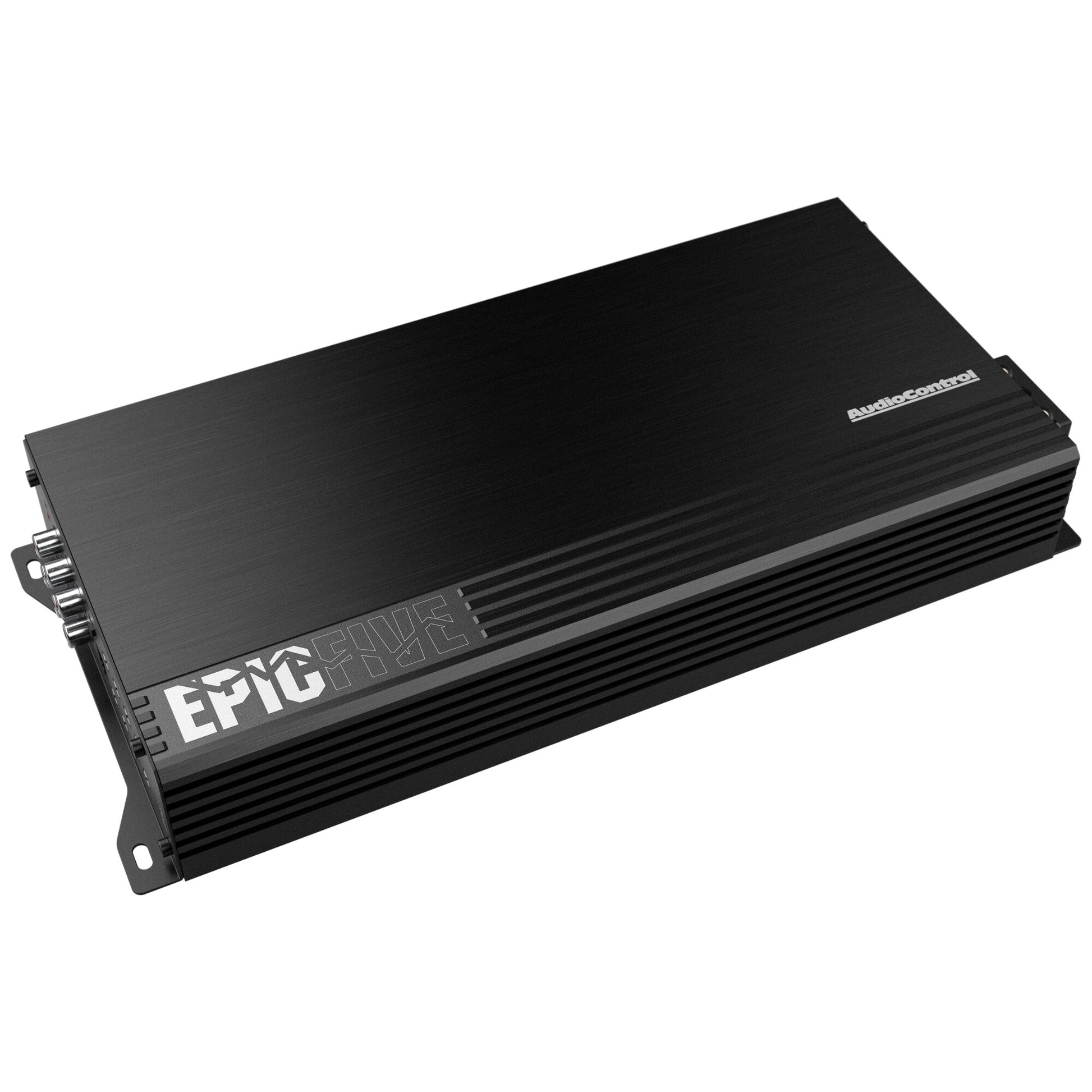

EPICFIVE

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.

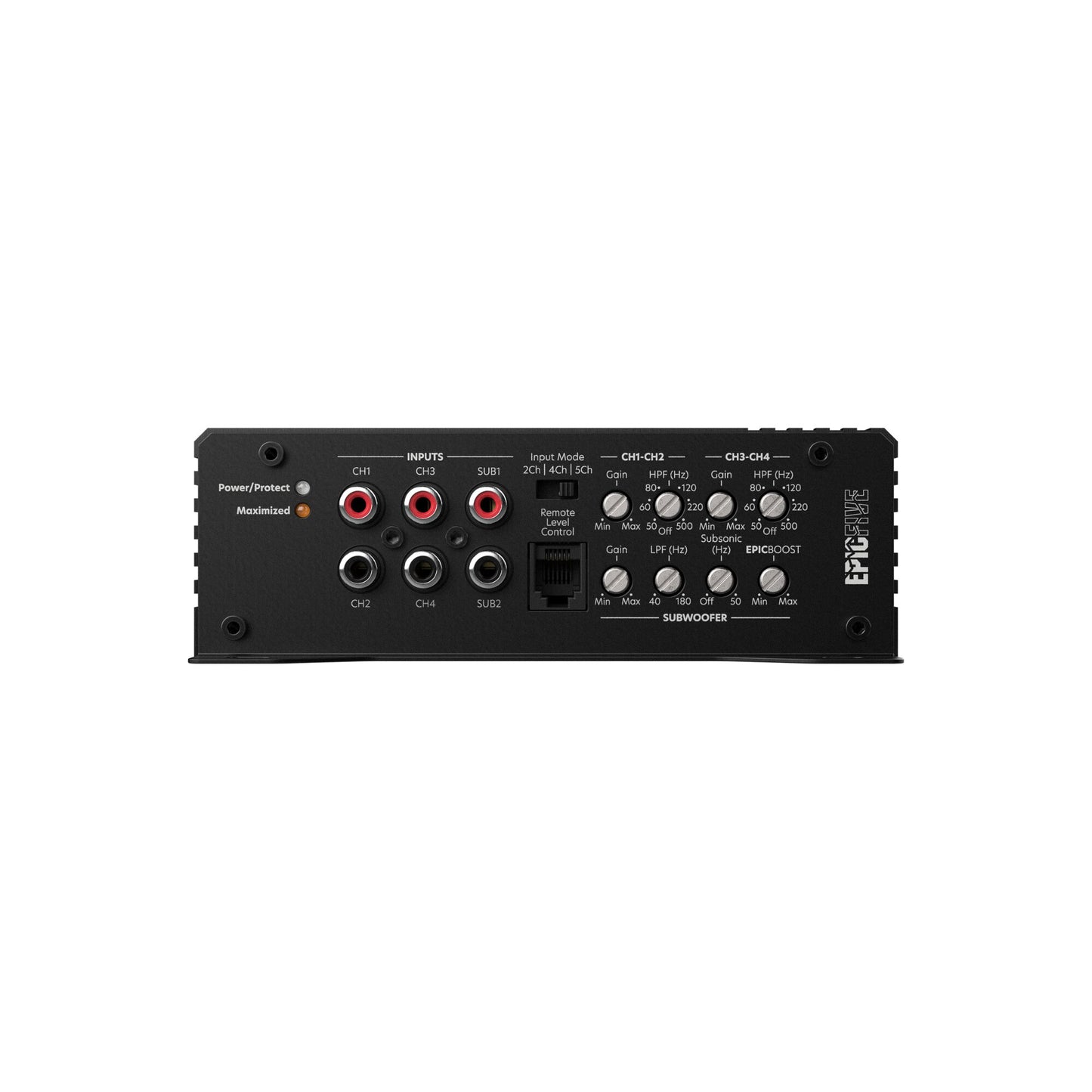

• 12dB/Octave Variable Low Pass Filter: Matches your subwoofer's frequency range for optimal performance
• 12dB/Octave Variable High Pass Filter: Matches your speaker’s frequency range for optimal performance.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost

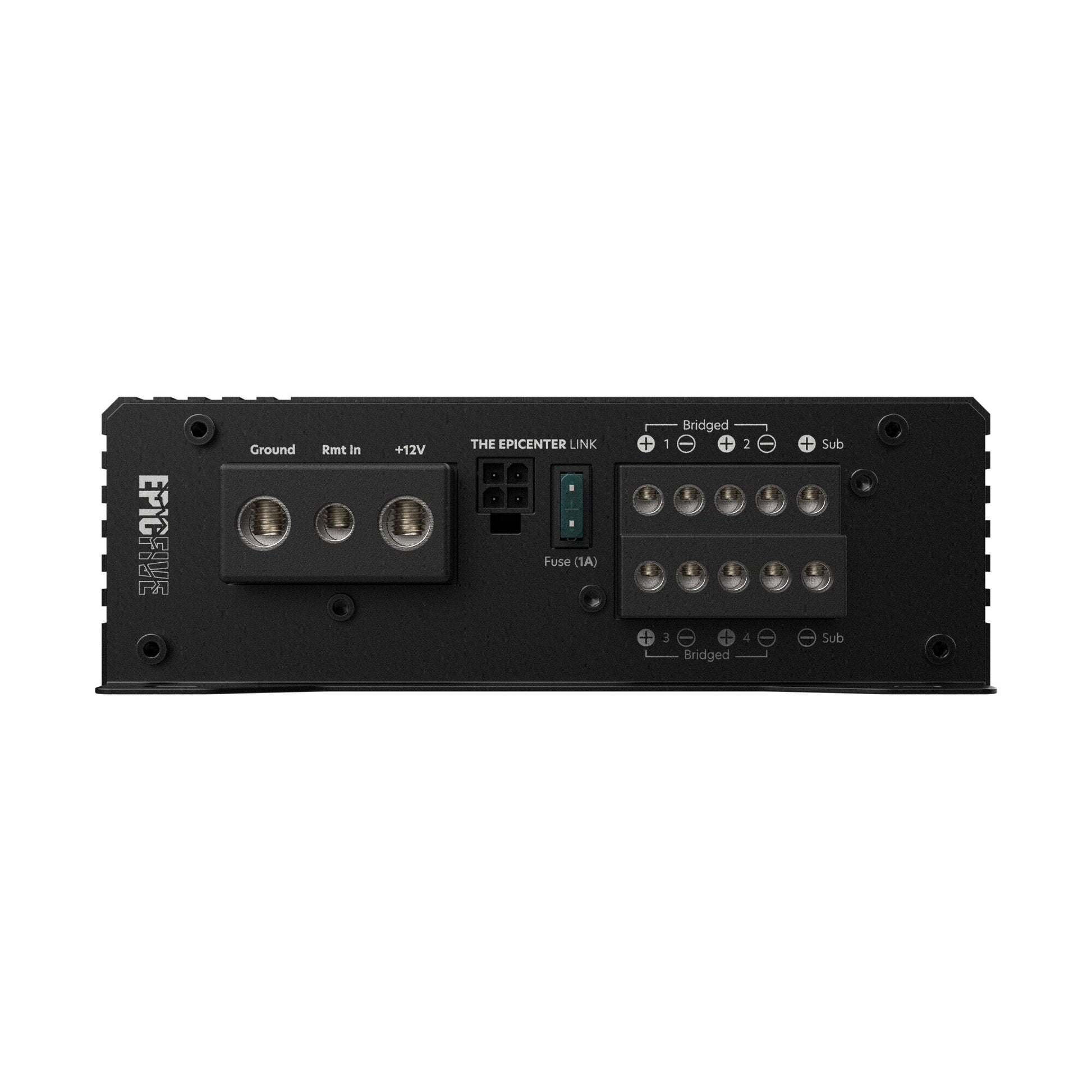

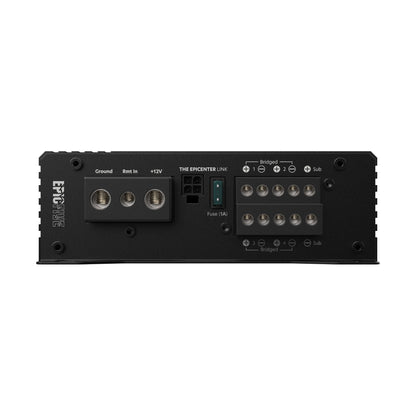

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow
• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A)
• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue

  1. Output Over-Current Protection (OCP)
  2. Input Over-Voltage Protection (OVP)
  3. Input Under-Voltage Protection (UVP)
  4. Output DC-Offset Protection (DCP)
  5. Over-Temperature Protection (OTP)

Specifications

• Continuous Power (RMS) @ 14.4V
  150W x 4 + 500w x 1 @ 2Ω
  75W x 4 + 300w x 1 @ 4Ω
  300W x 2 @ 4 Ω (Bridged)
  700w x 1 @ 1Ω

• Signal to Noise
  >92dB

• Subsonic Filter: Yes

• EPIC Boost: Yes

• Dimensions (WxLxH)
  6.1"x13.35"x2.01"

• Strapable: No

• Epicenter Link: Yes

• Remote Level Control: Included
