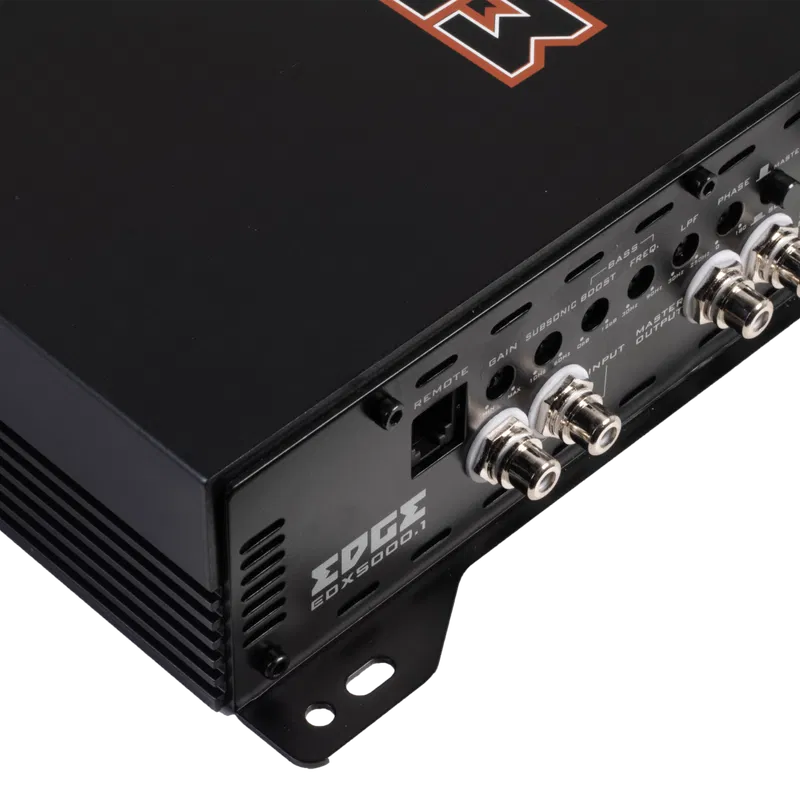

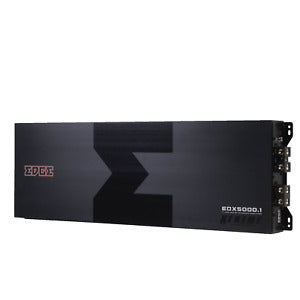

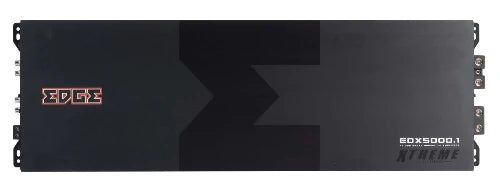

EDGE Xtreme Series Monoblock 11000 watts Amplifier EDX5000.1D-E2

The Xtreme Series from EDGE Audio Presents an all new competition SPL amplifier.

Ultra efficient Class D topology maximises available battery power and minimises losses ensuring maximum power delivery to the subwoofers. 18v DC input stability allowing the user to maximise the power output from the non-regulated power supply.

Dual 0AWG power input terminals allow huge cable to be connected between the vehicles power supply and the amplifier PCB. Amplifier strapping circuit allows 2 amplifiers to be connected together to deliver their combined output power into a single channel delivering up to 11,800 watts RMS.

• Model: EDX5000.1D-E2
• Configuration: Monoblock
• RMS @ 4 Ohms 14.4v 1% THD: 1 x 1580 watts
• RMS @ 2 Ohms:14.4v 1% THD: 1 x 3000 watts
• RMS @ 1 Ohm 14.4v 1% THD: 1 x 5500 watts
• RMS @ 1 Ohm 16v 1% THD: 1 x 5700 watts
• RMS @ 1 Ohm 18v 1% THD: 1 x 5800 watts
• Maximum Power: 11000 watts
• Frequency Response: 10Hz - 350Hz
• Crossover Type: LP / Subsonic
• Crossover Range: 10Hz - 250Hz
• Input Sensitivity: 200mv - 8v
• Topology: Ultra Class D
