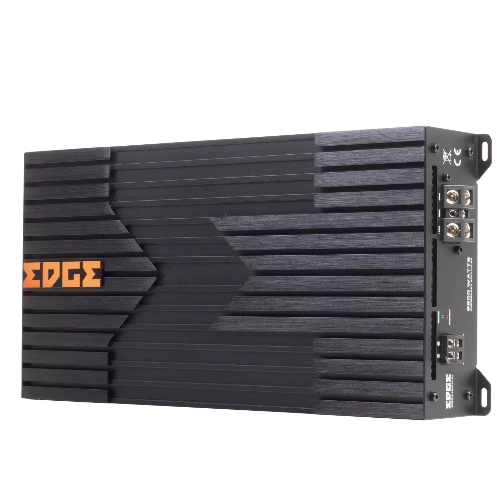

EDGE DBX Series Mono 3600 watts Amplifier EDBX1800.1D-E4

EDGE All new 2024 “The Big E” range of brand new Class D monoblock amplfiers to the DBX series.

Our unique designed “Big E” heatsink has a high quality extruded Aluminium chassis with thick side fins for heat dissipation and our signature E engraved into the top for a subtle but very unique design.

The amps come with solid die-cast 4AWG power and ground terminals, dual speaker terminals and a bass remote for fine tuning adjustability, paired with onboard adjustment for gain, bass boost, frequency and a subsonic filters these amps offer great levels of control.

Finally both models offer a signal output allowing you to simply add signal to another amp in your system. Elegant, precise and powerful.

• Configuration: Monoblock
• RMS @ 4 Ohms Mono: 1 x 650 watts
• RMS @ 2 Ohms Mono: 1 x 1200 watts
• RMS @ 1 Ohms Mono: 1 x 1800 watts
• Maximum Power: 3600 watts
• Frequency Response: 10Hz - 180Hz
• Crossover Type: LP / Subsonic
• Crossover Range: 0Hz - 180Hz
• Recommended Fuse: 180A (External Fuse)
• Topology: Class D
