DLS S124V 1 Channel Mono Amplifier 24V

DLS S124V 1 Channel Mono Amplifier 24V

£544.95 GBP
£544.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The DLS S124V is a 1 channel mono Class D amplifier for 24V systems, from the Signature series. It is rated at 1 x 1100 W RMS at 1 ohm, 1 x 900 W RMS at 2 ohm and 1 x 500 W RMS at 4 ohm.

Key features

  • Signature series design with low distortion and a high signal-to-noise ratio, for a warm clarity and a firm mid bass
  • Made for 24V
  • 2019 marked the 40th anniversary of DLS, which then set out with Gordon Taylor on a new journey to create perfection
  • Attention to detail from the custom cooling system to the power supply, plus an internal cooling fan
  • Each channel is trimmed individually and every component is synchronised with the others
  • When used with a Digital Sound Processor, all preamp circuitry can be bypassed so the DSP has complete control of all sound tuning parameters and a clean, unaltered signal reaches the amplifying stage
  • Bass boost @ 45 Hz of 0 to +6 dB
  • Subsonic filter at 30 Hz, switchable on/off
  • Phase switch 0/180°

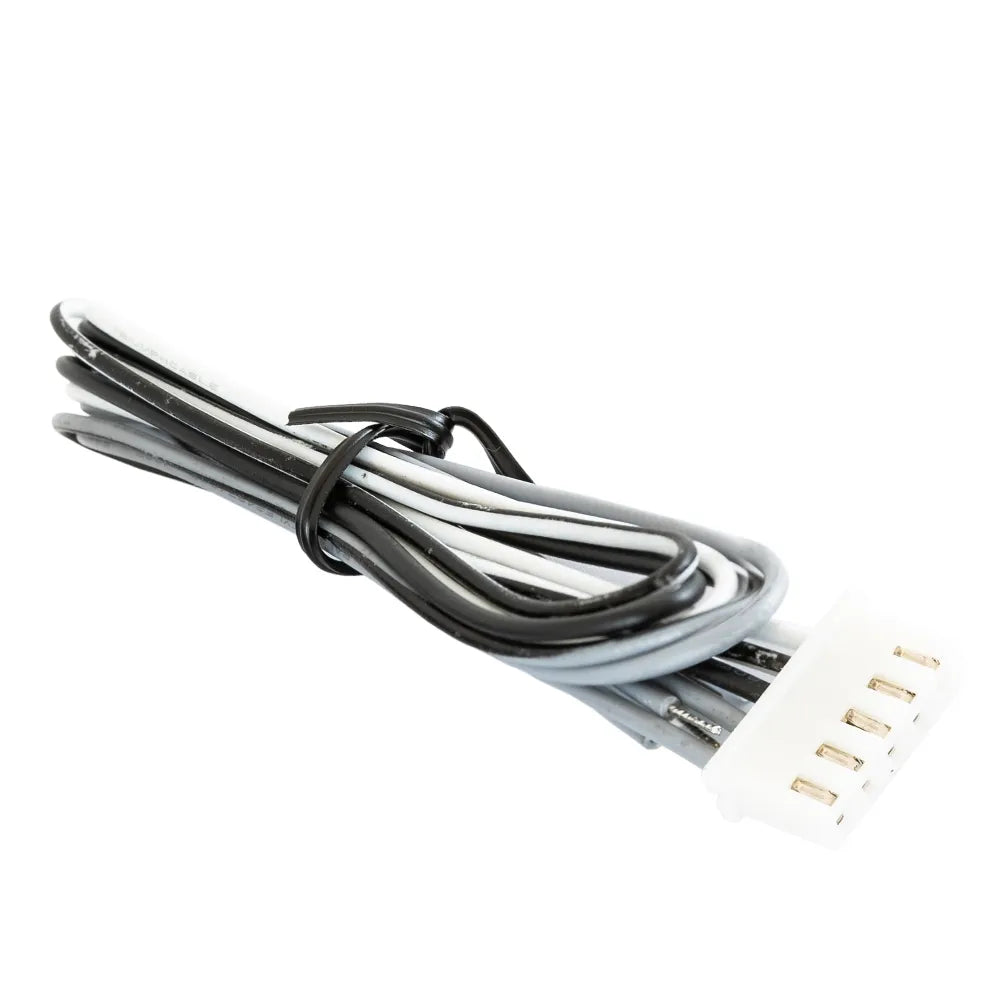

  • Remote sub level control with 5 m cable

Specifications

Channels Mono
Amplifier class D
Power RMS (1 ohm) 1 x 1100 W
Power RMS (2 ohm) 1 x 900 W
Power RMS (4 ohm) 1 x 500 W
Frequency range 10 – 250 Hz
Low-pass filter 35 – 250 Hz
Dimensions (W x D x H) 129 x 370 x 54 mm
Weight 2.9 kg
Damping factor >150
THD at 3 W, 20 Hz – 300 Hz <0.06%
THD at 400 W, 100 Hz <0.09%
S/N ratio (A-weighted) 94 dB
Input sensitivity 1 – 4 V
Input impedance (low level) 22 kohm
Input impedance (high level) 3.3 ohm
Power consumption (idle) 0.6 A
Power consumption (max) 51 A
