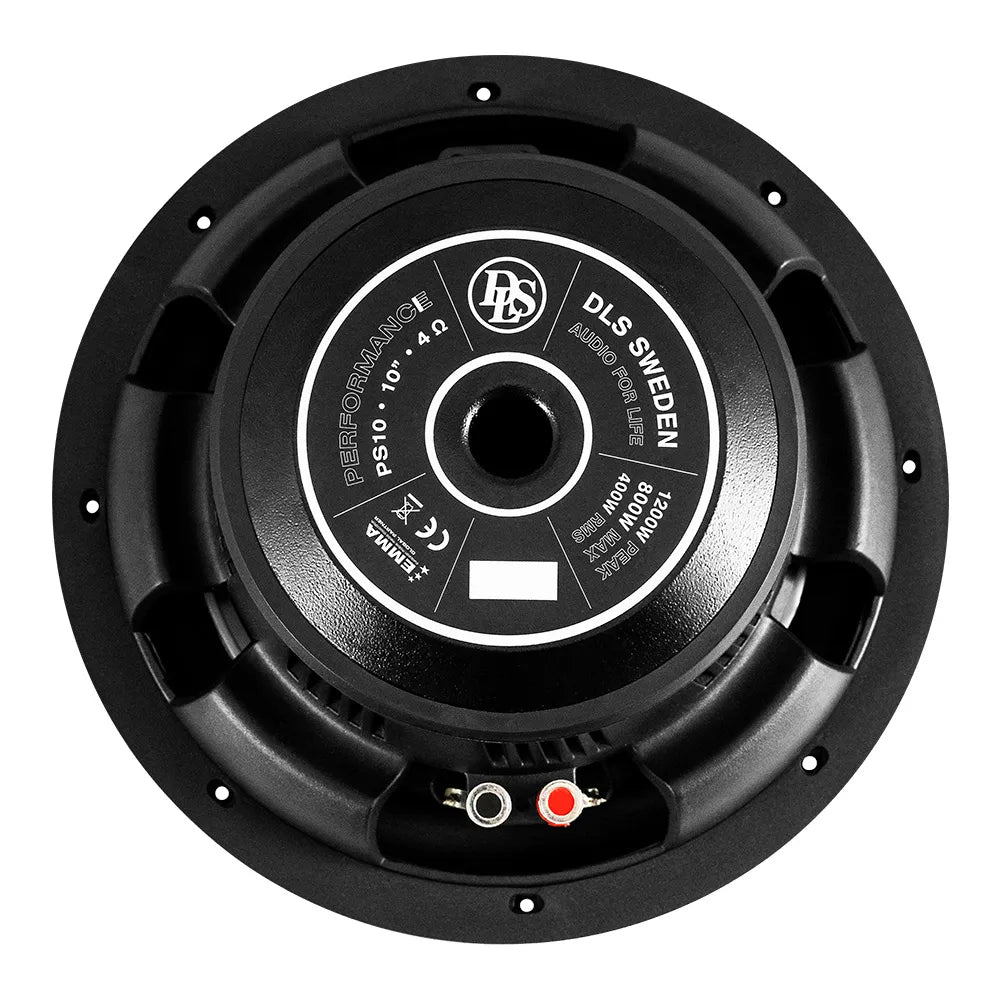

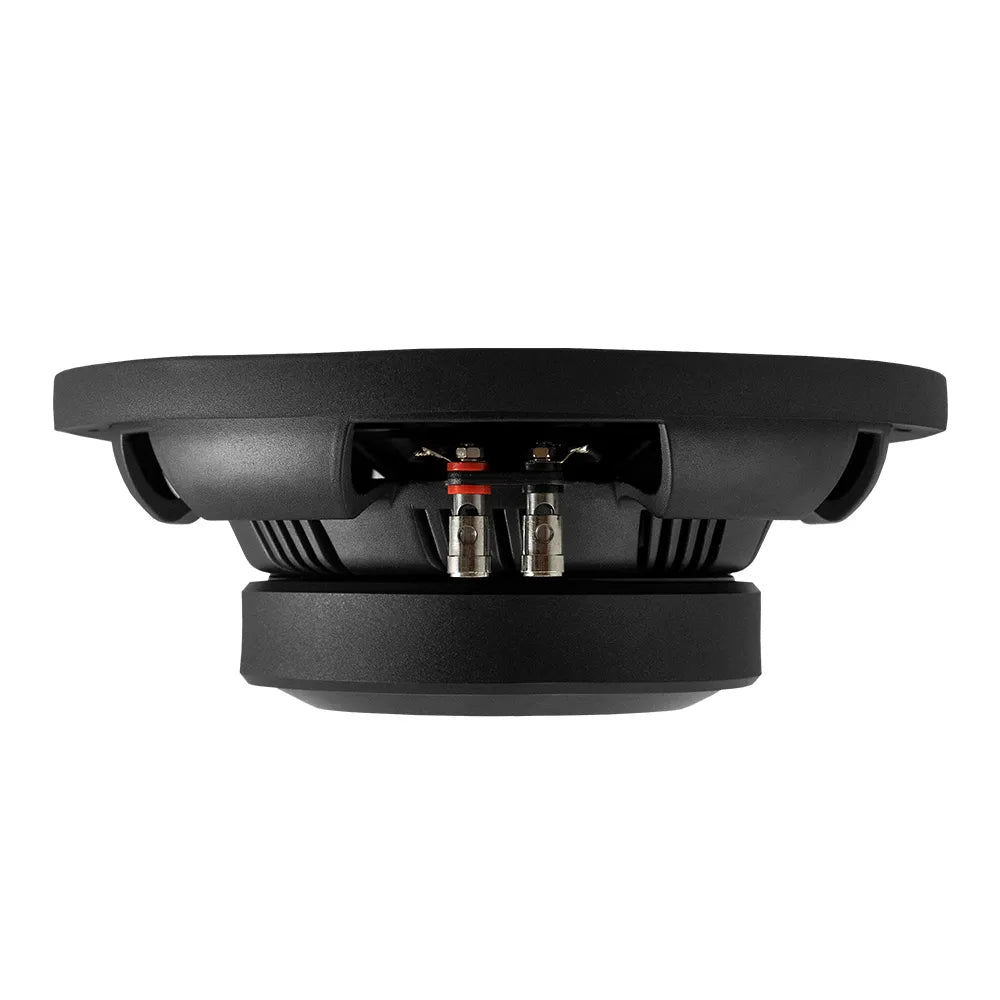

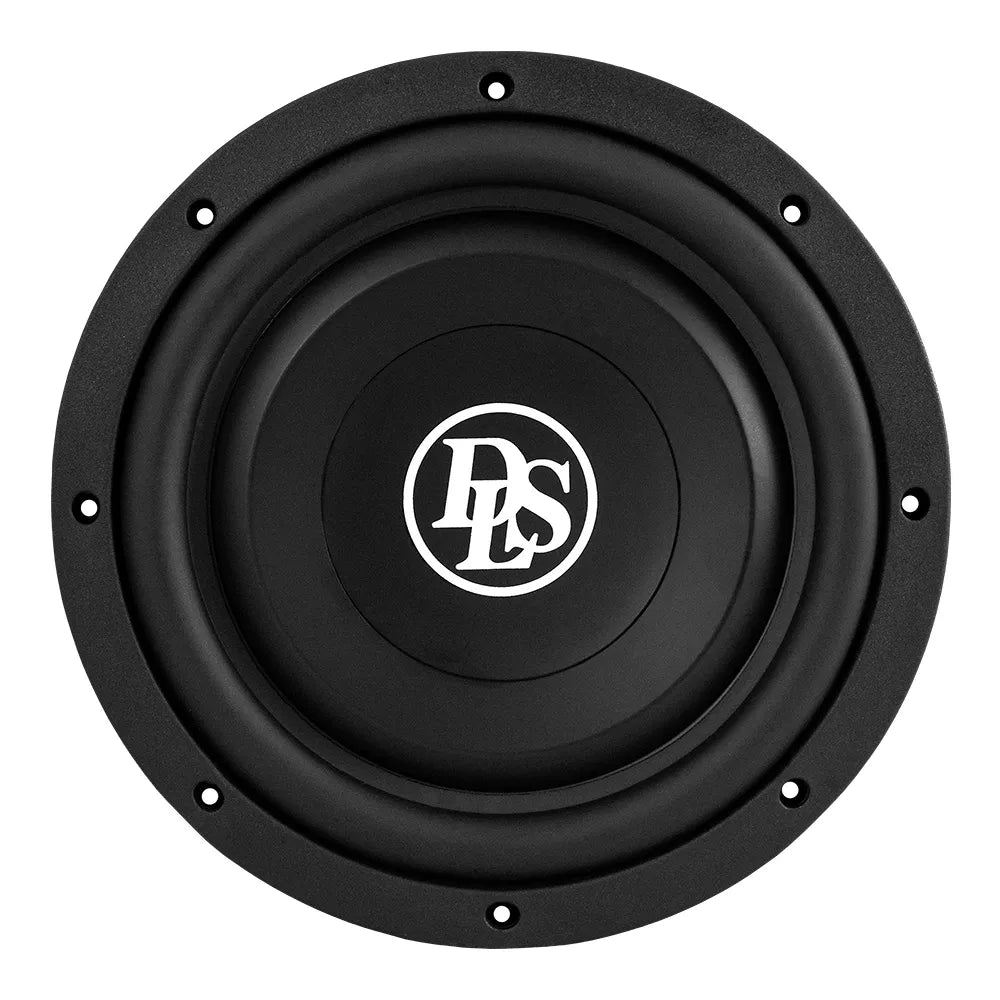

DLS PS10 10"/250mm Slim Type Subwoofer
DLS PS10 10"/250mm Slim Type Subwoofer
Regular price
£219.95 GBP
Regular price
Sale price
£219.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DLS PS10 is a 10"/250mm slim type subwoofer, 4 ohm, rated at 400 W RMS (800 W max). It delivers good sounding bass in limited space, with a narrow installation depth of 86 mm.
Key features
- Good sounding bass in limited space
- Narrow installation depth (86 mm)
- Strong injection moulded PP cone
- Great power handling at 400 W RMS
Specifications
| Size | 10"/250mm |
|---|---|
| Impedance | 4 ohm |
| Power RMS | 400 W |
| Power max | 800 W |
| Sensitivity | 84 dB |
| Voice coil size | 2"/51mm |
| Voice coil material | 4-layer copper/Kapton former |
| Magnet | 50 oz ferrite |
| Frequency range | 25 - 500 Hz |
| Weight | 4.8 kg |
| Installation depth | 86 mm |
Parameters
| Fs | 35 Hz |
|---|---|
| Re | 3.2 ohm |
| Qms | 9.99 |
| Qes | 0.52 |
| Qts | 0.51 |
| Cms | 0.15 mm/N |
| Mms | 132 g |
| Bl | 10.4 |
| Vas | 28.2 L |
| Sd | 346.4 cm2 |
| Xmax | ± 9 mm |
| Vd | 1.5 L |
