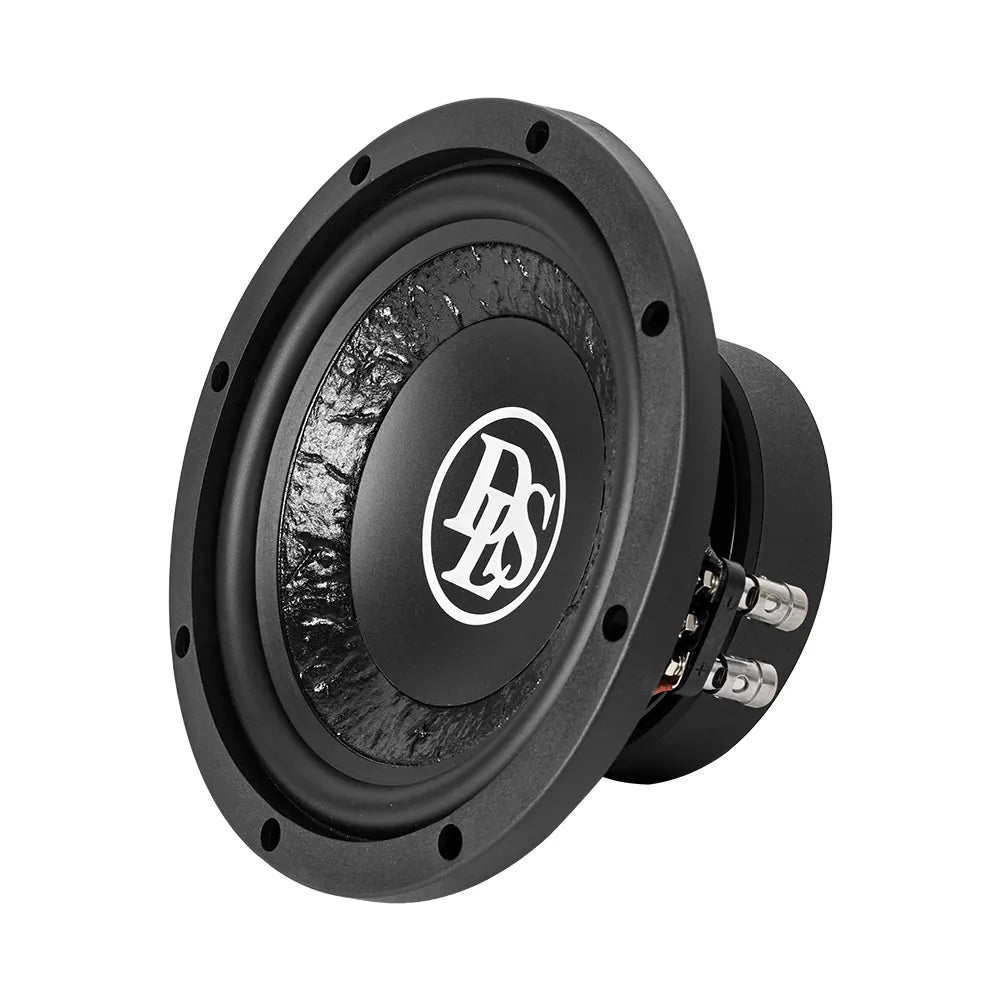

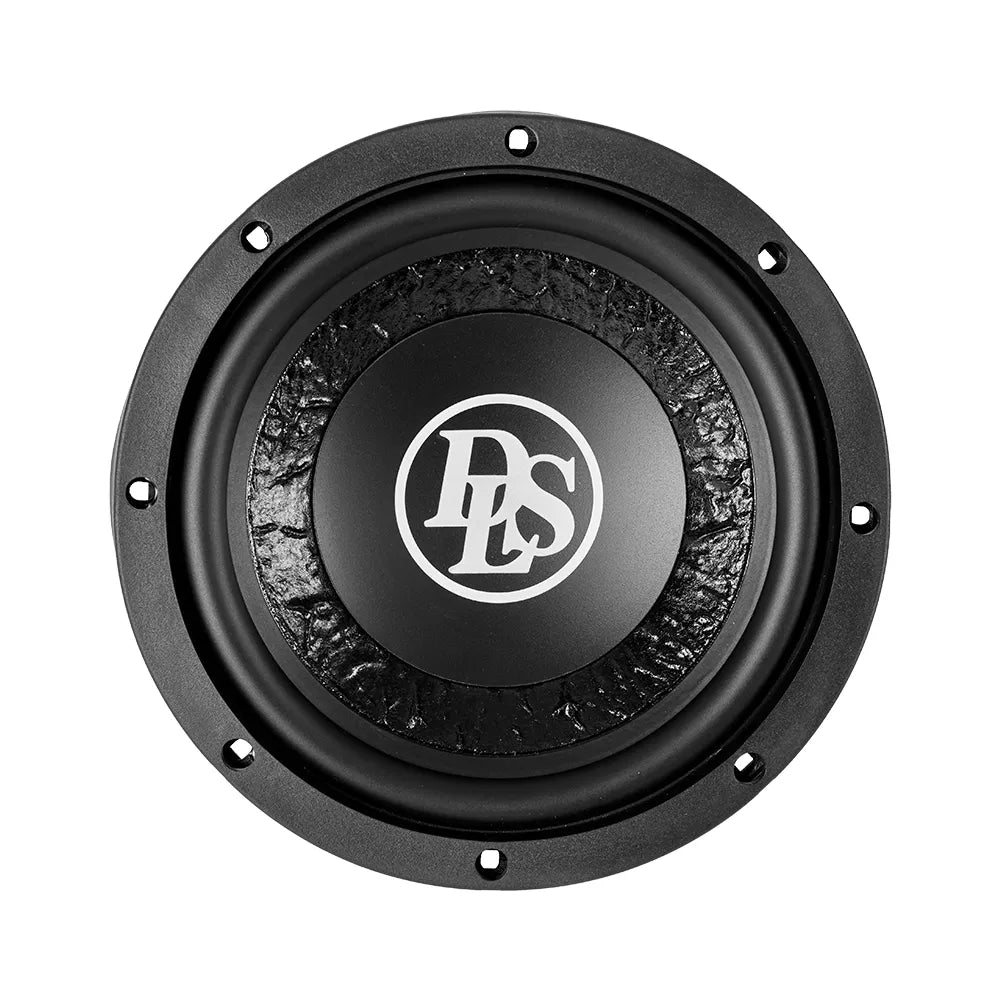

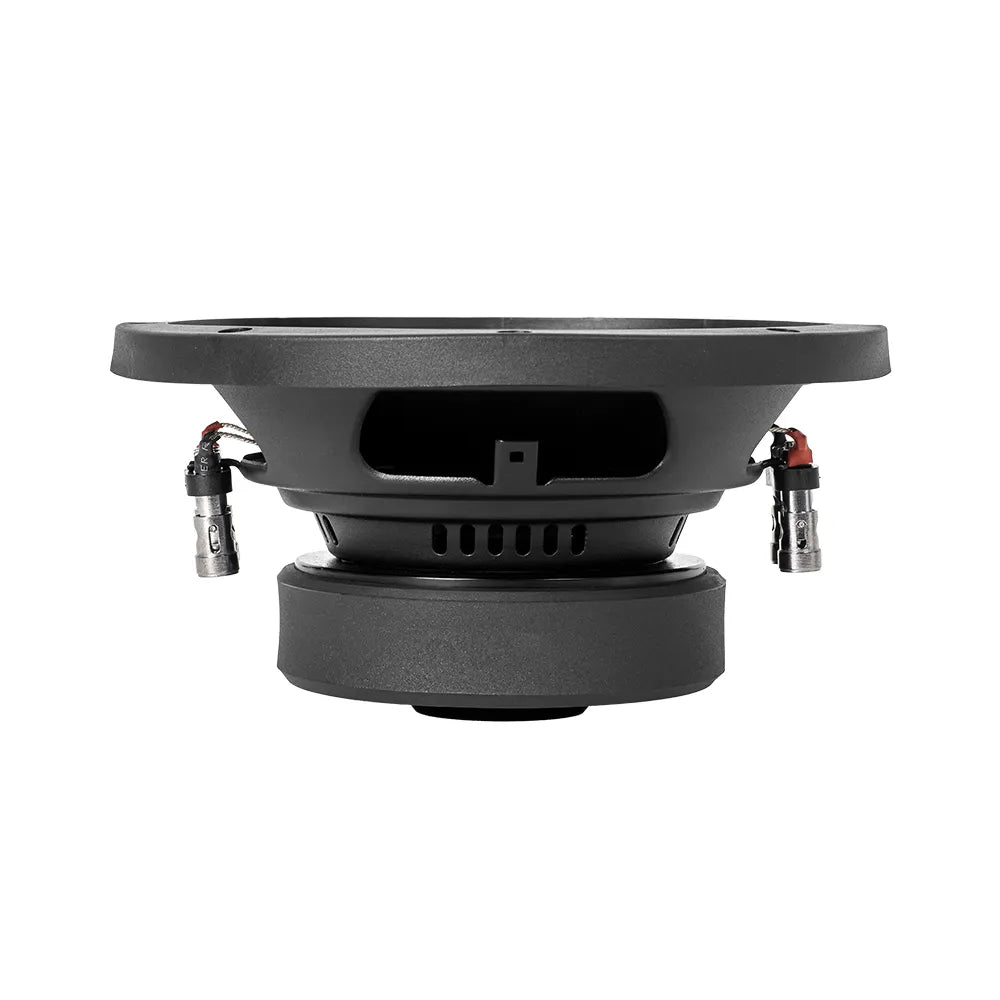

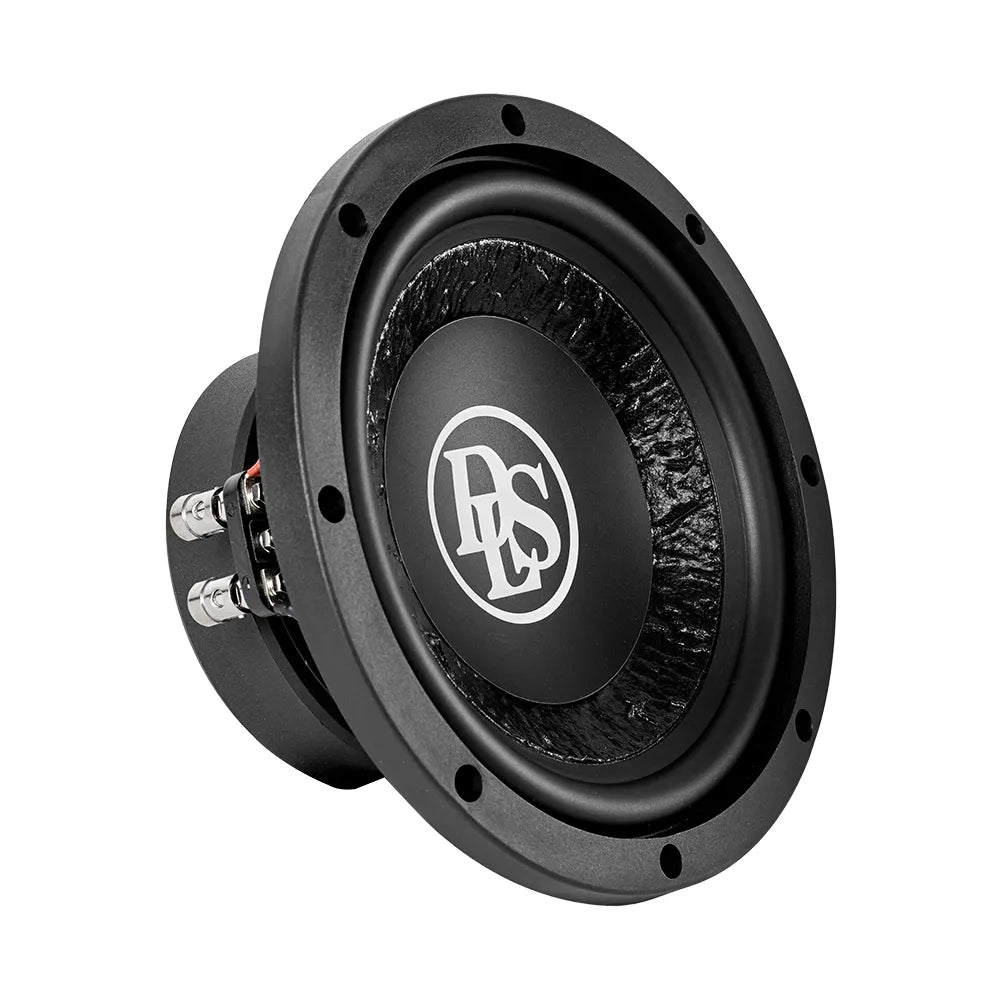

DLS PE8D2 8"/200mm 2+2 Ohm Subwoofer
DLS PE8D2 8"/200mm 2+2 Ohm Subwoofer
Regular price
£94.95 GBP
Regular price
Sale price
£94.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DLS PE8D2 is an 8"/200mm 2+2 ohm subwoofer from the Performance Series, rated at 200 W RMS (400 W max). It is a durable 8 inch subwoofer that is especially suited to small sealed enclosures.
Key features
- Especially suited to small sealed enclosures
- Coated non-pressed paper (NPP) cone
- 1.5" Kapton® voice coils with 4-layer copper wire
- Dual ventilation in both the pole piece and the basket for great thermal dissipation
- Durable steel basket and strong ferrite motor
- Bumped backplate for extended excursion
Specifications
| Size | 8"/200mm |
|---|---|
| Impedance | 2+2 ohm |
| Power RMS | 200 W |
| Power max | 400 W |
| Sensitivity | 85 dB |
| Voice coil size | 1.5" / 38mm |
| Voice coil material | 4-layer copper/Kapton former |
| Magnet | 38 oz ferrite |
| Frequency range | 25 - 300 Hz |
| Weight | 3.1 kg |
Parameters
| Fs | 33.2 Hz |
|---|---|
| Re | 3.8 (1.9+1.9) ohm |
| Qms | 7.83 |
| Qes | 0.51 |
| Qts | 0.48 |
| Cms | 0.37 mm/N |
| Mms | 62.2 g |
| Bl | 10.7 |
| Vas | 25.3 L |
| Sd | 217.2 cm2 |
| Xmax | ± 9 mm |
| Vd | 0.8 L |
