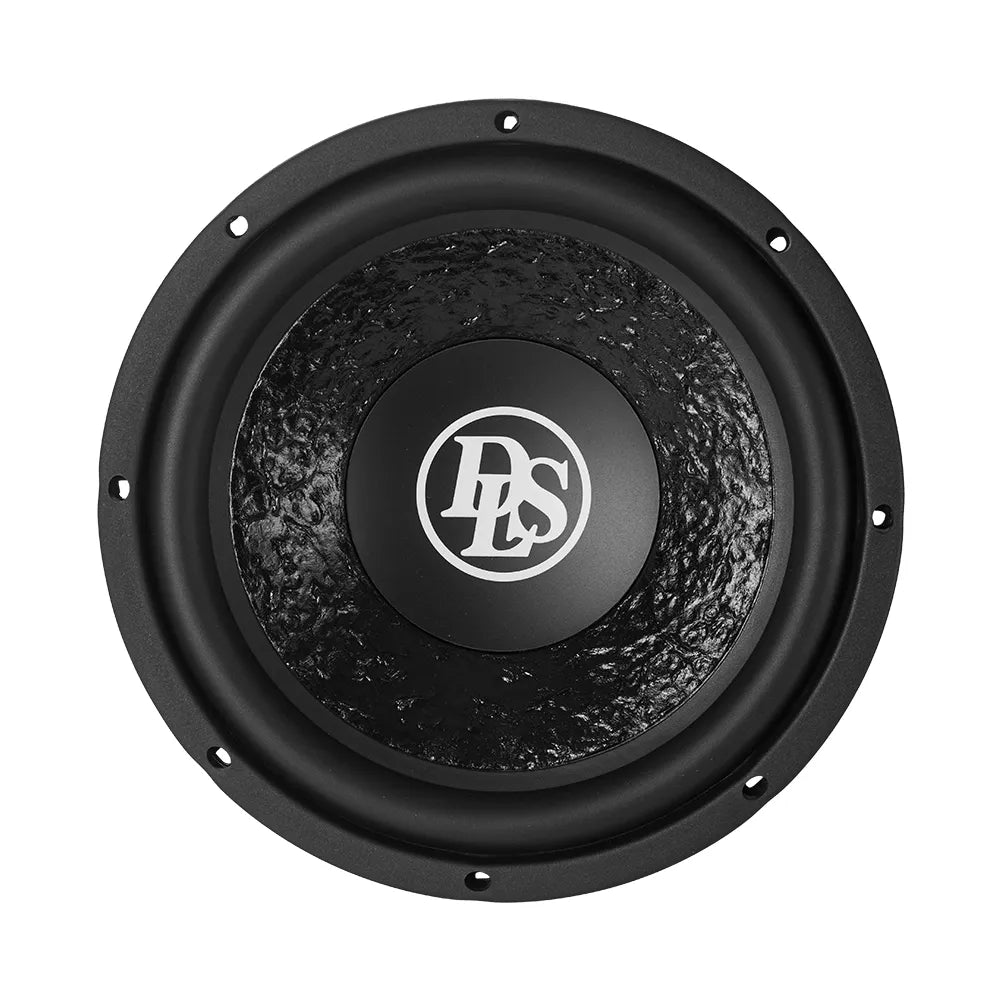

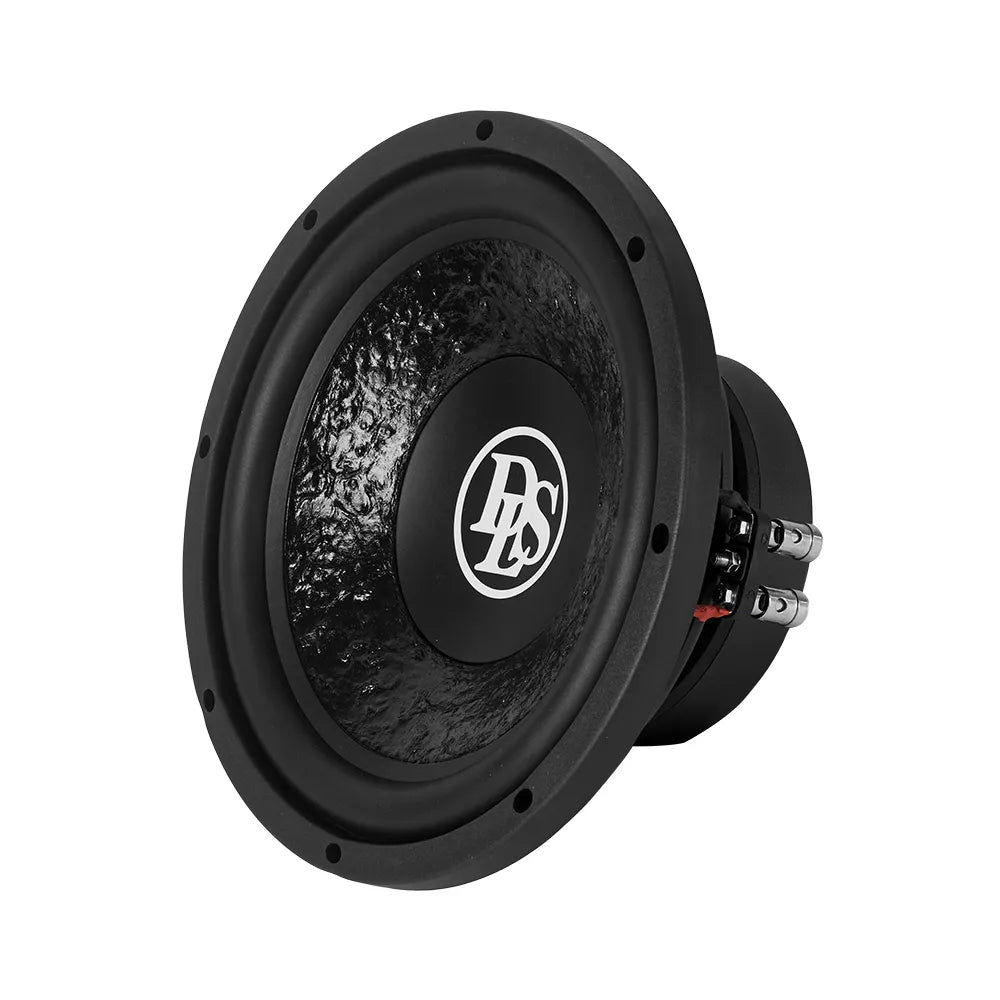

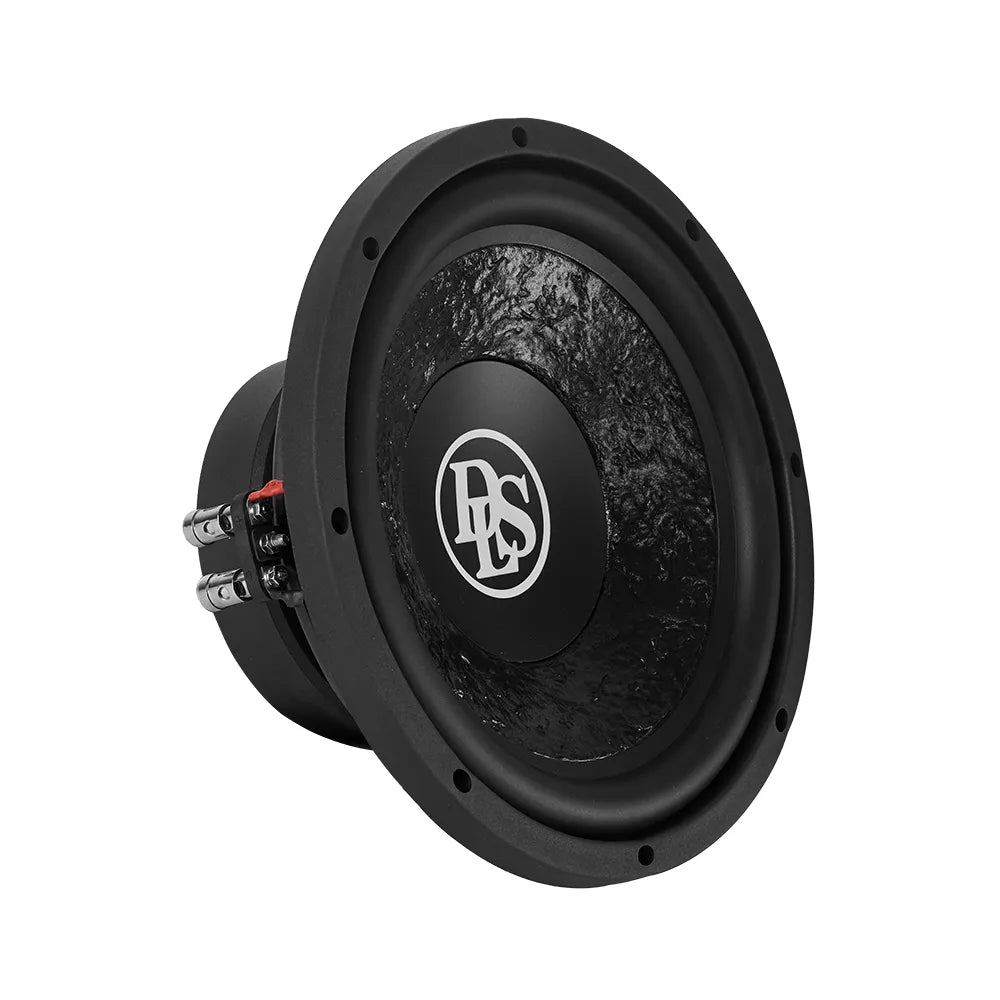

DLS PE10D2 10"/250mm 2+2 Ohm Subwoofer
DLS PE10D2 10"/250mm 2+2 Ohm Subwoofer
Regular price
£109.95 GBP
Regular price
Sale price
£109.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DLS PE10D2 is a 10"/250mm 2+2 ohm subwoofer built for durability and performance. It is rated at 300 W RMS (600 W max) and is especially suited to small sealed enclosures.
Key features
- Especially suited for small sealed enclosures
- Coated non-pressed paper (NPP) cone
- 2" Kapton® voice coils with 4-layer copper wire

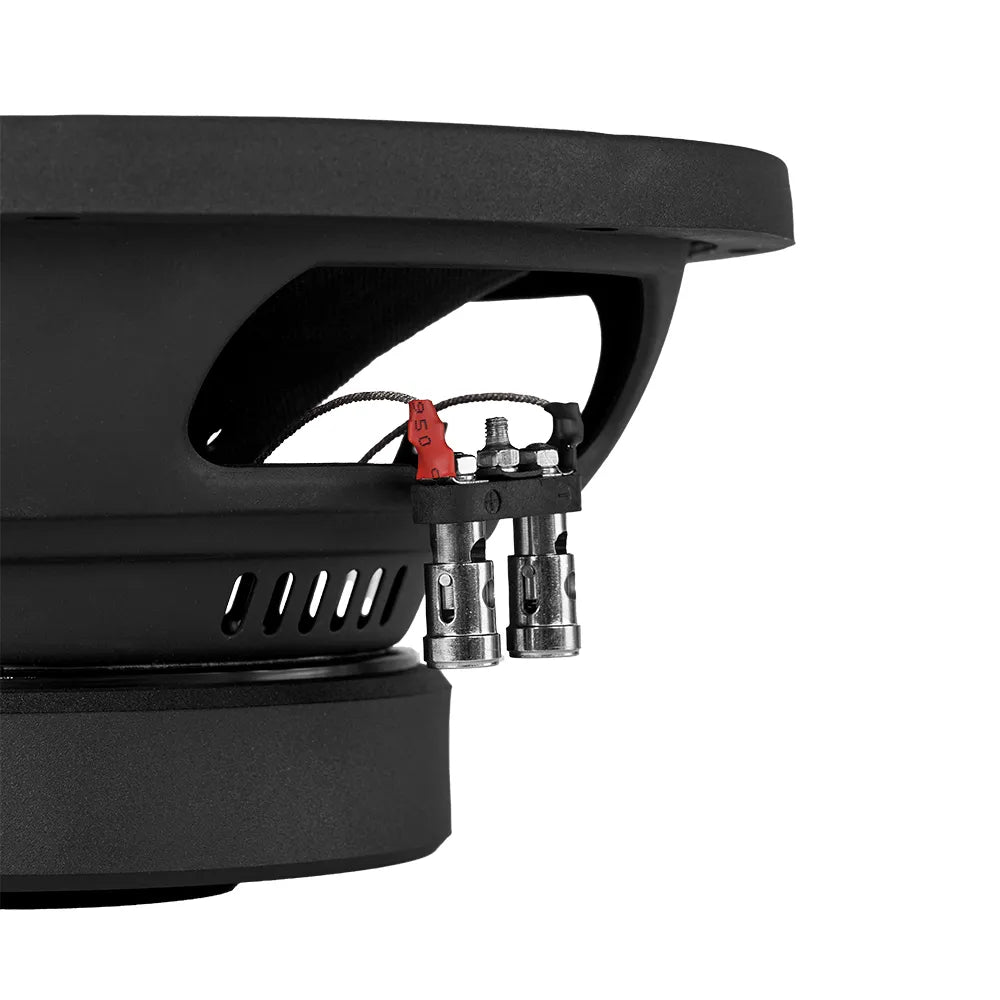

- Dual ventilation in both pole piece and basket for great thermal dissipation
- Durable steel basket and strong ferrite motor
- Bumped backplate for extended excursion
Specifications
| Size | 10"/250mm |
|---|---|
| Impedance | 2+2 ohm |
| Power RMS | 300 W |
| Power max | 600 W |
| Sensitivity | 86 dB |
| Voice coil size | 2"/51mm |
| Voice coil material | 4-layer copper/Kapton former |
| Magnet | 45 oz ferrite |
| Frequency range | 20 - 300 Hz |
| Weight | 4.5 kg |
Parameters
| Fs | 29 Hz |
|---|---|
| Re | 3.8 (1.9+1.9) ohm |
| Qms | 6.42 |
| Qes | 0.50 |
| Qts | 0.47 |
| Cms | 0.23 mm/N |
| Mms | 98.4 g |
| Bl | 12.9 |
| Vas | 45 L |
| Sd | 359.7 cm2 |
| Xmax | ± 9 mm |
| Vd | 1.5 L |
