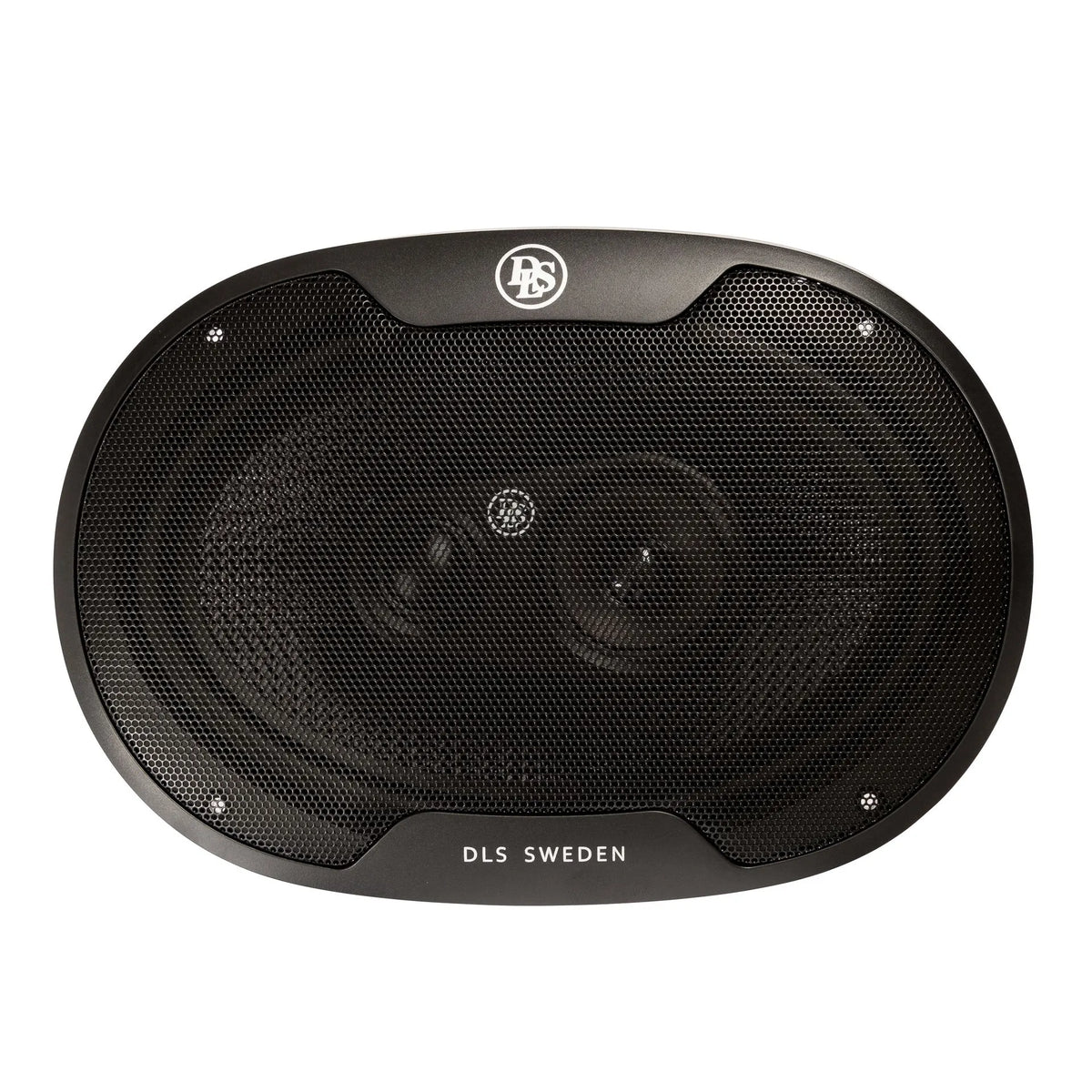

DLS M369 6x9"/156x236mm Coaxial Speaker
DLS M369 6x9"/156x236mm Coaxial Speaker
Regular price
£154.95 GBP
Regular price
Sale price
£154.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

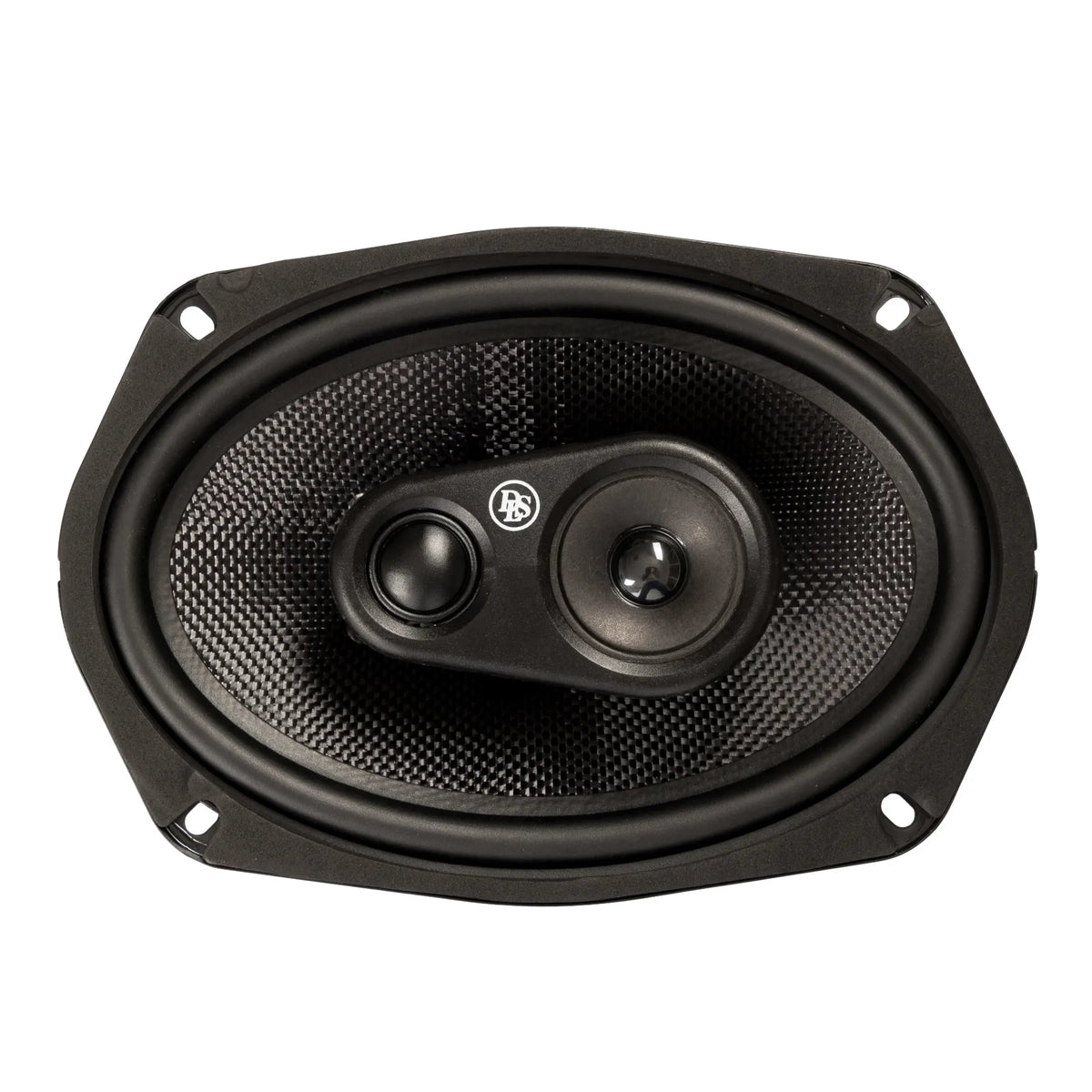

The DLS M369 is a 3-way 6 x 9" coaxial speaker from the Performance series, with a 2" mid driver and a 25 mm silk dome tweeter. It is rated at 80 W RMS and 120 W max with a 4 ohm impedance.
Key features
- 3-way design with a 2" mid driver and a 25 mm silk dome tweeter, which provides detailed highs
- Woven fibreglass bass driver with a rubber surround
- Powerful magnet system for good bass control

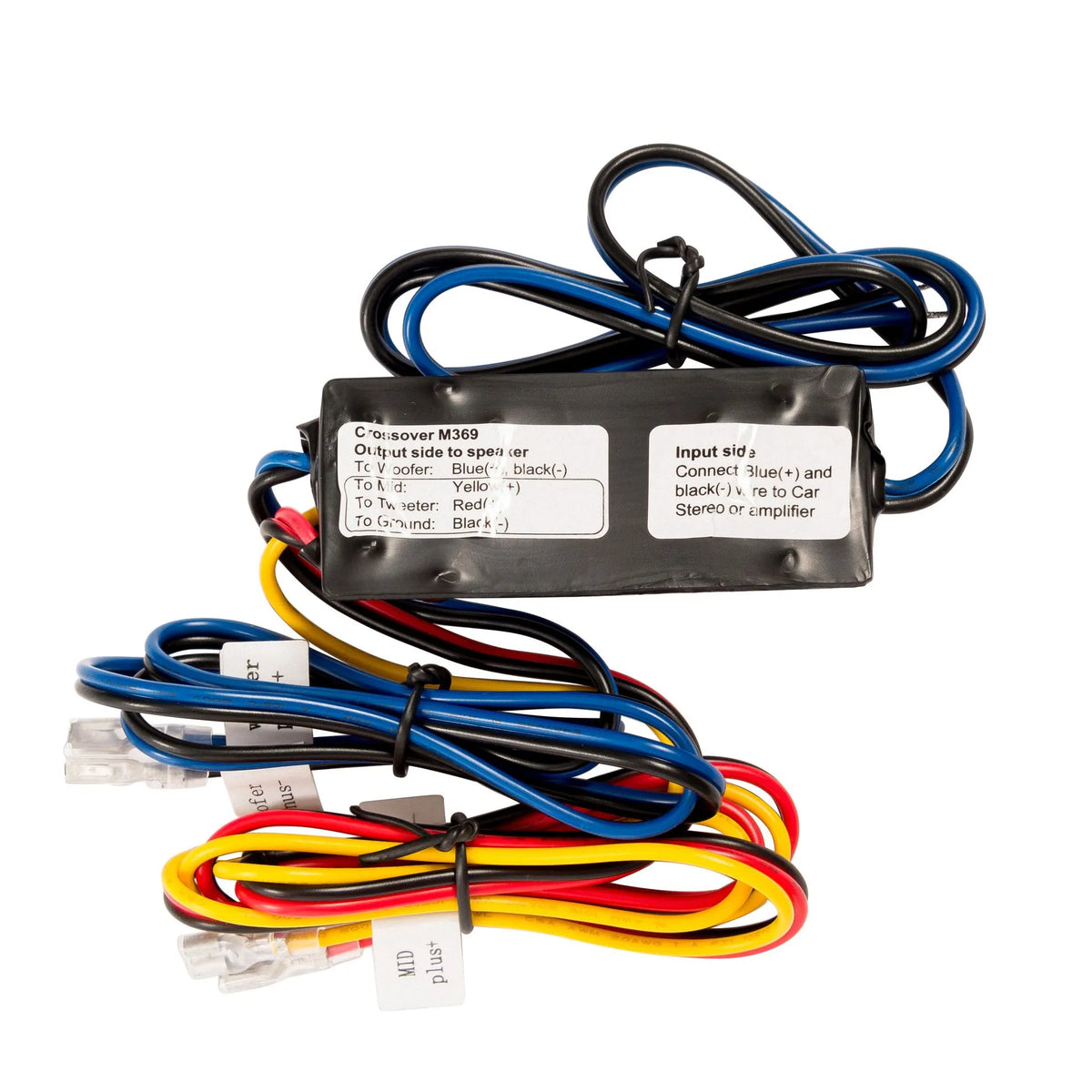

- External in-line crossovers: 12 dB slope for the tweeter and 6 dB for bass and midrange
Specifications
| Size | 6 x 9" (165x236mm in the specification table; 156x236mm in the product name) |
|---|---|
| Power RMS | 80 W |
| Power max | 120 W |
| Tweeter | 1"/25mm |
| Midrange | 2"/45mm |
| Impedance | 4 ohm |
| Frequency range | 50 - 20 000 Hz |
| Sensitivity | 89.3 dB |
| Magnet size | 100mm |
| Cone material | Woven fibreglass |
| Mounting depth | 86mm |
| Mounting hole | 155x221mm |
| Crossover | External filter with 12 and 6 dB slope |
| Filter box | External cable filter |
What's included
- Grilles
