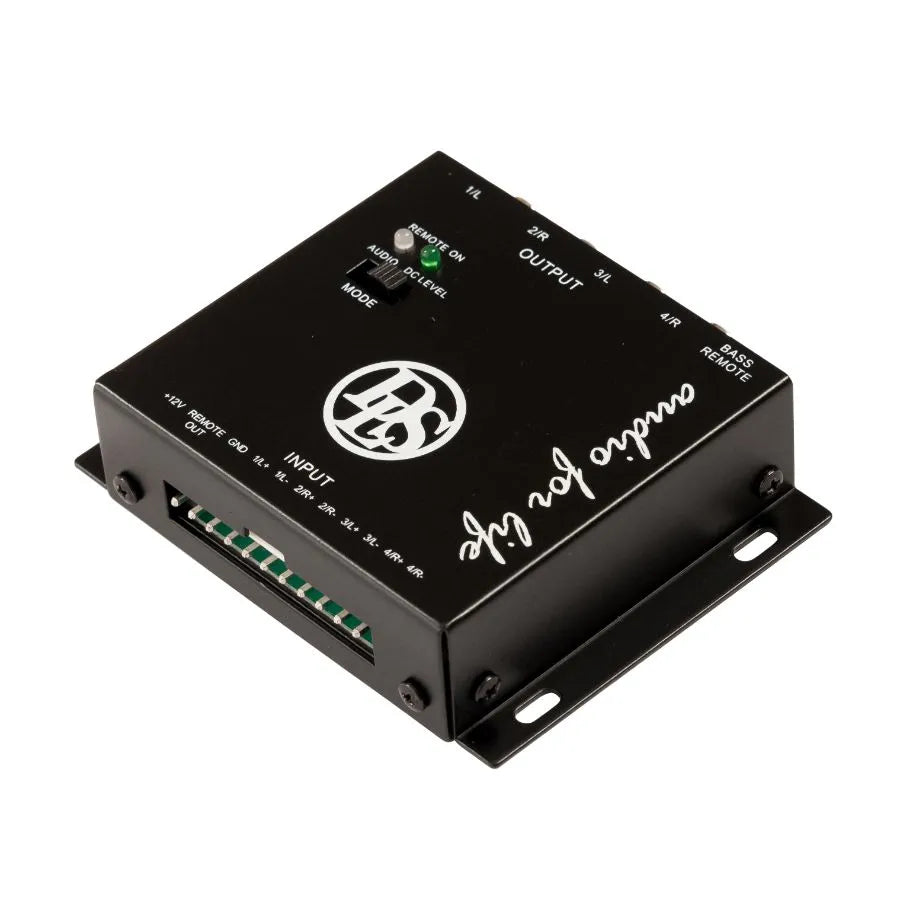

DLS HLC4.2 Advanced High level converter v.2

DLS HLC4.2 Advanced High level converter v.2

£74.95 GBP
£74.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The DLS HLC4.2 is an advanced high level converter (v.2) for use with factory radios in cars without RCA low level output. It has 4 channels and a 3 V RMS output.

Key features

  • Low distortion, with up to 3 V output to minimise noise in the amplifier input section
  • Fully balanced, noise-rejecting input circuits, designed to work with all head units
  • Can be used with both 2-channel and 4-channel amplifiers
  • Described as an HLC problem solver
  • Loading resistors compatible with digital output chips
  • Summing output of channels 3 + 4 for a subwoofer amp when used with the optional EBC
  • Sensing modes: DC level or Audio, both operating on Ch. 1 only
  • Indicators: green = remote on, blue = audio sensing active
  • Reverse polarity protected

Specifications

Number of channels 4
Power supply 12 V DC (min 10.8 V, max 15.6 V)
Current draw, no signal 4 mA
Current draw, operational Typical 25 mA
Output voltage 3 V RMS
Distortion 0.002% THD @ 3 V output, 10 kohm load
Clip point 3.7 V RMS @ 14.4 V power supply
Output impedance 200 ohms nominal
Input impedance Ch. 1: 44 ohms, Ch. 2-4: 100 ohms. All channels are fully balanced
Sensing modes DC level or Audio, both operate on Ch. 1 only
Remote output 12 V, 100 mA max, protected against short-term short circuit
Indicators Green = remote on, blue = audio sensing active
Protection Reverse polarity protected

Good to know

The channel 3 + 4 summing output for a subwoofer amp is used with the optional EBC.
