DLS CR8.D2 8" Subwoofer 2+2 Ohm
DLS CR8.D2 8" Subwoofer 2+2 Ohm
Regular price
£174.95 GBP
Regular price
Sale price
£174.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

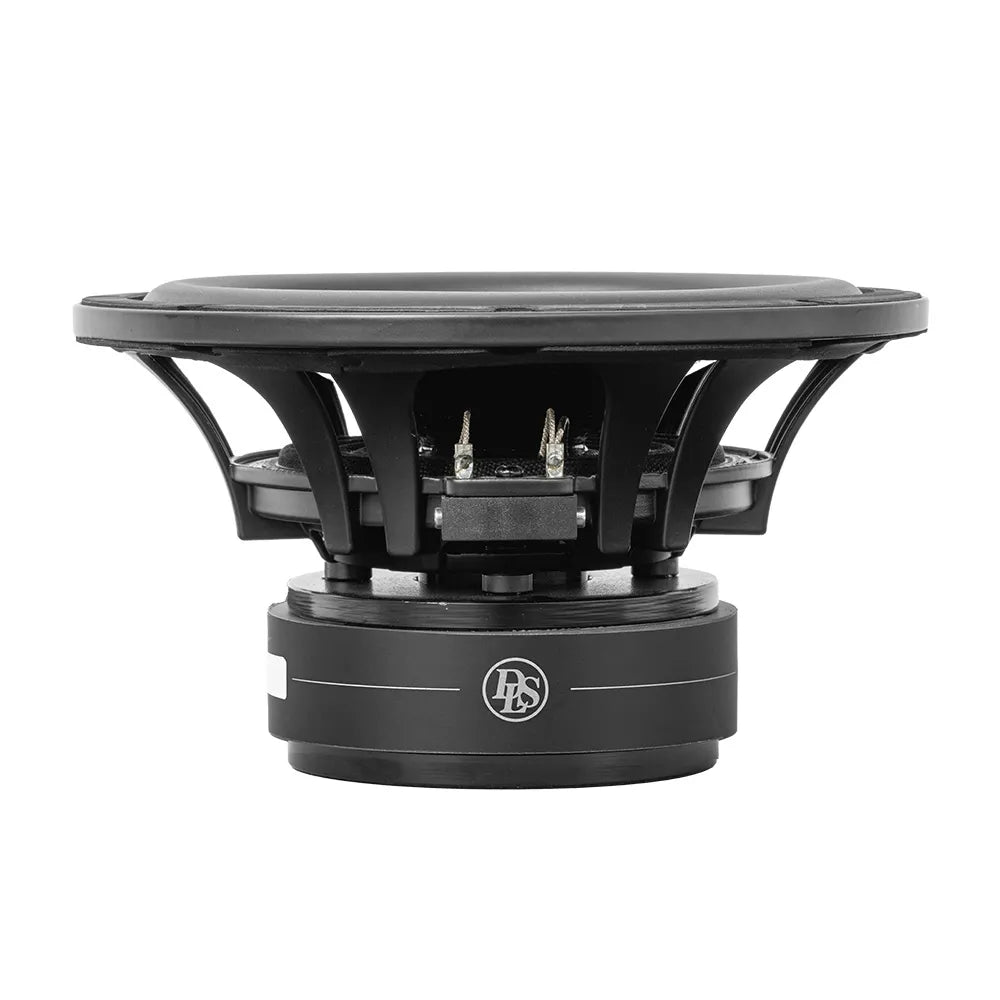

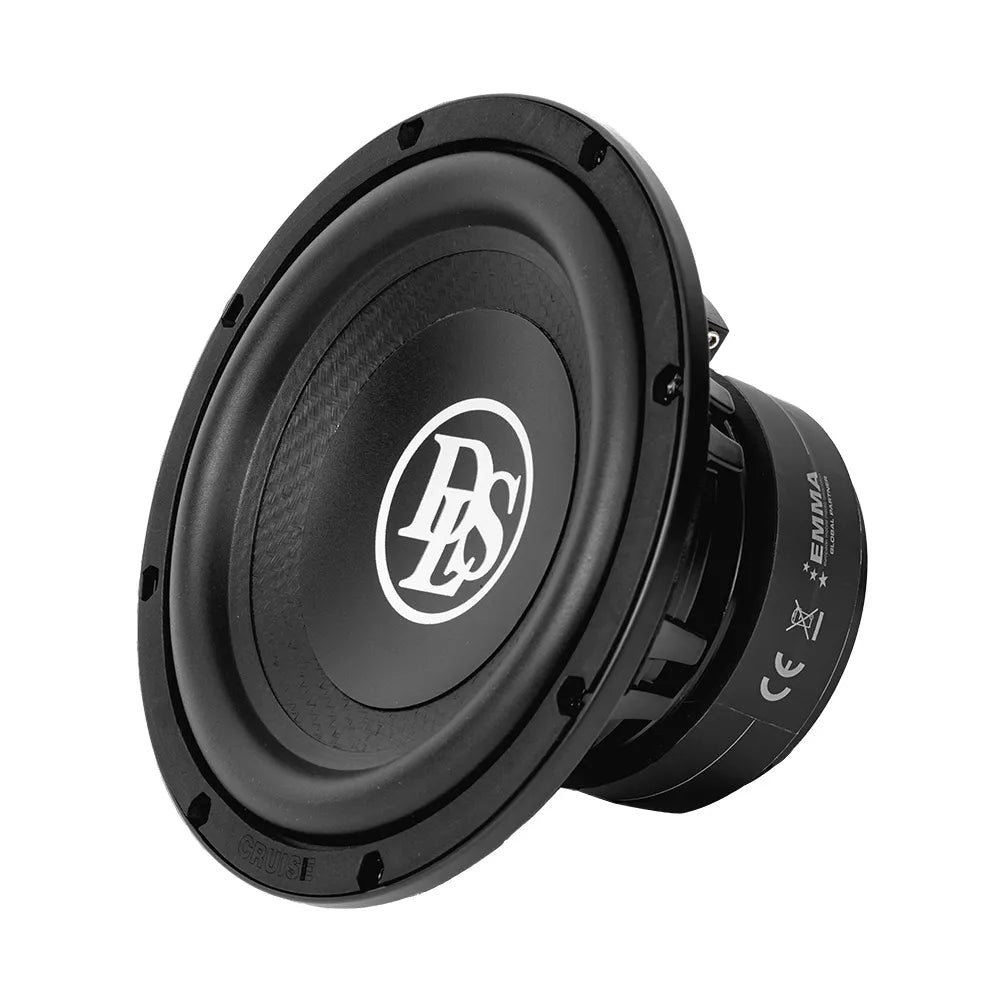

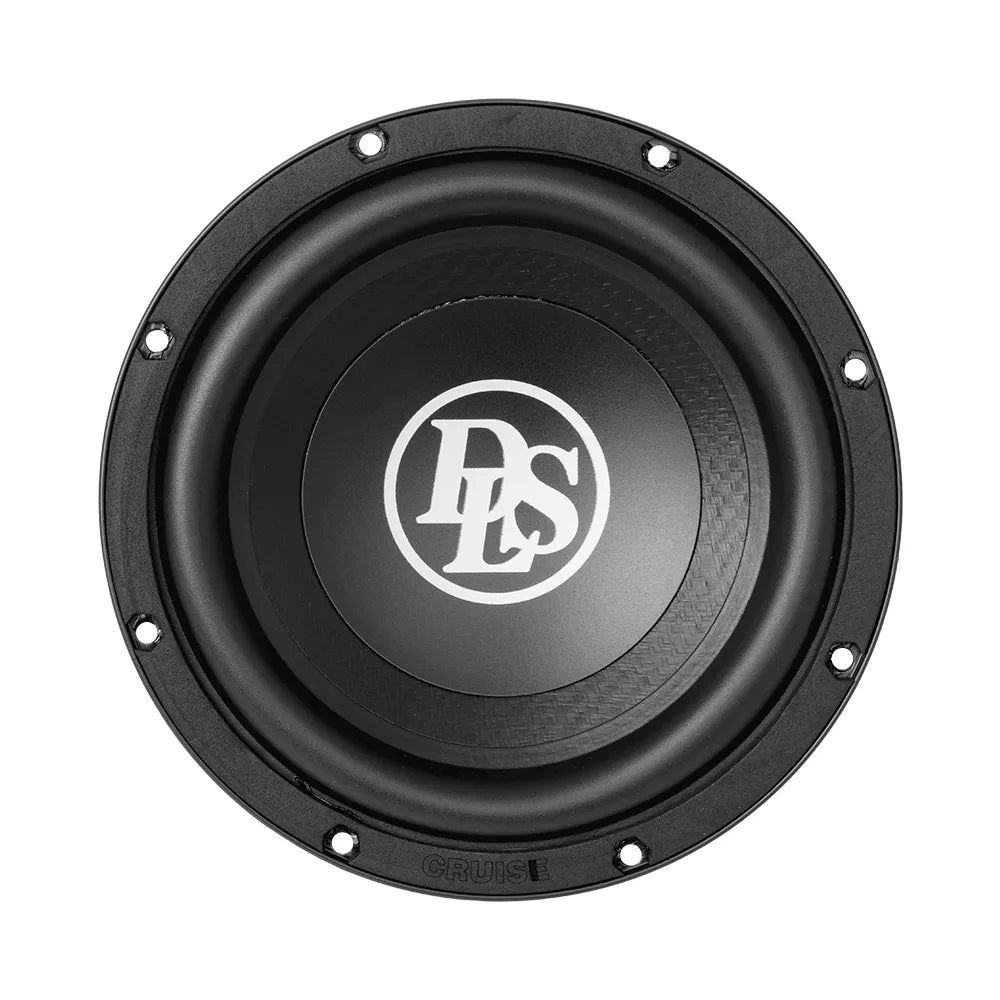

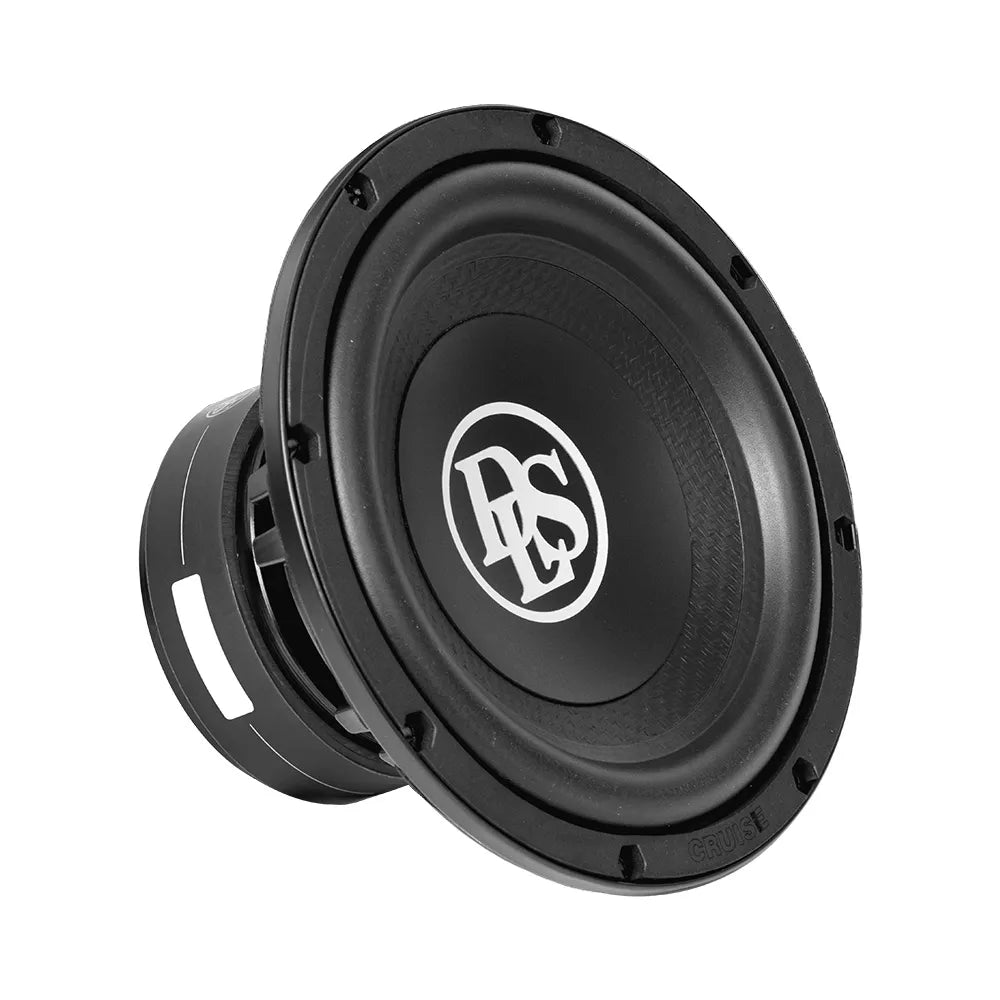

The DLS CR8.D2 is an 8"/200mm Cruise Series subwoofer with a 2+2 ohm impedance, rated at 250 W RMS and 500 W max. It is designed to deliver clean, musical bass with a focus on control and detail.
Key features
- Natural and musical-sounding subwoofer
- 8" Kevlar compound cone for high performance and stability
- Polypropylene dust cap
- Kapton® former with a 4-layer copper voice coil
- Dual-stacked ferrite magnets (2 x 22.5 oz) to drive the cone with precision and consistency
- Die-cast aluminium basket
- Controlled suspension and predictable behaviour in compact enclosures; optimised for smaller to medium sized enclosures
- Frequency response that supports the music instead of overpowering it
Specifications
| Size | 8"/200mm |
|---|---|
| Impedance | 2+2 ohm |
| Power RMS | 250 W |
| Power max | 500 W |
| Sensitivity | 85.5 dB (1W/1m) |
| Voice coil size | 1.5" / 38.5mm |
| Voice coil material | 4-layer copper / Kapton former |
| Magnet | 2 x 22.5 oz ferrite, dual-stacked |
| Frequency range | 25 – 400 Hz |
| Weight | 2.9 kg |
Parameters
| Re | 3.8 (1.9 + 1.9) ohm |
|---|---|
| Fs | 36.0 Hz |
| Mms | 62.0 g |
| Cms | 0.32 mm/N |
| VAS | 19.2 L |
| Qts | 0.39 |
| Qes | 0.41 |
| Qms | 6.49 |
| Bl | 11.3 T.m |
| SPL | 85.5 dB 1W/1m |
| Sd | 214 cm² |

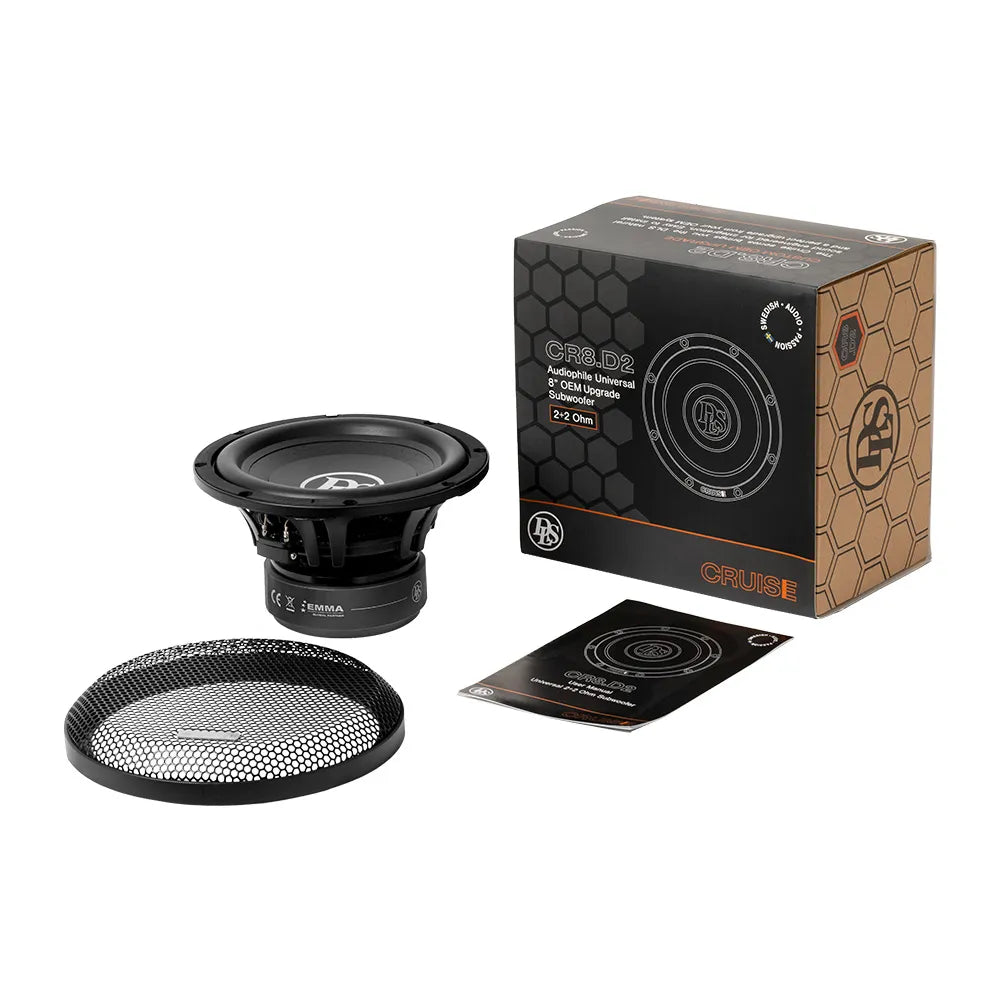

What's included

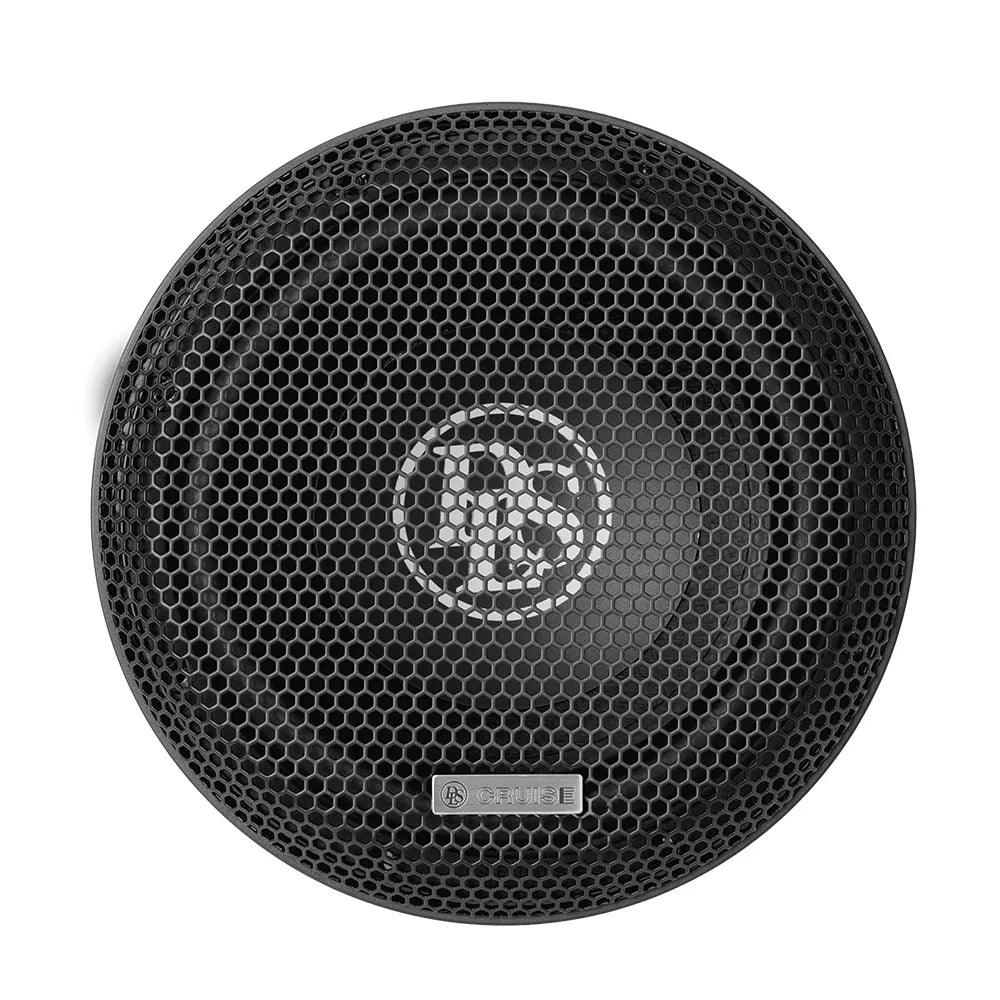

- Cruise grille
