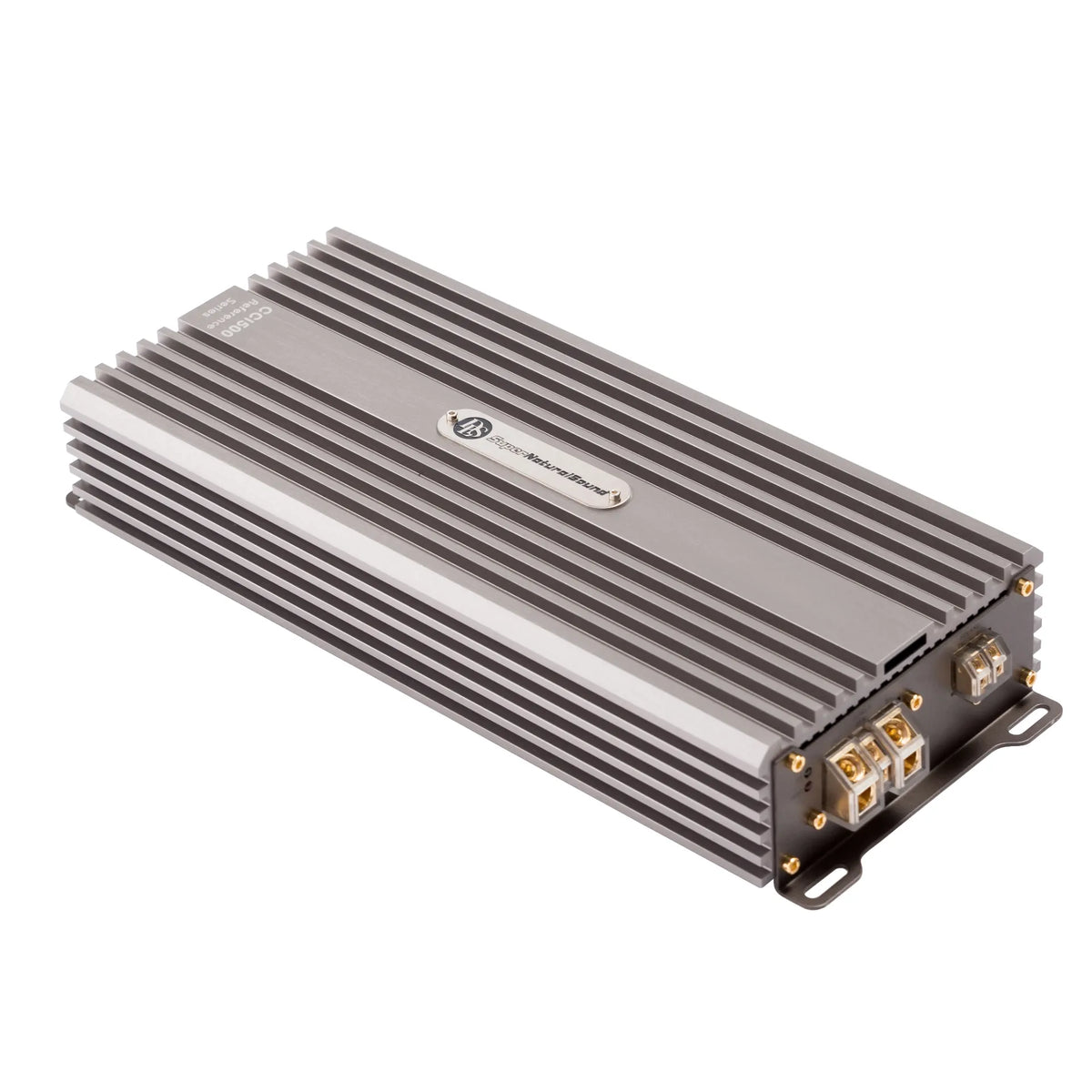

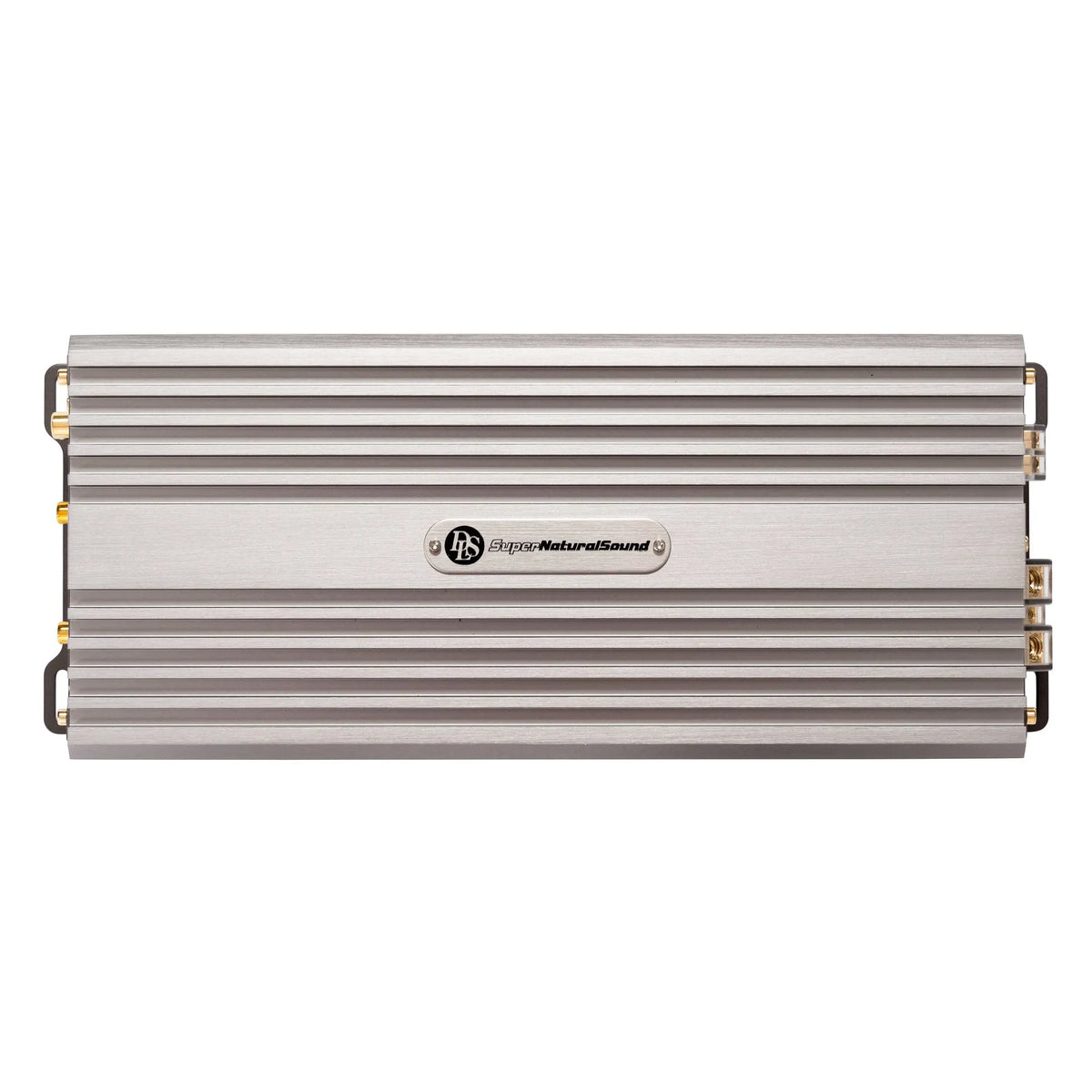

DLS CCi500 1 Channel Mono Amplifier 550W

The DLS CCi500 is a compact Class D mono (1 channel) car amplifier from the Reference Series, built for sound-quality bass. It is rated at 1 x 550 W RMS at 1 ohm, 1 x 370 W at 2 ohm and 1 x 200 W at 4 ohm.

Key features

• Compact, powerful SQ bass with unique heat management
• Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden
• Advanced class D circuitry delivers clean power to keep control of the cone in any subwoofer
• Advanced high level converter (HLC) input with auto start and wide range input level handling, for upgrading OEM radios

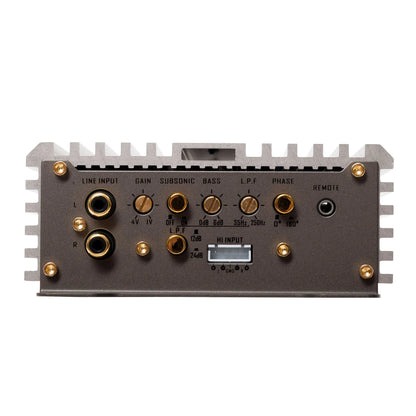

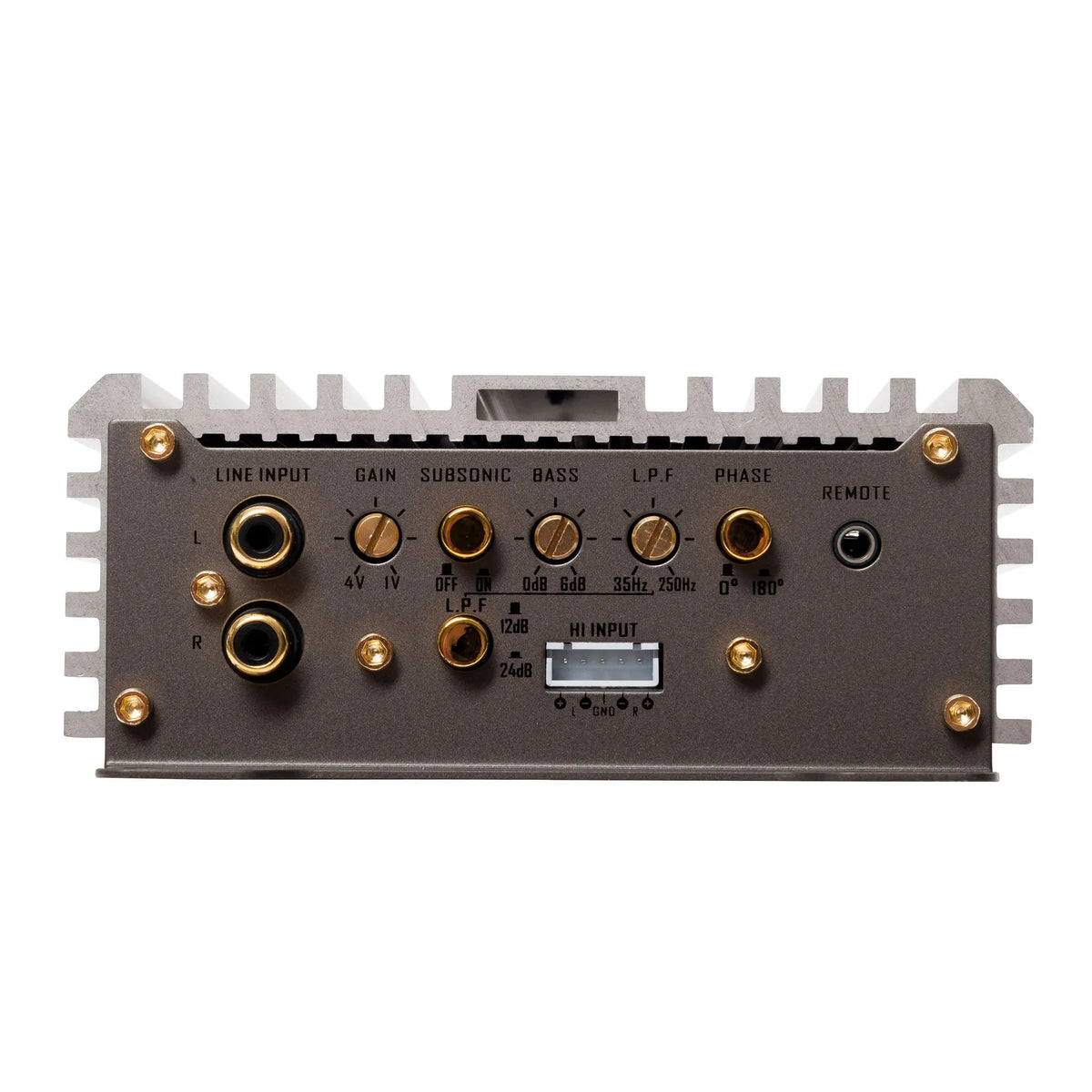

• Active crossover with a 35 – 250 Hz low pass filter
• Subsonic filter at 30 Hz, switchable ON/OFF
• Grand bass filter: variable bass boost, 0 to +6 dB
• Phase control for subwoofers: 0 or 180 degrees switch
• Integrated cooling fan
• Intelligent cooling in a small footprint casing: the heatsink has extra heat dissipation fins on the outside, and a large area of small fins on the inside collects heat from the air venting through the PC board and releases it through thin slots in the side panels
• The CCi series produces more power and less heat

Specifications
