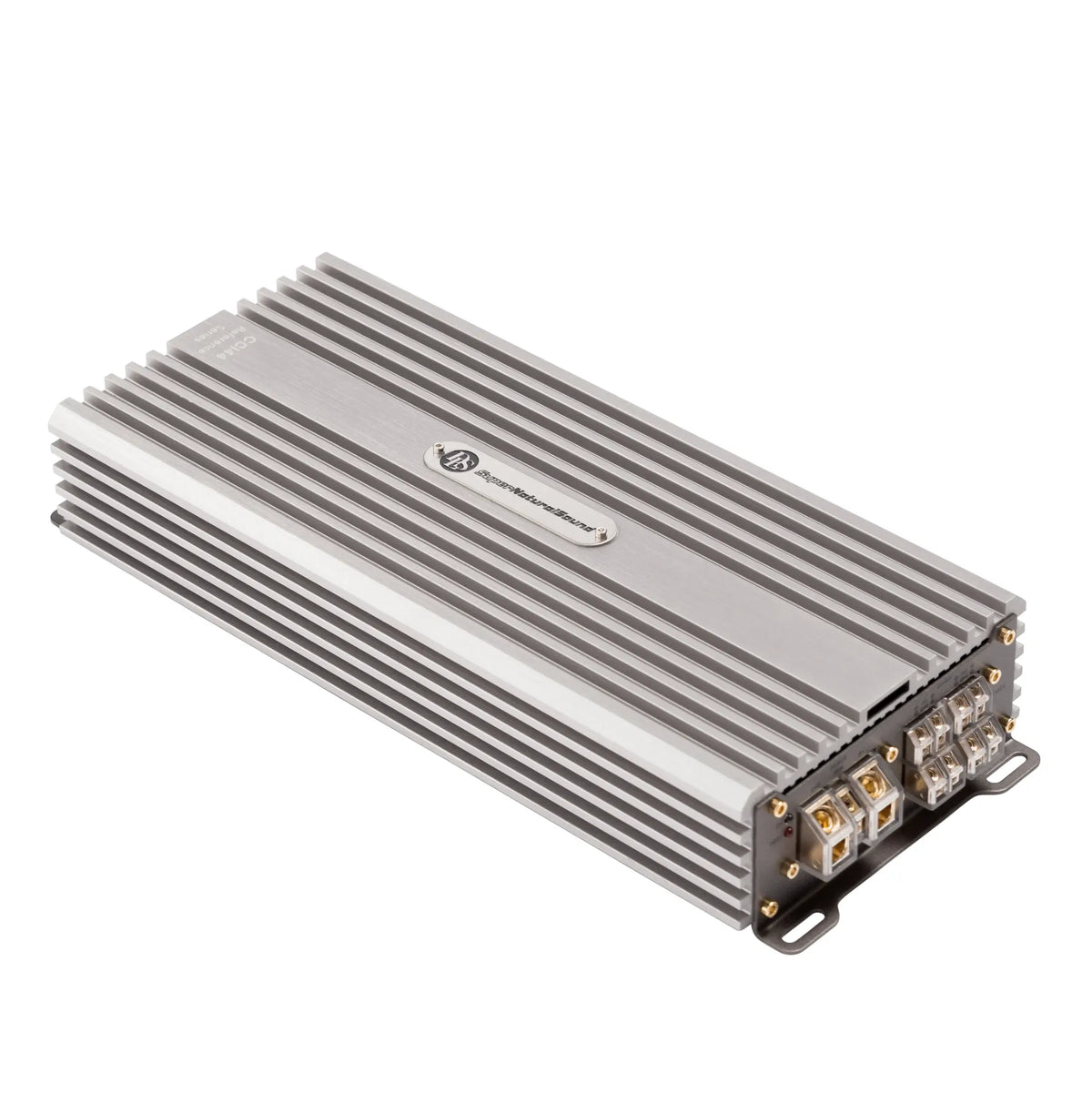

DLS CCi44 4 Channel Amplifier

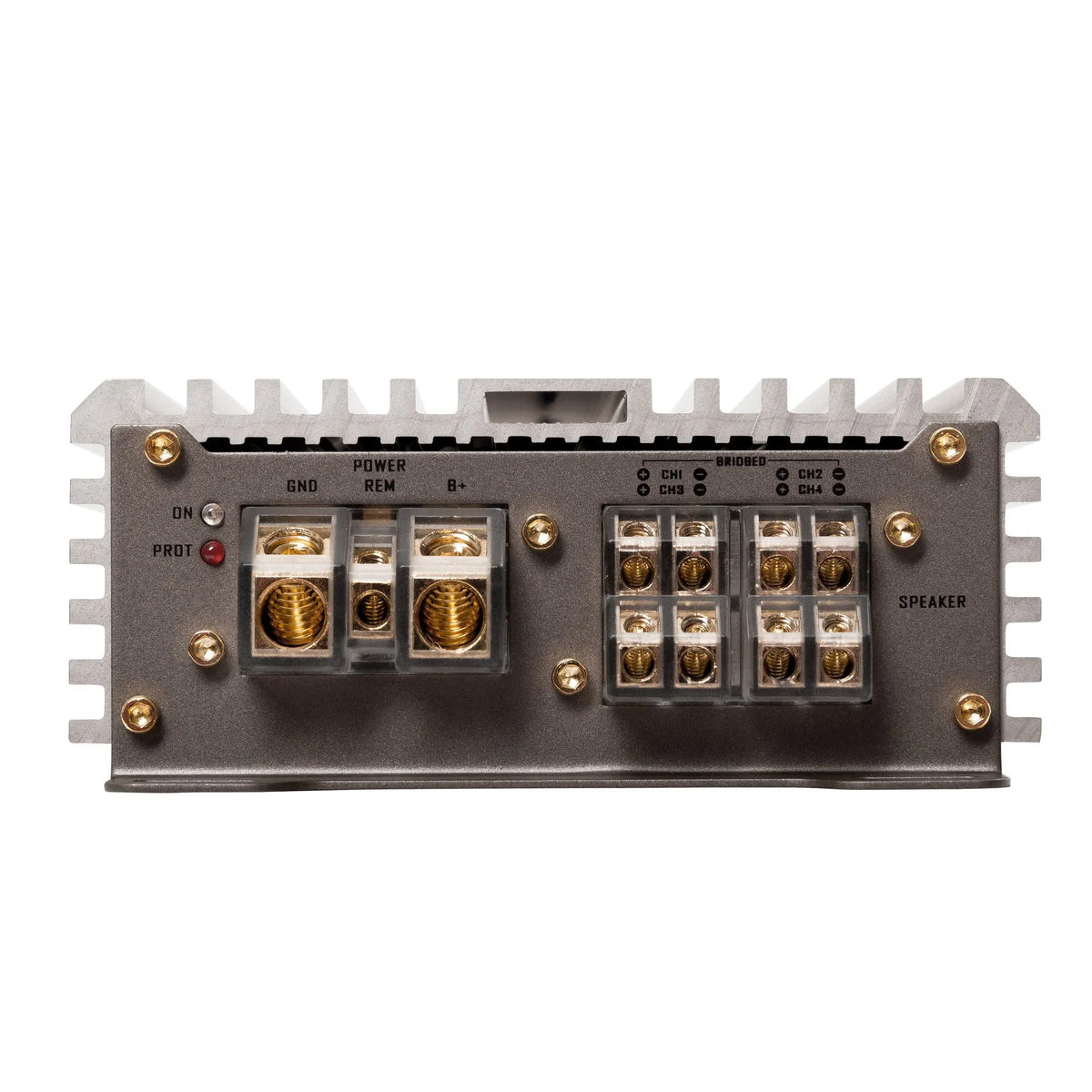

The DLS CCi44 is a four-channel, Class AB car amplifier from the Reference Series. It is rated at 4 x 85 W RMS at 4 ohm and 4 x 110 W RMS at 2 ohm, or 2 x 220 W RMS bridged at 4 ohm.

Key features

• Warm and detailed sound quality (SQ), with high bias circuitry and unique heat management
• Tuned by Gordon Taylor, following a long development process together with him

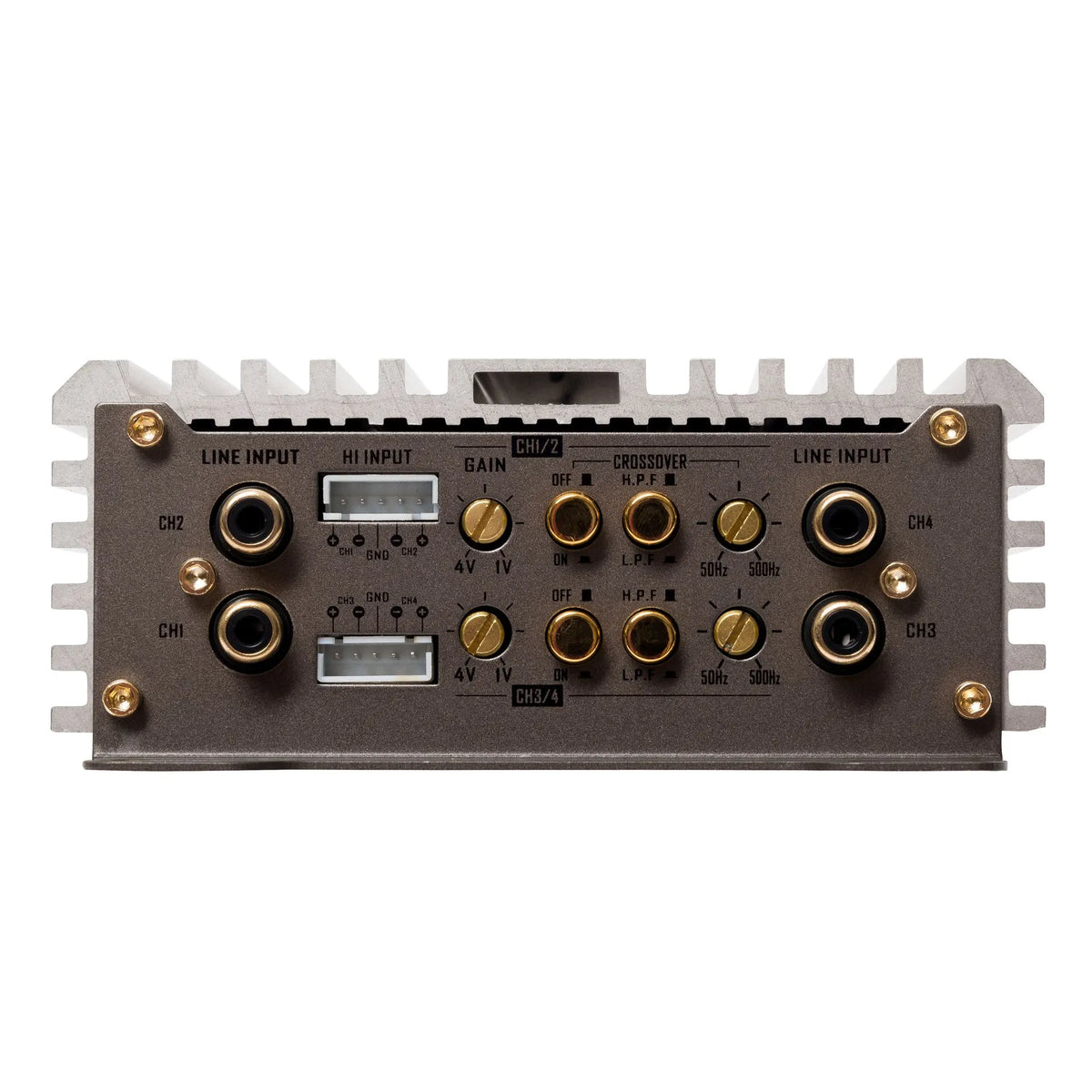

• Advanced high level converter (HLC) input with auto start and wide range input level handling, for upgrading OEM radios
• On the Hi Level input, a low-level output to additional amplifiers can be sourced from the RCA input connectors
• Versatile active crossovers: high pass and low pass filters, 50 – 500 Hz
• Integrated cooling fan

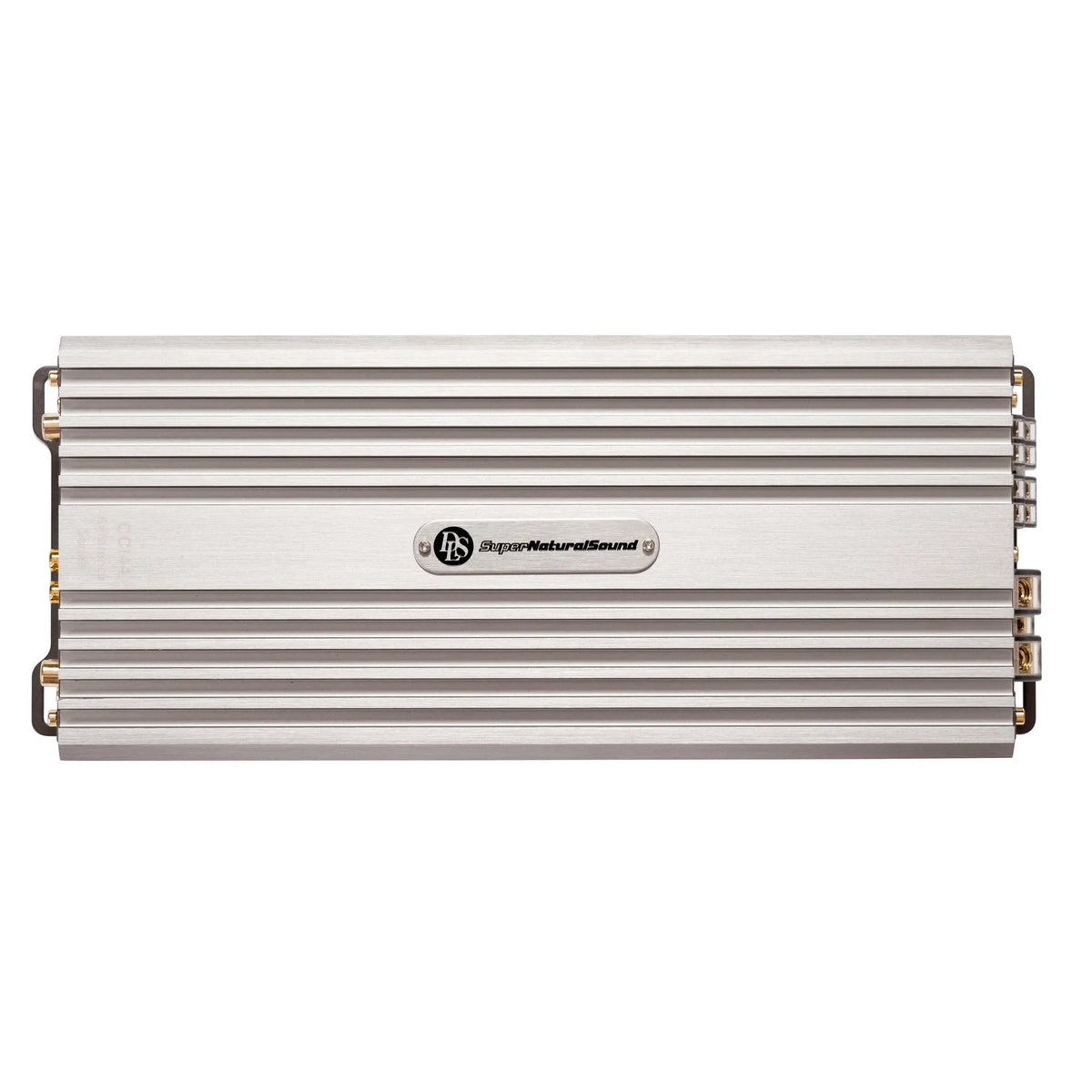

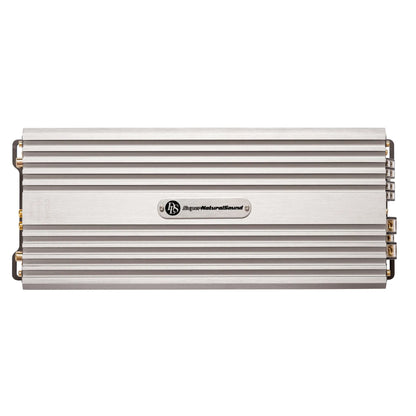

• New precision tooling of the heatsink gives more heat dissipation fins on the outside, with updated optics and chamfered edges
• Inside the heatsink, a large area of small fins collects heat from the air pushed through the PC board by the integrated fan and releases it through thin slots in the side panels
• Optimised power supply section: the CCi series produces more power and less heat
• Linear regulators supply the preamp circuitry and the high bias drive circuitry, combined with top quality Sanken output devices
• Glimmering details with a warm midrange, and an S/N ratio of over 110 dBA

Specifications
