DLS CCi4 4 Channel Amplifier

The DLS CCi4 is a four-channel, Class AB car amplifier from the Reference Series. It is rated at 4 x 50 W RMS at 4 ohm and 4 x 70 W RMS at 2 ohm.

Key features

• Warm and detailed sound quality (SQ), with high bias circuitry and unique heat management
• Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden
• Advanced high level converter (HLC) input with auto start and wide range input level handling, for upgrading OEM radios

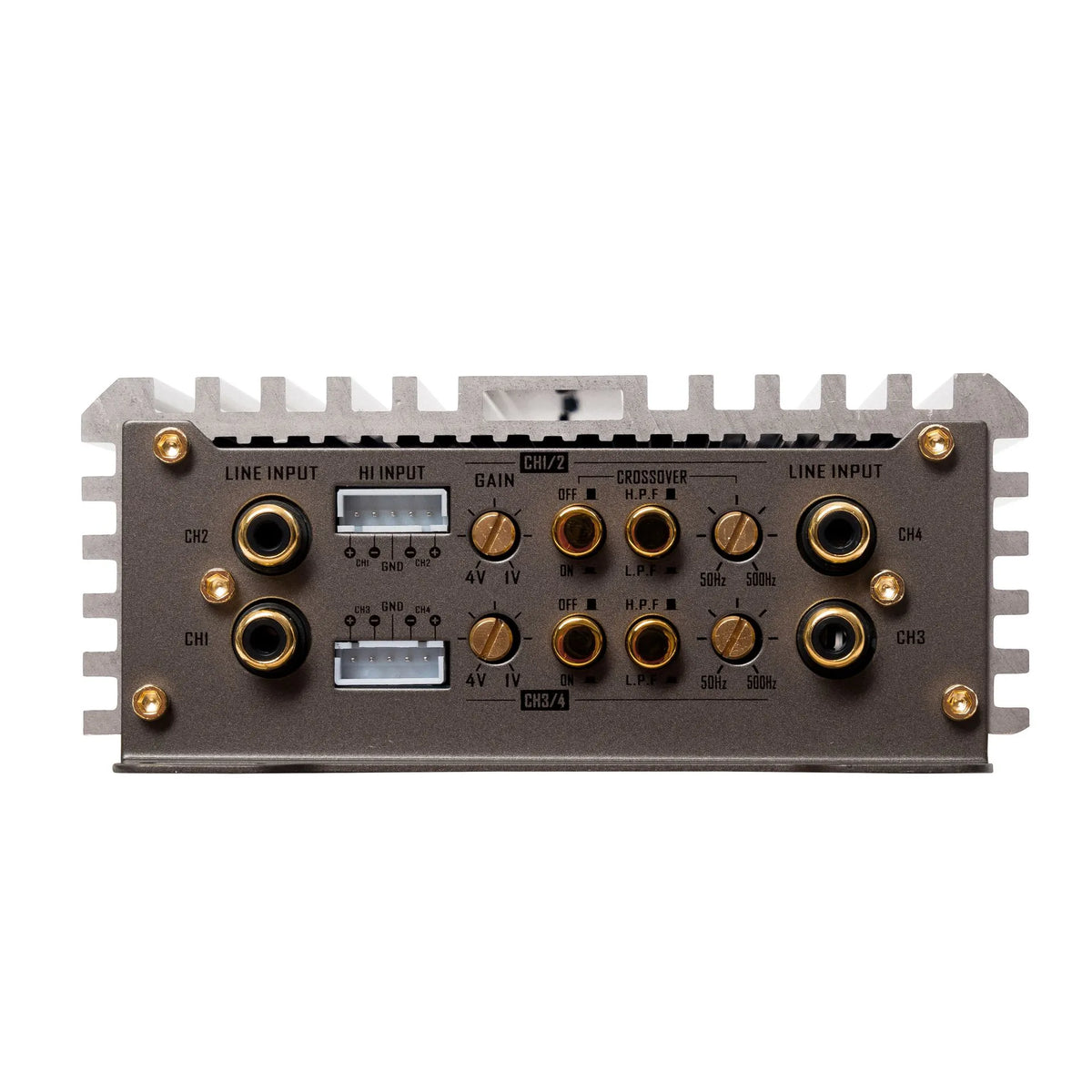

• Versatile active crossovers: high pass and low pass filters, 50 – 500 Hz
• Integrated cooling fan
• Intelligent cooling in a small footprint casing: the heatsink has extra heat dissipation fins on the outside, and a large area of small fins on the inside collects heat from the air venting through the PC board and releases it through thin slots in the side panels
• The CCi series produces more power and less heat
• Linear regulators supply the preamp, combined with a high bias drive circuit and top quality output devices
• S/N ratio of over 110 dBA

Specifications
