DLS ACW68i24 6x8"Amplified Subwoofer 24V

DLS ACW68i24 6x8"Amplified Subwoofer 24V

£199.95 GBP
£199.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

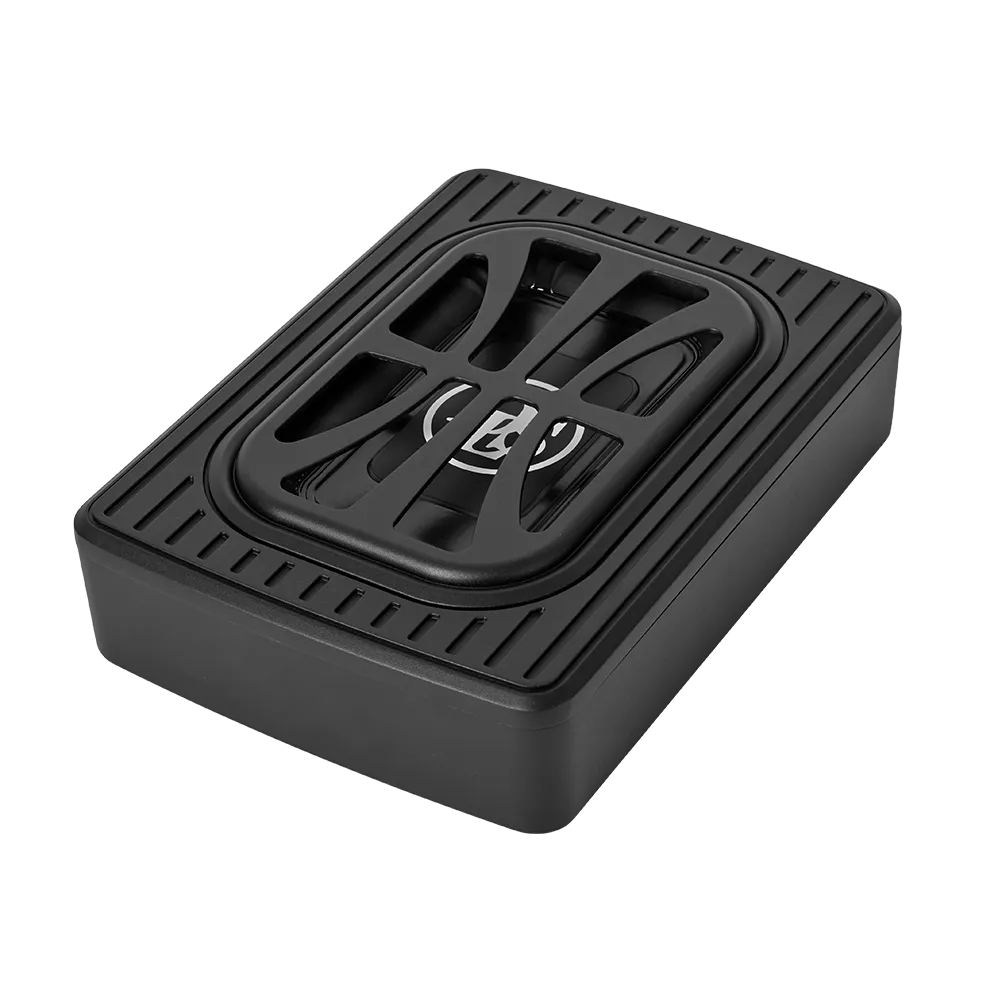

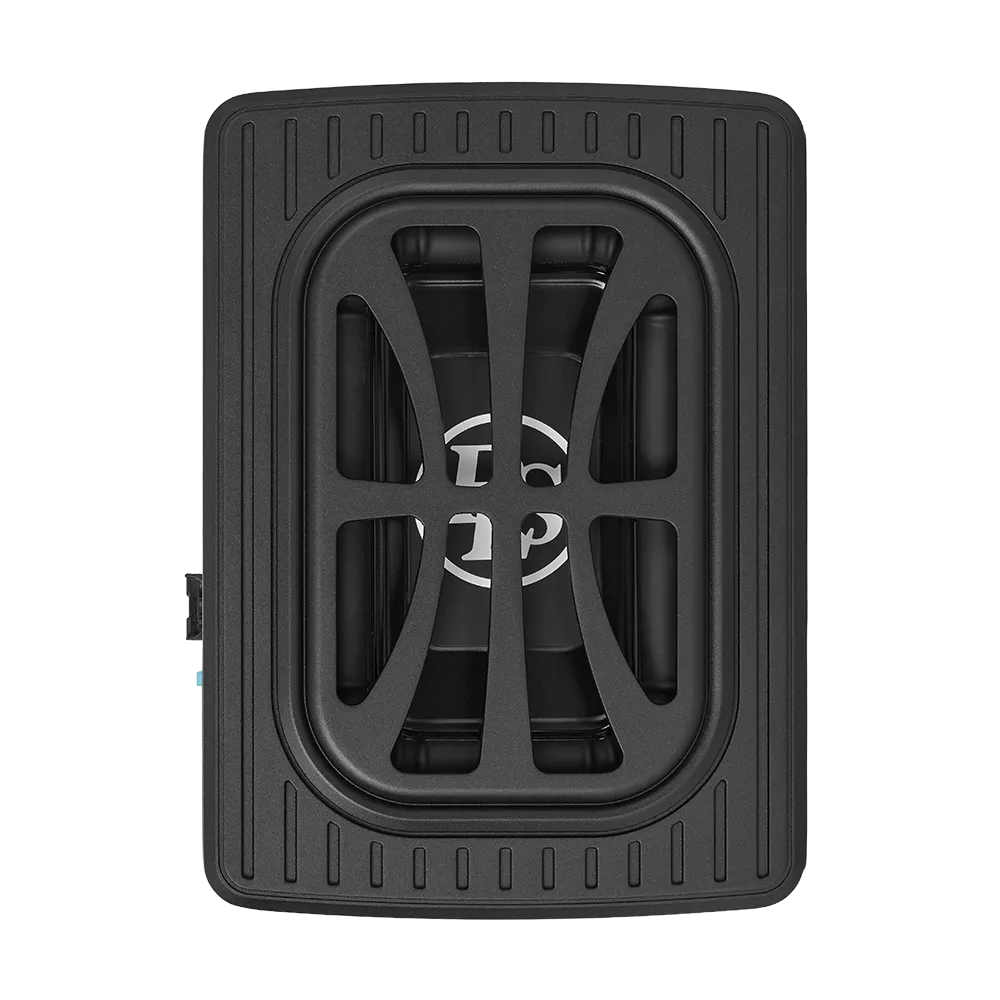

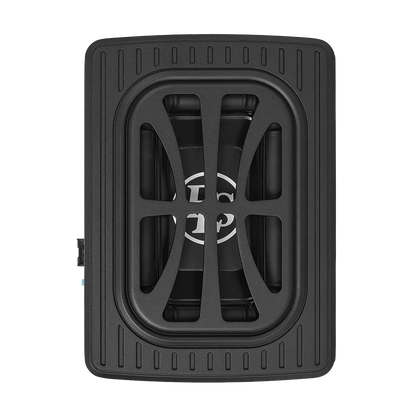

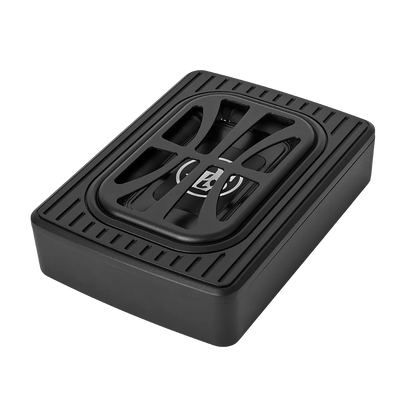

The DLS ACW68i24 is a low-profile, 24V 6x8" (150x200mm) Class AB active subwoofer for vehicles with a 24V electrical system. It is rated at 120W RMS (250W max) and has a low 72mm profile.

Key features

  • Built to bring better bass to 24V vehicles
  • Compact 6x8" driver with Class AB amplification, updated electronics and a smart installation concept
  • Kick Bass function strengthens the 70 to 100 Hz region, a natural weak spot caused by speaker placement and cabin acoustics, and especially noticeable in trucks where the listener sits close to the door speakers

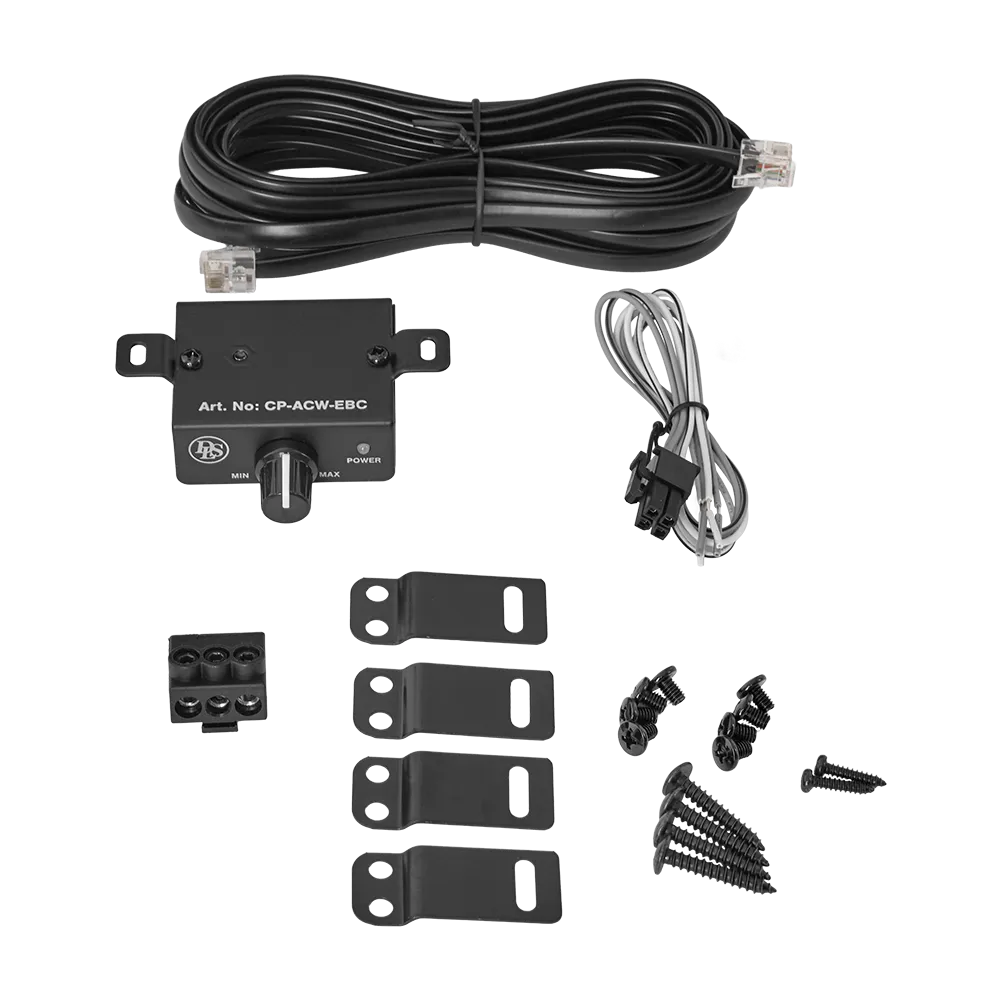

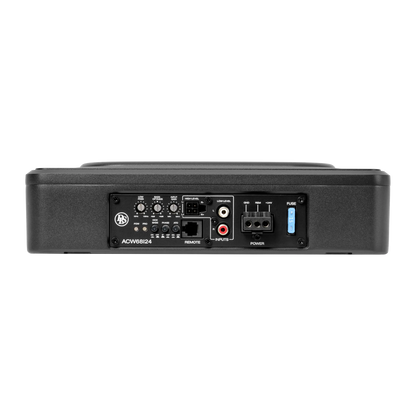

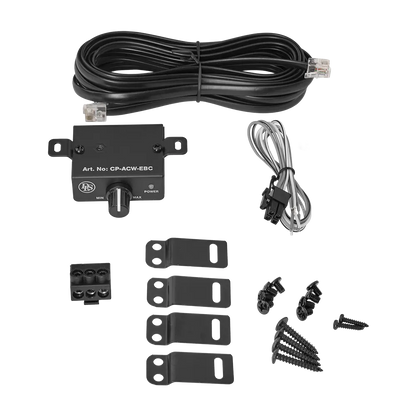

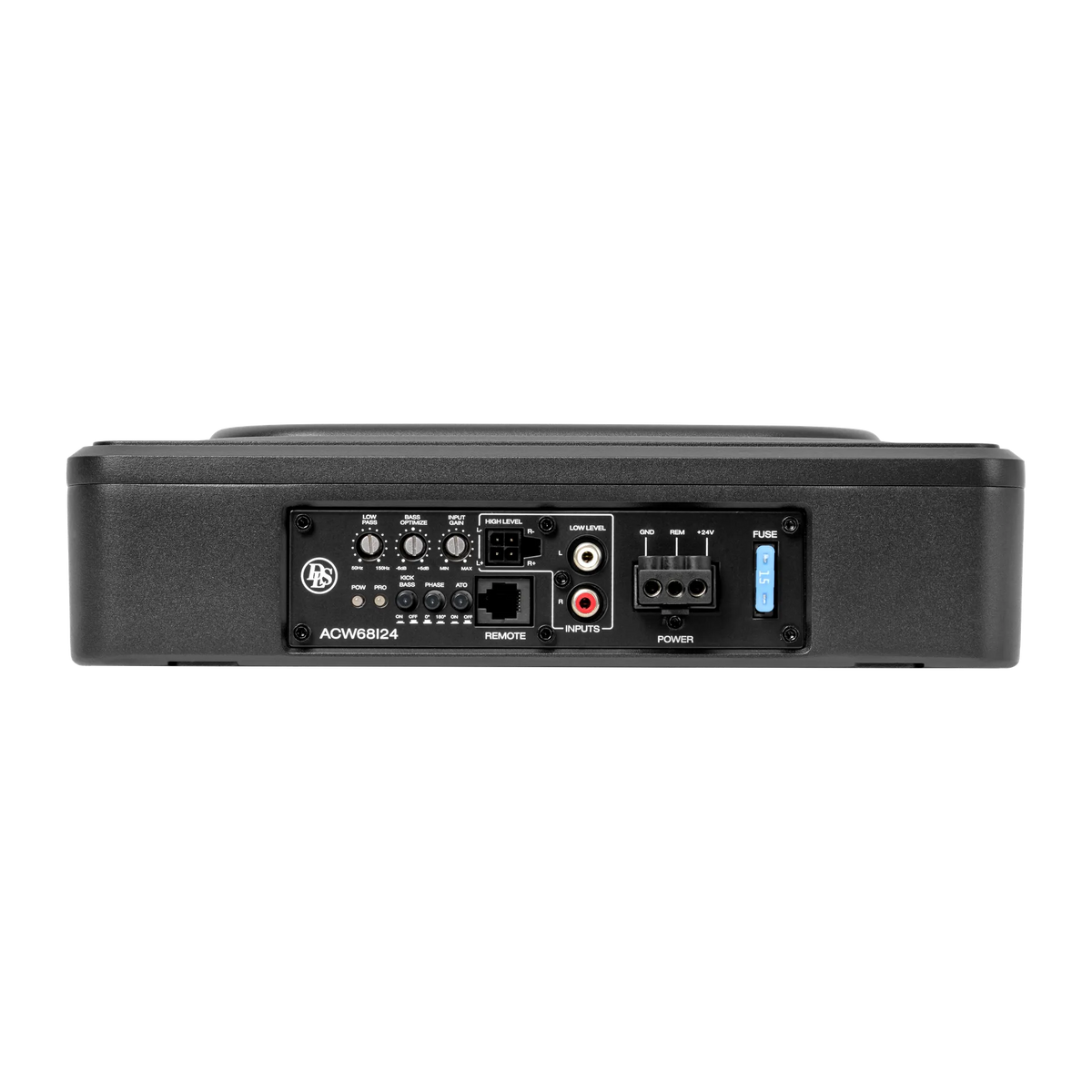

  • Quick-release connector: power, ground and remote wires connect in seconds, which suits tight spaces
  • High-level input with Automatic Turn-On
  • Smart Load Circuit for easy integration with modern vehicle electronics and advanced monitoring systems
  • Improved power supply designed to maintain stable output even when vehicle voltage drops
  • Bass Optimize Circuit adjusts from -6 dB to +6 dB at 55 Hz to help match the bass response to the vehicle and the rest of the system
  • Built-in EMI/RFI filtering keeps unwanted electrical interference to a minimum

Specifications

Size 6x8"/150x200mm
Power RMS 120W
Power MAX 250W
THD Max < 0.4%
S/N ratio > 95 dB
Frequency range 30 – 150 Hz
Input sensitivity 0.9-35V
Bass Optimize -6 dB/+6 dB
Low pass filter 50 – 150 Hz
Subsonic filter 50 Hz @ 12 dB
Fuse rating 15A

Good to know

  • Designed for vehicles built around a 24V electrical system.
  • Can be used on its own or as part of a bigger system.
  • Can be fitted under a seat, inside a storage compartment, or wherever space is limited.
