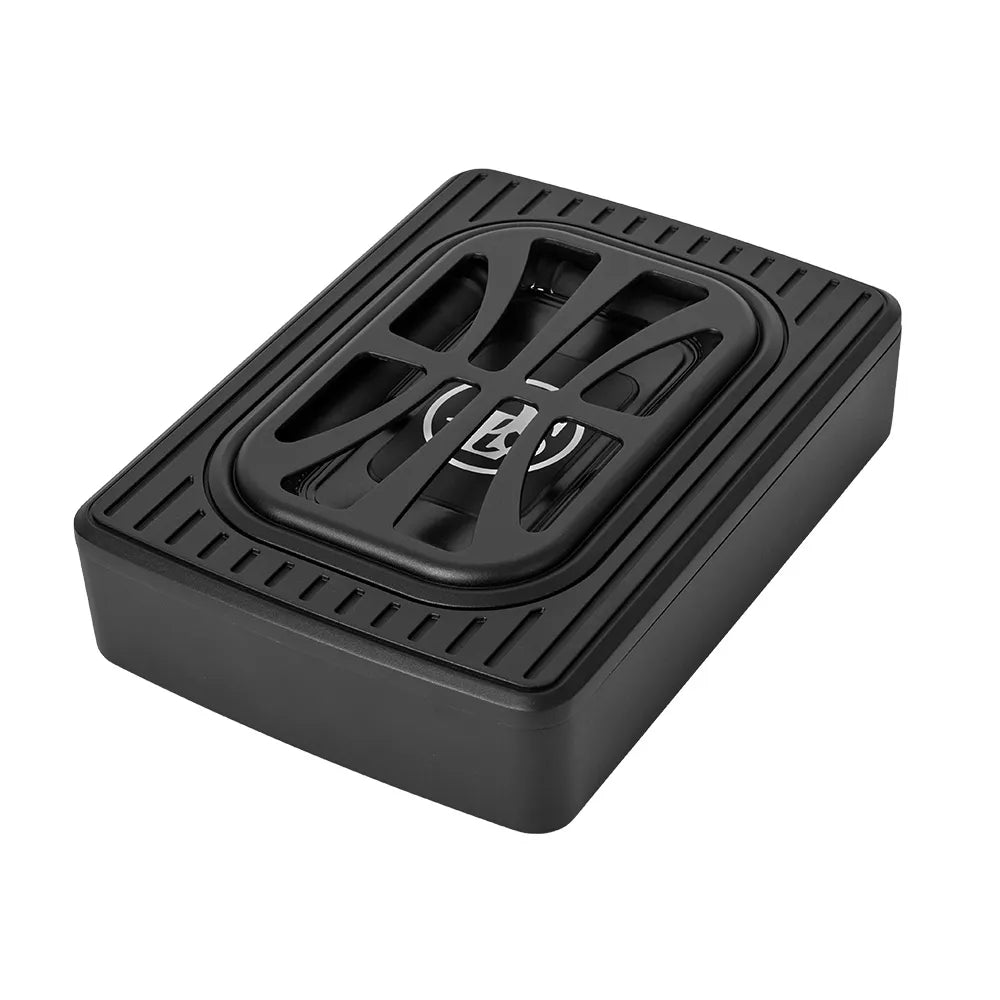

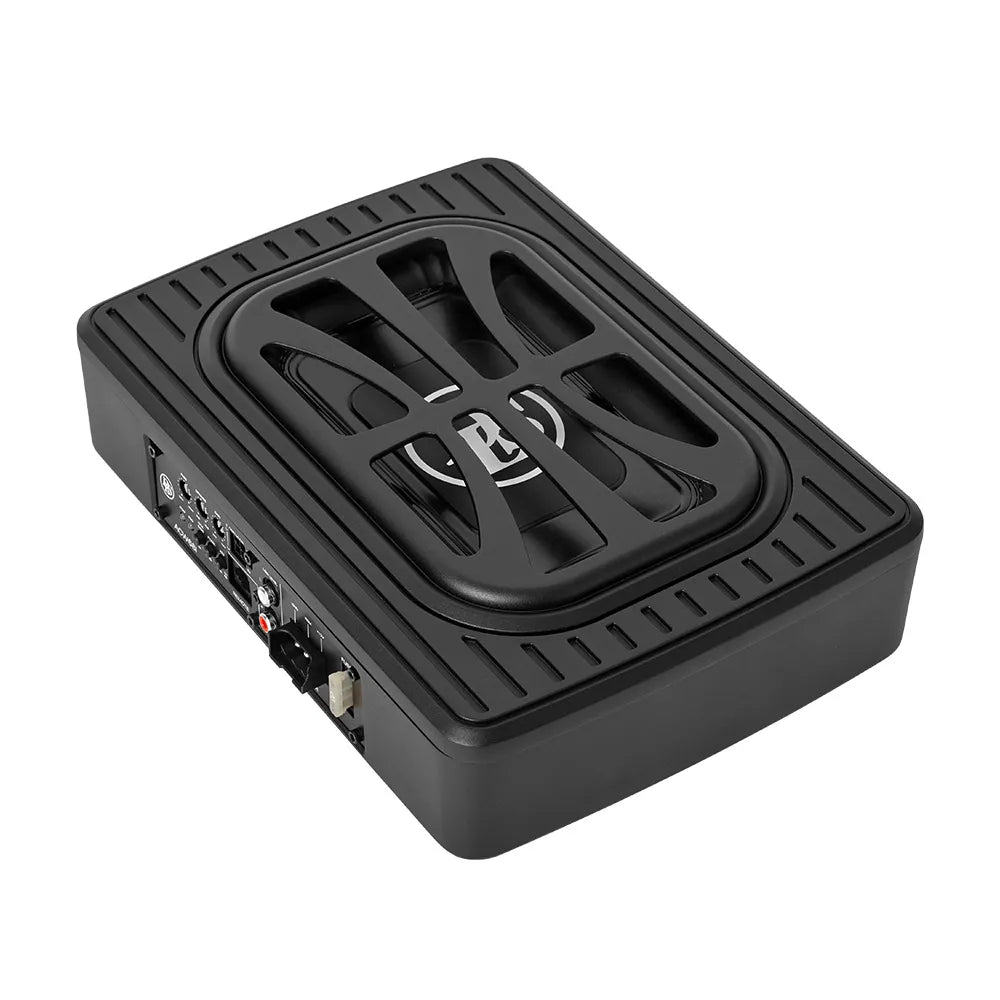

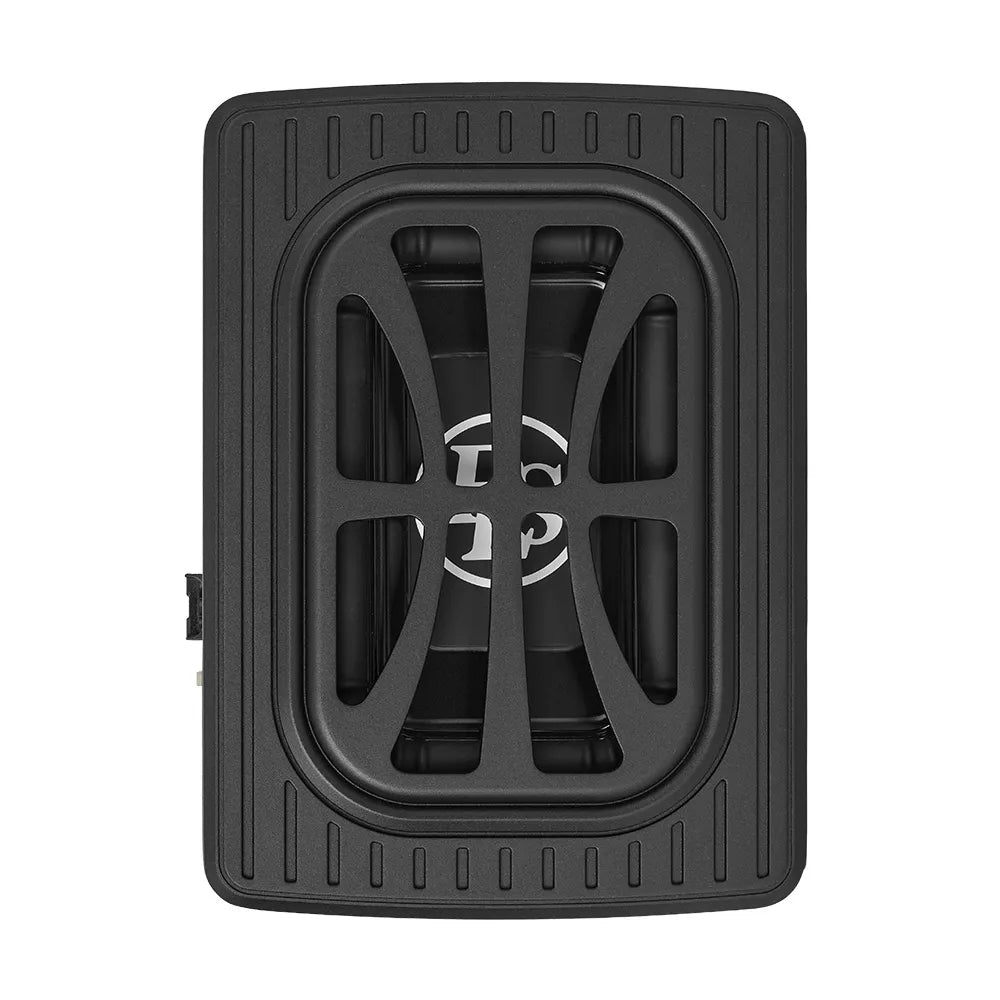

The DLS ACW68i is a low-profile 6x8" (150x200mm) active subwoofer with a sealed aluminium enclosure, rated at 120W RMS (250W max). It is built to deliver in the 50 to 120 Hz range.
Key features
Compact 6x8" driver with updated electronics and a smart installation concept
Kick Bass function boosts the 70 to 100 Hz region, a natural weak spot in cars caused by speaker placement and cabin acoustics

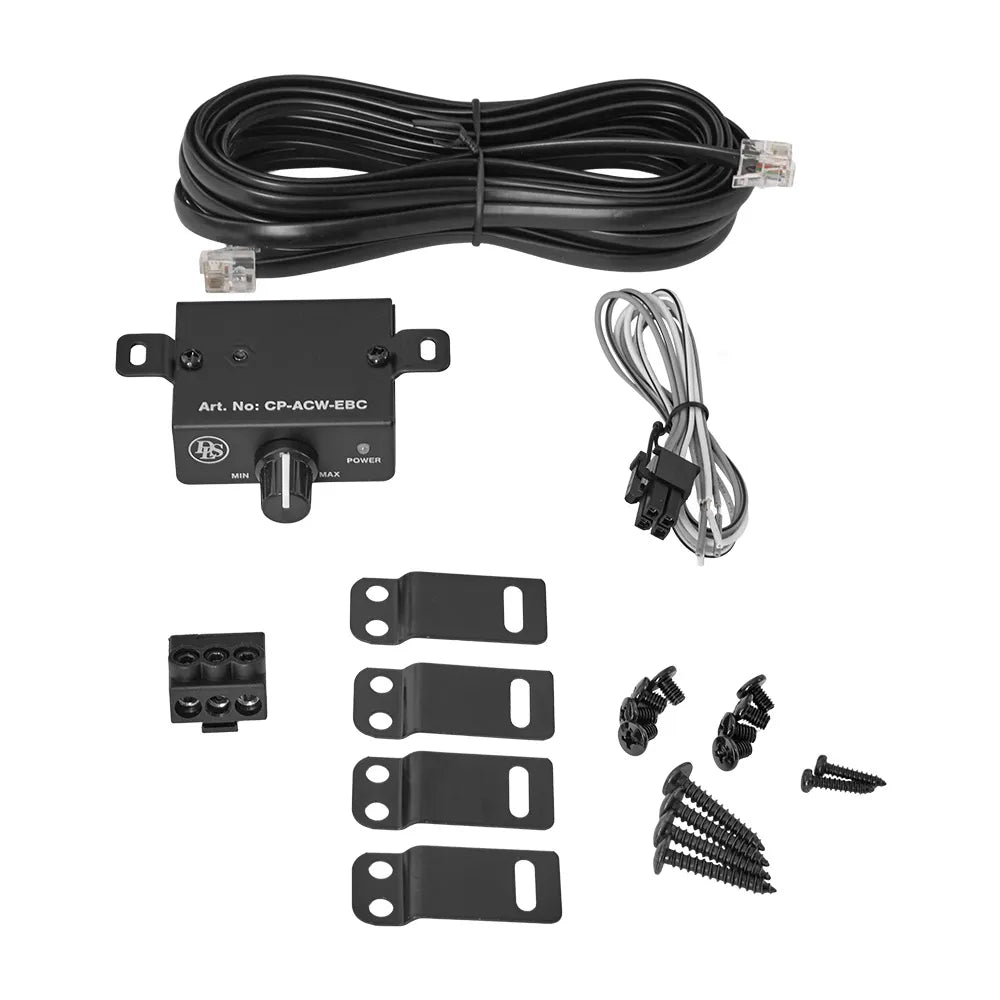

New quick-release connector: power, ground and remote wires snap in place in seconds, which suits tight spaces
High-level input with auto turn-on
Smart Load Circuit for compatibility with advanced vehicle electronics
Sealed aluminium enclosure, described as compact, rigid and quiet
Tuned for a natural peak in output; the high-Q design means less need for digital correction
Specifications
Size
6x8"/150x200mm
Power RMS
120W
Power MAX
250W
THD
Max < 0.4%
S/N ratio
> 95 dB
Frequency range
30 – 150 Hz
Input sensitivity
0.9-35V
Bass Optimize
-6 dB/+6 dB
Low pass filter
50 – 150 Hz
Subsonic filter
50 Hz @ 12 dB
Fuse rating
20A
Good to know
Can be used on its own or as part of a bigger system.
Can be fitted under a seat, under the dash, or as multiple units across the cabin.
For deeper low-end, pair it with a subwoofer such as the DLS PESB28.
