CX 1200W Monoblock Class D Subwoofer Amplifier

Overview

Experience power and performance with the CX 1200W Monoblock Class D Subwoofer Amplifier! This compact amp offers a high-grade circuit design, 1-ohm stability, and a variable bass boost for deep, rich sound.

Description

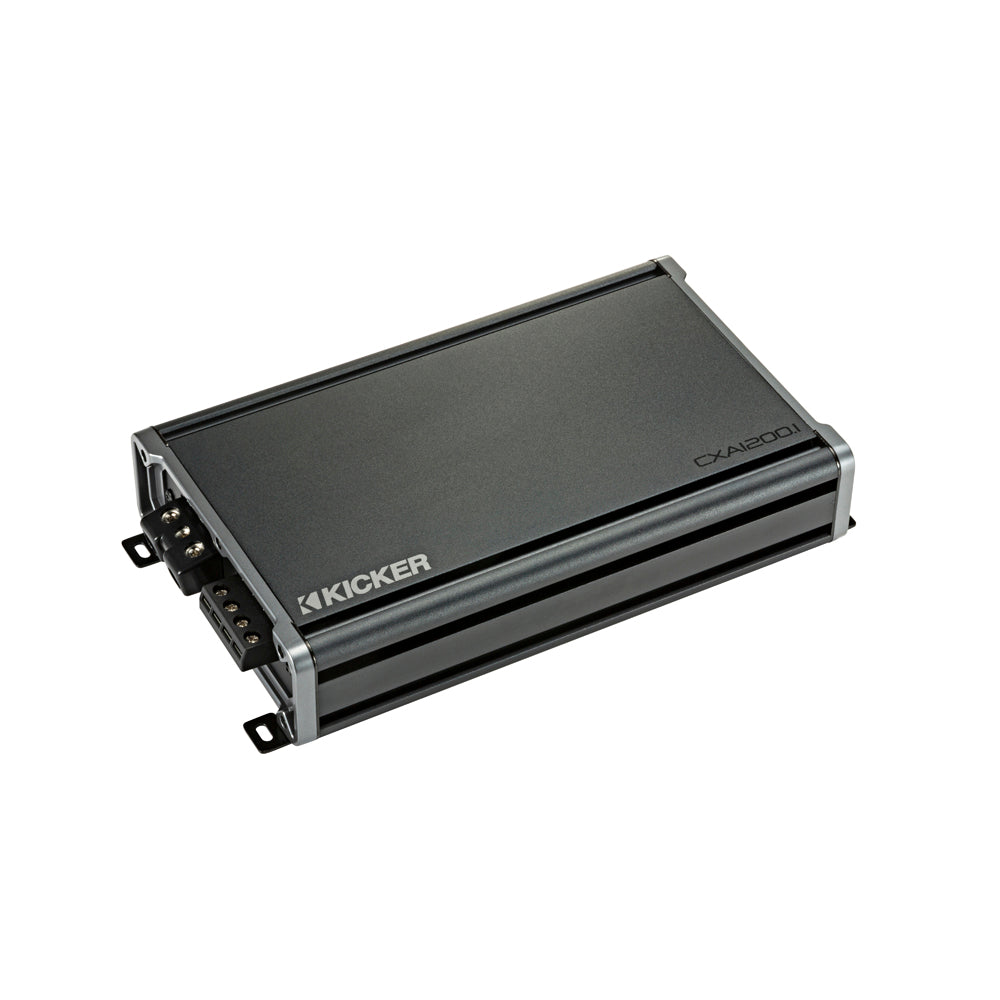

The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.

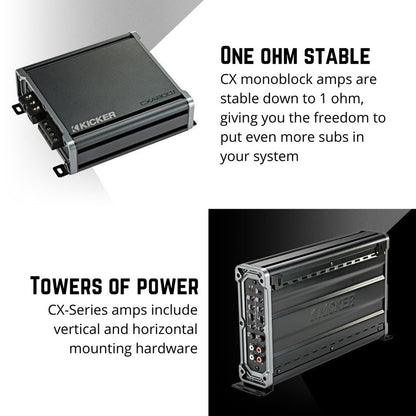

This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.

Power spec:

• 1200W x 1 @ 1Ω – 14.4V
• 1200W x 1 @ 2Ω – 14.4V
• 600W x 1 @ 4Ω – 14.4V

Features:

• Efficient Class-D amplifier
• Three-second turn-on/off delay to eliminate unwanted interference

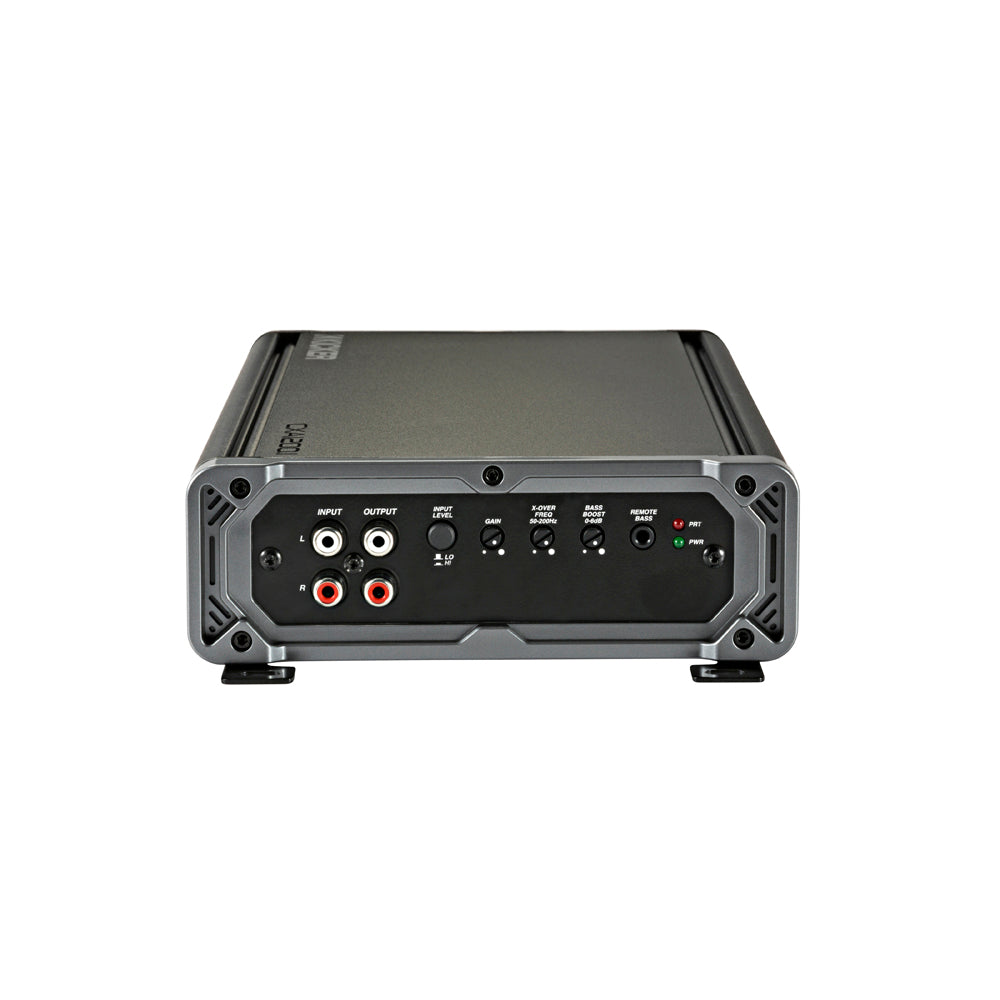

• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Compatible with CXARC Remote Bass Control
• Vertical mounting hardware included for another unique look

Specifications
