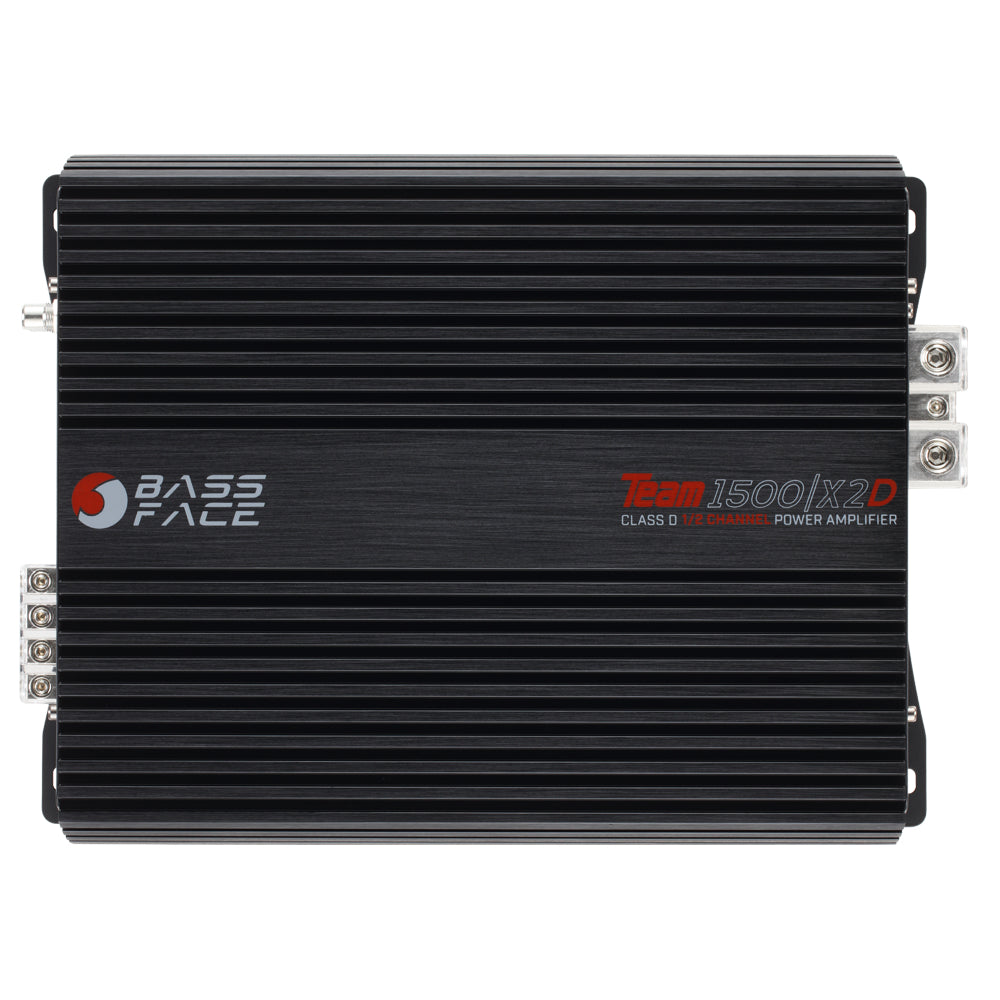

BASSFACE Team 1500/x2D Class D 2 Channel Full Range Amplifier 3000w RMS
BASSFACE Team 1500/x2D Class D 2 Channel Full Range Amplifier 3000w RMS
- RMS at 1Ω
- 2 × 1,500W
- Channels
- 2
- Class
- D
Regular price
£251.95
Regular price
£326.95
Sale price
£251.95
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
Description
Description
Product code: Team1500/x2D
These are no details spared high performance amplifiers using transformer class technology allowing for a compact design while offering huge power. Featuring a sleek satin finish the new Team Series delivers ultimate performance in an unbelievably compact package. Do not let the size of these amplifiers fool you – the current requirements for this level of output are considerable. Installation using the exactly correct cables, batteries and alternator is essential. The amplifiers offer wide crossover adjustments and will accommodate high power RCA and main voltage input. Top quality RCA terminals, power connections and speaker terminal blocks are standard, as is individual factory burn in per amplifier and QC stamp with serial number. The amplifiers are supplied in high quality packaging for protection, and come with printed instructions and comprehensive data sheets as well as having additional important information printed on the body of the units. Finally, output power is rated correctly - what you read is what you get - the Team Series offers stellar performance at an affordable price. This is a full range amplifier, ideal for either subwoofer or speaker use.
- Class D Transformer - Ultimate Power Full Range 2/1 Channel Amplifier
- Power Output 2x1500W RMS @ 1 Ohm Load
- Power Output 2x850W RMS @ 2 Ohm Load
- Power Output 2x420W RMS @ 4 Ohm Load
- 6.5V Stable RCA Inputs
- 50>20000Hz LPF / 15>1000Hz HPF Crossovers
- Minimum Power Supply 225A via 1x 0AWG Input
- 15>20000Hz Response / 85dB Signal To Noise Ratio
- 16.2V Capable Power Input
- Included Bass Remote & Cable
Specifications
Specifications
Power
- RMS at 4Ω
- 2 × 420W
- RMS at 2Ω
- 2 × 850W
- RMS at 1Ω
- 2 × 1,500W
- RMS at 4Ω bridged
- 1,500W
- RMS at 2Ω bridged
- 3,000W
- Class
- Class D Transformer
- Minimum load
- 1Ω stereo / 2Ω mono
Controls
- Low pass filter
- 50–10,000Hz, 12dB/oct
- High pass filter
- 5–1,000Hz, 12dB/oct
- Bass boost
- 0–12dB at 45Hz
- Input sensitivity
- 0.22–6.5V
Audio
- Frequency response
- 5–20,000Hz
- Signal to noise
- 85dB
- Channel separation
- 45dB
- Input impedance
- 20kΩ
Installation
- Maximum supply voltage
- 16.2V
- Internal fuse
- None
- Dimensions (L × W × H)
- 265 × 225 × 66mm
- Weight
- 4.12kg
RMS ratings are Bassface's figures at under 1% THD on a 14V supply.Specifications from Bassface , model TEAM1500/X2DFR.
