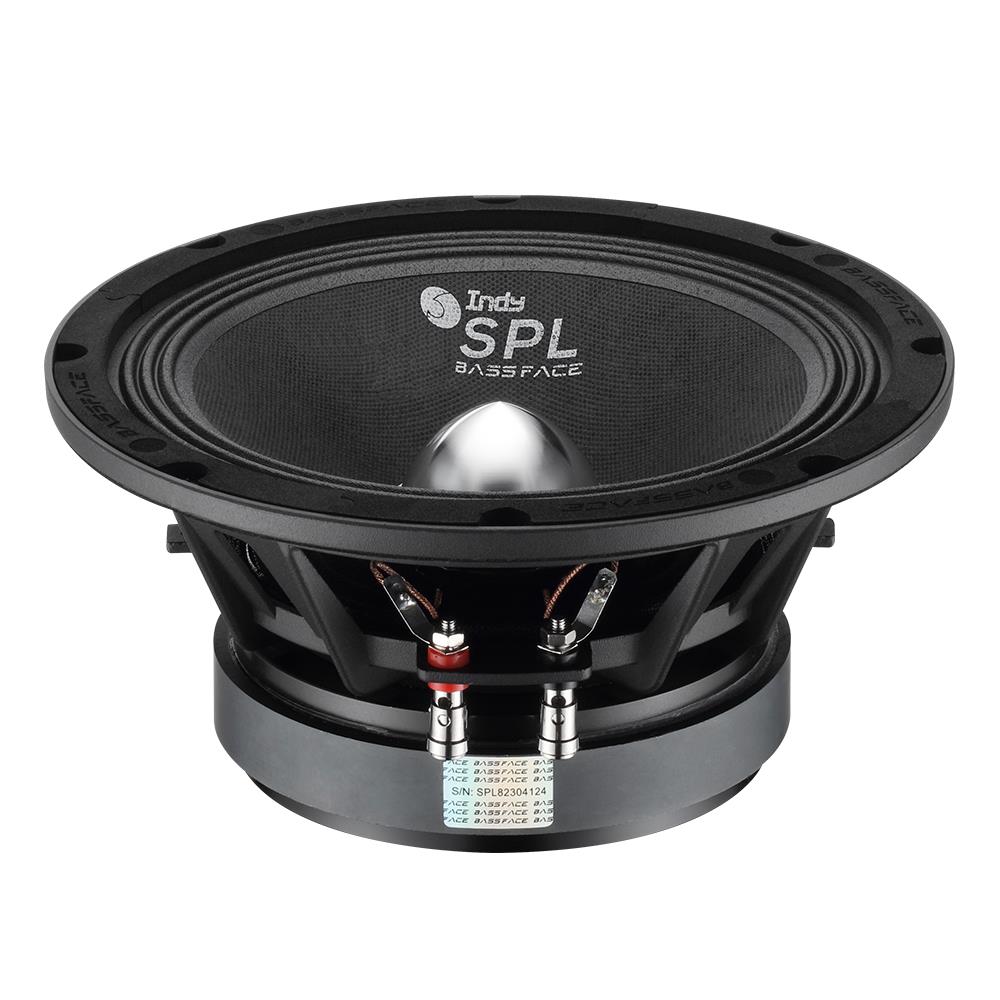

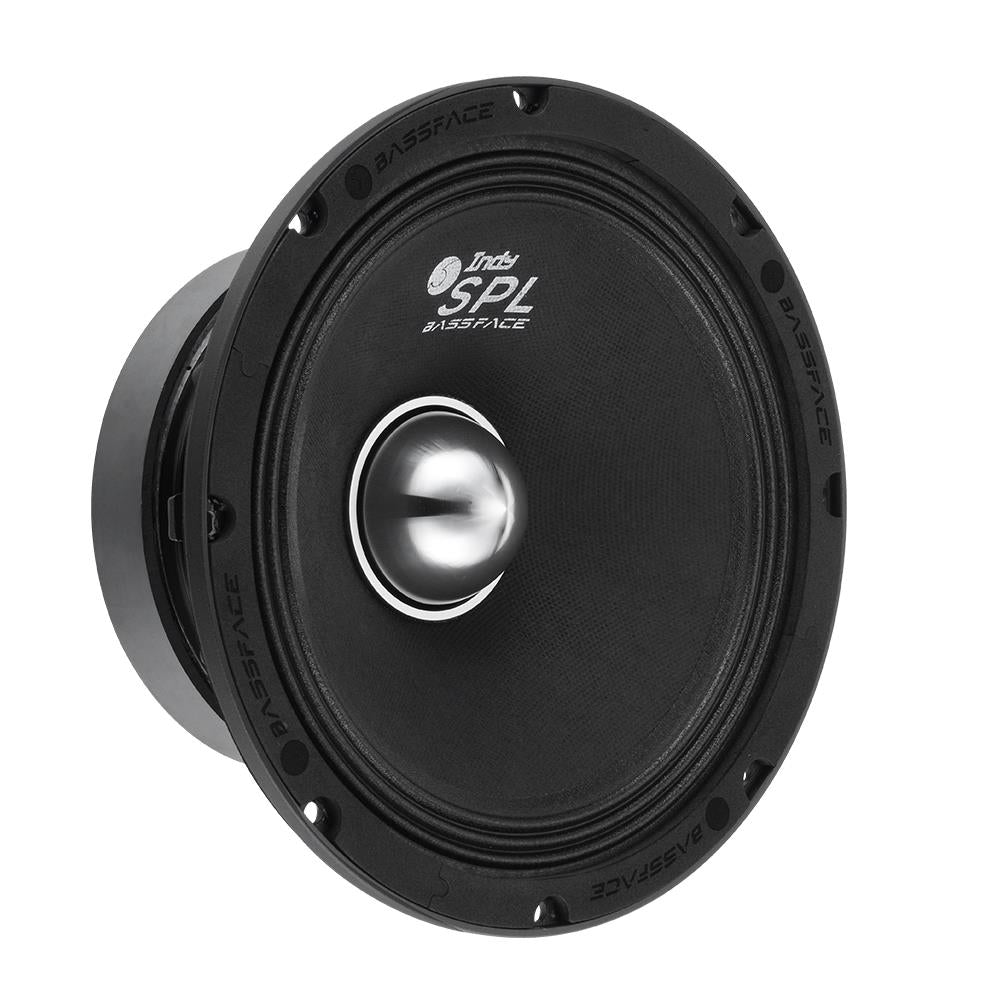

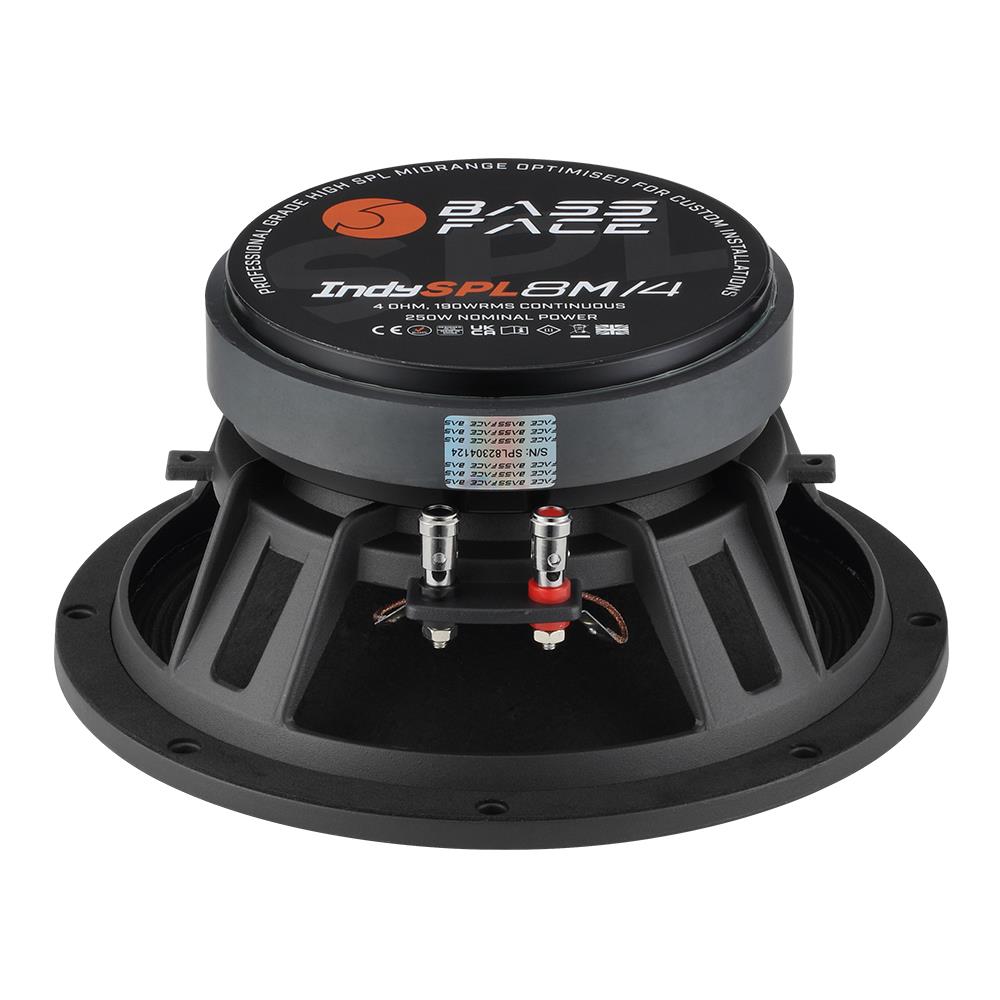

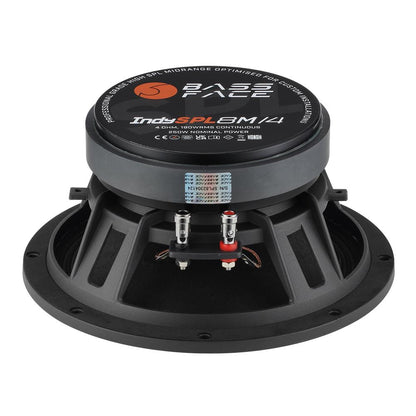

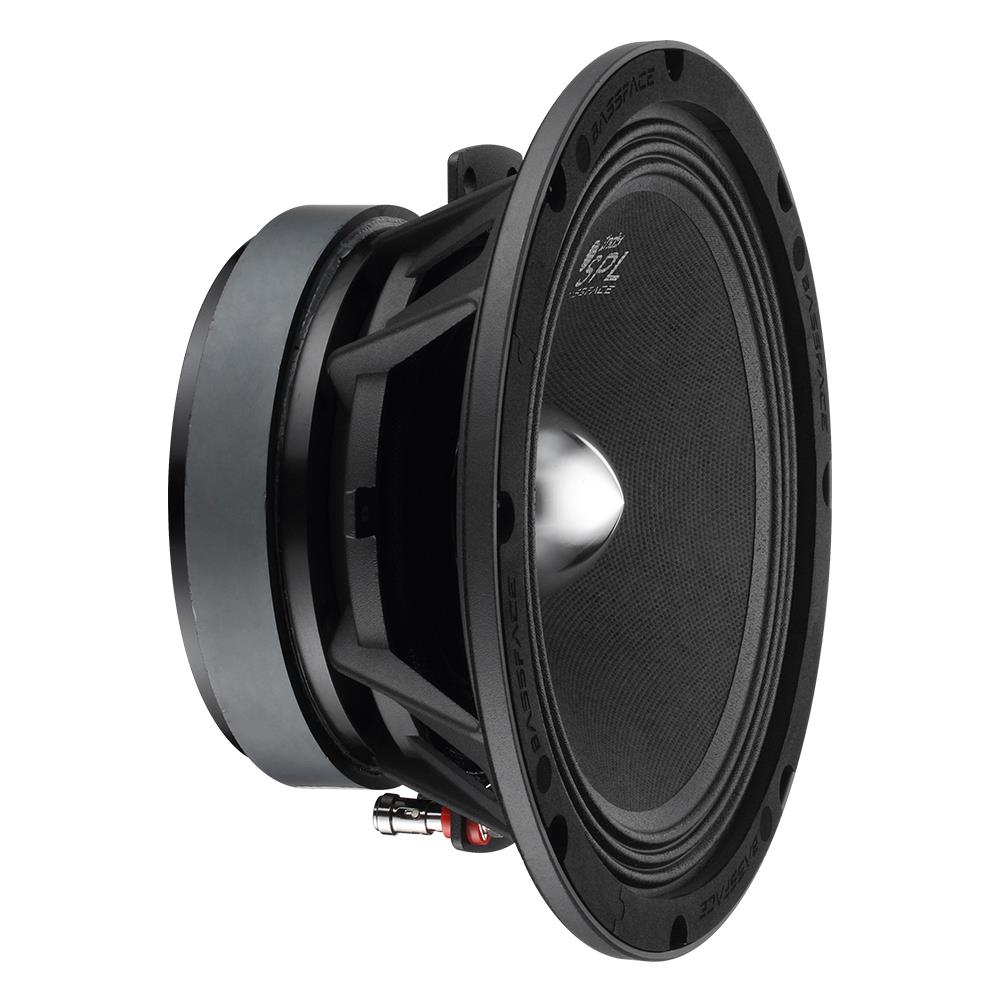

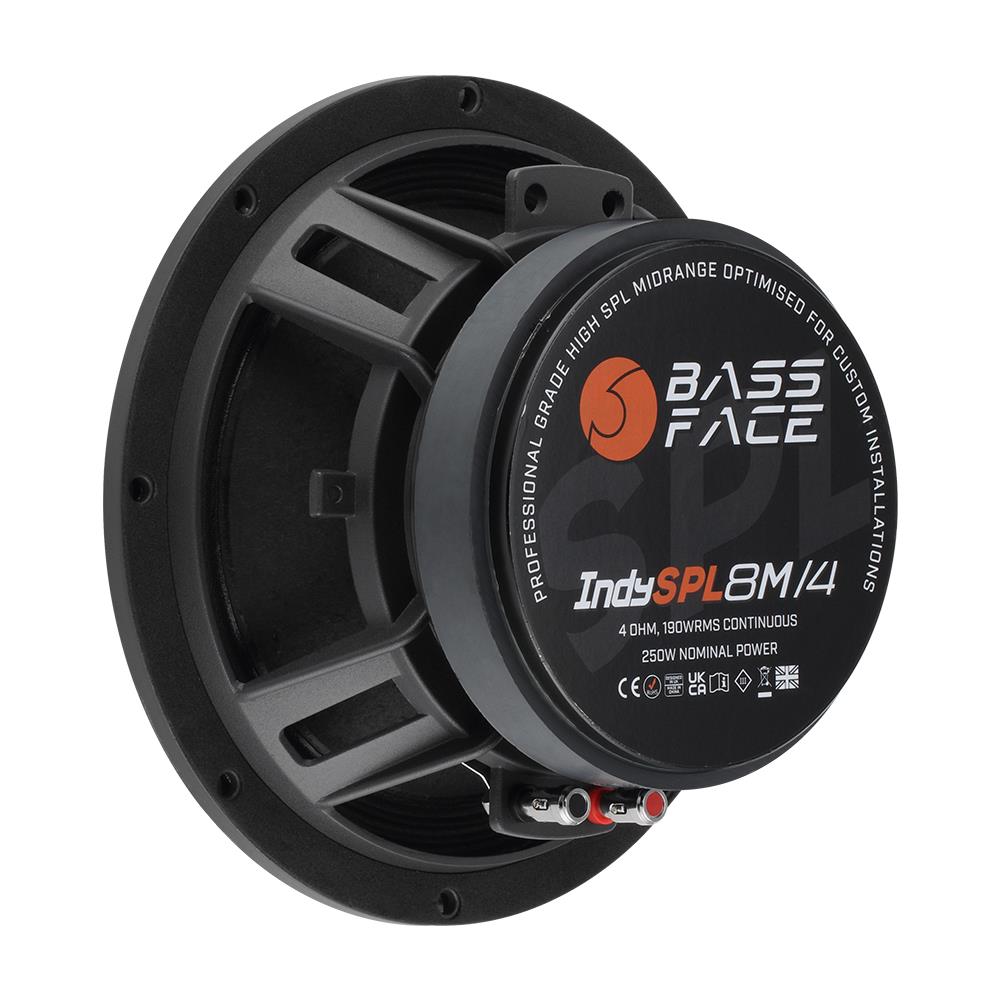

Bassface Indy SPL8M/4 8" 20cm 4Ohm 250w RMS Pro Audio/Car Midrange Speaker

Bassface Indy SPL8M/4 8" 20cm 4Ohm 250w RMS Pro Audio/Car Midrange Speaker

Size
8″
Impedance
4Ω
RMS power
250W
Sensitivity
96.5dB
Regular price £36.95
Regular price Sale price £36.95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Description

It's back! The legendary SPL series Bassface midrange - the midrange that launched our brand and made us famous in Europe! Now in this latest iteration with a slightly revised motor structure and tweaked response this speaker offers amazing on and off axis linearity from literally the low end right the way up and beyond where you should be using it! This offers totally unrivalled flexibility in system planning, allowing the installer to use the speaker in many situations. These are typically used in arrays along with some enormous tweeters to create a sound that hits you in the chest.

200mm / 8" High Performance 250w RMS Midrange Driver Lightweight Non Pressed Paper Cone & Triple Roll Cloth Surround 2" Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider High Strength Y35 Motor With 40 Oz Magnet Copper Shorting Ring For Smoother Load Response Carefully Selected Super Rigid Cast Basket Recommended Frequency Range: 120>1800 Hz CNC Machined Phase Plug Optimises Response Curve Full Documentation To Assist With Projects

Sold As:Single Height:23.00cm Width:23.00cm Length:12.50cm Weight:2710.00 grams Brand:Bassface Product condition:NEW Warranty length:12 Months Country of origin:CN

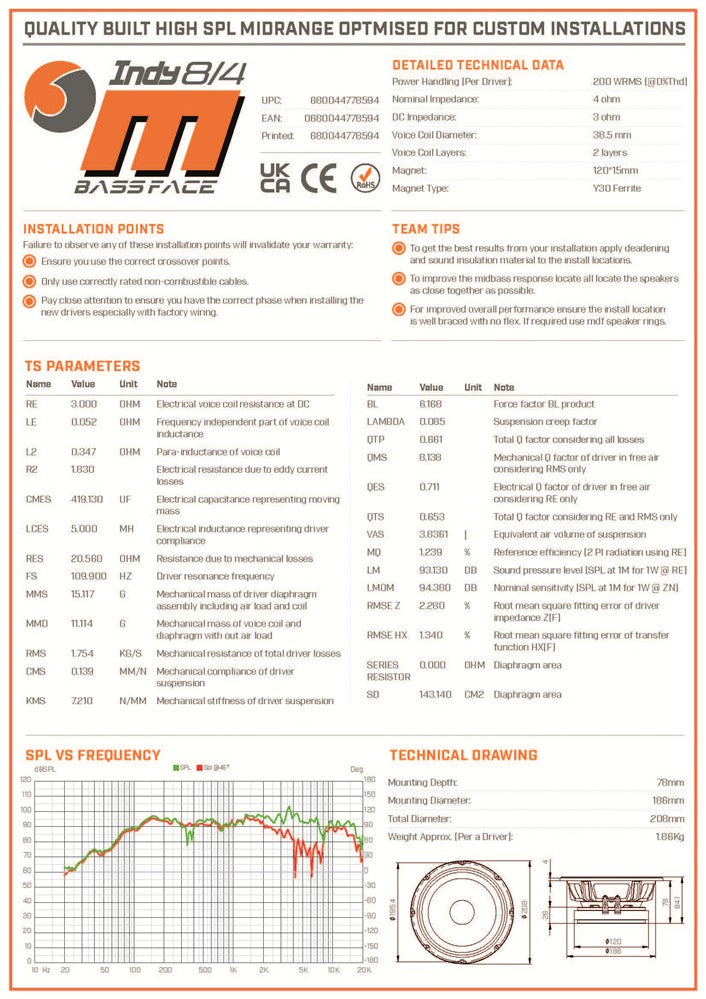

In The Box: 1 x Midrange Speaker 1 x Data Sheet 1 x Series Window Sticker 1 x Sealing Ring

Specifications

Performance

RMS power handling
250W
RMS power
190W
Impedance
4Ω
Sensitivity
96.5dB (1W/1m)
Frequency response
120–1,800Hz

Fitting

Overall diameter
210mm
Cut-out diameter
183mm
Mounting depth
91.5mm
Overall depth
98.5mm
Front protrusion
7mm
Magnet diameter
134mm
Weight
2.65kg

Construction

Voice coil
2″ (50.8mm), 2 layer CCA Round Wire, kapton former
Winding height
12mm
Cone
Non pressed paper
Surround
Triple roll cloth
Spider
Linear Single, medium compliance
Magnet
Y35, 134 × 20mm, 40oz
Plate thickness
8mm top, 8mm back
Terminals
Push

Specifications from Bassface , model INDYSPL8M/4.
