Bassface

Bassface - Indy M10/4 10" 25cm 4Ohm 250w RMS Wide Band Pro Audio/Car Midrange Speaker

Bassface - Indy M10/4 10" 25cm 4Ohm 250w RMS Wide Band Pro Audio/Car Midrange Speaker

Size
10″
Impedance
4Ω
RMS power
250W
Sensitivity
94.2dB
Regular price £36.95
Regular price Sale price £36.95
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Description

Indy M is a great sounding, high power midrange and midbass designed to slay the competition! Using custom designed coils and spiders tuned to each exact model we were able to develop for excellent reliability and performance while implementing measures to increase the frequency response. These are great for small or large door builds in the car or studio in a 2 way mid top box with an appropriate tweeter and crossover. The large high temperature voice coil with integrated Faraday ring on the VC is supported by a dual roll treated cloth surround and a heavy duty cloth spider. A dimpled textured surface to the cone acts to increase the effective piston area in turn moving more air, creating more SPL. For keen enthusiasts looking for a lightweight and accurate sounding speaker the Indy M offers musicality and tough mid bass performance. It also has excellent detailed documentation making it easy to set up and use, as well as allowing the construction of more advanced projects.

250mm / 10" High Performance 250w RMS Midrange Driver Lightweight Pressed Paper Cone & Dual Roll Cloth Surround 2" Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider High Strength Y30 Motor With 40 Oz Magnet Copper Shorting Ring For Smoother Load Response High End Super Rigid Steel Basket Recommended Frequency Range: 80>1500 Hz Full Documentation To Assist With Projects

IndyM10/4 Datasheet

Sold As:Single Height:27.70cm Width:27.70cm Length:12.50cm Weight:2900.00 grams Brand:Bassface Product condition:NEW Warranty length:12 Months Country of origin:CN

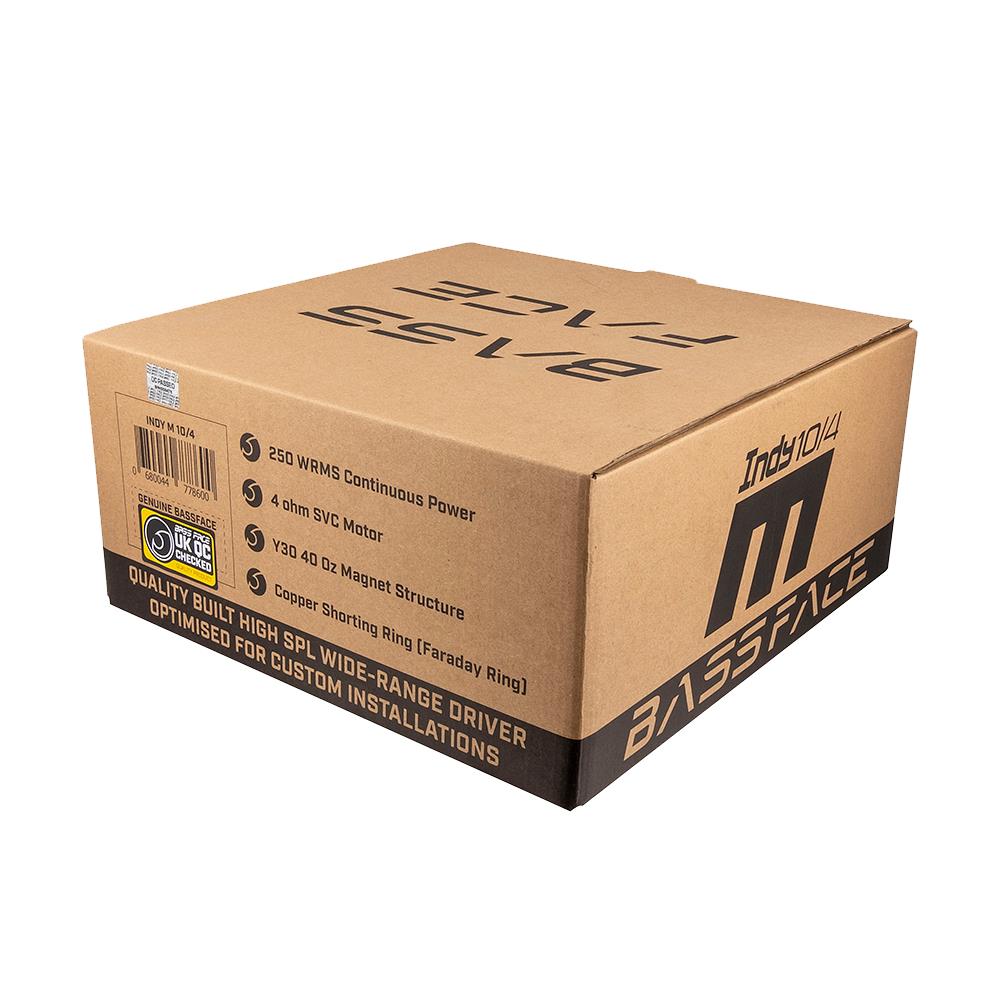

In The Box: 1 x Midrange Speaker 1 x Data Sheet 1 x Series Window Sticker

Specifications

Performance

RMS power
250W
Impedance
4Ω
Sensitivity
94.2dB (1W/1m)
Frequency response
80–1,500Hz

Fitting

Overall diameter
257mm
Cut-out diameter
230mm
Mounting depth
99mm
Overall depth
105mm
Front protrusion
6mm
Magnet diameter
134mm
Weight
2.20kg

Construction

Voice coil
2″ (50.8mm), 2 layer CCA Round Wire, kapton former
Winding height
9.8mm
Cone
Pressed paper
Surround
Dual roll cloth
Spider
Linear Single, medium compliance
Magnet
Y30, 145 × 25mm, 40oz
Plate thickness
6mm top, 8mm back

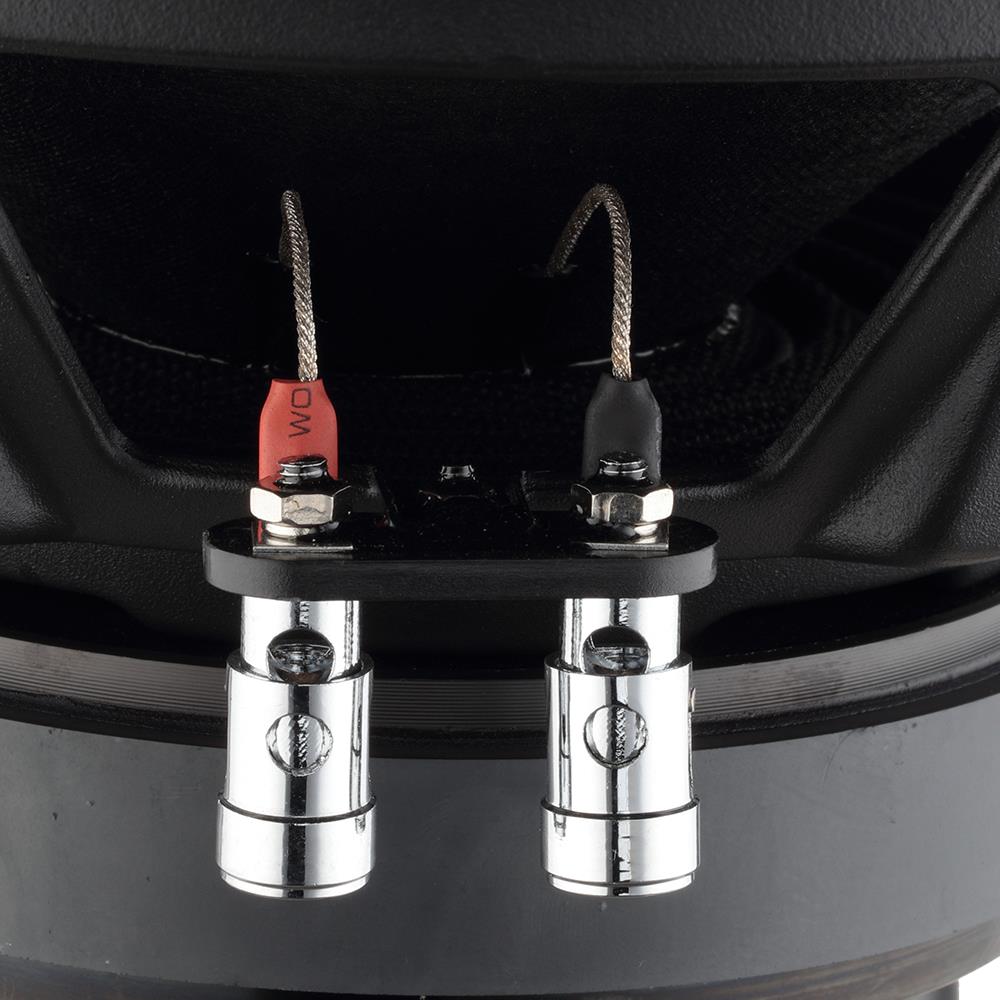

Terminals
Push

Specifications from Bassface , model INDYM10/4.
