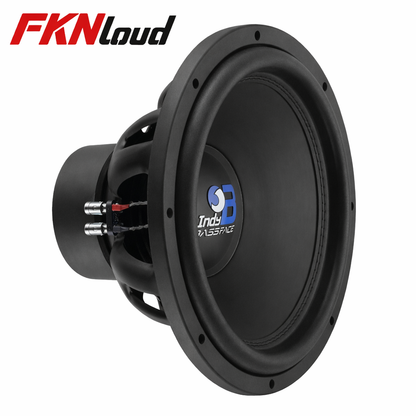

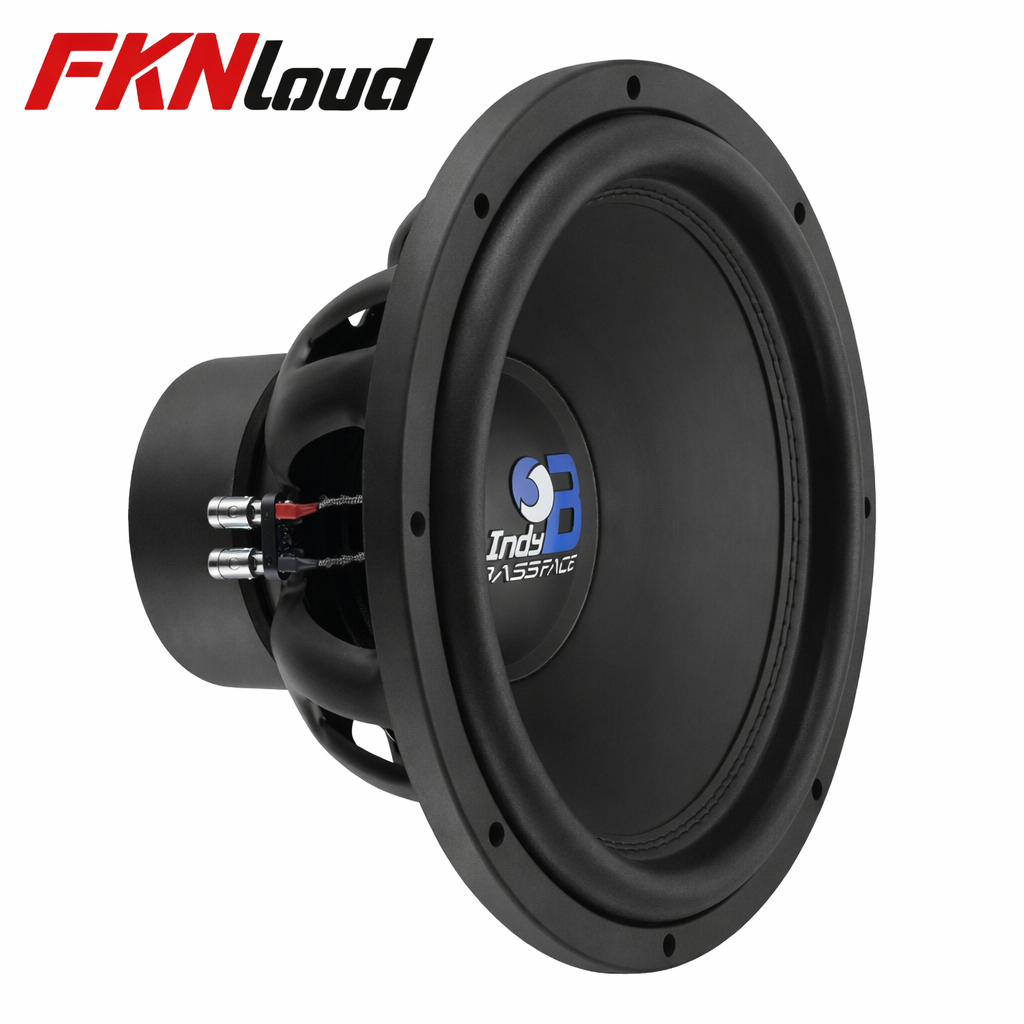

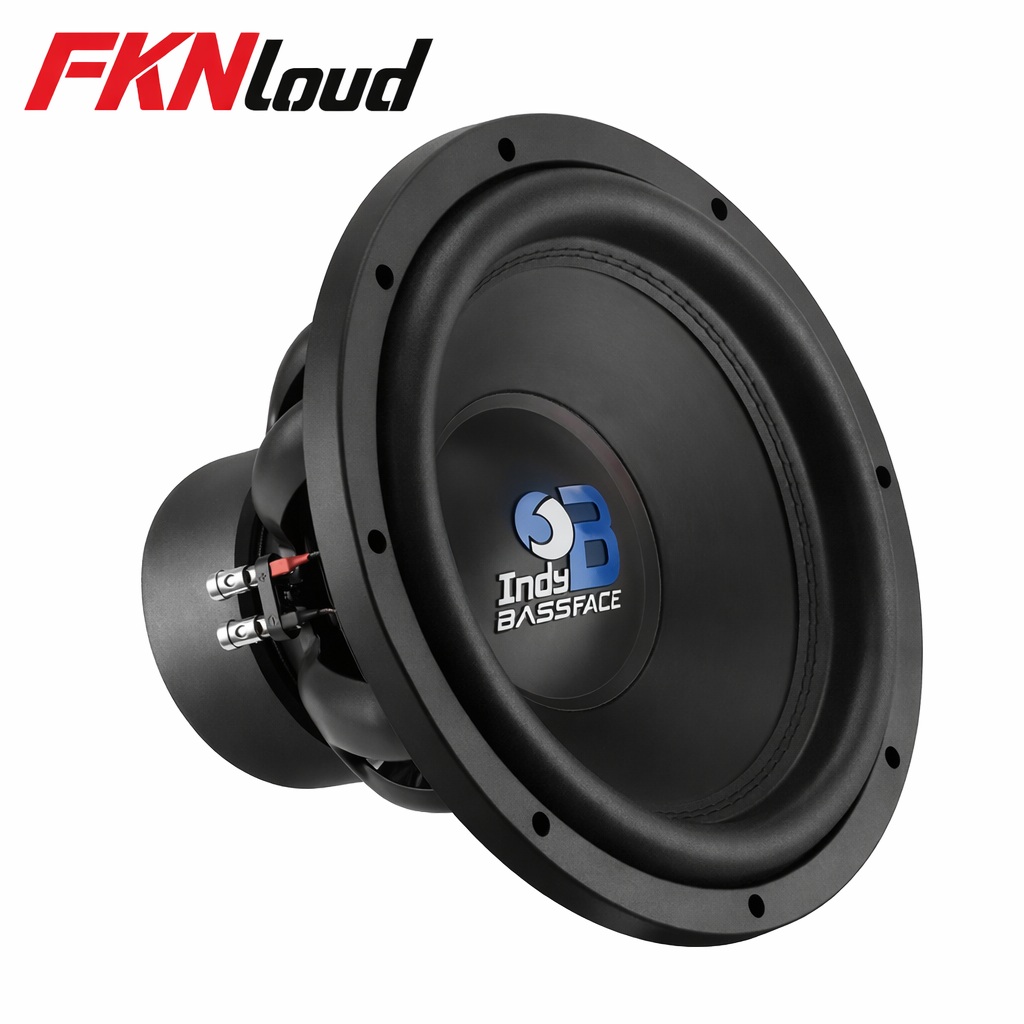

Bassface - Indy B15/2 15 inch 38cm 2x2Ohm DVC Deep Bass Subwoofer 600w RMS

Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 1200

Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 600

Overall Diameter (mm) 370

Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 162

Installation Cut-Out Diameter (mm) 357

Overall Depth (mm) 195

Mounting Depth (mm) 175

Front Protrusion From Mounting Plane (mm) 20

Recommended Frequency Range (Hz) 20>80

Impedance (Ohm) (Nominal) 2+2

Sensitivity (db/1Wm) 89.2

Total Magnet Weight (Oz) 104

Magnet Size (mm) 156*40

Magnet Type Y30

Magnet Qty 2

Top Plate thickness (mm) 10

Back Plate Thickness (mm) 8

Optimum Bass Enclosure Type Ported/Sealed

Recommended Bass Enclosure Volume (CuFt) 2.83-3.5

Recommended Bass Enclosure Tuning Frequency (Hz) 38

Voice Coil Former Spec Aluminium

Voice Coil Type Copper Round Wire

Voice Coil External Diameter (mm) 65.5

Voice Coil Internal Diameter (mm) 61.1

Voice Coil Winding Height (mm) 30

Voice Coil Winding (Layers) 4

Cone Type Pressed Paper

Spider Compliance Medium

Spider Type Progressive

Spider Diameter (mm) 195
