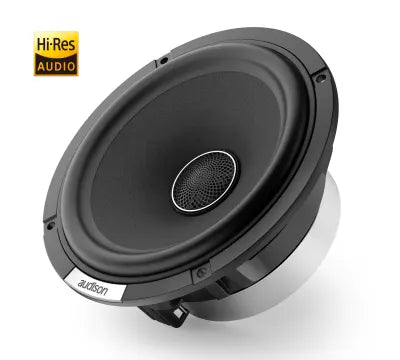

Audison Voce II - AVX 6.5 II

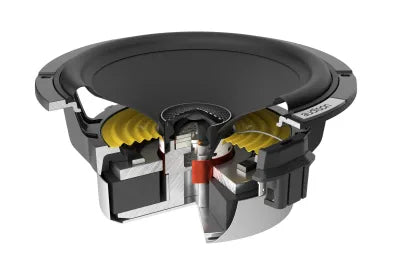

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-style connectors, enhancing integration and performance in any vehicle setup.

Technical Specifications

Woofer Size - 165 mm
Impedance - 4 Ohm
Minimum Impedance - 3.1 Ohm
Power Handling - Peak 240 W
Power Handling - Continuous - 120 W
Sensitivity - 91.5 dB
Frequency Response - 45 ÷ 40000
Voice Coil Diameter - 40 mm
Chassis Material - ALUMINIUM
Magnet Material - HIGH DENSITY FLUX FERRITE
Magnet Size - 100x45x18mm
Voice Coil Material - CCAW
Former Material - GLASS FIBER
Cone Material - SEMI-PRESSED PAPER
Surround Material - RUBBER
Flux Density - 0.84
Xmax - 4.95 mm
Xmech - 7.5 mm
Gap Height - 6 mm
Voice Coil Winding Height - 13 mm

Tweeter Size - 25mm
Impedance - 4 Ohm
Minimum Impedance - 3.7 Ohm
Program Power - 20 W
Aes Power Rating - 10 W
Sensitivity - 98 dB
Frequency Response - 1500 - 40000
Voice Coil Diameter - 25 mm
Voice Coil Material - CCAW
Former Material - ALUMINIUM
Dome Material - TELOTON FIBRE
Surround Material - TETOLON FIBRE
Magnet Material - NEODYMIUM
