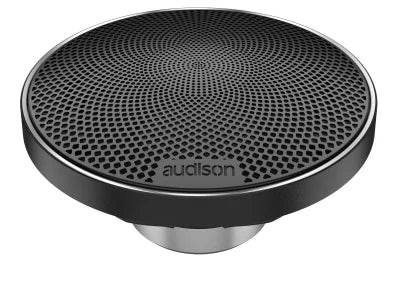

Audison Voce II - AV 3.0 II

The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.

Technical Specifications

Nominal diameter - 70 mm
Minimum Impedance - 3.2 Ohm
Power Handling - Peak - 100 W
Power Handling - Continuous - 50 W
Sensitivity - 90 dB
SPL measured at 2.83V/1m;
Frequency Response - 160 ÷ 13000 Hz (-6dB)
Voice Coil Ø - 26 mm
Chassis Material - ALUMINIUM
Magnet Material - NEODYMIUM
Voice Coil Material - CCAW
Former Material - GLASS FIBER
Cone Material - SEMI-PRESSED PAPER
Surround Material - RUBBER
Xmax - 1.4 mm
Xmech - 3.2 mm
Voice Coil Winding Height - 5.3 mm
Gap Height - 4.5 mm
Crossover name - no
