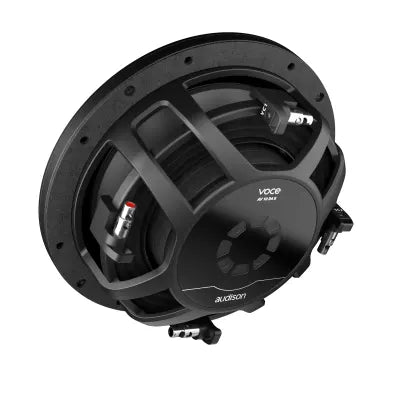

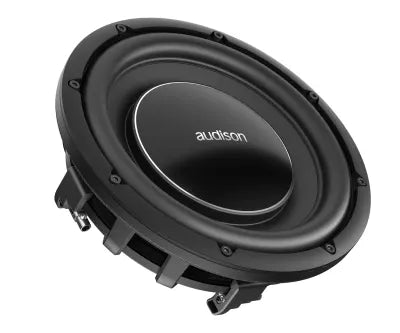

Audison Voce II - AV 12 D2 II

Born from the same engineering philosophy that defines the VOCE II line, the AV 12 D2 II subwoofer delivers deep, powerful and highly controlled bass in a compact sealed enclosure.Equipped with a 1.5-inch CCAW voice coil and a 550 W RMS-rated motor structure, it combines dynamic power with thermal stability, ensuring consistent performance even at high sound pressure levels. The die-cast aluminum basket integrates dual cable-routing hooks for clean installation, while the spring-loaded terminals support 8 AWG cables and fast connections.The FEM-optimized dust cap increases rigidity and damping, perfectly matching the refined design language of the VOCE II range. Engineered to perform at its best in 12–14 L sealed boxes, the AV 12 D2 II is ideal for space-limited setups where sound quality is never a compromise.With its dual 2-ohm configuration, it offers maximum system flexibility and seamless integration into high-end audio systems. Precision, power and elegance, this is how VOCE II speaks the language of low frequencies.

Technical Specifications

Nominal diameter
300 mm (12 in)

Impedance
2+2 Ohm

Power Handling - Peak
1100 W

Power Handling - Continuous
550 W

Sensitivity
85 dB

Frequency Response
25 - 400 Hz

Voice Coil Ø
38.6 mm (1.5 in)

Chassis Material
ALUMINIUM

Magnet Material
HIGH DENSITY FLUX FERRITE

Magnet size D x d x h
156*60*34 mm (in.)

Voice Coil Material
CCAW

Former Material
GLASS FIBER

Cone Material
POLYPROPYLENE

Xmax
16.8 mm (0.66 in)

Xmech
20 mm (0.79 in)

Voice Coil Winding Height
37 mm (1.46 in)

Gap Height
7 mm (0.28 in)

Driver Displacement Volume
0.9 l (0.032 ft)

Recommended Enclosure
27.1 l (0.957 ft)

Recommended Tuning
26.5 Hz
