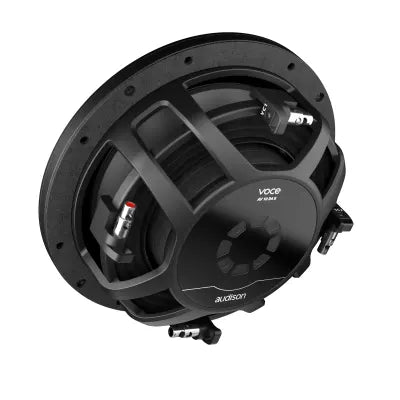

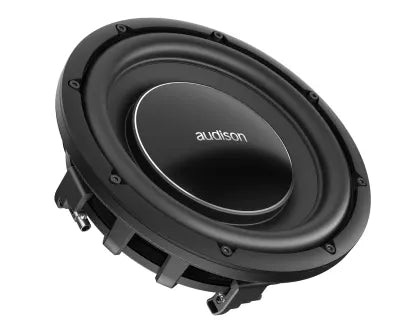

Audison Voce II - AV 10 D4 II

Compact in size, uncompromising in performance. The AV 10 D4 II is the 10-inch subwoofer of the VOCE II line, designed to deliver fast, impactful and finely controlled bass within reduced enclosure volumes.Its dual 4-ohm voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW voice coil and FEM-optimized magnetic structure ensure precise response and excellent thermal stability, even during demanding playback.Despite its compact footprint, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical strength, an extended-profile dust cap for enhanced damping, and the proprietary Airflow Venting Cooling system for continuous heat dissipation.Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), it offers deep, controlled bass response even in space-limited setups, making it an ideal choice for refined systems where detail and dynamics must coexist in perfect balance. Every element reflects the VOCE II philosophy: precision engineering, signature low-frequency response, and unmistakable Italian design.

Technical Specifications

Nominal diameter
250 mm (10 in)

Impedance
4+4 Ohm

Power Handling - Peak
1100 W

Power Handling - Continuous
550 W

Sensitivity
83.5 dB

Frequency Response
25 - 400 Hz

Voice Coil Ø
38.6 mm (1.5 in)

Chassis Material
ALUMINIUM

Magnet Material
HIGH DENSITY FLUX FERRITE

Magnet size D x d x h
134*55*36 mm (in.)

Voice Coil Material
CCAW

Former Material
GLASS FIBER

Cone Material
POLYPROPYLENE

Xmax
16.8 mm (0.66 in)

Xmech
20 mm (0.79 in)

Voice Coil Winding Height
37 mm (1.46 in)

Gap Height
7 mm (0.28 in)
