Audison

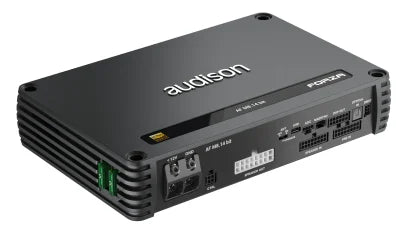

Audison Forza AF M8.14 bit
Audison Forza AF M8.14 bit
Regular price
£1,299.99 GBP
Regular price
Sale price
£1,299.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Clever engineering has facilitated a beefier version o Forza amplifiers. Now featuring 8 X 90 watts or a massive 8 X 140 Watts into 2 ohms, this beast remains unfeasibly compact and contains a high-spec 96kHz 24bit DSP with 14 outputs. Eight of these are assigned to the high power outputs of the amplifier, while a further six can be fed to additional amplifiers. The DSP gives installers various set-up tools to ensure you get exactly the sound you desire without compromise.
Class: D-Class
Power supply voltage / fuse: 11 - 15 VDC / 2 x 30A
Operating power supply voltage: 6.5 - 17.5 VDC
Idling current: 1.5 A
Standby Current Draw: 1.7 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
Remote IN: 4 - 15 VDC (1 mA)
Remote OUT: 6.5 -15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
Efficiency Rated Power: 82%
Technical Specifications
Channels: 8Class: D-Class
Power supply voltage / fuse: 11 - 15 VDC / 2 x 30A
Operating power supply voltage: 6.5 - 17.5 VDC
Idling current: 1.5 A
Standby Current Draw: 1.7 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
Remote IN: 4 - 15 VDC (1 mA)
Remote OUT: 6.5 -15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
Efficiency Rated Power: 82%
