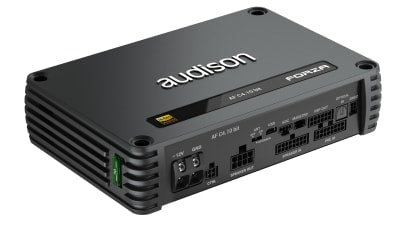

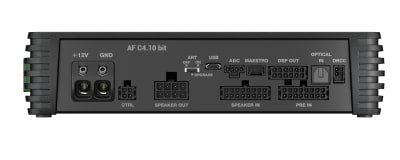

Audison Forza AF C4.10 bit

Four amplified channels (4 x 90w into 4ohms) along with six further pre outs mean this 10-channel can be configured to offer the benefits of built-in DSP to a much larger system. With full bridging available, the flexibility of this mini-beast is astonishing! New generation software for adjusting parameters of the DSP plus built in audio analysis (acoustic RTA) means the entire set up can take place without the need for external equipment. This makes the installers job easier.

Technical Specifications

Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS 95
S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input 105
Input sensitivity Pre-In 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS (5 Ω Imp.)
Total Power RMS 600 W
Minimum load impedance 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD 4 Ch @ 4Ω: 90 W x 4
4 Ch @ 2Ω: 150 W x 4
2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
Dimension 200 mm x 134 mm x 47 mm
