Aerpro

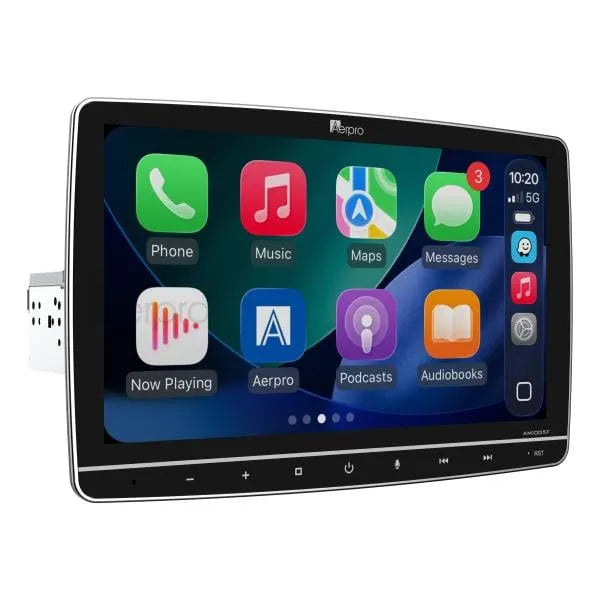

Aerpro AM1005F 10.1" Floating multimedia receiver with wireless apple carplay & android auto
Aerpro AM1005F 10.1" Floating multimedia receiver with wireless apple carplay & android auto
Regular price
£454.95 GBP
Regular price
Sale price
£454.95 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Aerpro AM1005F is a 10.1" floating multimedia receiver in a single DIN chassis, with wireless and wired Apple CarPlay and Android Auto. It has a 10.1" capacitive touchscreen, dual camera inputs and 4 x 50 W max output.
Key features
- 10.1" floating capacitive touchscreen, 1024 x 600, that is easy to see and intuitive to control
- Adjustable display (tilt / swivel / height): manual tilt of ±25°, swivel of ±15° and height adjustment of ±45mm to suit your driving position and minimise glare
- Wireless and wired Apple CarPlay and Android Auto for maps, navigation, music, calls and messages, using voice commands or the touchscreen. Wireless means no need to plug in your phone
- Bluetooth hands-free calling and wireless audio streaming
- Dual camera inputs, compatible with AHD 720P cameras, for reverse, towing, front or side views (cameras sold separately)
- Audio tuning: 4 x 50 W max output, 6-channel 4 V RCA pre-outs, 10-band graphic EQ, time alignment and dedicated subwoofer level control
- USB media playback: play music, videos and photos directly from a USB drive. Two rear USB inputs support smartphone integration and media playback
- Touch controls with seven control buttons and six-colour key illumination (with animation effects) that you can customise to match your interior
- Universal single DIN chassis for a wide range of vehicles; additional accessories may be required
- ISO harness connection and steering wheel control readiness
- Includes a GPS receiver to improve navigation accuracy with CarPlay or Android Auto, and an external microphone for clear voice communication
Specifications
| Screen size | 10.1" |
|---|---|
| Resolution | 1024x600 |
| Screen adjustment | Tilt: ±25 degrees, swivel: ±15 degrees, height: ±45mm |
| OS system | Linux |
| DIN size | 1 DIN body (single DIN) |
| Power output | 4CH x 50 W (4 ohm) max power |
| Media playback | MP3 / MP4 / MKV / FLAC / Xvid |
| USB1 (rear) | Apple CarPlay / Android Auto with charging function (5V / 1.5 A) |
| USB2 (rear) | Media with charging function (5V / 1.5 A) |
| USB max capability | FAT32, 32GB |
| Rear A/V input | RCA type, 3 pcs |
| Composite video output | Yes |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Smartphone connectivity | CarPlay & Android Auto (wireless and wired) |
| Bluetooth | Built-in (A2DP, AVRCP, HFP, PBAP) |
| Bluetooth version | V4.2+EDR |
| HFP profile | HFP 1.6 |
| Microphone | External microphone |
| ID3 tag information (artist, album, song) | Yes |
| Tuner presets | AM: 10 / FM: 10 |
| FM frequency span | 87.5-108.0MHz (0.05MHz step) |
| AM frequency span | 522-1710kHz (9kHz step) |
| RDS | Yes |
| RCA pre-amp output | 2-pair (front / rear) |
| Dual subwoofer RCA output | Yes |
| Subwoofer level control | Yes |
| Pre-amp voltage | 4V p-p |
| Tone control (10-band) | 32 / 63 / 125 / 250 / 500 / 1K / 2K / 4K / 8K / 16K |
| Loudness | Yes |
| LPF frequencies (sub) | Yes |
| Preset EQs | 6 |
| Time alignment | Yes |
| Steering wheel control | Yes, with Aerpro SWC adaptor (sold separately) |
| OSD language | English |
| LED colour (buttons / keys) | 6-colour options (red, yellow, green, blue, purple, white) |
What's included
- Main unit with detachable display
- Single DIN metal frame and hardware
- Wiring harness with ISO connection
- 3 wire learning SWC lead
- External microphone with mount
- GPS antenna with adhesive pad
- QR digital manual leaflet
Good to know
- Cameras are sold separately.
- Additional vehicle-specific parts are required for integration and are sold separately.
- Steering wheel control: yes, with the Aerpro SWC adaptor (sold separately).
