Audison Voce II - AVK 6 P II

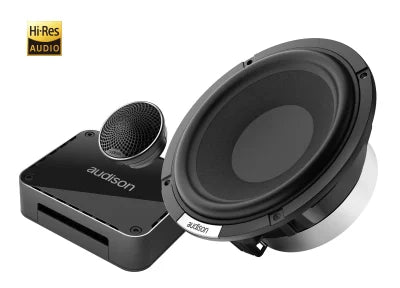

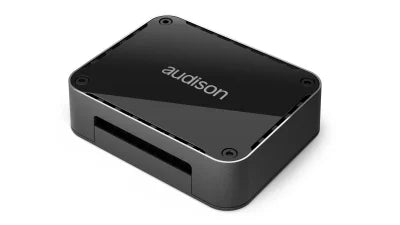

The Audison VOCE II AVK 6 P II system is meticulously engineered to deliver dynamic and powerful audio performance. Integrating the AV 1.1 II Hi-Res Tweeter and the robust AV 6.5 P II Mid-Bass Component, this setup offers exceptional power handling up to 150W RMS, thanks to the 40 mm CCAW voice coil. The included AVCX 2P TW passive crossover is crafted from high-quality components, providing extensive tone controls and bi-amplification support for precise sound customization. Installation is facilitated by OEM-style and Faston connectors, making it adaptable to any vehicle setup.

Technical Specifications

Woofer Siz - 165 mm
Impedance - 4 Ohm
Power Handling - Peak - 300 W
Power Handling - Continuous 150 W
Frequency Response - 45 - 7500 Hz (-6dB)
Voice Coil Diameter - 40 mm
Magnet Material - HIGH DENSITY FLUX FERRITE
Magnet Size 100x45x18mm
Cone Material - SEMI-PRESSED PAPER

Crossover Type - Two Way Passive Crossover (Woofer Full/6dB Oct., Tweeter - 12dB/Oct.)
Crossover Level Adjustment - High Frequency Contour, Mid Frequency Contour, Bi-Amping, Hi Boost, Tweeter Level

Tweeter Size 28mm
Frequency Response - 1000 - 40000 Hz
Comply with HiRes Audio JAS, testing condition IEC 60268-5
Power Handling - Peak 180 W
Hi-Pass filtered @ 1,8 kHz - 12dB Oct.
Voice Coil Diameter - 28 mm
Dome Material - TELOTON FIBRE
