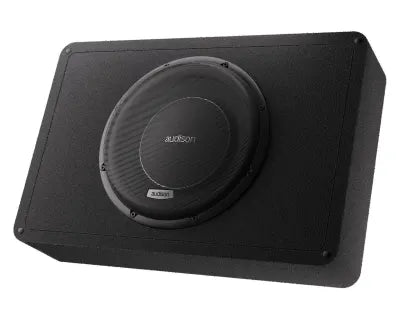

Audison Voce II - AVBX 12 D4 II

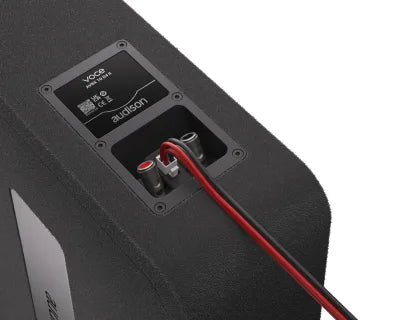

AVBX 12 D4 IISubwoofer Box 1. Ultra-shallow sealed enclosureEngineered to maximize performance in minimal space, providing tight, articulate bass response while preserving valuable vehicle storage volume.2. High-density 15 mm wooden construction with internal bracingBuilt using robust MDF panels and strategic internal bracing, ensuring maximum structural rigidity and suppressing unwanted resonances for clean low-frequency output.3. 2S² dual-orientation architectureAllows both Down-Firing and Up-Firing installation, offering installation flexibility depending on acoustic goals and available space.4. Sub Smart Plug (SSP) terminal with Plug-&-Play and push connectorsCombines quick-disconnect functionality with traditional push terminals, enabling secure, efficient wiring and hassle-free maintenance.5. Acoustic design matched to VOCE II subwoofersPrecisely tuned internal volume and damping ensure perfect integration with AV 12 D4 II driver for seamless low-frequency performance.6. Space-efficient footprint for OEM integrationDesigned to fit effortlessly in a wide range of vehicles, offering an OEM-friendly solution for discreet yet high-performance bass enhancement.7. Refined, minimalist styling consistent with VOCE II design languageCombines functionality with elegance, matching the VOCE II speaker aesthetic for a cohesive system appearance.8. Rigid enclosure damping for accurate transient responseMinimizes box resonances and coloration, ensuring accurate reproduction of kick drums, basslines and low-frequency effects with minimal distortion.9. High-current connectivity supportDesigned to accommodate high-gauge wiring for powerful system configurations without electrical bottlenecks.10. eID TechnologyIntegrated Elettromedia eID system allows product registration, technical documentation access and extended warranty activation.

Technical Specifications

Nominal diameter
300 mm

Impedance
2 Ohm

Power Handling - Peak
1100 W

Power Handling - Continuous
550 W

Sensitivity
84.5 dB

Frequency Response
25-400 Hz

Chassis Material
ALUMINIUM

Magnet Material
HIGH DENSITY FLUX FERRITE

Voice Coil Material
CCAW

Former Material
GLASS FIBER

Cone Material
POLYPROPYLENE WITH MICA INJECTION

Surround Material
RUBBER

Xmax
16.8 mm

Xmech
20 mm

Voice Coil Winding Height
37 mm

Gap Height
7 mm

Driver Displacement Volume
0.9 l

Enclosure dimensions

Length
607 mm
Width
401 mm
Height inc Feet
175 mm
